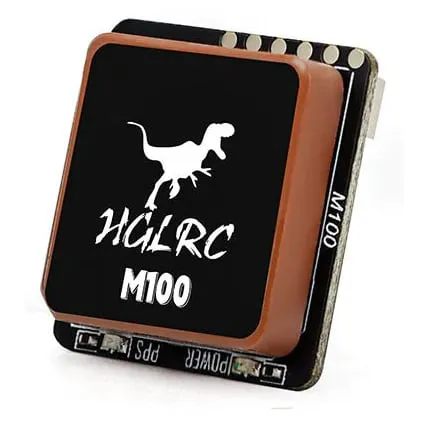

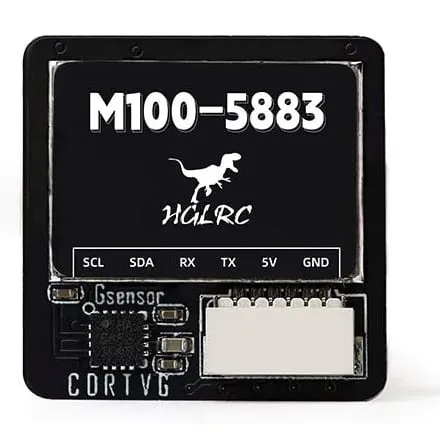

HGLRC M100 Pro GPS with Compass

The HGLRC M100 Pro is a 10th-generation GPS module with an integrated QMC5883 compass, tailored for 3-inch to 5-inch FPV drones. Utilizing the u-blox M10 chipset, it tracks multiple GNSS constellations concurrently, delivering significantly faster satellite acquisition and higher positional accuracy than legacy M8N modules.

Key features

• u-blox M10050 positioning engine supporting GPS, GLONASS, Galileo, and BeiDou concurrently

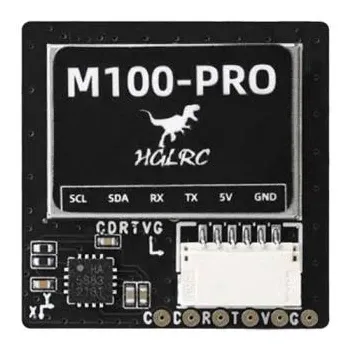

• Integrated QMC5883 magnetometer for accurate heading data in INAV, ArduPilot, and Betaflight Return-to-Home

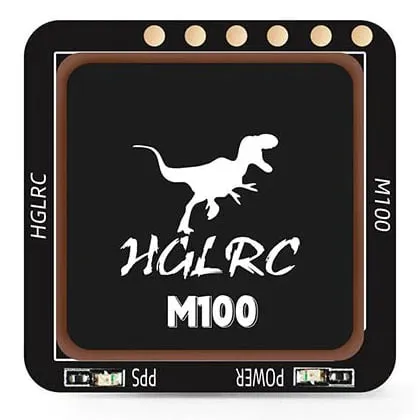

• Built-in ceramic patch antenna for consistent signal lock

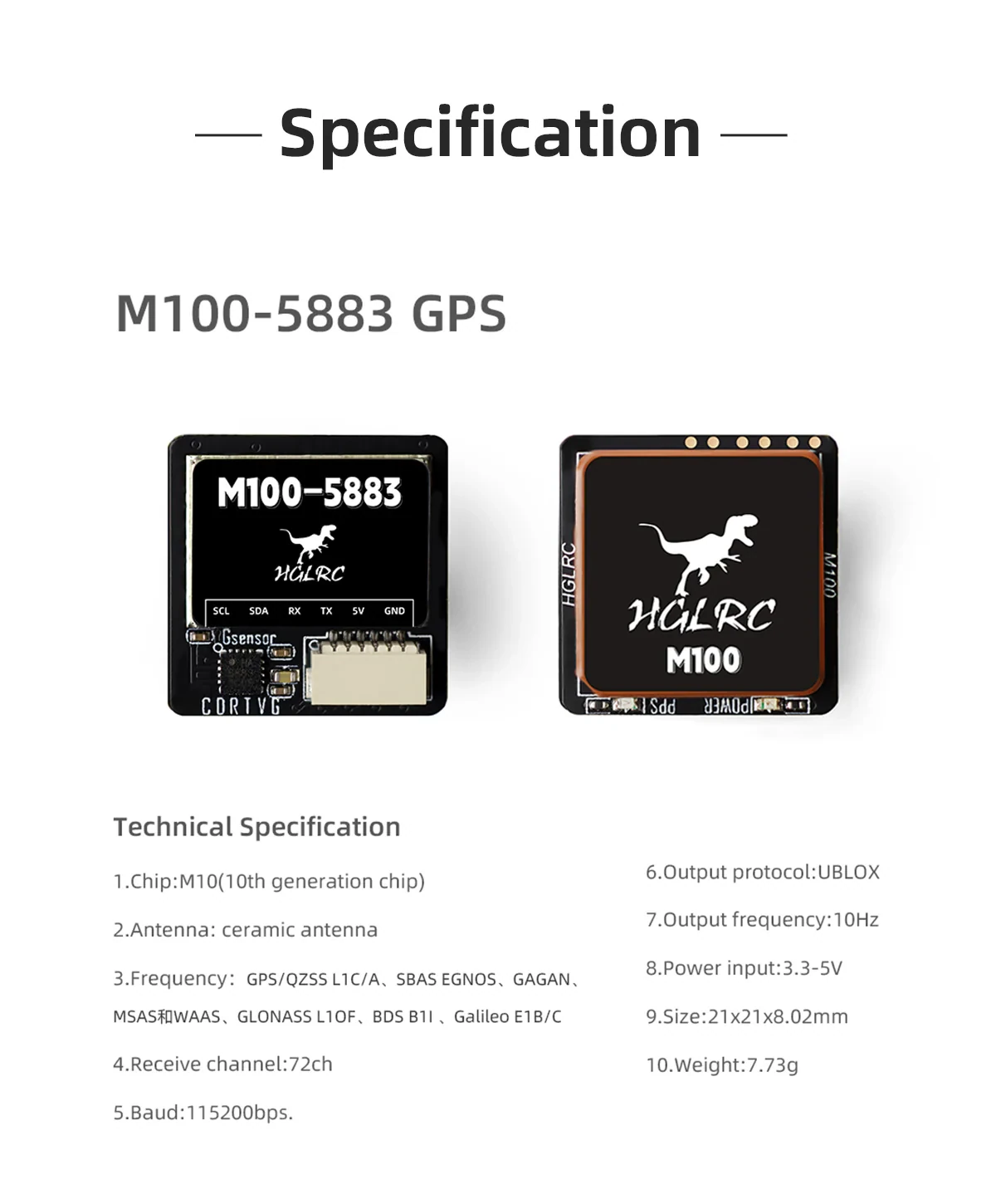

Specifications

• GNSS Chipset: u-blox M10050

• Compass: QMC5883

• Supported Constellations: GPS, GLONASS, Galileo, BeiDou

• Input Voltage: 5V

• Baud Rate: 115200 bps

• Output Protocol: UBLOX / NMEA

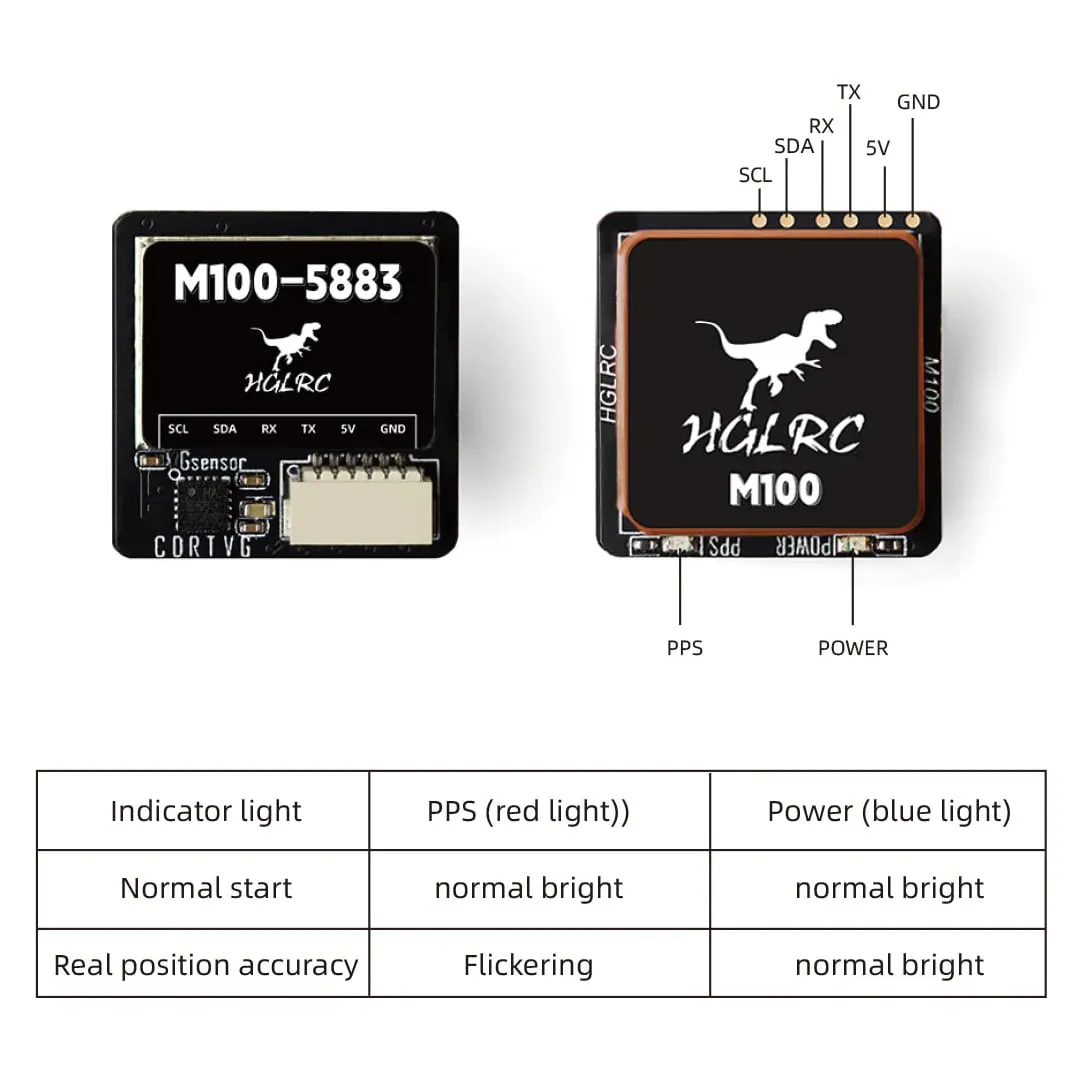

To prevent electromagnetic interference with the onboard magnetometer, mount the M100 Pro on a mast or a TPU bracket away from high-current power leads, motors, and video transmitters. Wire the module to a standard 5V flight controller UART, ensuring the ceramic patch faces the sky without obstruction.
