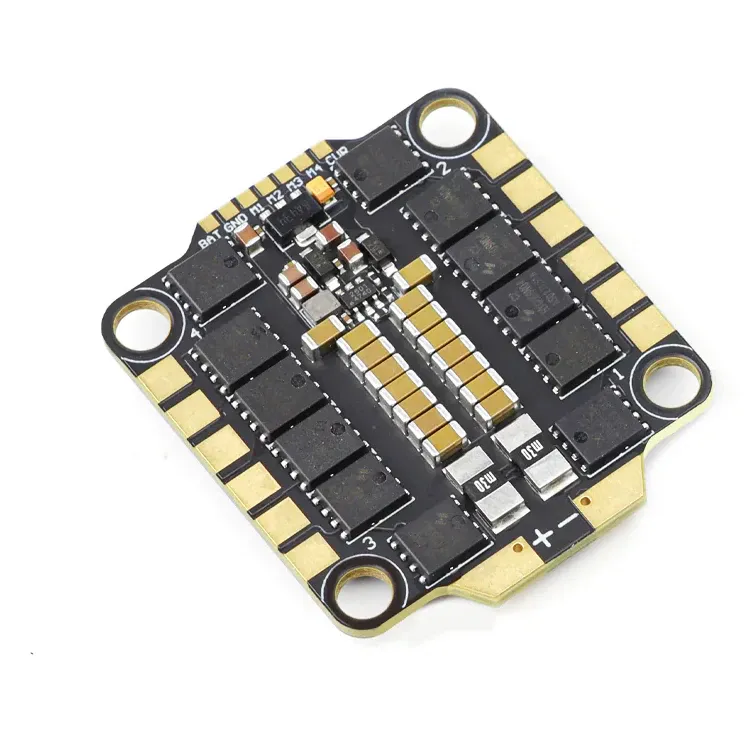

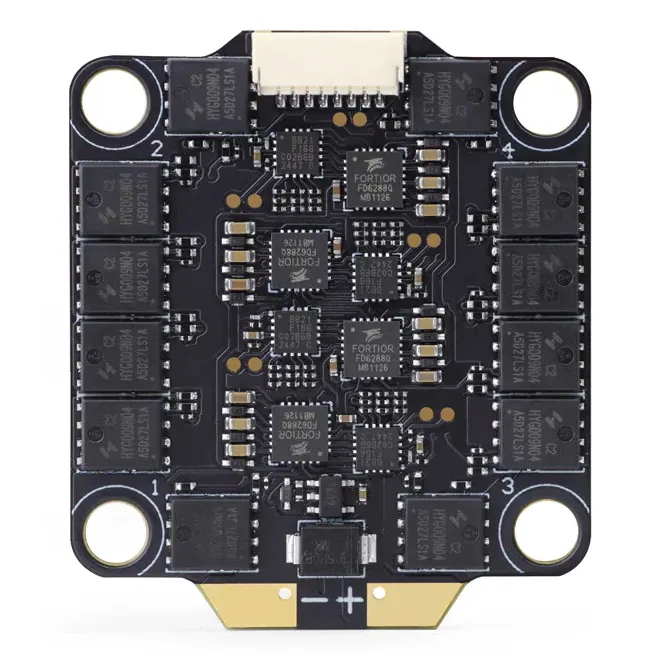

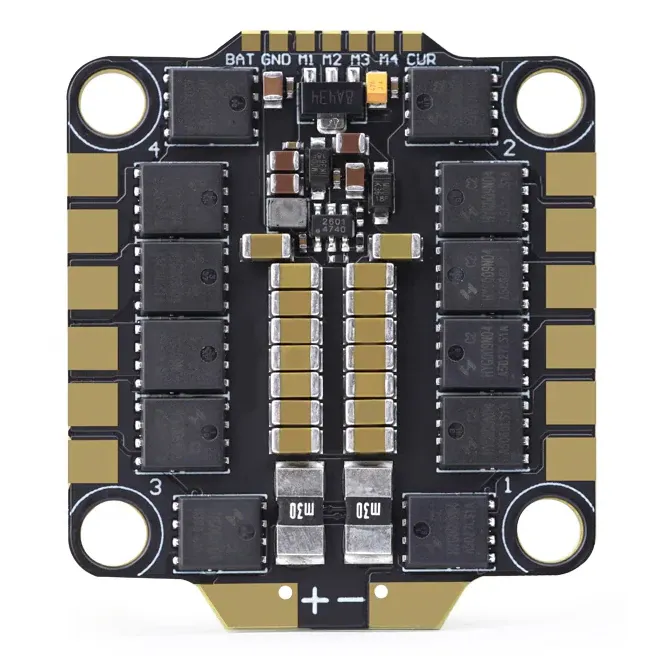

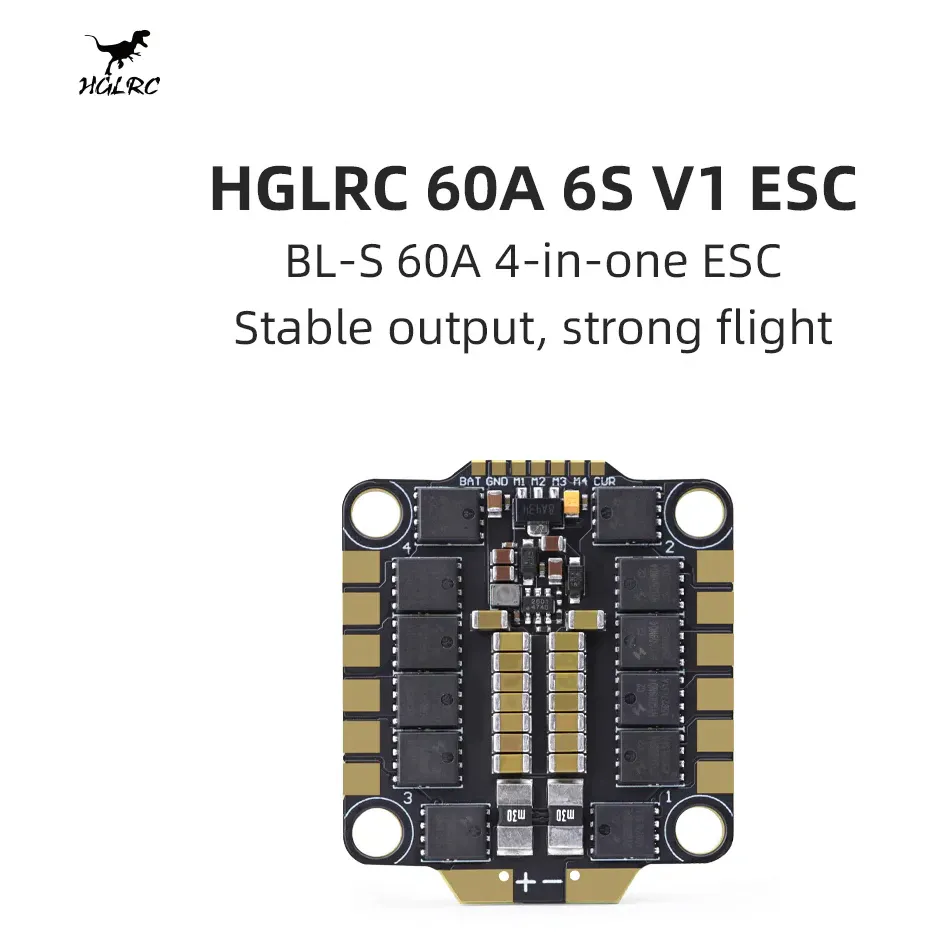

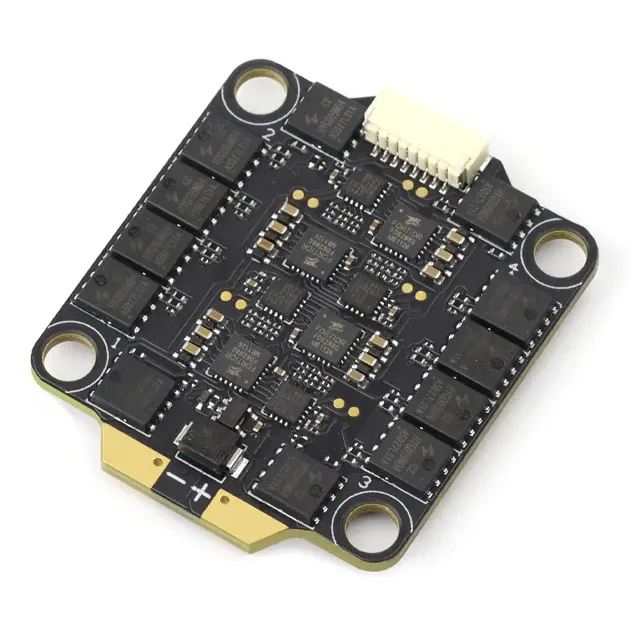

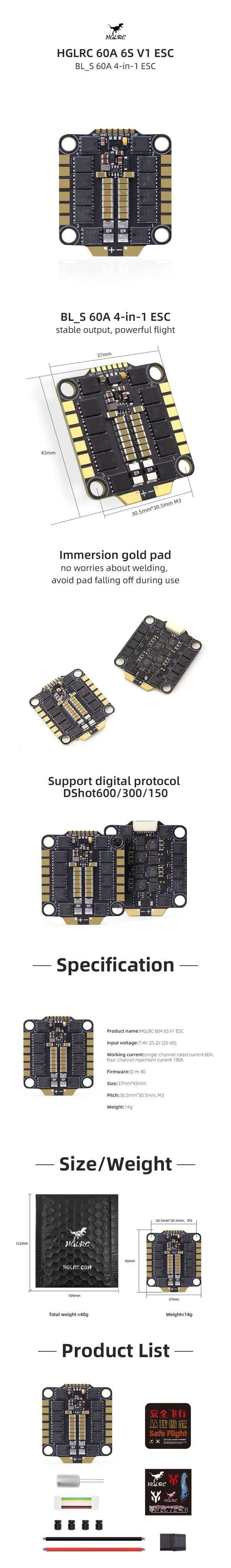

HGLRC 60A 6S V1 4-in-1 ESC
SKU HGLRC-60A-6S-V1-ESC
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The HGLRC 60A 6S V1 is a 4-in-1 electronic speed controller built for FPV racing and freestyle quads running anywhere from 2S to 6S power, combining all four motor outputs on one board to simplify wiring.
Key features
Rated 60A continuous per channel, with a four-way burst maximum of 190A for hard throttle punches.
Supports DShot600, DShot300 and DShot150 digital protocols for a responsive link to the flight controller.
Immersion-gold pads and a direct flight-controller plug-in let you build a stack without manual soldering between the FC and ESC.
Fits the widely used 30.5 x 30.5mm mounting pattern on M3 bolt spacing, so it drops into most existing 5-inch frame stacks.
Compact 37 x 43mm footprint and low 14g weight keep the overall stack light.
Specifications
Input voltage: 7.4-25.2V (2-6S)
Current: 60A per channel, 190A four-way maximum
Firmware: BLHeli_S (Q-H-40 target)
Dimensions: 37 x 43mm
Mounting: 30.5 x 30.5mm, M3
Weight: 14g
Ships with a ribbon cable for the flight controller connection, a power lead fitted with an XT60H-M connector, and a 470uF capacitor for clean power delivery to the ESC.
| Mounting Size | 30.5x30.5 |
|---|---|
| ESC Current | 60 A |
| Input Voltage | 2–6S |
| ESC Firmware | BLHeli_S |
| Made in India | No |
| Brand | HGLRC |
| Battery Connector | XT-60 |
