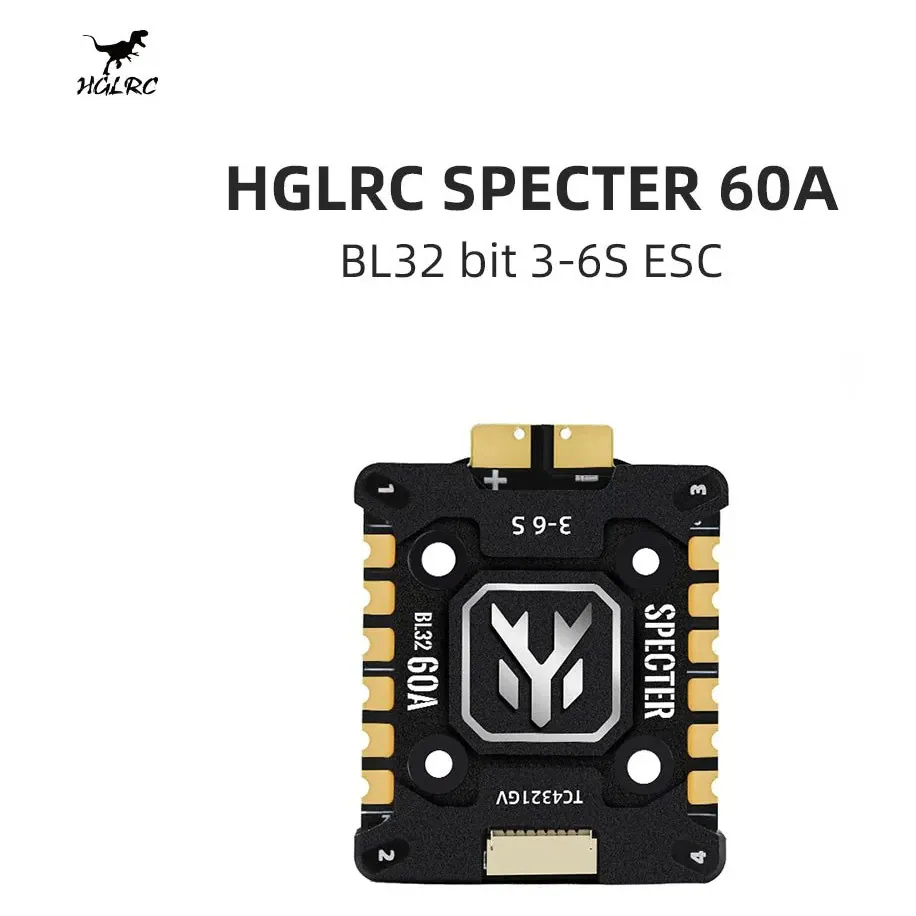

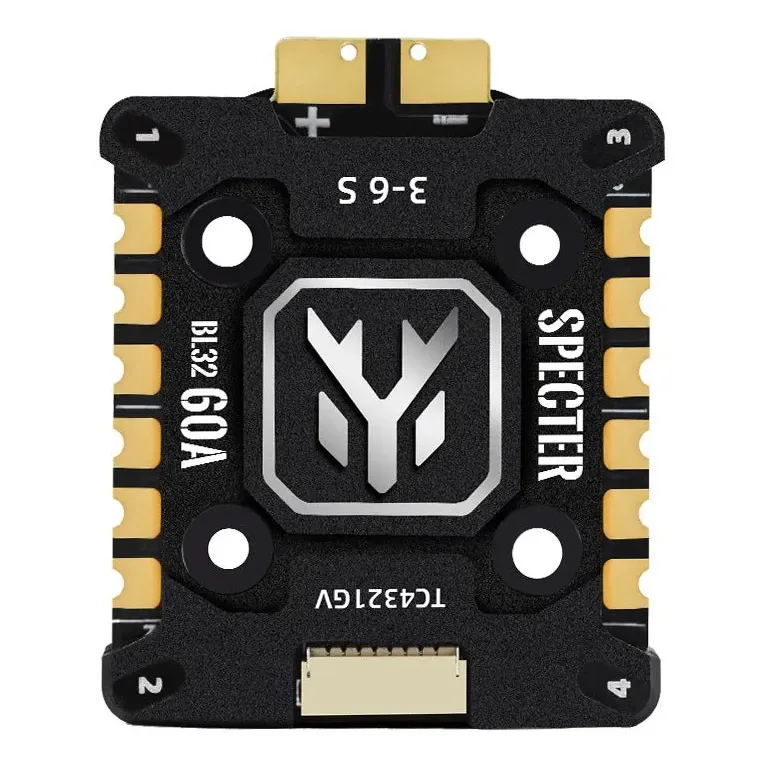

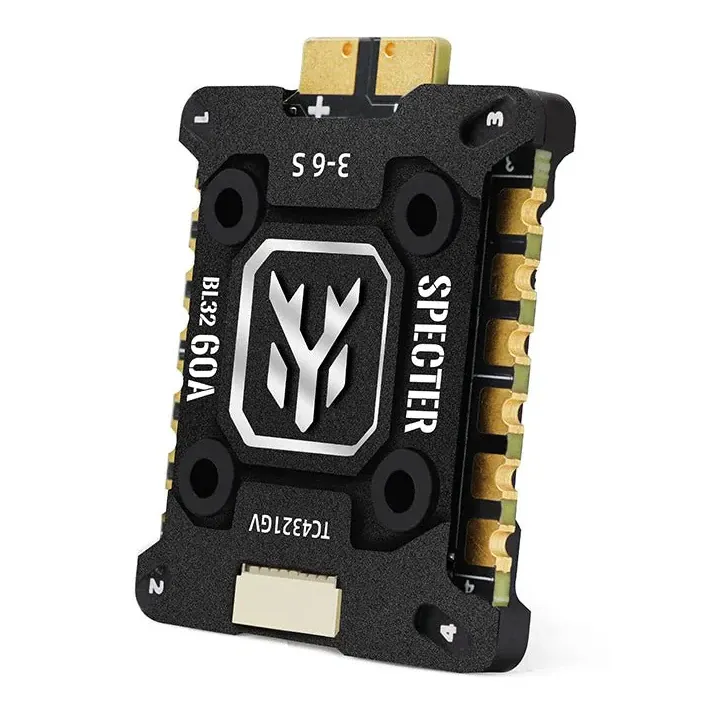

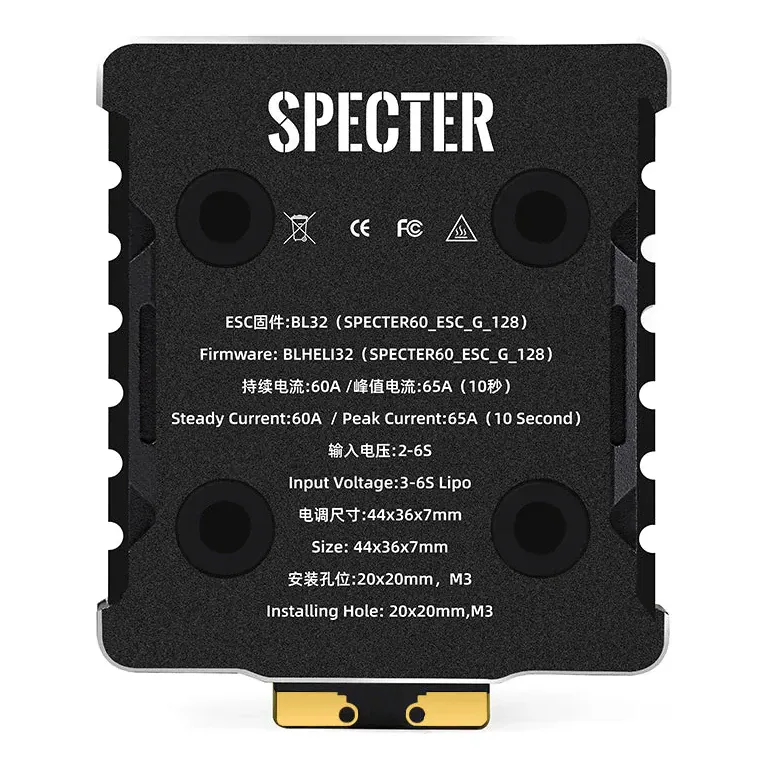

HGLRC SPECTER 60A 4-in-1 ESC 3-6S BL32 128K with Heat Sink

The HGLRC SPECTER 60A is a compact 4-in-1 ESC engineered for demanding 5-inch freestyle, racing, and larger 7-inch builds. Running on 3-6S LiPo power, it uses an integrated CNC heat sink to protect the MOSFETs and maintain thermal stability during sustained high-current loads.

Key features

• Delivers 60A continuous current per channel with peak bursts up to 65A (10s).
• STM32G071 processor running BL32 firmware, with full support for bidirectional DShot and ESC telemetry.
• Capable of PWM frequencies up to 128kHz for smooth motor control and reduced electrical noise.
• Immersed-gold pads and a nano-coating on both sides guard against heat, moisture and corrosion.
• Compact 44 x 36mm board on a 20x20mm mounting pattern suits space-limited stacks.

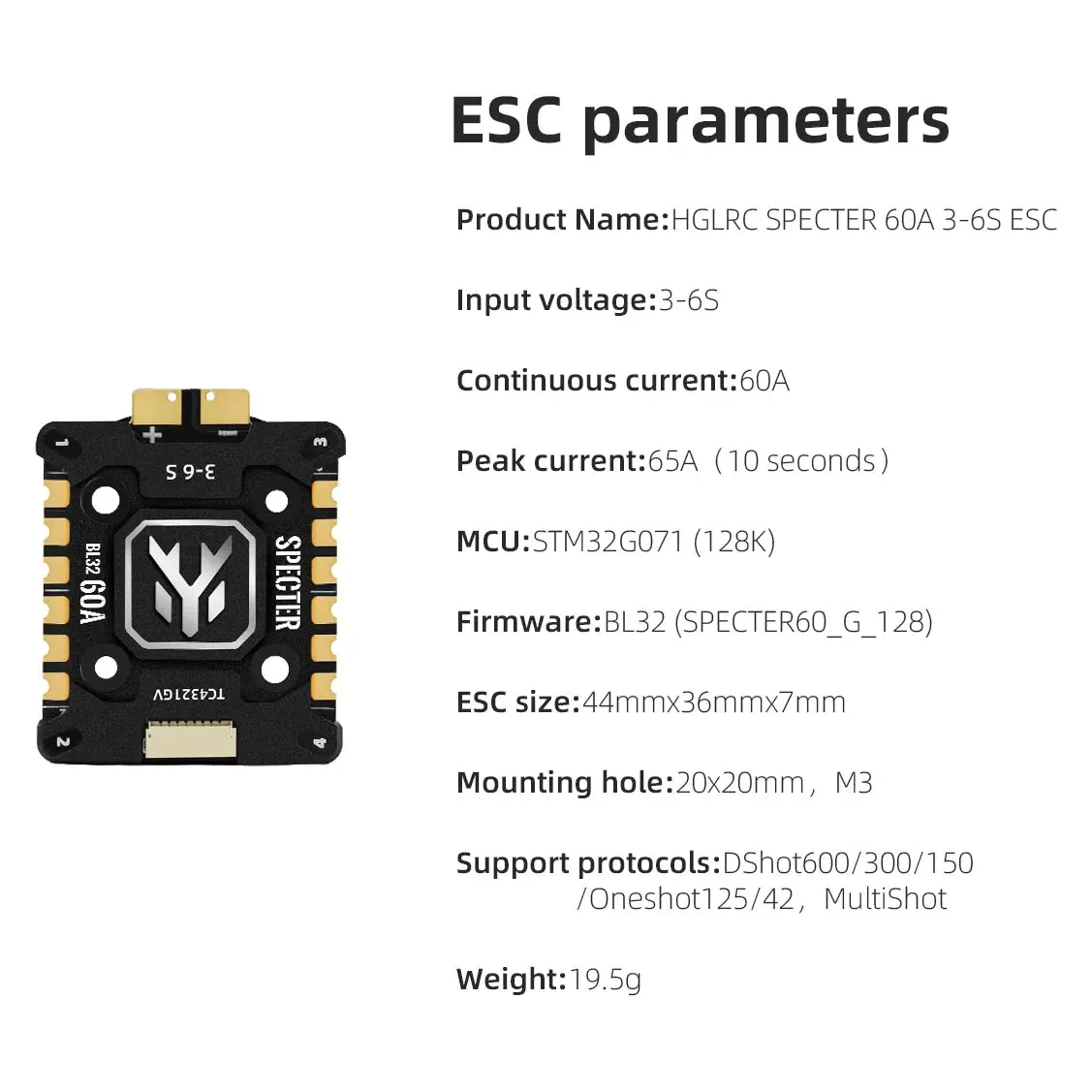

Specifications

• Continuous Current: 60A
• Peak Current: 65A (10s)
• Input Voltage: 3-6S LiPo
• Firmware: BLHeli_32 (BL32)
• PWM Frequency: up to 128kHz
• Size: 44 x 36 x 7mm
• Mounting: 20x20mm, M3
• Weight: 19.5g

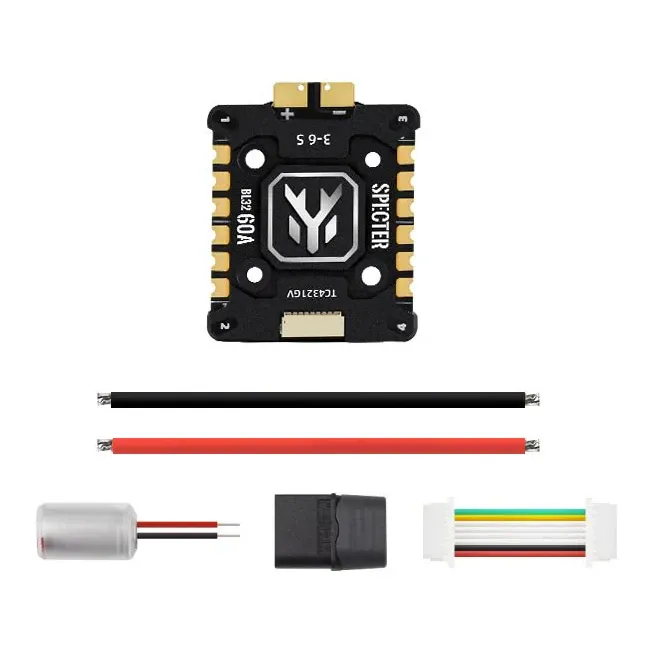

Ships with an SH1.0-8P signal cable, a 12AWG power cord, an XT60H-M connector and a 470uF capacitor, and pairs cleanly with 20x20mm flight controllers using a standard 8-pin wiring harness.
