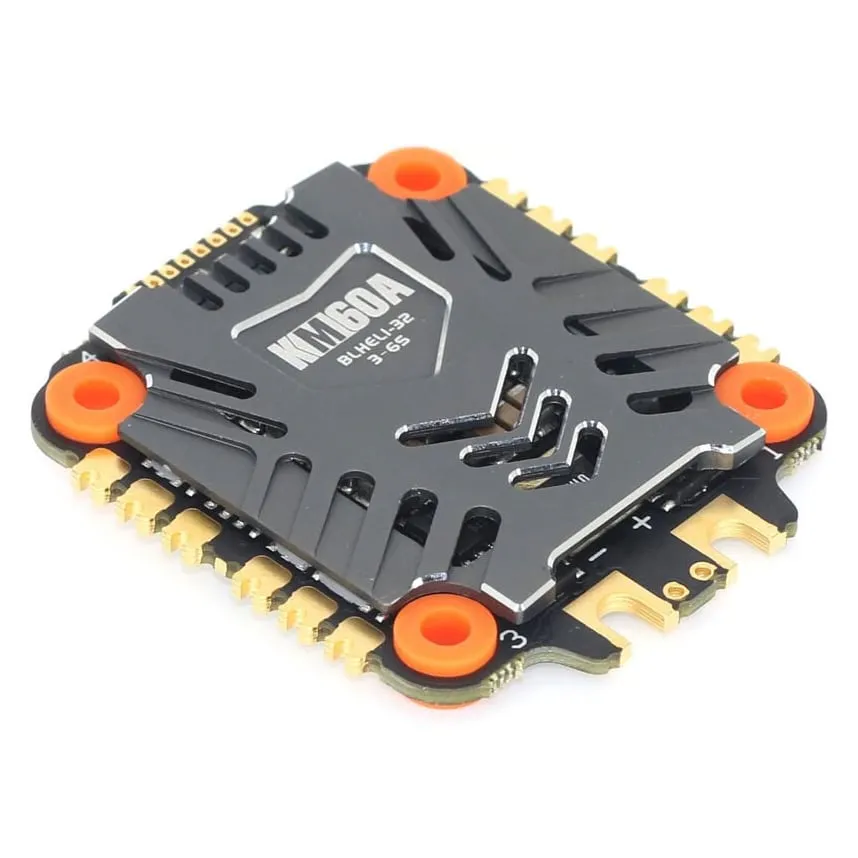

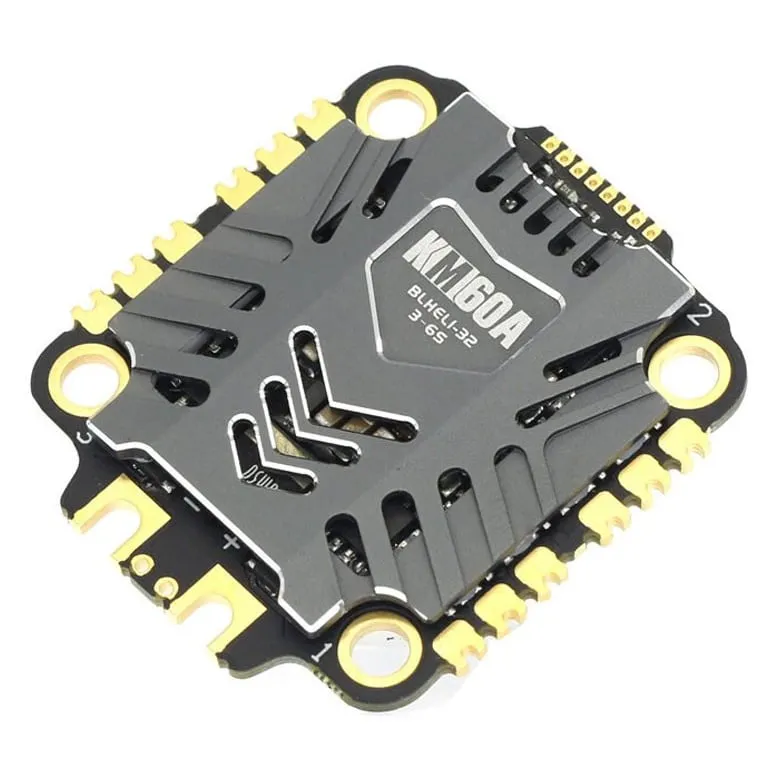

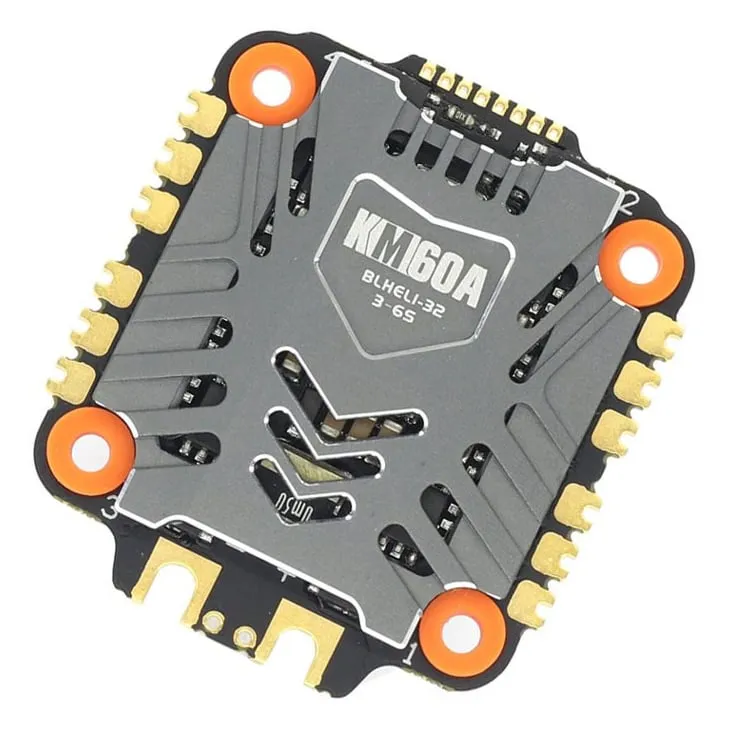

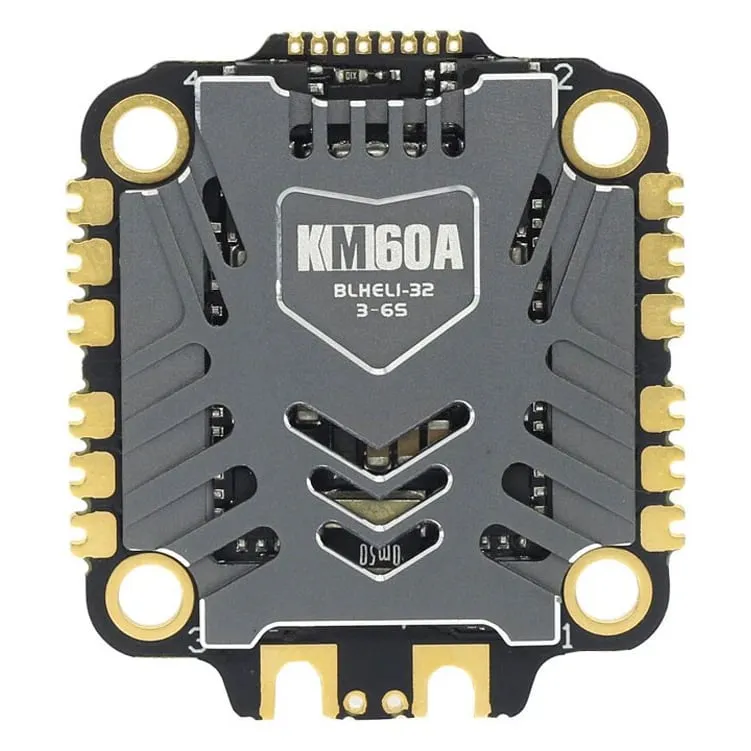

Skystars KM60 60A 3-6S BLHeli_32 4-in-1 ESC

The Skystars KM60 is a 4-in-1 ESC for FPV freestyle, racing and other multirotor builds. It accepts 3-6S battery input and provides a stated 60A rating per motor, while BLHeli_32 firmware handles ESC control through a compatible flight controller.

Key features

• 60A rating specified for each motor channel.
• 3-6S input range for compatible multirotor power systems.
• BLHeli_32 firmware for ESC configuration and control.
• Four ESC channels in one board for a standard quad motor setup.

Specifications

• ESC Current: 60 A
• Peak current: 80 A (10s)
• Input Voltage: 3-6S
• ESC Firmware: BLHeli_32
• Protocols: DShot600/1200, telemetry (voltage, RPM, current)
• BEC: None
• Mounting: 30.5x30.5 mm, M3
• Dimensions: 41 x 46 x 7.6 mm
• Weight: 18 g

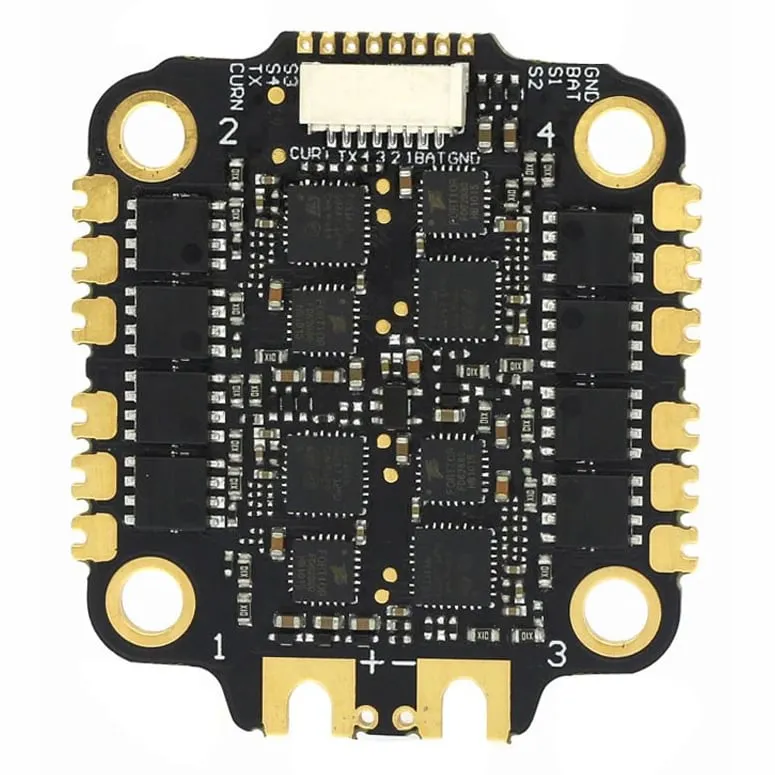

• Construction: 6-layer 3 oz copper PCB, CNC aluminium shell

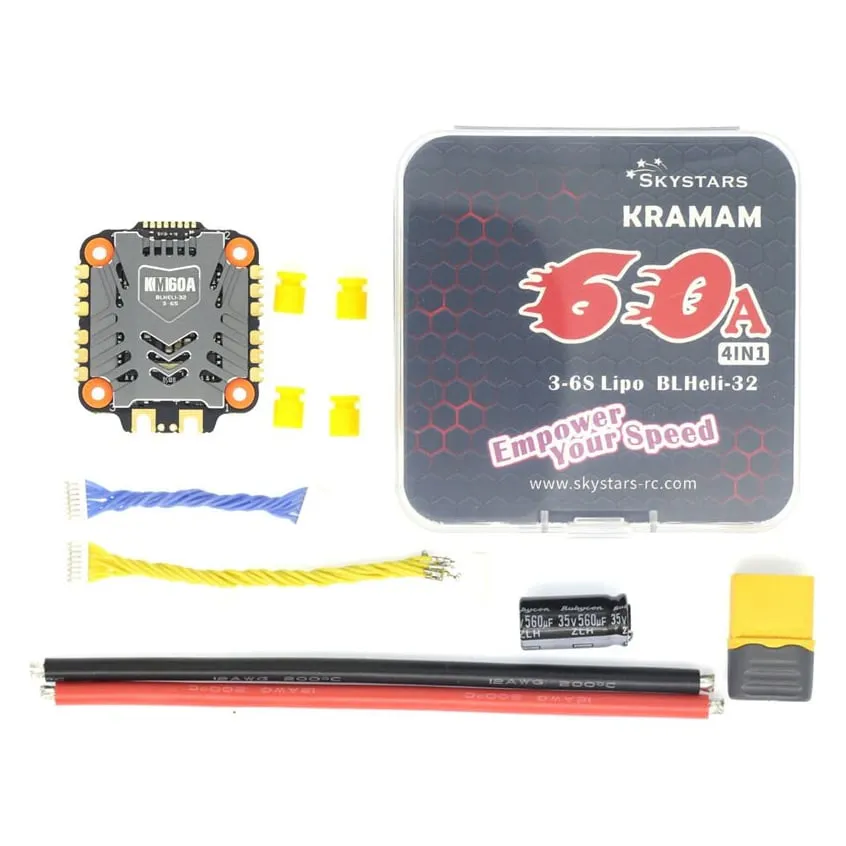

• In the box: ESC, 4 x M3 x 8 mm and 4 x M3 x 3.5 mm damping rubbers, XT60 connector with wires, two 8-pin harnesses (70 mm and 50 mm), 35 V 560 uF capacitor
• Brand: Skystars
• Made in India: false

Use the ESC within the stated cell-count range and check each motor's expected current against the 60A-per-motor rating. Confirm the stack mounting pattern and wiring arrangement before installation.
