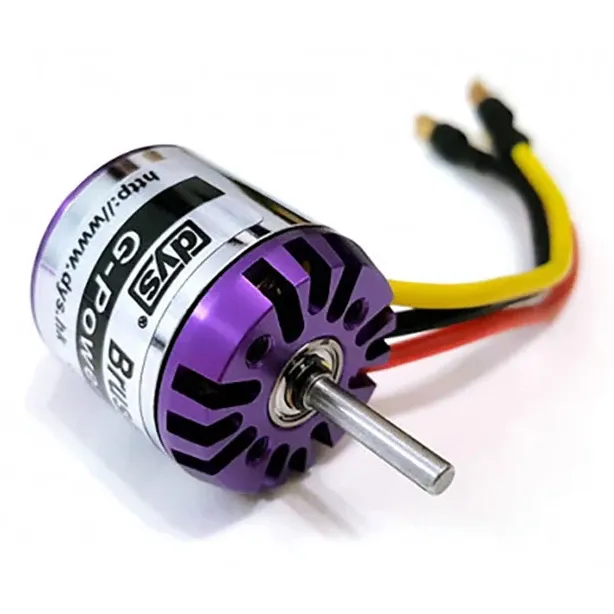

DYS H2830 3250KV Brushless Outrunner Motor
₹1,399Incl. GST
SKU GEN-H2830-3250KV
Weight: 50 gInput Voltage: 2–3SKV: 3250 KVStator Size: 2830
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The H2830 is a 28 x 30 mm outrunner wound to 3250KV for 400-class electric helicopters, sport planes and FPV wings on 2–3S LiPo. At 50 g it produces up to 560 g of pull, drawing a maximum of 22.1 A.
Key features
- 3250KV for the high RPM a 400-class helicopter or a small, fast prop needs
- Pair it with a 30 A ESC to cover the 22.1 A maximum draw with headroom
- 3.17mm shaft for standard collet prop adapters and pinions
- Rotation is set by swapping any two of the three motor leads, so one motor covers either direction
Specifications
- KV: 3250
- Cells: 2–3S LiPo
- Motor size: 28 x 30 mm
- Shaft: 3.17 mm
- Weight: 50 g
- Max current: 22.1 A
- Max pull: 560 g
- Suggested ESC: 30 A
- Suggested application: 400-class helicopter
On a plane, check current with a wattmeter when choosing the prop: at 3250KV on 3S an oversized prop pushes past the 22.1 A limit quickly.
| Weight | 50 g |
|---|---|
| Input Voltage | 2–3S |
| KV | 3250 KV |
| Stator Size | 2830 |
| Shaft | 3.175mm |
| Brand | DYS |
