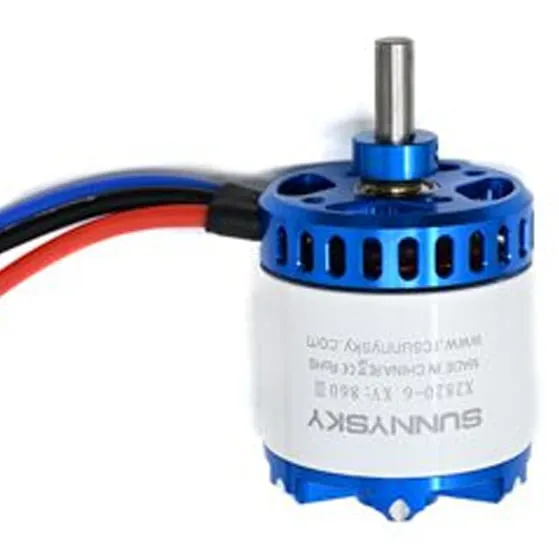

SunnySky X2820 III 860KV Brushless Motor
₹4,799Incl. GST
SKU SUNNYSKY-X2820-III-860KV
Weight: 143 gInput Voltage: 3–4SKV: 860 KVStator Size: 2820
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SunnySky X2820 III is an 860KV brushless motor on a 2820 stator, built for RC airplanes, aerobatic and 3D models, swinging 12 to 13-inch propellers on 3S-4S LiPo.
Key features
- CNC-machined aluminium housing for heat dissipation and durability under sustained load.
- High-temperature-resistant windings intended to extend motor life during long flights.
- Pre-soldered bullet connectors for a quicker, cleaner installation onto the ESC wiring.
- Ships with a prop nut, mounting base plate and a set of fitting accessories for installation.
- 860KV winding suits larger-airframe propulsion where a lower-KV, larger-propeller motor is required.
Specifications
- Brand: SunnySky
- Stator size: 2820
- KV: 860KV
- Series: X Series (X2820 III)
- Input voltage: 3-4S LiPo
- Recommended props: 12x6, 12x8, 13x6.5, 13x8
- Peak power: 960W
- Weight: 143g
Choose the propeller, ESC and battery to match the 860KV rating, and confirm shaft and mounting requirements against the frame before ordering the full powertrain.
| Weight | 143 g |
|---|---|
| Input Voltage | 3–4S |
| KV | 860 KV |
| Stator Size | 2820 |
| Stator Diameter | 28mm |
| Stator Height | 20mm |
| Shaft | 5mm |
| Brand | SunnySky |
| Made in India | No |
