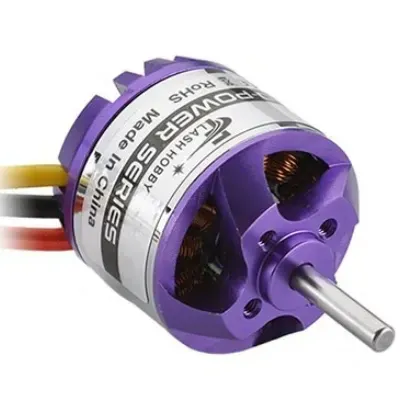

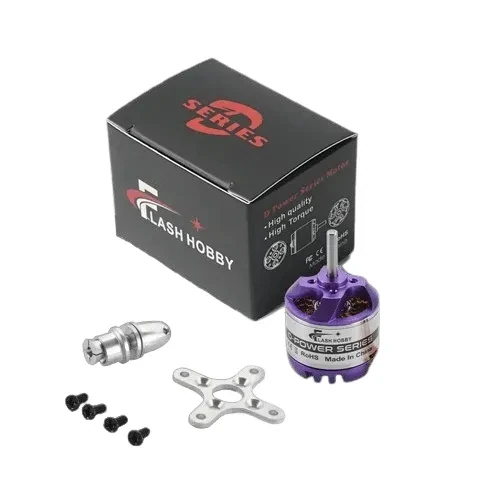

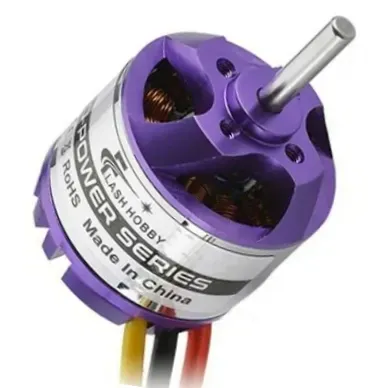

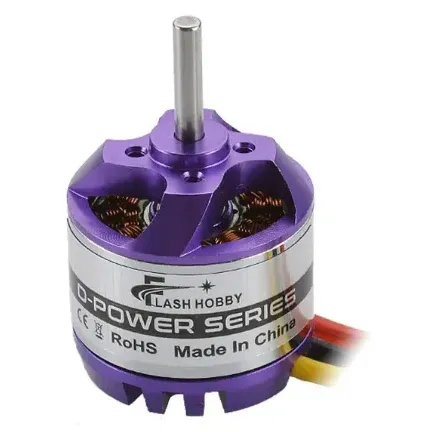

Flash Hobby D2830 1000KV Fixed-Wing Brushless Motor

The Flash Hobby D2830 is an outrunner brushless motor for RC fixed-wing aircraft, supplied here in the 1000KV winding. On 2–4S LiPo with a 10-inch propeller it suits trainers, park flyers and foam sport planes, and it can also power small multirotors.

Key features

• 1000KV winding for 2–4S LiPo input

• 196.6 W maximum power at a 16.8 A peak current

• 0.86 A no-load current

• 52 g in a compact 28 × 30 mm body

Specifications

• KV: 1000KV

• Input: 2–4S LiPo

• Motor size: 28 mm diameter × 30 mm length

• Max power: 196.6 W

• Max current: 16.8 A

• No-load current: 0.86 A

• Suggested propeller: 10 inch

• Weight: 52 g

Pair it with an ESC rated 20 A or more for headroom over the 16.8 A peak, and check current draw with a watt meter on the bench whenever you change propeller size or pitch.
