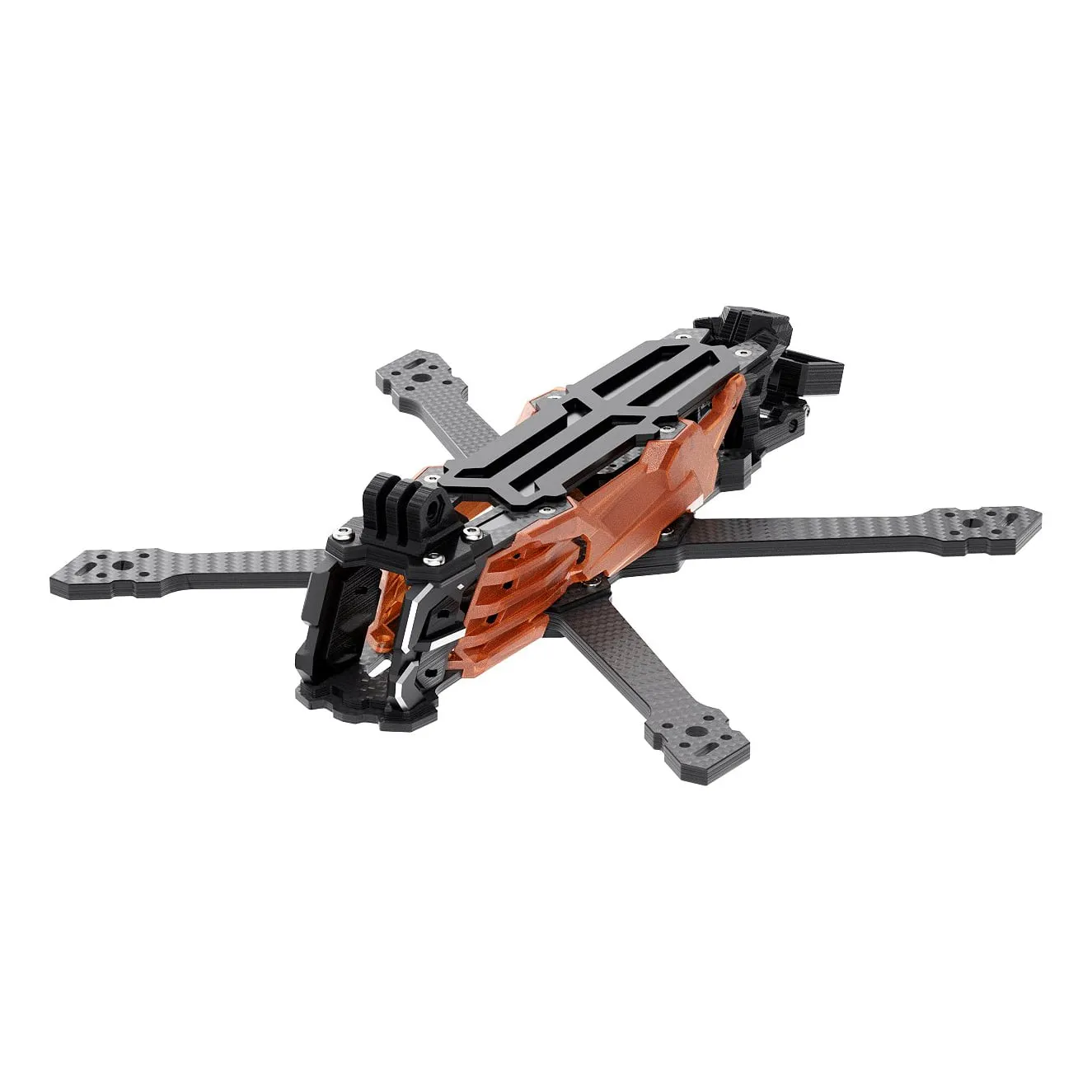

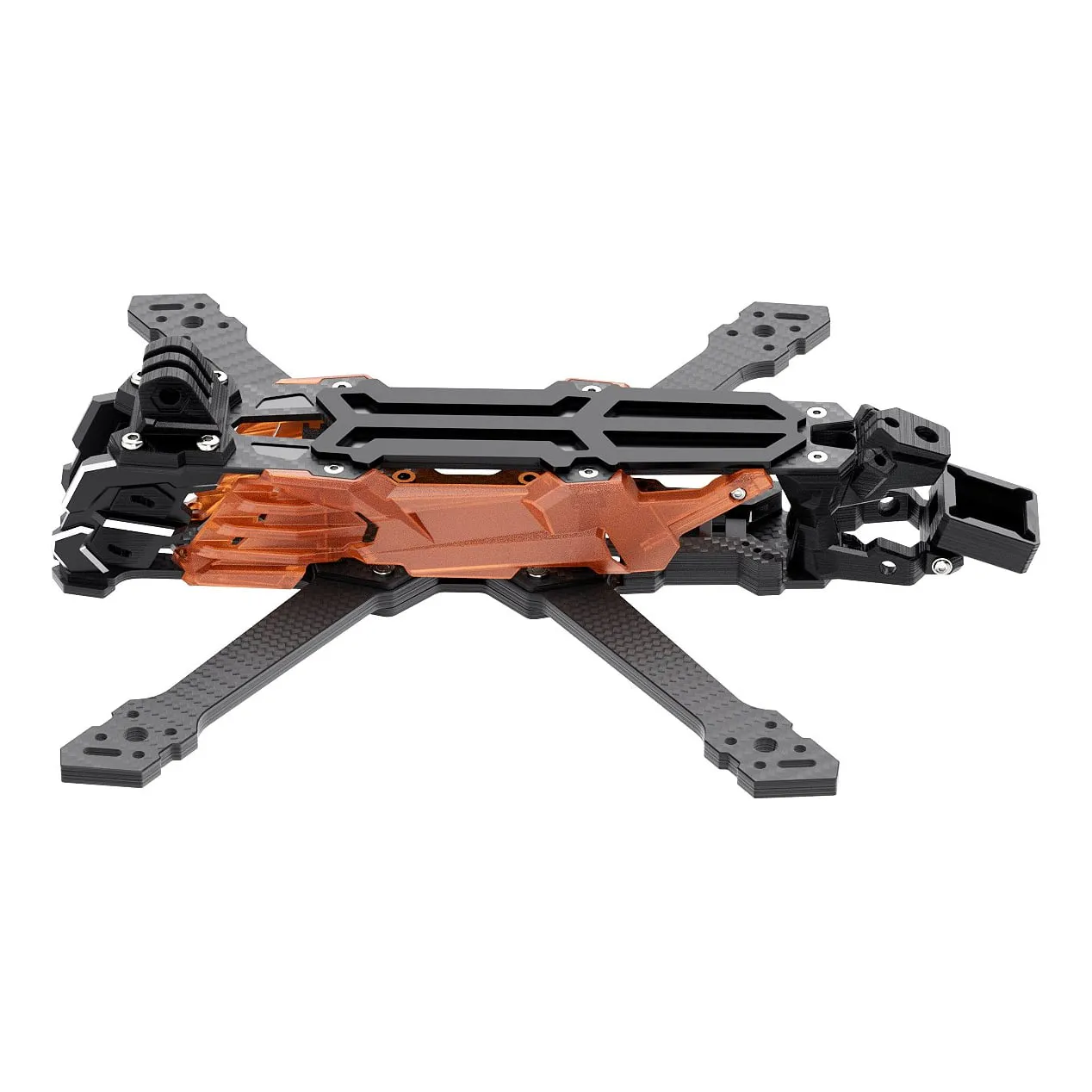

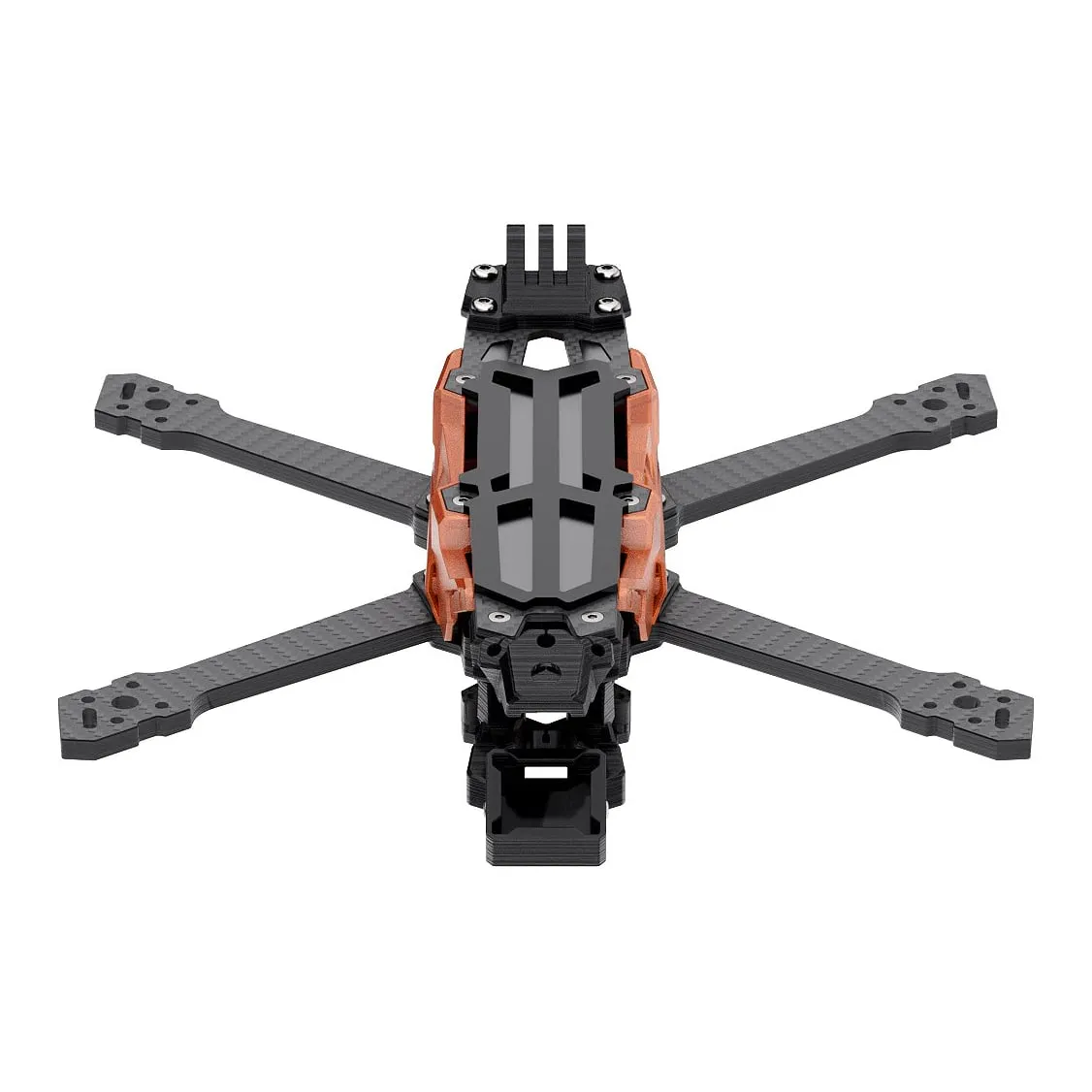

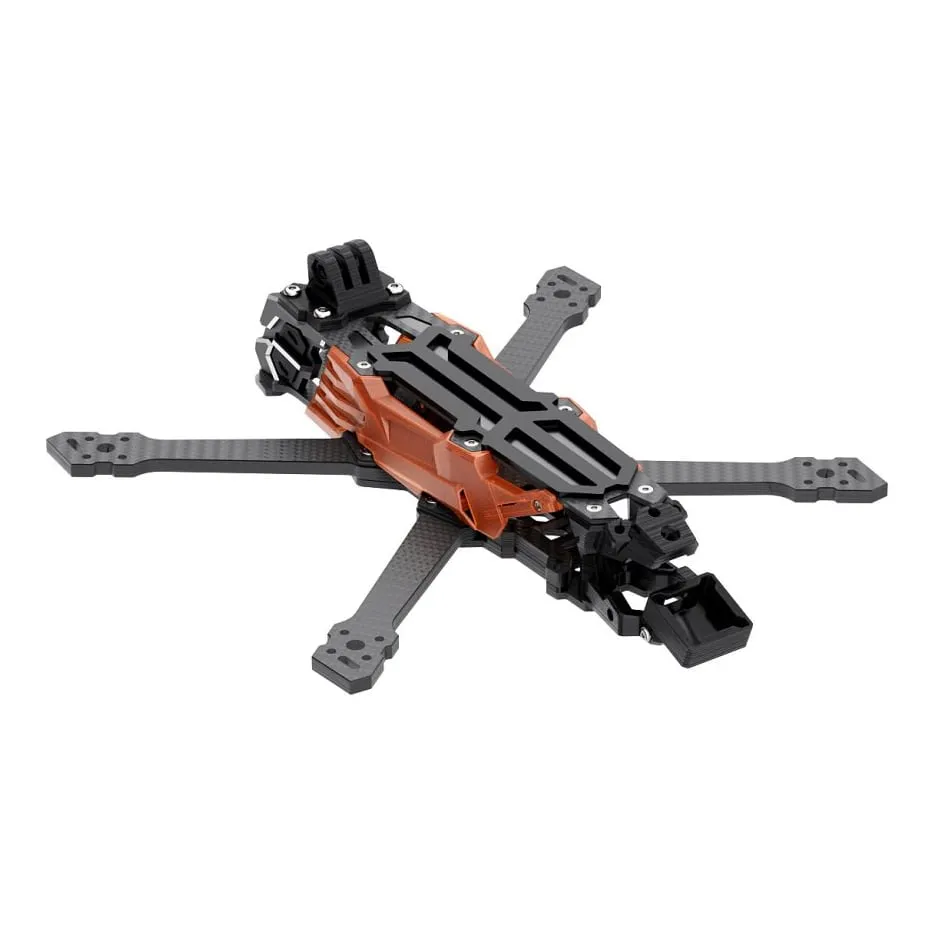

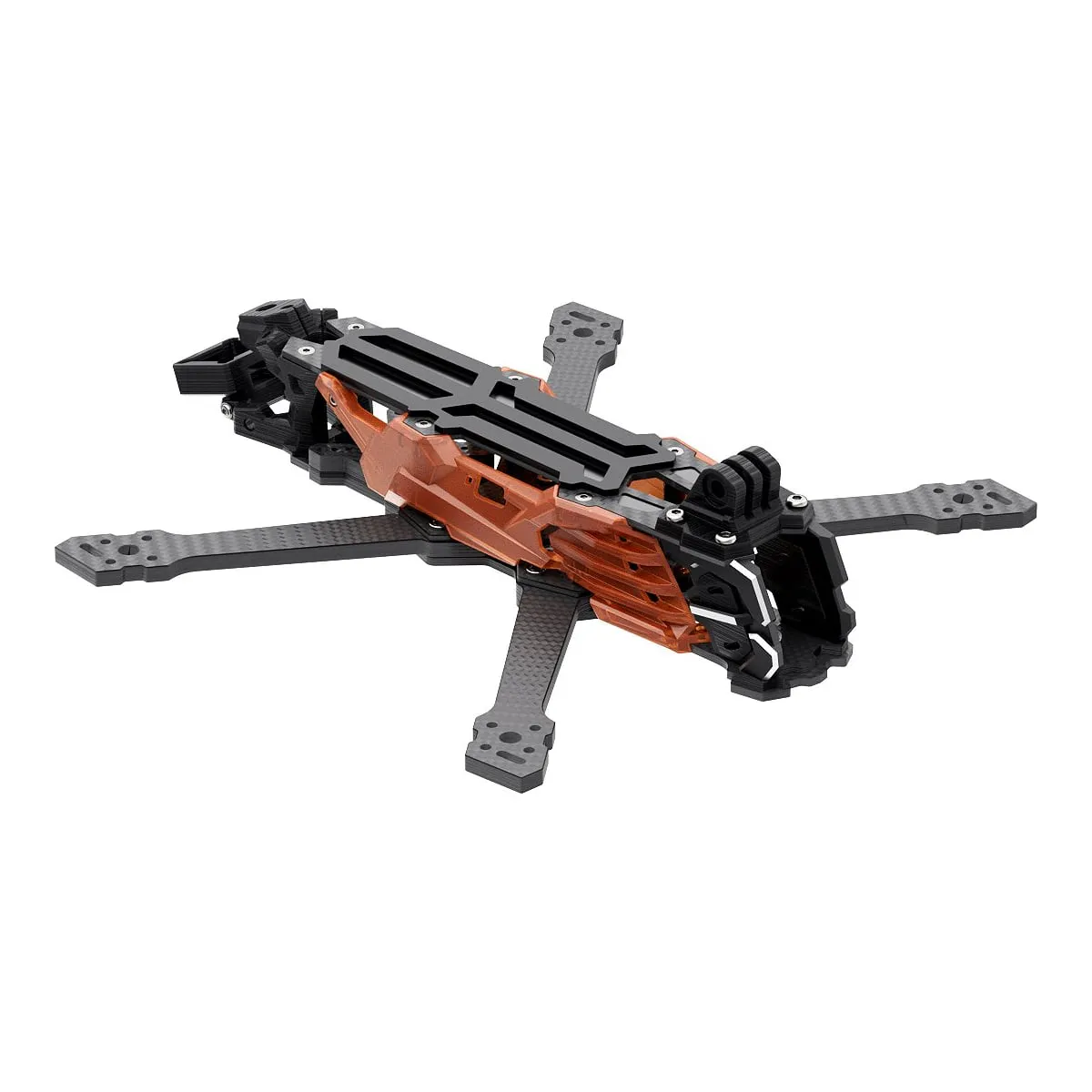

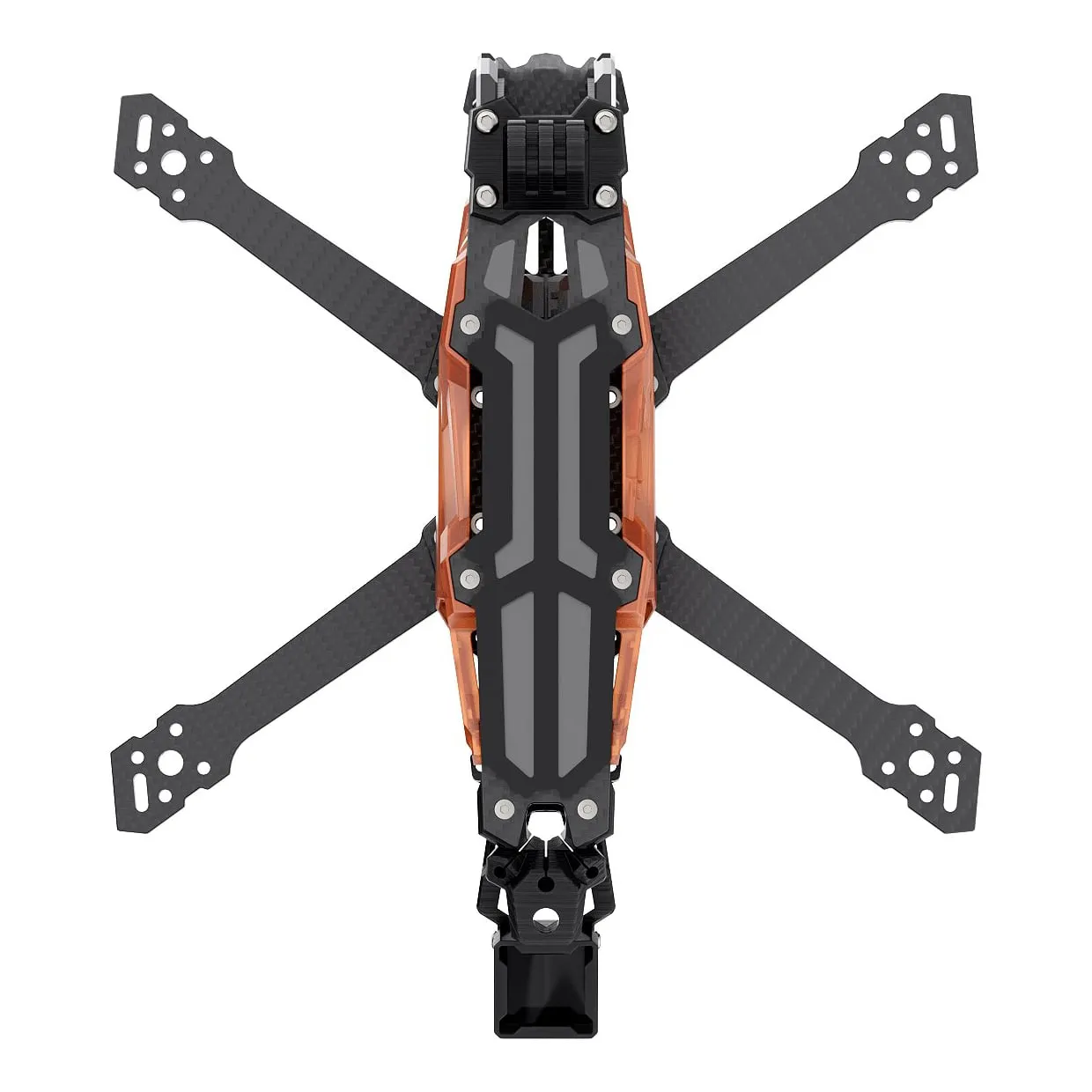

GEPRC GEP-Vapor-X5 O4 Pro Frame
₹7,699Incl. GST
SKU GEPRC-VAPOR-X5-O4PRO-FRAME
Prop Size: 5"Wheelbase: 230 mmCamera Size: 19mm, 20mmMade in India: No
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC GEP-Vapor-X5 O4 Pro is a 5-inch freestyle frame built specifically for the DJI O4 Air Unit Pro, with redesigned aluminium camera parts and vibration-damping silicone so the digital system mounts securely without custom prints.
Key features
- Aluminium camera mount and antenna area cut precisely for the O4 Pro air unit and camera.
- Camera guard side panels plus a front lip give dual impact protection.
- Quick-release arm design for fast repairs and maintenance.
- Rear antenna mount supports both the stock O4 Pro antenna and SMA adapters.
- FC mounting fits both 20x20mm and 30.5x30.5mm stacks.
Specifications
- Wheelbase: 230mm
- Arm thickness: 5.0mm
- Top / middle plate: 2.0mm / Bottom plate: 2.5mm
- FC mounting: 20x20mm, 30.5x30.5mm
- VTX mounting: 20x20mm, 25x25mm, 30.5x30.5mm
- Motor mounting: 16x16mm
- Camera mounting: 19mm, 20mm
- Recommended propeller: 5-inch
- Weight: 206g ±5g
Ships with battery straps, silicone anti-slip pads, a screw set and the hex drivers needed for a full build, so the frame arrives ready to fit out with a stack, motors and the O4 Pro system.
| Prop Size | 5" |
|---|---|
| Wheelbase | 230 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 206 g |
| Material | Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 20x20, 30.5x30.5 |
| Motor Mount | 16x16mm |
