GEPRC GEP-Vapor-X5 Frame
₹6,899Incl. GST
SKU GEPRC-VAPOR-X5-FRAME
Prop Size: 5"Wheelbase: 230 mmCamera Size: 19mm, 20mmMade in India: No
Dispatched within 3–4 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

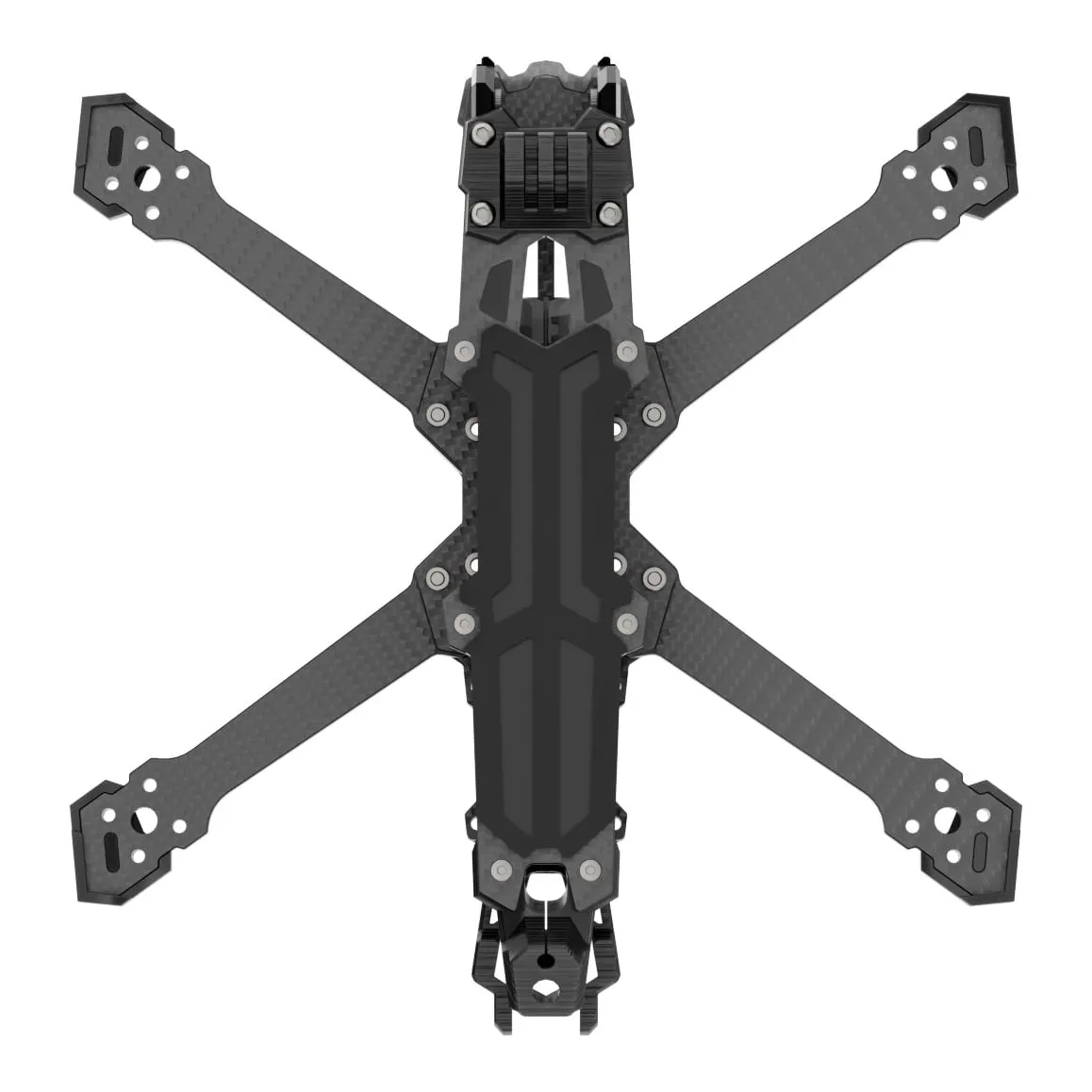

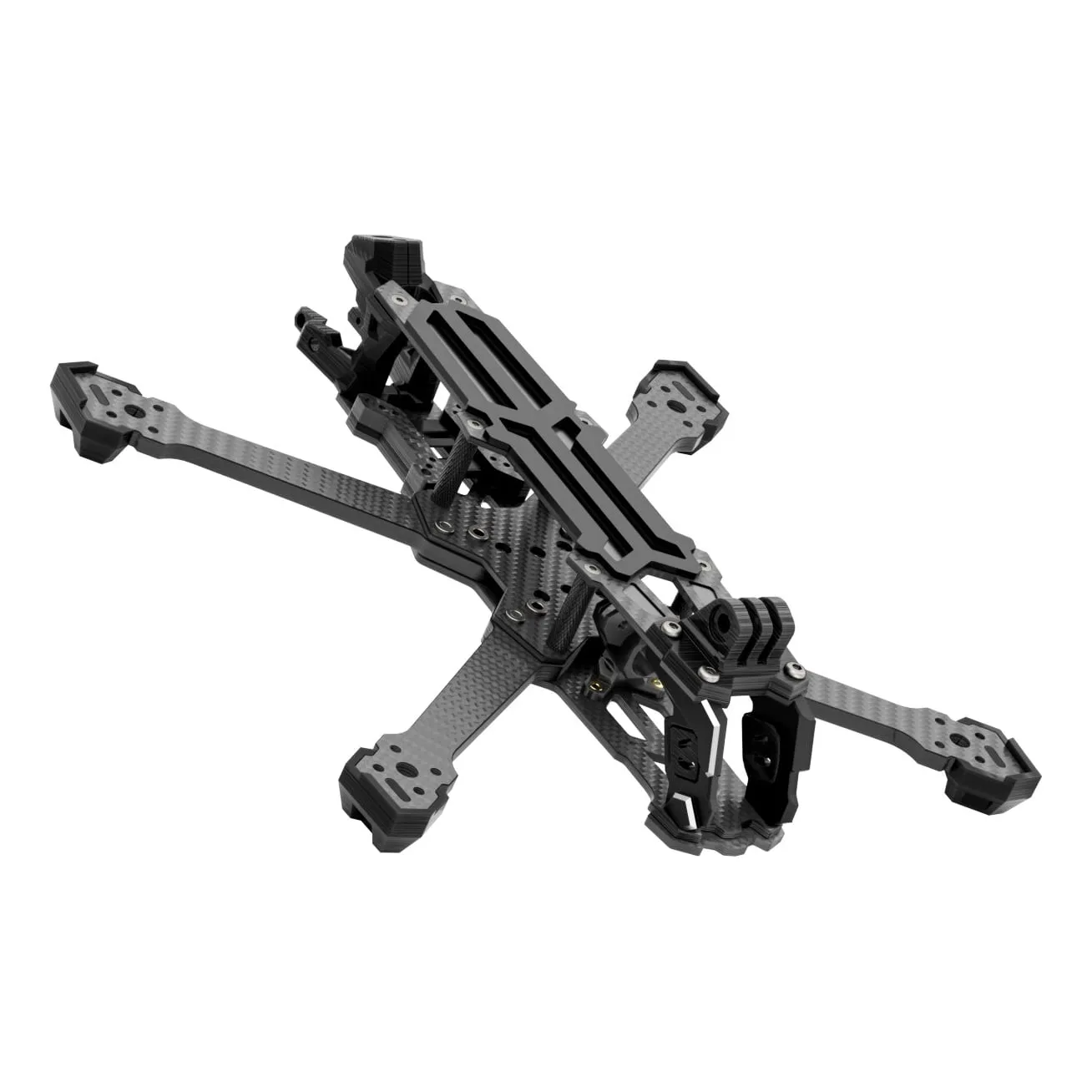

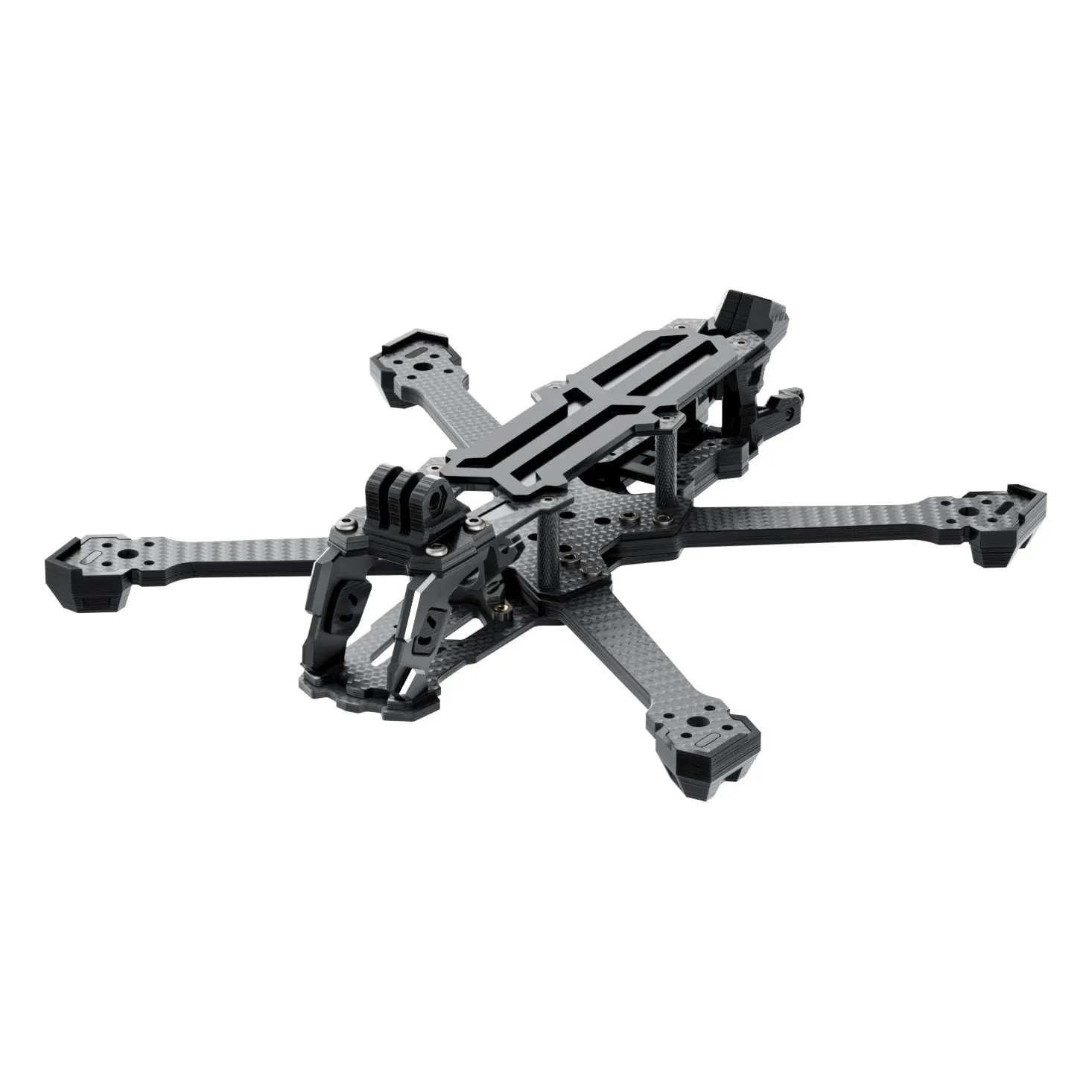

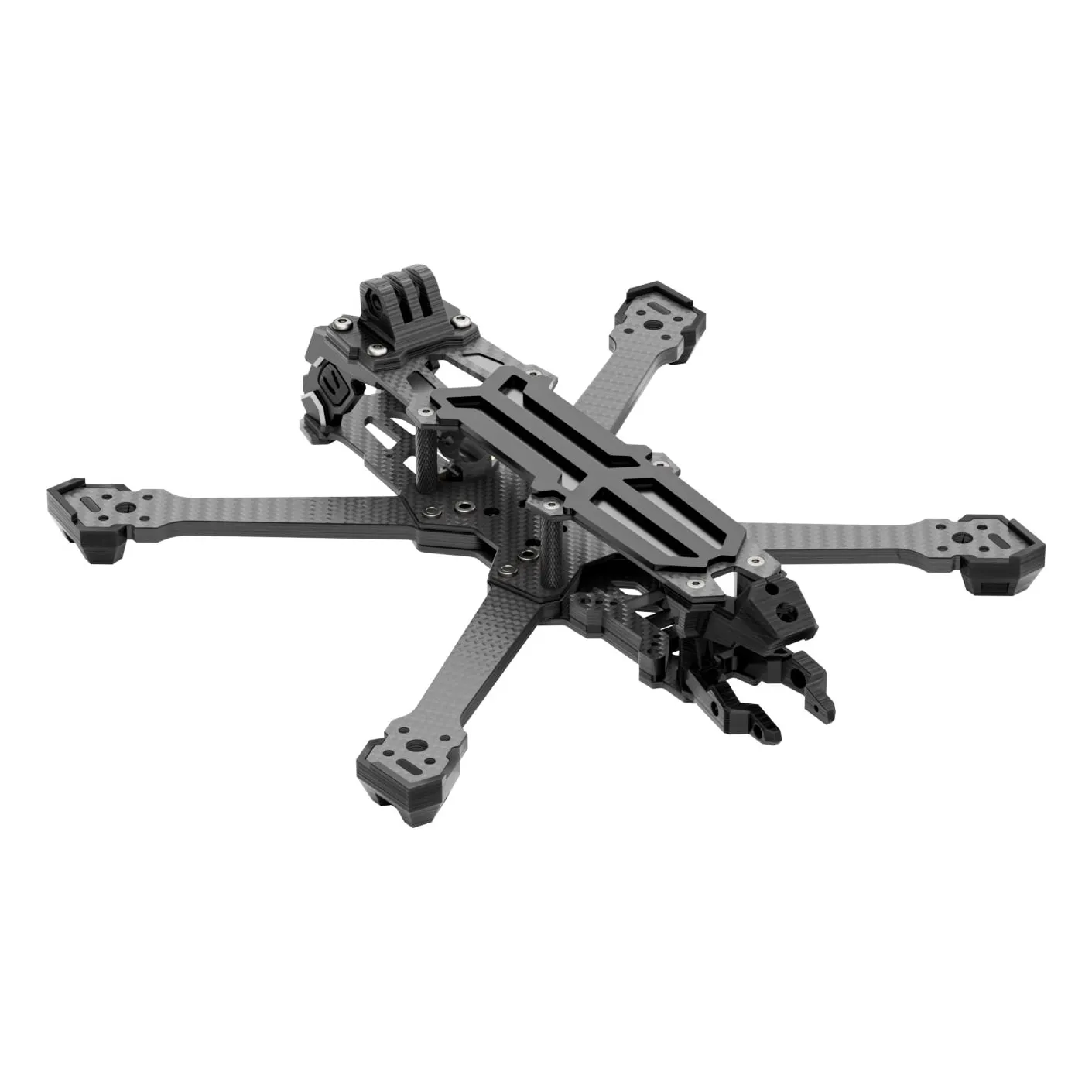

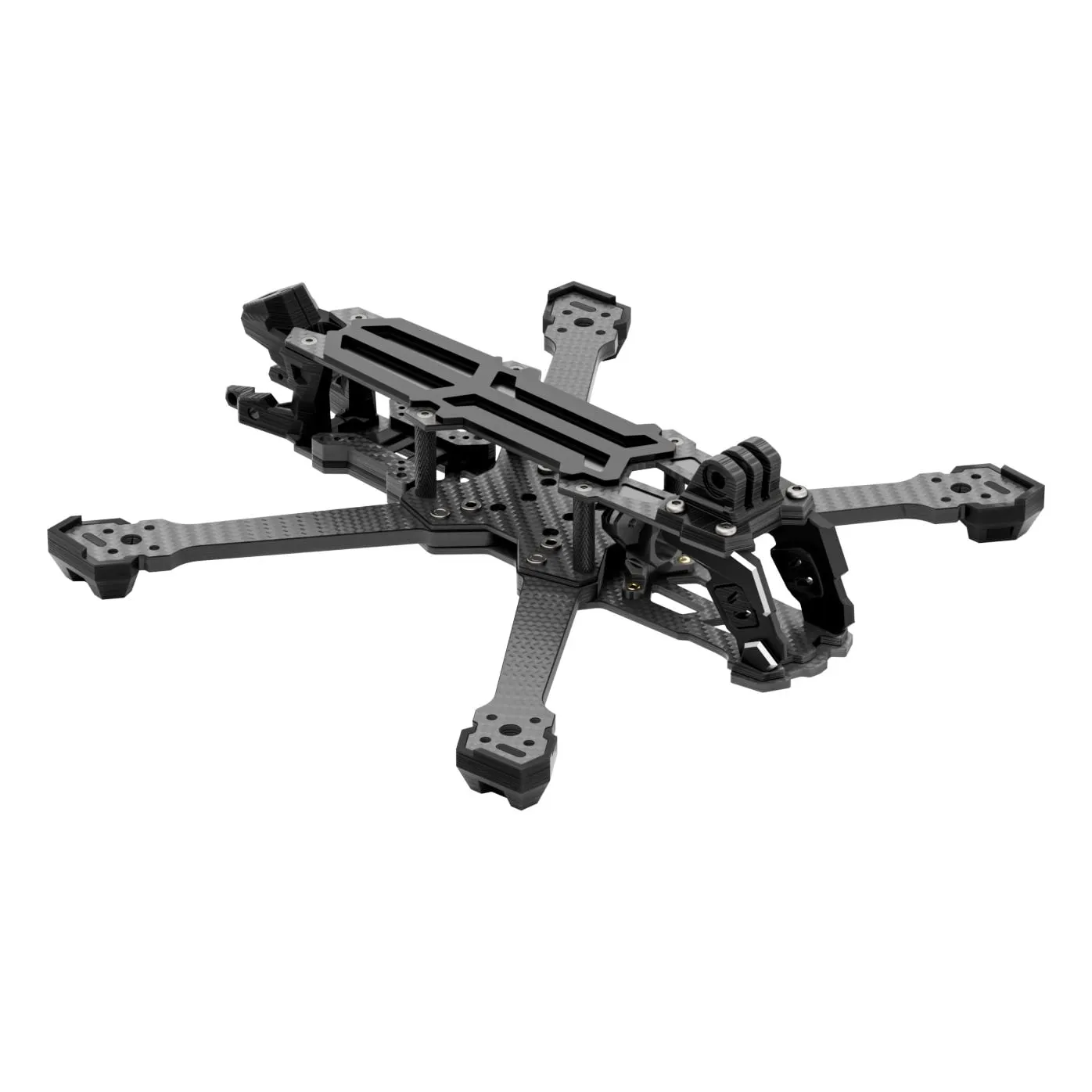

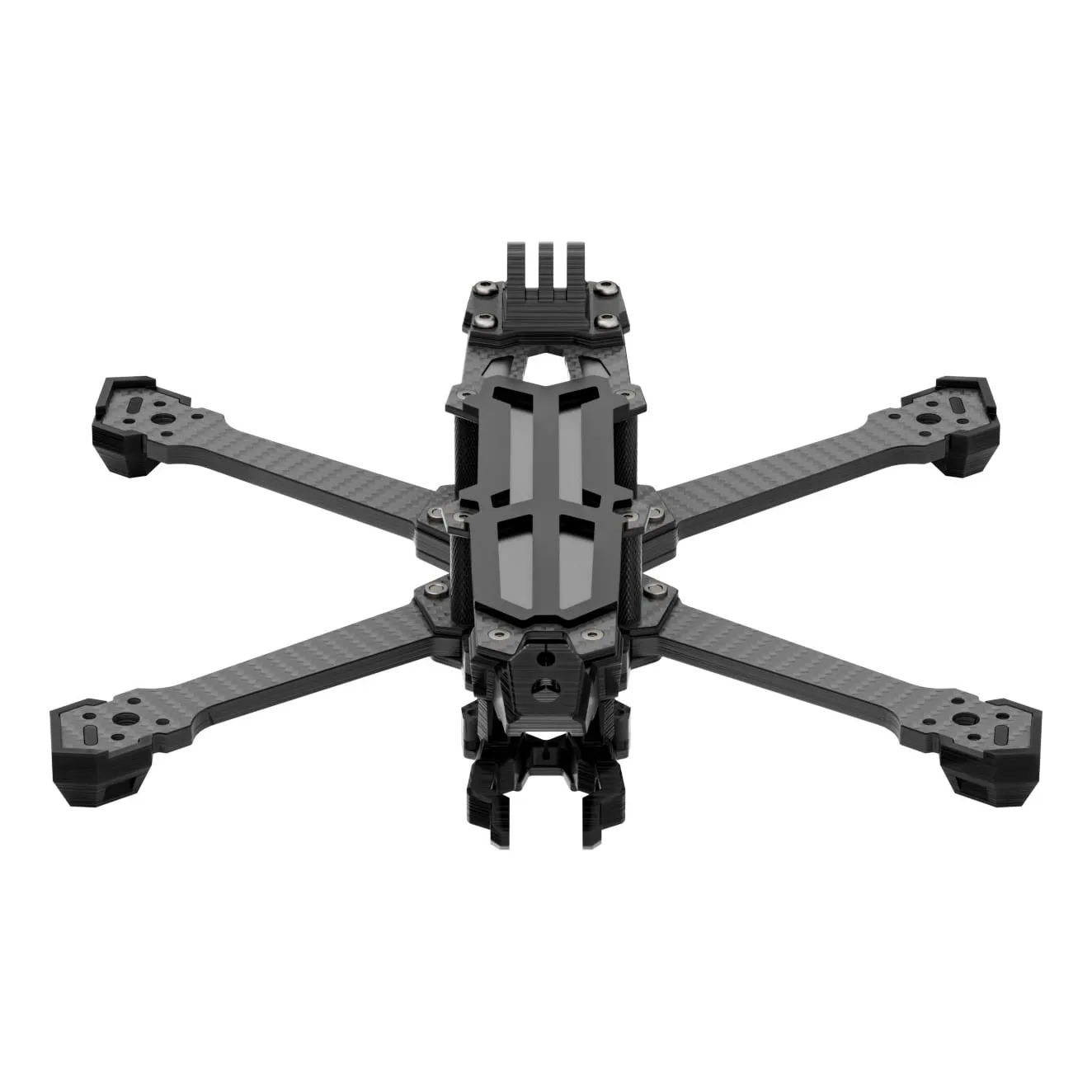

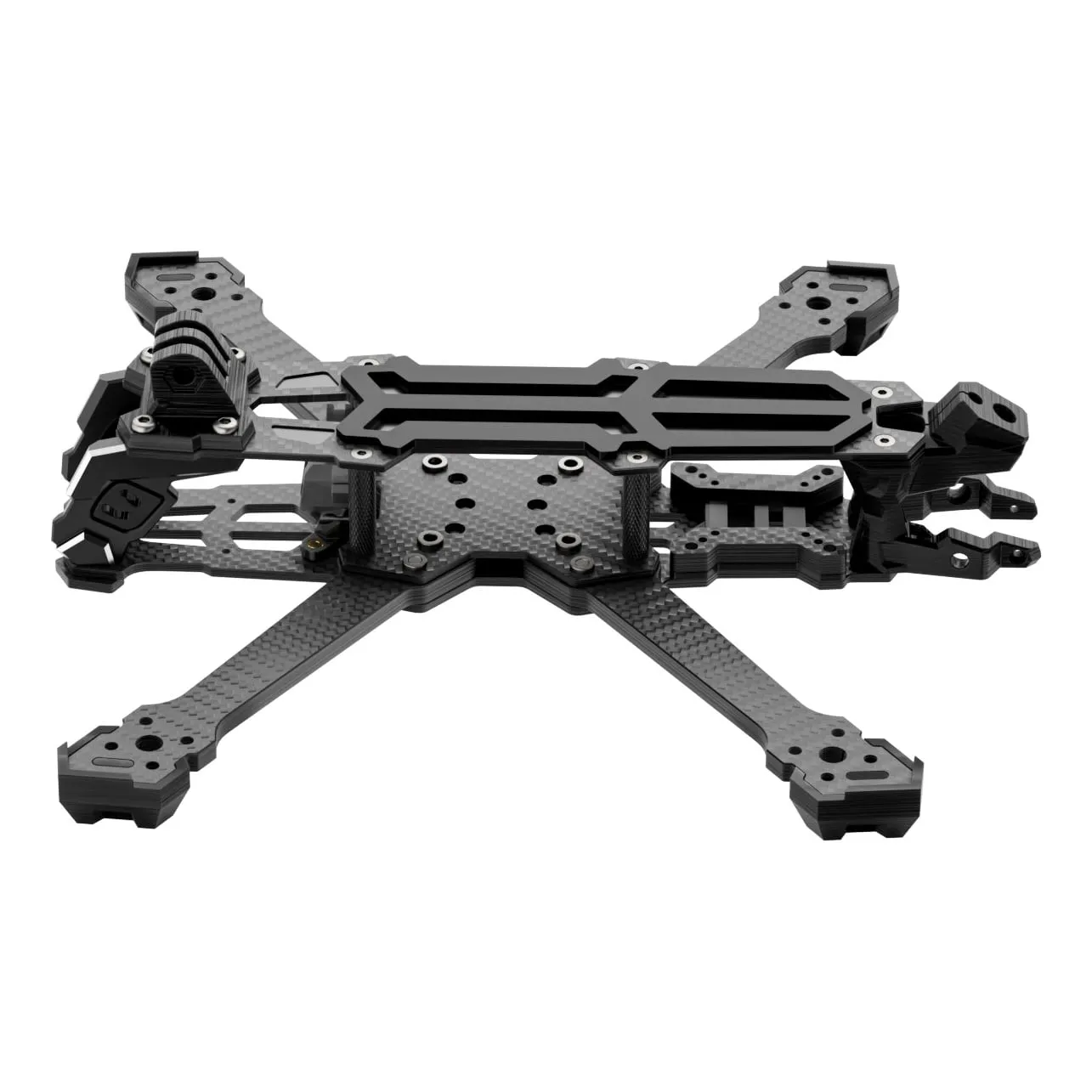

The GEPRC GEP-Vapor-X5 is a 5-inch freestyle frame built around a wide X-frame layout for balanced pitch and roll authority, with a 230mm wheelbase.

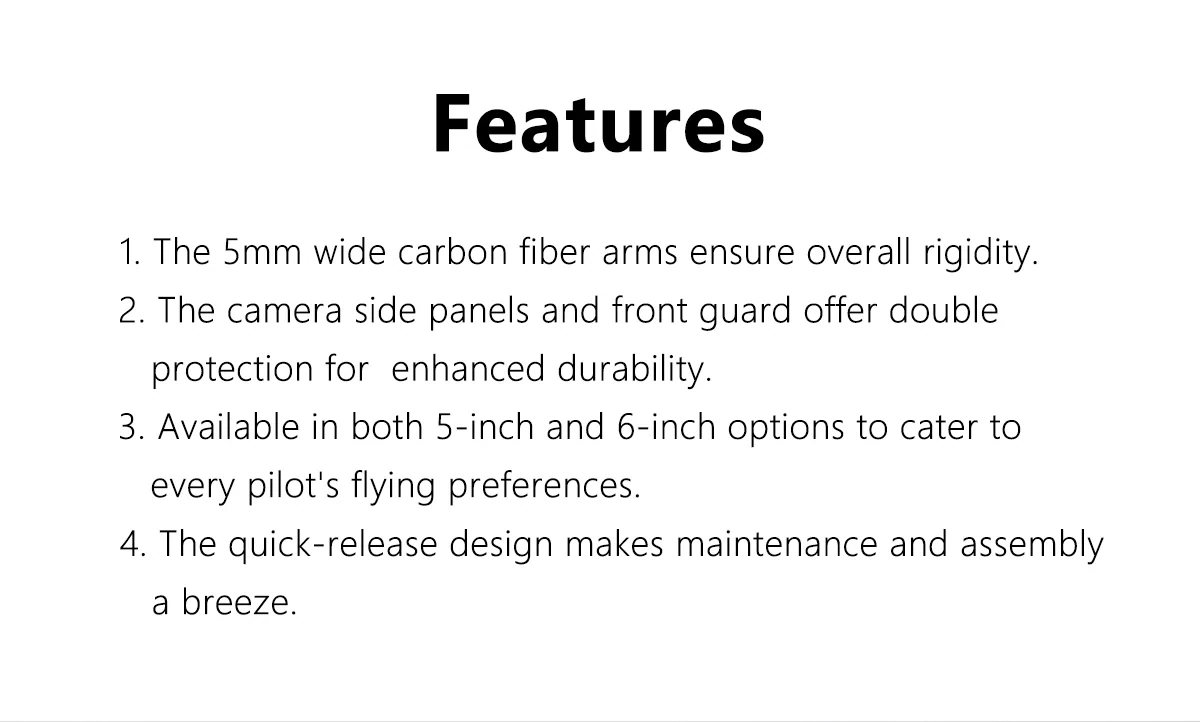

Key features
- 5mm-thick carbon fibre arms for overall rigidity, backed by a 2mm top plate and a 2.5mm bottom plate.
- Camera side panels and a front guard give the FPV camera double protection against frontal impacts.
- Quick-release construction speeds up maintenance and stack swaps after a crash.
- Dual FC mounting pattern (20x20mm and 30.5x30.5mm) fits micro and standard stacks; VTX mounts at 20x20mm, 25x25mm or 30.5x30.5mm.
- 16x16mm motor mounting and 19mm/20mm camera mounting holes cover common 5-inch motor and nano/micro camera choices.

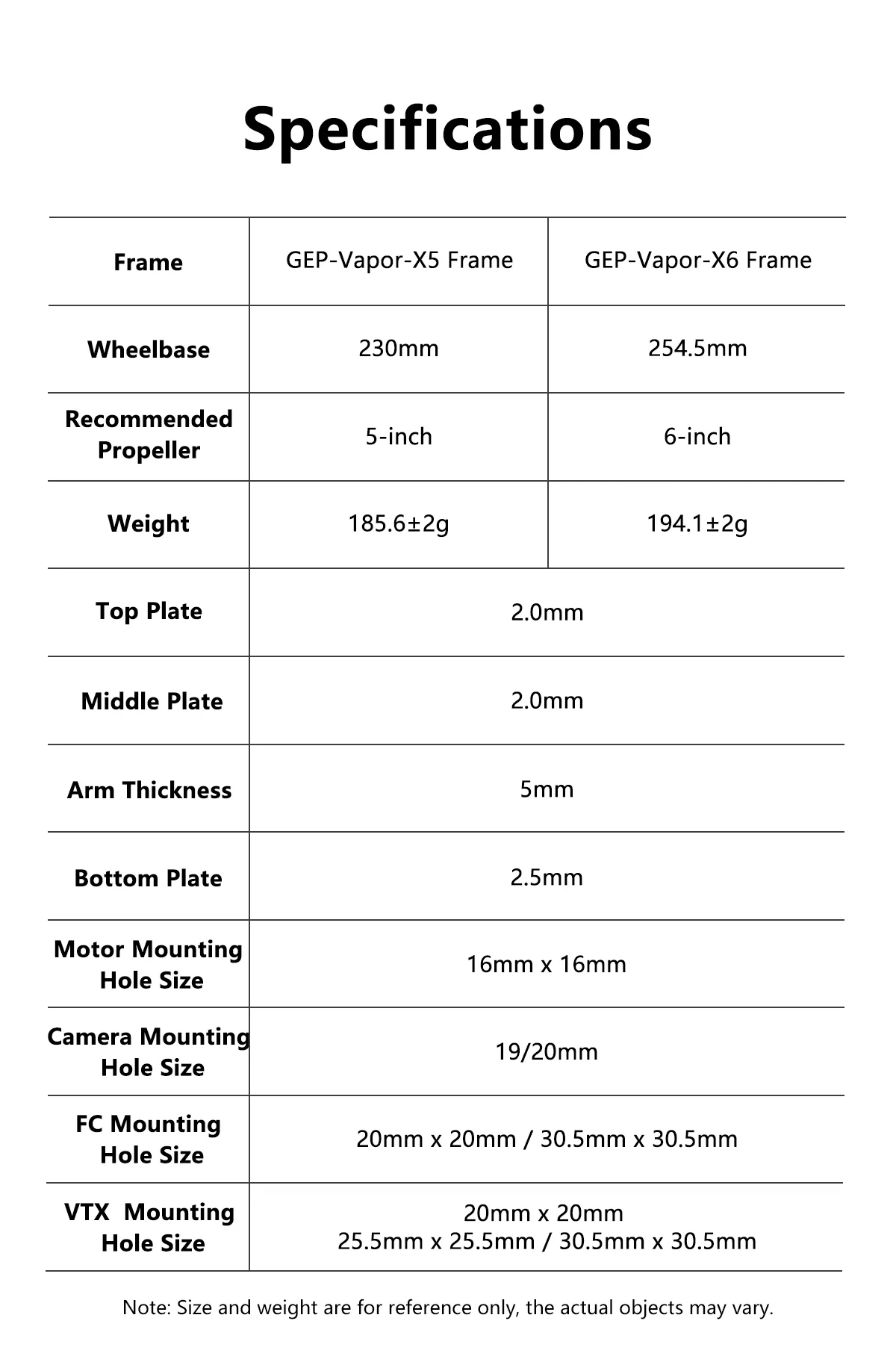

Specifications
- Geometry: X-frame

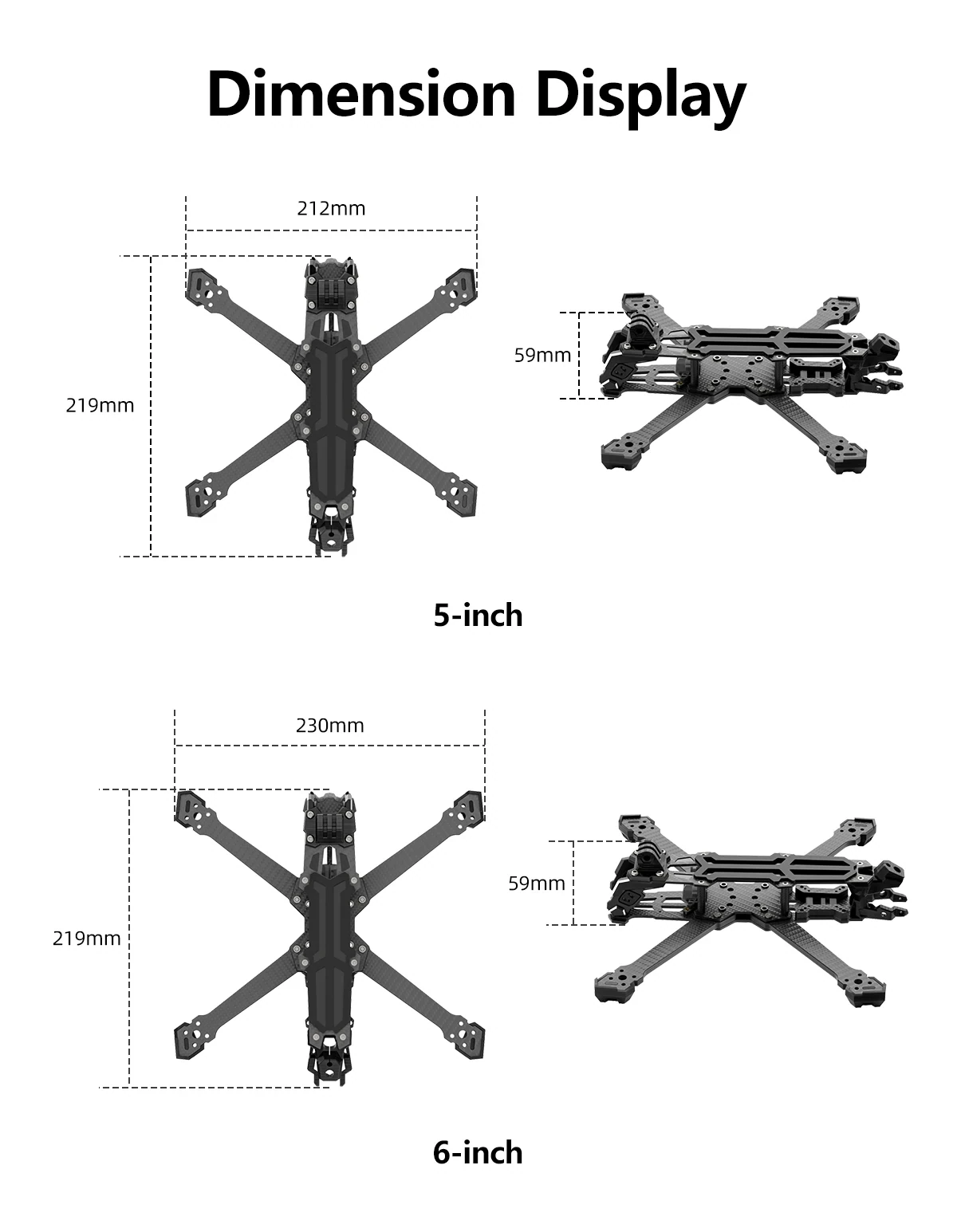

- Wheelbase: 230mm
- Arm Thickness: 5mm
- Top / Bottom Plate: 2mm / 2.5mm
- FC Mounting: 20x20mm, 30.5x30.5mm
- VTX Mounting: 20x20mm, 25x25mm, 30.5x30.5mm
- Motor Mounting: 16x16mm
- Camera Mounting: 19mm, 20mm
- Weight: 185.6g +/-2g
- Propeller Size: 5-inch

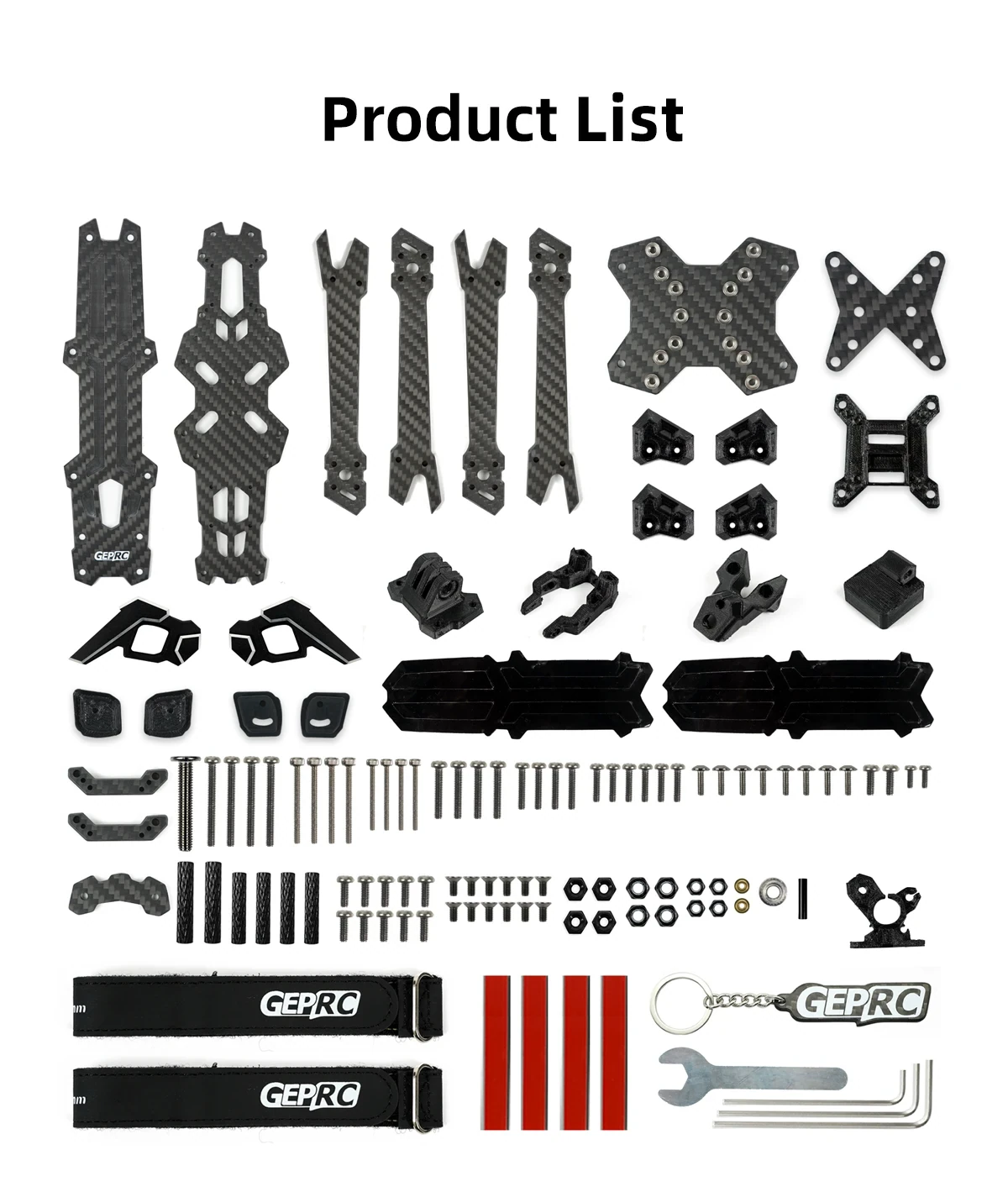

It ships with battery straps, silicone pads and a full screwdriver/wrench set - a durable, straightforward daily freestyle platform for a 30.5x30.5mm or 20x20mm electronics stack.
| Prop Size | 5" |
|---|---|
| Wheelbase | 230 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 185.6 g |
| Material | Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 20x20, 30.5x30.5 |
| Motor Mount | 16x16mm |
