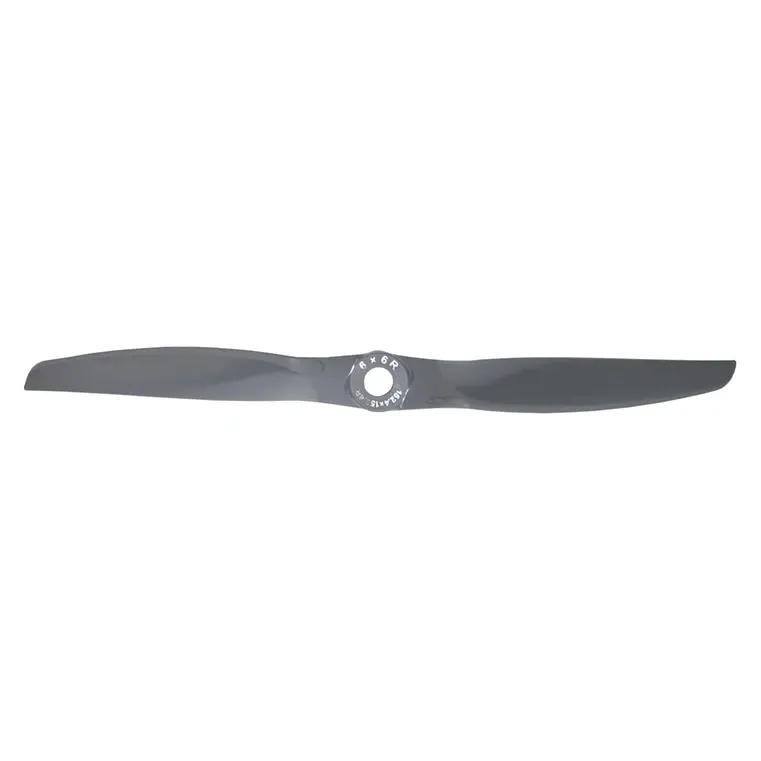

Gemfan Vortex 6x6 Glass Fiber Nylon Electric Propeller (2 pcs)

The Gemfan Vortex 6x6 is a two-blade electric propeller for small fixed-wing models, park flyers and light FPV wings on small brushless motors. It comes in packs of two in the rotation you select.

Key features

• Square 6 in pitch (pitch equals diameter) for an even mix of climb thrust and cruising speed
• Glass-fibre reinforced nylon: strong and light, with good resistance to impact
• Precision dynamic balancing keeps vibration low and handling stable

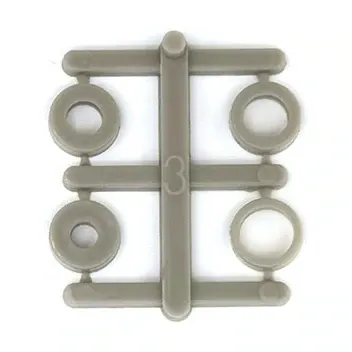

• 6.35 mm bore with four adapter rings (3, 4, 5 and 6 mm) for common motor shafts and prop adapters
• Available as CCW (6x6E, standard rotation) or CW (6x6R, reverse rotation)

Specifications

• Diameter: 6 in (152 mm)
• Pitch: 6 in
• Blades: 2
• Hub diameter: 13 mm
• Hub thickness: 6.5 mm
• Centre bore: 6.35 mm (1/4 in)
• Weight: 5.2 g
• Colour: Dark grey

Choosing rotation: CCW (E) is the standard prop for a conventional nose-mounted tractor motor. CW (R) turns the opposite way, for a pusher mount or the second motor of a twin, where opposite rotation cancels torque. For a twin, order one pack of each.
