Flywoo NIN 2104 Ultralight FPV Motor Silver

The Flywoo NIN 2104 is a wide-stator ultralight motor designed for sub-250g 4-inch long-range cruisers, aggressive 3.5-inch freestyle quads, and ultralight 5-inch builds. By utilizing a pancake-style 2104 stator, it delivers exceptional low-end torque and rapid throttle response while keeping the overall dry weight strictly minimized for strict weight classes.

Key features

• Wide 2104 stator design yields high torque authority and fast braking on larger, lightweight props.

• Finished in Flywoo's signature NIN electroplating for improved heat dissipation and physical durability.

• 1800KV variant is optimized for efficient 6S 4-inch or 4S ultralight 5-inch setups.

• 3000KV variant delivers punchy throttle response for 4S builds spinning 3.5-inch or 4-inch propellers.

Specifications

• Brand: Flywoo

• Stator Size: 2104

• KV Options: 1800KV, 3000KV

• Colour: Silver

• Configuration: 12N14P

• Stator: 21 x 4mm

• Shaft: 3mm inner, 1.5mm prop shaft

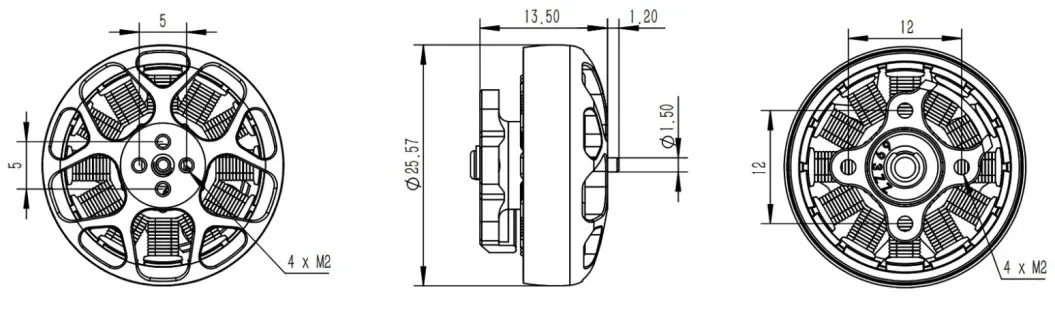

• Motor dimensions: 25.57 x 13.5mm

• Mounting pattern: 12x12mm (M2)

• Weight: 16g (3cm wire)

• Bearings: NSK

• 1800KV: 4-6S LiPo; max current 22.2A and max continuous power 533W (3S rating); internal resistance 210 mOhm

• 3000KV: 3-4S LiPo; max current 36.3A and max continuous power 581W (3S rating); internal resistance 110 mOhm

Pair the 1800KV variant with a high-voltage 6S LiPo and lightweight 4-inch bi-blades for long-range efficiency, or choose the 3000KV model with a 4S pack to maximize agility on a 3.5-inch freestyle frame.
