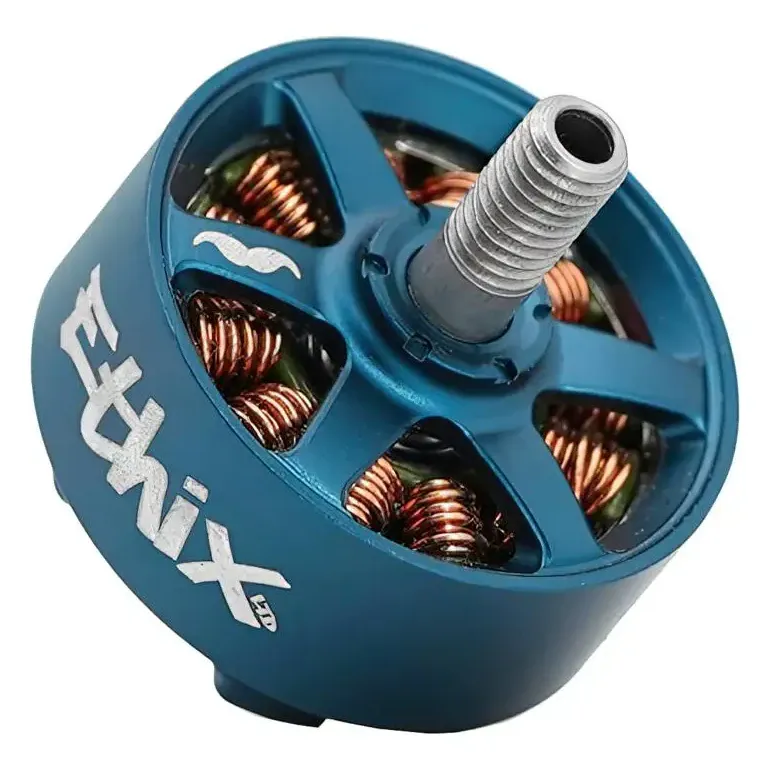

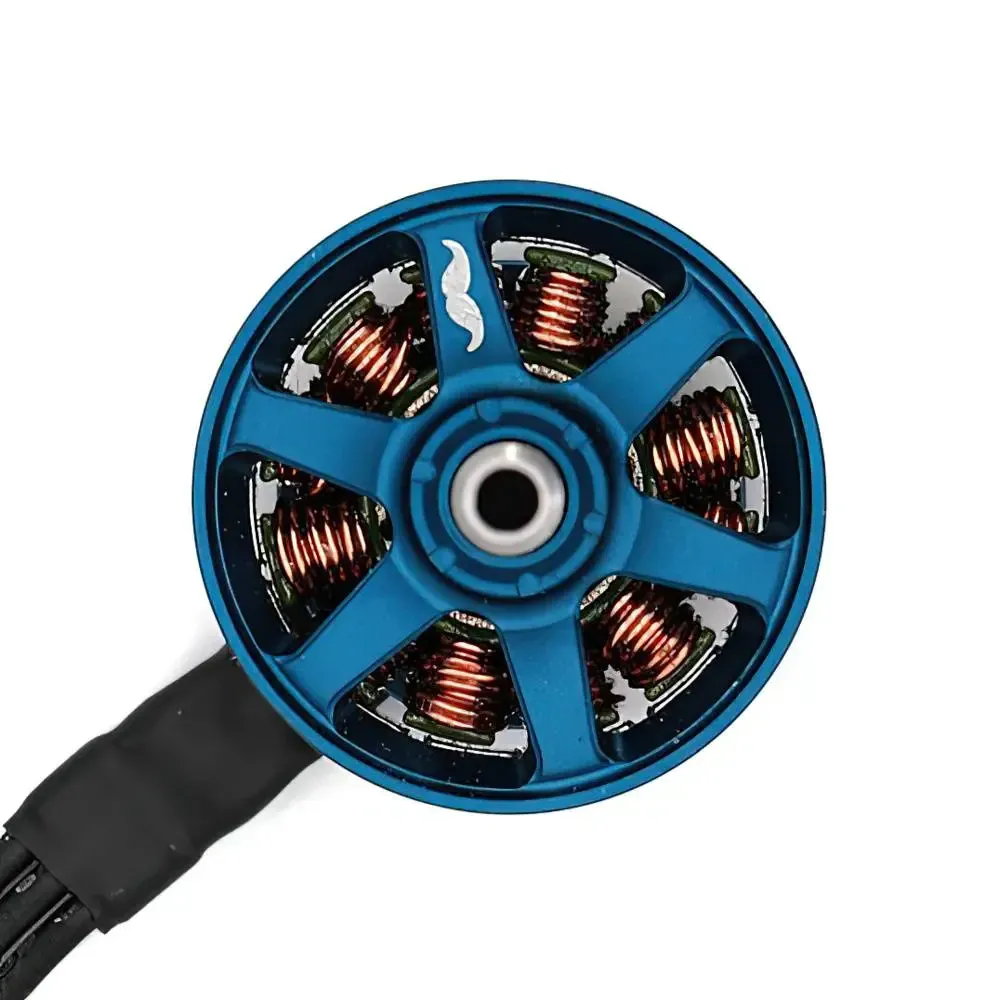

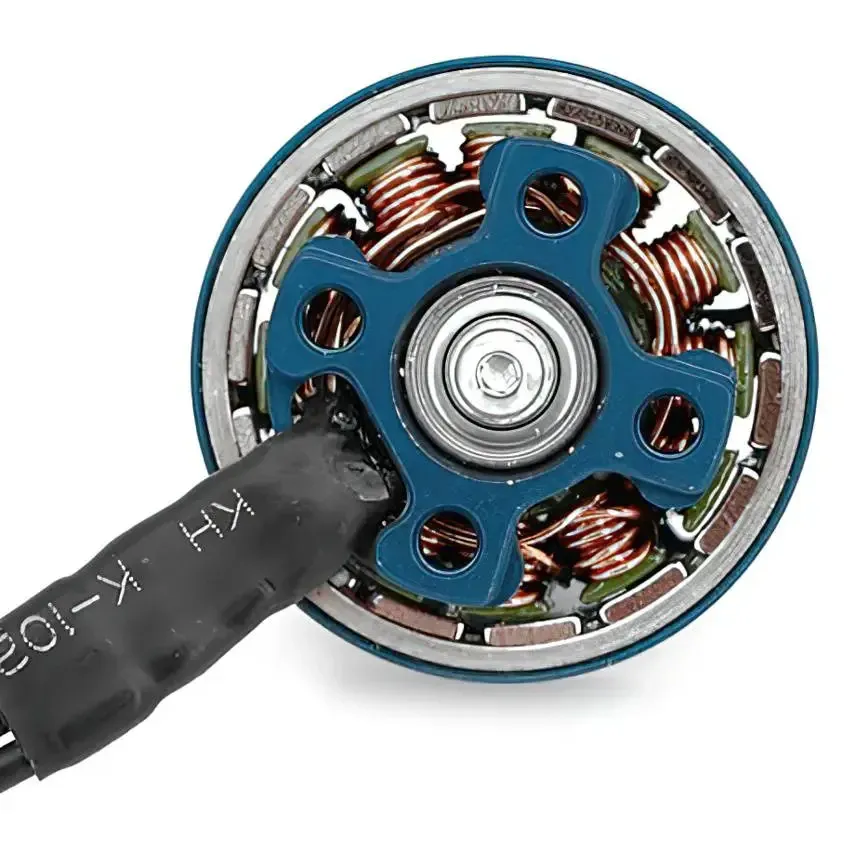

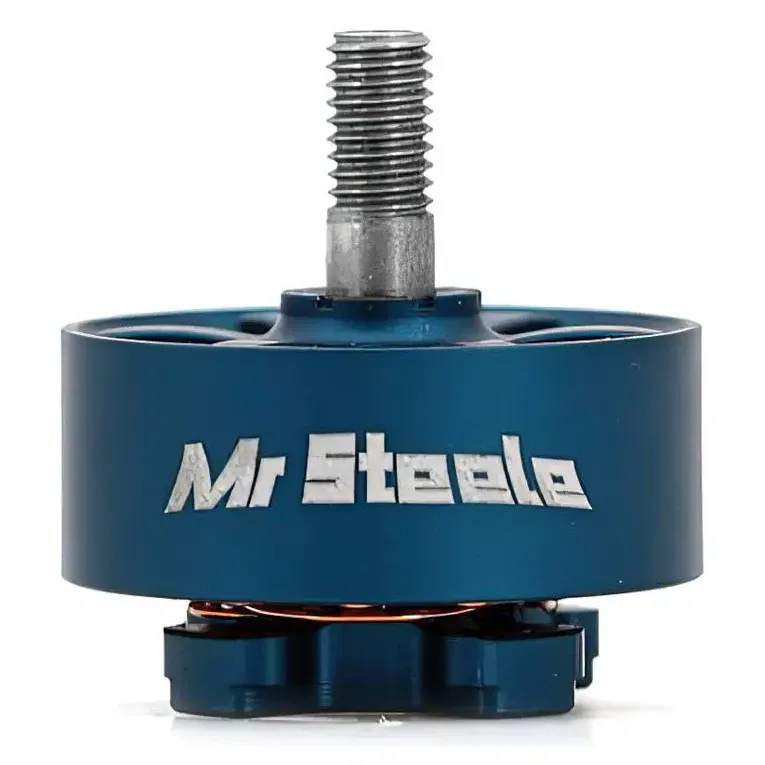

Ethix Mr Steele Stout 2307 Motor V5 1950KV — Blue

The Ethix Mr Steele Stout 2307 V5 1950KV is a 6S freestyle motor built around a redesigned bell and crash-resistant motor pants, aimed at 5-inch quads carrying a heavier HD camera setup through repeated freestyle impacts.

Key features

• Redesigned bell improves heat dissipation over earlier Stout revisions.
• Crash-resistant motor pants protect the bearings and shaft on hard impacts.
• 1950KV winding suits 6S power on 5-inch props for HD camera freestyle builds.
• Weighs approximately 34g with full-length motor wires.
• Sold as a single motor from the Mr Steele signature line; order four for a complete quad.

Specifications

• KV: 1950KV
• Cell count: 6S
• Stator: 23 x 7 mm
• Dimensions: 28.6 x 18.2 mm
• Mounting pattern: 16x16 mm, M3 thread
• Shaft diameter: 4mm
• Shaft: steel, 10.5 mm long
• Internal resistance: 60 mOhm
• Max current: 45 A (60 A burst)
• Magnets: N52SH curved
• Bearings: NMB 684
• Wire: 20AWG, 135 mm
• Colour: Blue

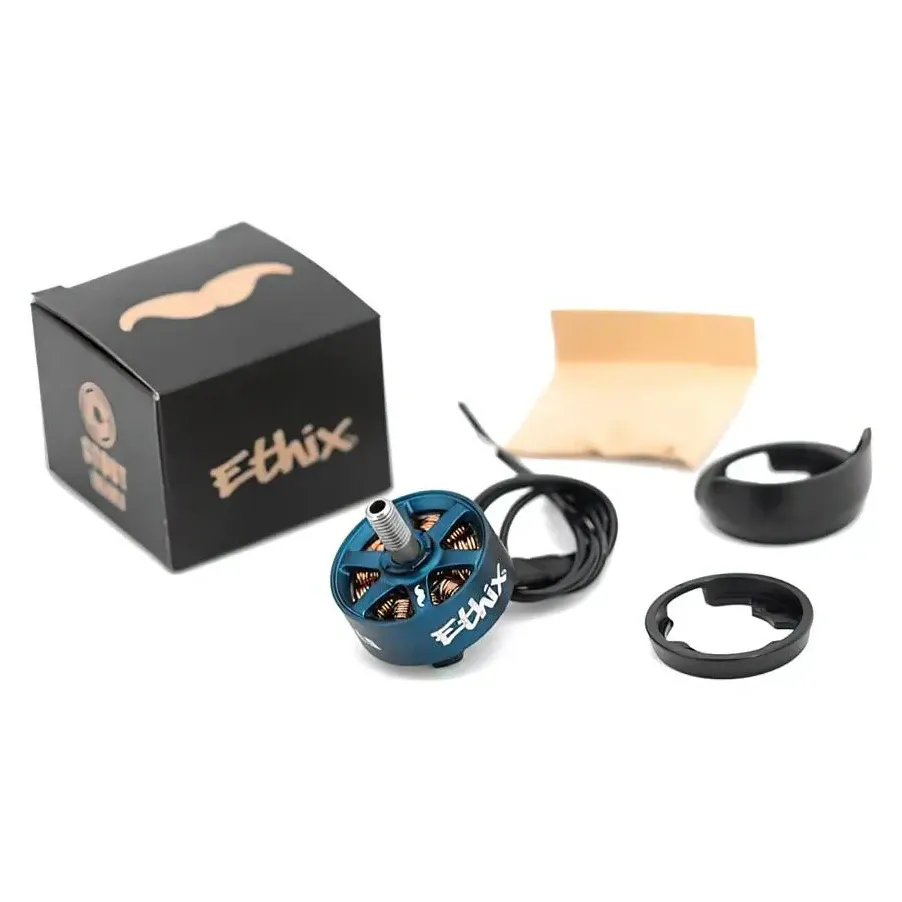

• In the box: 1 motor, hardware set, motor pants set

Built for 5-inch freestyle frames running the extra weight of an HD digital camera system.
