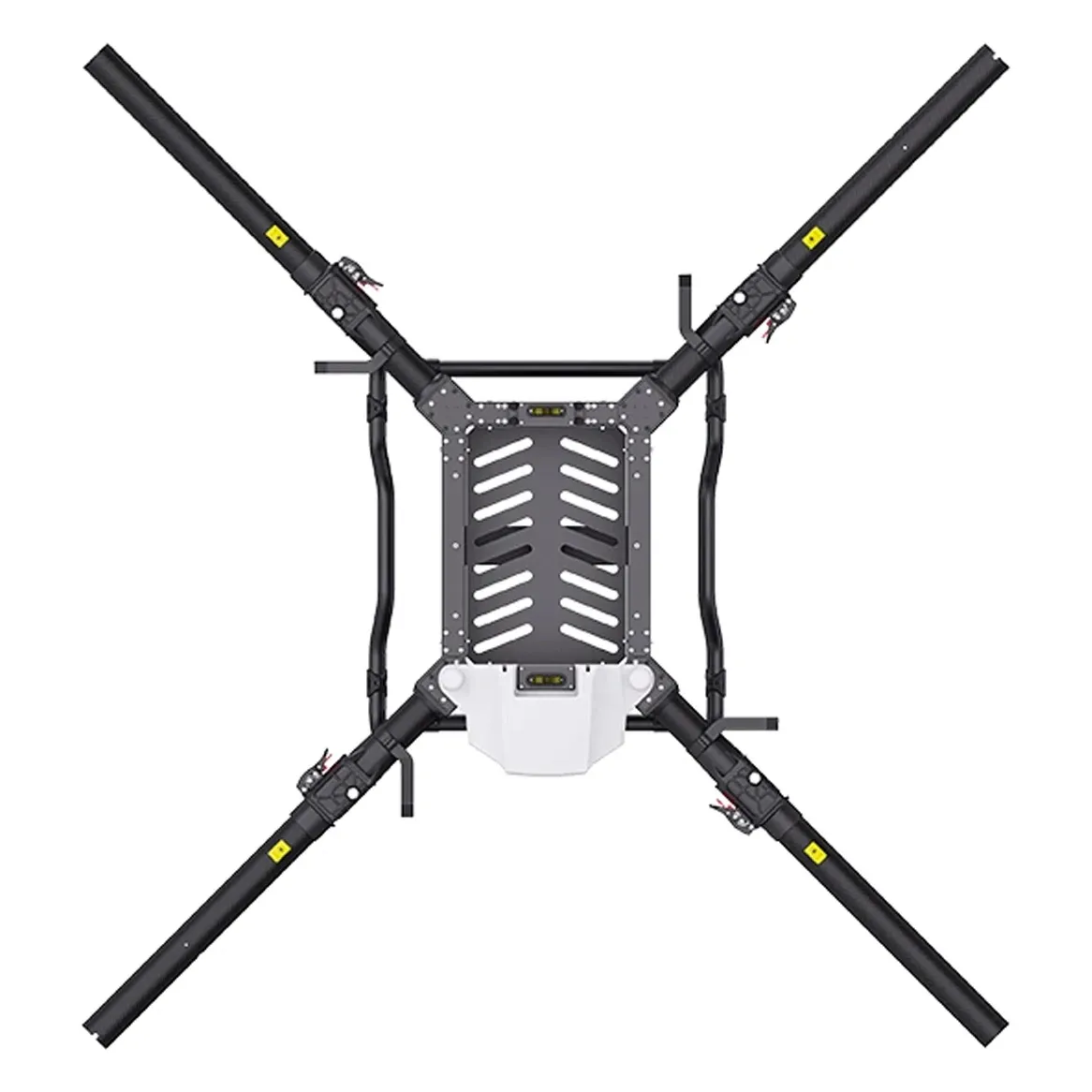

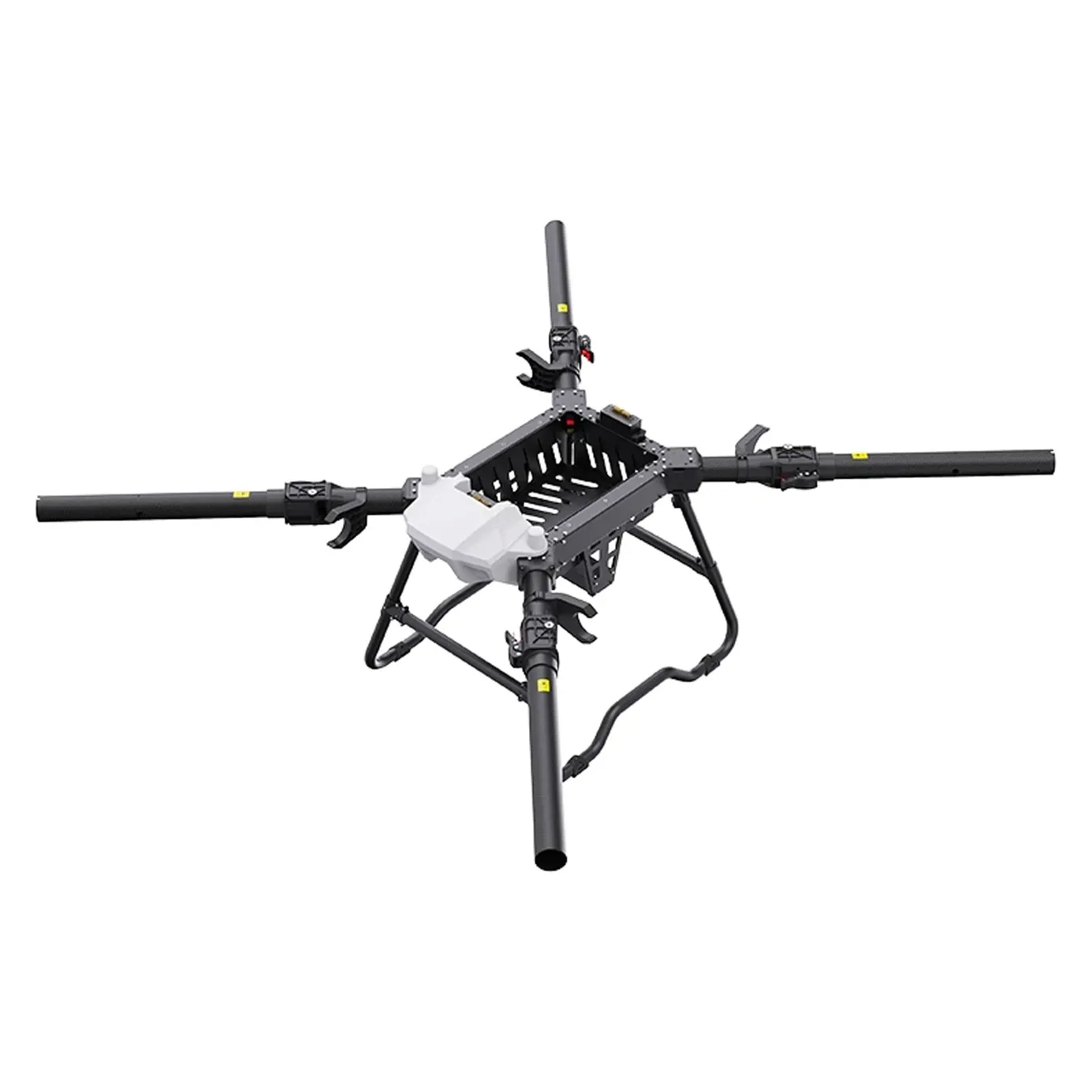

EFT X2800 Heavy-Lift Industrial Drone Frame

The EFT X2800 is a frame designed for heavy-lift industrial and agricultural drone platforms. Built for commercial operators and X-Class projects, it provides the structure and motor spacing required to carry spray equipment, survey sensors, industrial inspection gear and cinema payloads.

Key features

• Industrial-scale geometry provides mounting space for high-torque motors, oversized ESCs and large-capacity battery packs

• Frame architecture suited to agricultural spray systems, multi-spectral imaging sensors and gimbal-mounted cinema rigs

• Heavy-lift structure designed for the mechanical loads and flight durations required in commercial and precision agriculture work

Specifications

• Centre frame: High-strength metal truss structure

• Arms: 80 mm carbon fibre tubes, centre-symmetric layout

• Battery bay: 544 x 363 mm

• Battery connector: Integrated 500A high-current connector

• Effective payload: 200-300 kg

• Payload mounting: Integrated crossbeam payload bracket (e.g. firefighting canisters, nozzles, drop-release systems)

• Modular parts: Landing gear, cover and payload mount can be customised independently

This frame targets operators building crop-spraying drones, aerial survey platforms or cinema lift rigs where standard racing and freestyle frames lack sufficient payload capacity and structural margin.
