Tarot X8-Lite 8-Axis Multirotor UAV Frame
₹18,499Incl. GST
SKU TAROT-X8-LITE-FRAME
Prop Size: 15"Brand: TarotWeight: 1700 gMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

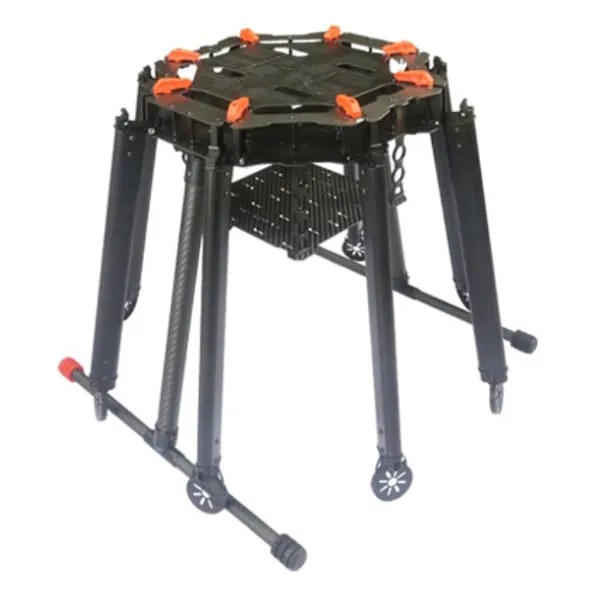

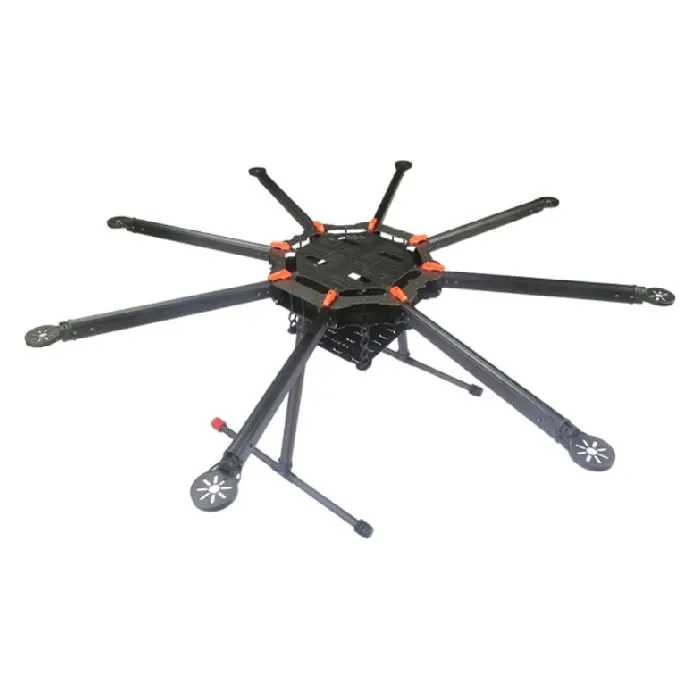

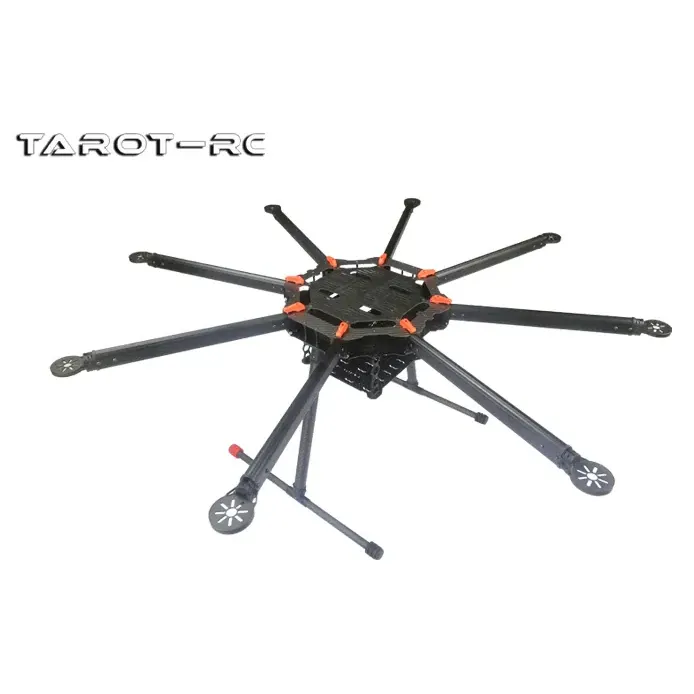

The Tarot X8-Lite is an eight-axis multirotor UAV frame for large drone builds. It provides a frame platform for heavy-lift projects using an X8 motor and propulsion layout.
Key features
- Lighter version of the Tarot X8 octocopter frame at 1.7kg.
- Umbrella-style folding arms for transport.

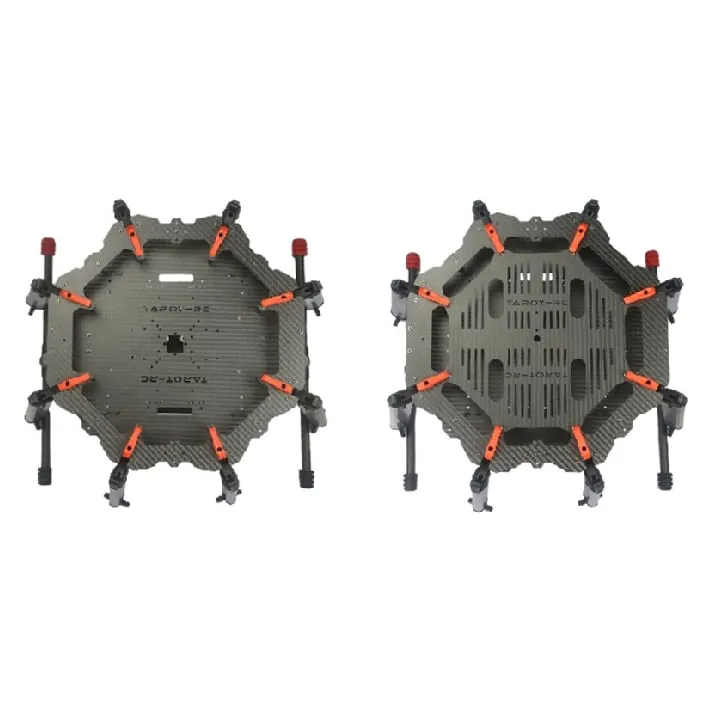

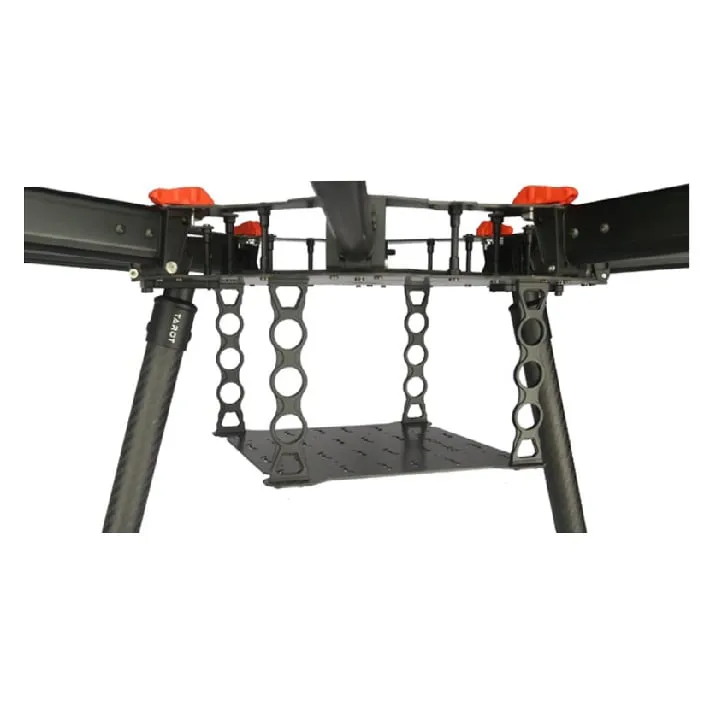

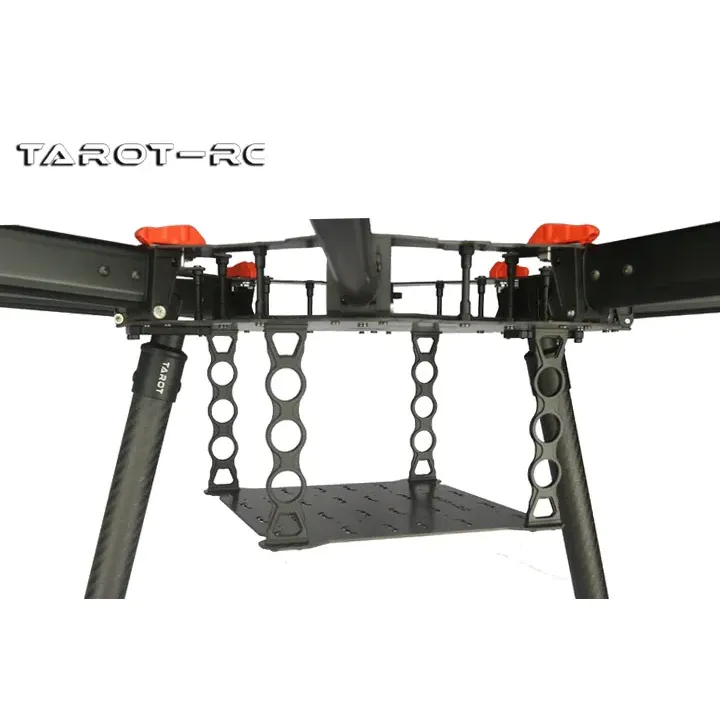

- Two-level centre deck with separate space for the power system, flight controller and video/data link.
- One-piece perforated battery plate with room for large packs.

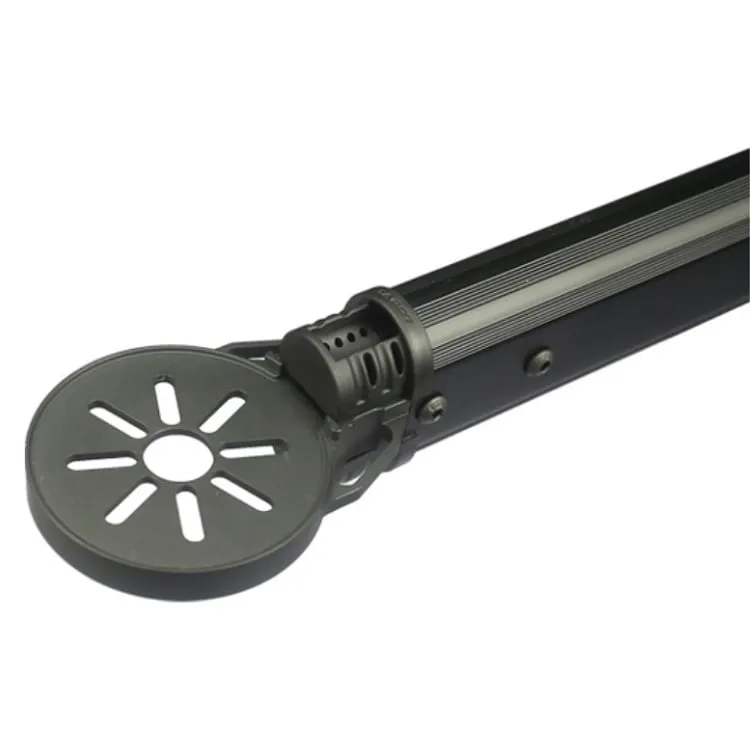

- Lightweight motor mounts take motors up to Φ44mm.

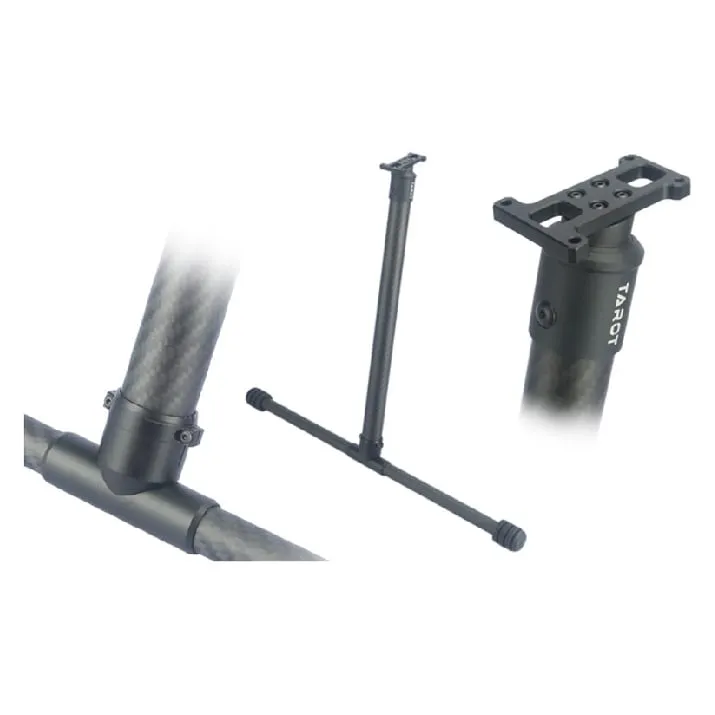

- Carbon fibre shock-absorbing landing gear with split metal tee joints.
Specifications
- Configuration: 8-axis octocopter
- Motor-to-motor wheelbase: 1050mm
- Centre plate diameter: 333mm
- Landing gear height: 377mm
- Motor size: up to Φ44mm
- Material: Carbon fibre
- Net weight: 1.7kg
- Suggested setup (not included): 6S 4012 320KV motors, 40A ESCs, 15-inch folding propellers, 6S 15000mAh battery, about 4.9kg take-off weight
| Prop Size | 15" |
|---|---|
| Brand | Tarot |
| Weight | 1700 g |
| Made in India | No |
| Wheelbase | 1050 mm |
