iFlight BLITZ Mini E55S 4-in-1 ESC V1.1

The iFlight BLITZ Mini E55S V1.1 is a compact 20x20mm 4-in-1 electronic speed controller engineered to deliver 55A continuous current per channel for 2-6S FPV racing and freestyle builds. Designed for tight frame clearances without sacrificing output capacity, it handles aggressive throttle bursts up to 60A on high-performance 5-inch and heavy-duty sub-250g setups.

Key features

• Delivers 55A continuous and 60A burst current per corner across a 2-6S LiPo voltage range
• Compact 20x20mm mounting pattern fits modern mini stacks and space-constrained FPV frames
• Runs BLHeli_S firmware with full support for DShot150, DShot300, and DShot600 protocols
• Integrated onboard current sensor (scale: 200) for accurate mAh consumption tracking via OSD

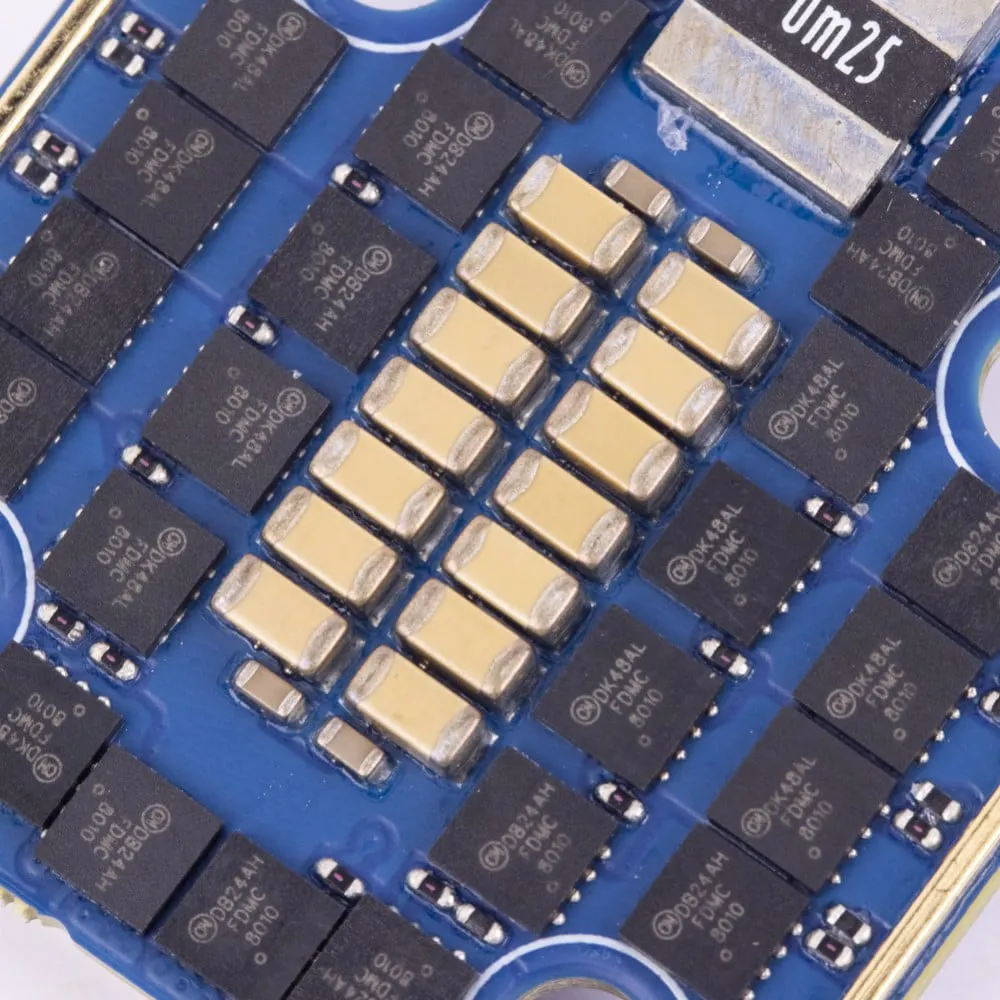

• Heavy-duty copper PCB layout improves heat dissipation during sustained high-amp draw

Specifications

• Continuous Current: 55 A
• Burst Current: 60 A
• Input Voltage: 2-6S LiPo
• Firmware: BLHeli_S
• Supported Protocols: DShot150, DShot300, DShot600, MultiShot, OneShot
• Current Sensor Scale: 200
• Mounting Pattern: 20x20mm

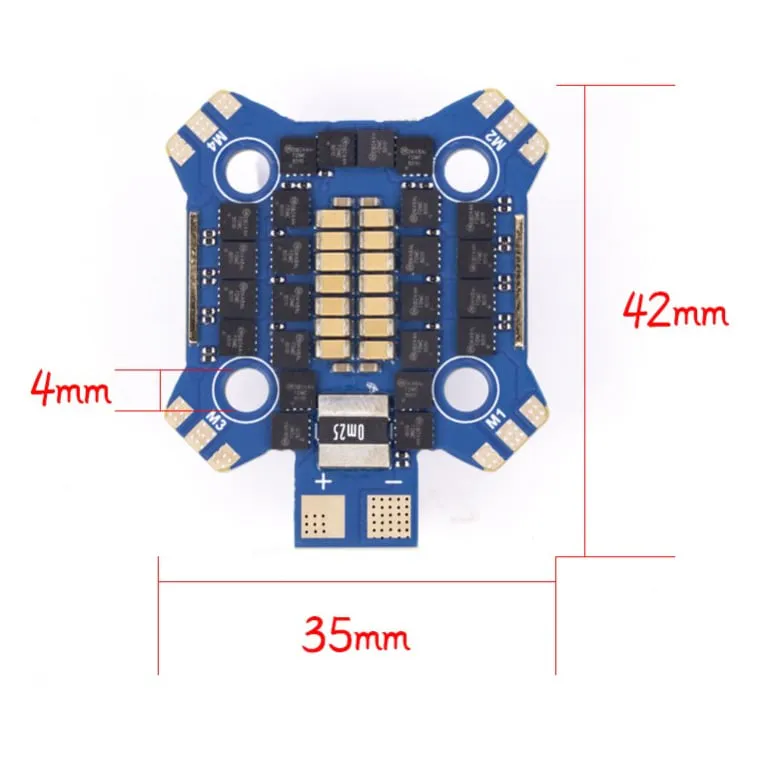

• Dimensions: 35 mm × 42 mm
• Weight: 11.3 g

Compatible with iFlight BLITZ Mini flight controllers and standard 20x20mm stack layouts using the included plug-and-play wiring harness or large direct-solder motor pads.
