DYS BE2206 Power Combo Set

The DYS BE2206 Power Combo Set bundles BE2206 brushless motors, BL30A BLHeli ESCs and 6045 two-blade propellers into one power system for a DIY multirotor. It suits builders assembling a custom drone power system rather than buying a ready-to-fly aircraft.

Key features

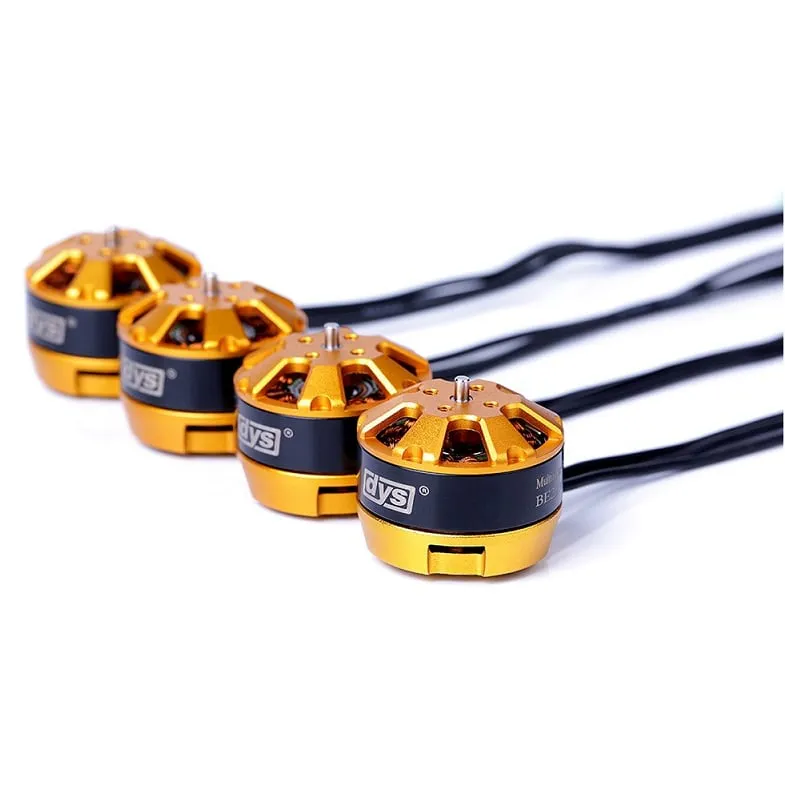

• 2206 brushless motors rated 1950KV with a metal case and NMB bearings, producing up to about 680 g of thrust each.

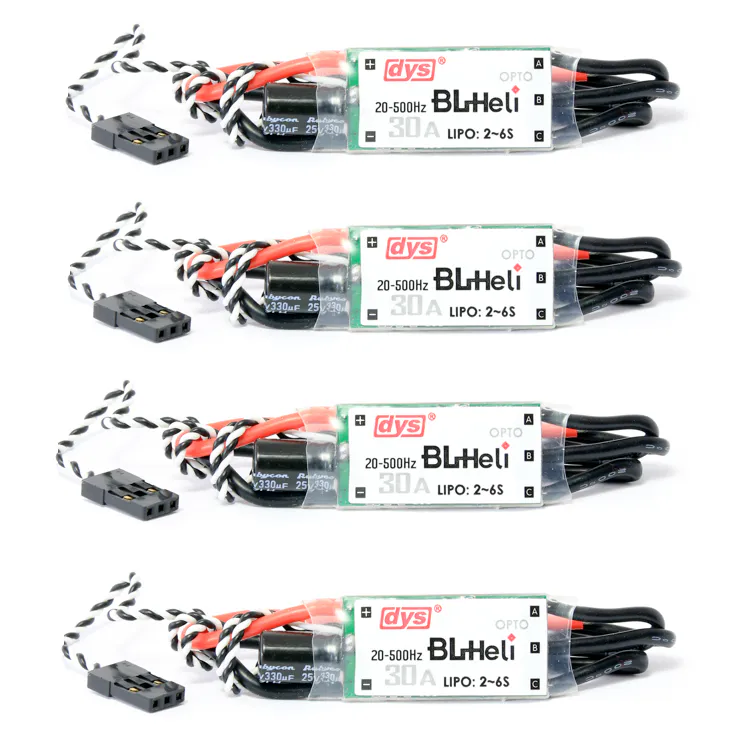

• BL30A ESCs preloaded with BLHeli (SimonK compatible), supporting OneShot125, active braking and refresh rates up to 500 Hz.

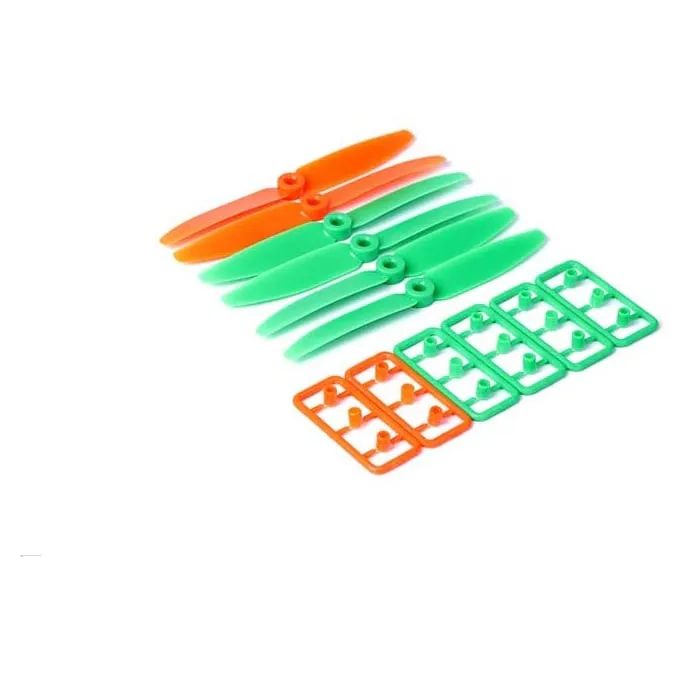

• 6 x 4.5 inch two-blade polycarbonate propellers in CW and CCW rotation with an M5 hub.
• Opto ESCs with no BEC, so the flight controller and receiver need a separate 5 V supply.

Specifications

• Motor: 2206, 1950KV, 22 mm stator diameter, 6 mm stator length
• Motor shaft: 3 mm
• Motor dimensions: 27 x 18.5 mm
• Motor weight: 30 g
• Motor battery: 2-3S LiPo
• Motor max continuous current: 14.7 A (163 W)
• ESC: BL30A, 30 A continuous, 35 A burst, 2-6S (6-22.2 V), no BEC
• ESC size and weight: 45 x 16.6 x 5.5 mm, 14.5 g
• Propellers: 6045 (6 x 4.5 inch), 2-blade, M5 hub, 7 mm hub thickness, 3.8 g each
• In the box: 4 x 2206 1950KV motors (CW and CCW) with mounting accessories, 4 x BL30A ESCs, 6 x 6045 propellers (3 CW, 3 CCW)
