DM002 DIY RC Quadcopter Kit with Camera & WiFi

The DM002 is an entry-level DIY quadcopter kit designed to teach the fundamentals of drone assembly and flight. Provided as a complete, unassembled package, it gives new pilots hands-on experience building a functional multirotor from scratch. It is available in a standard line-of-sight configuration or with a WiFi-enabled camera for smartphone-based video transmission.

Key features

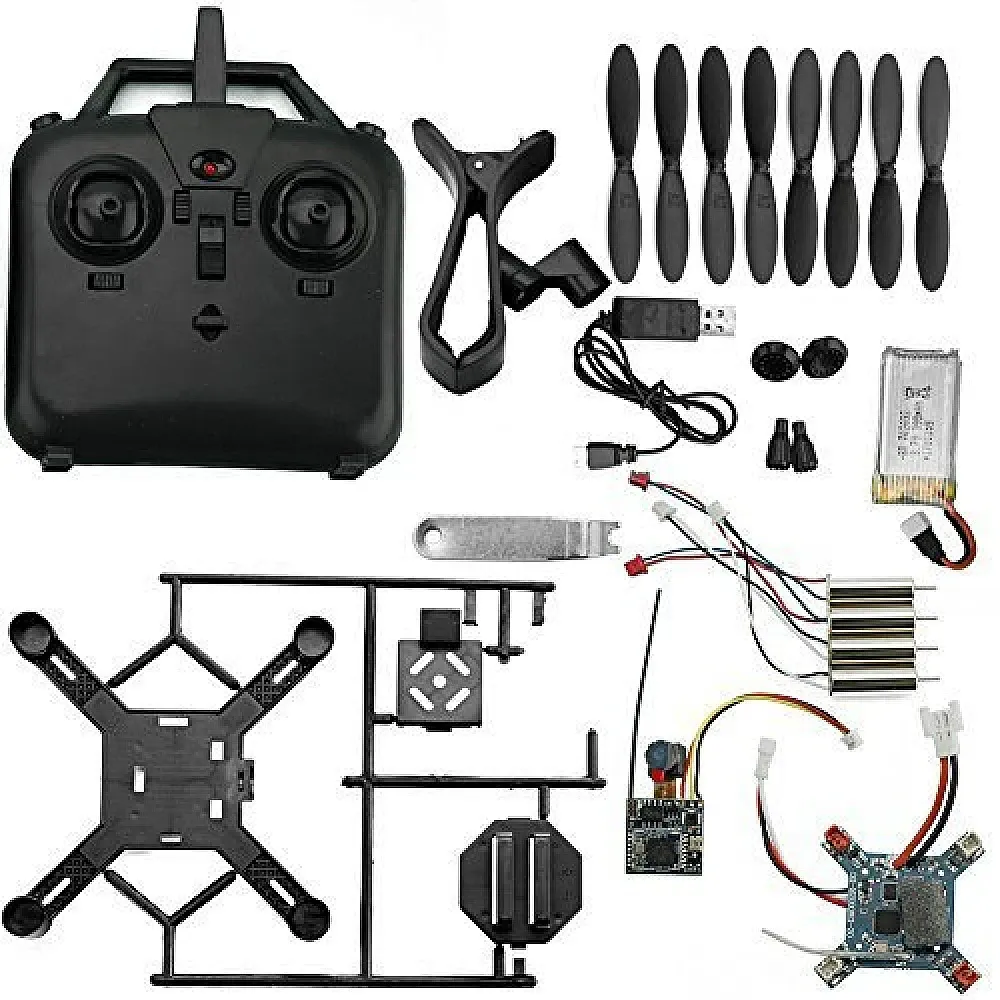

• Complete build kit including the frame, flight controller, motors, and propellers
• Includes a dedicated 2.4GHz radio transmitter for immediate flight after assembly
• Driven by lightweight coreless brushed motors
• Integrated 6-axis gyro for stable, beginner-friendly hovering
• Propeller guards included to protect components during indoor collisions

Specifications

• Motors: Coreless brushed
• Battery: 1S 3.7V 300mAh LiPo
• Stabilisation: 6-axis gyro

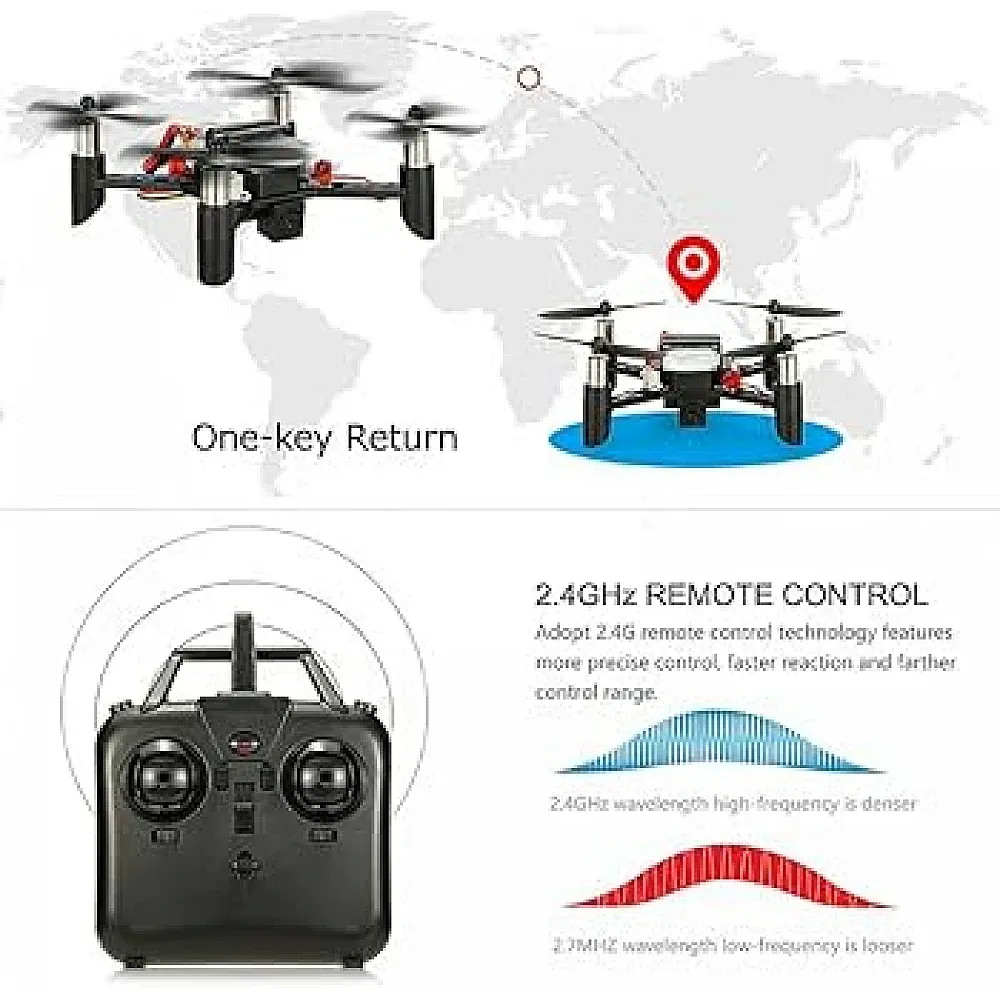

• Radio frequency: 2.4GHz
• Flight time: Approx. 5 to 7 minutes
• Control range: Up to 100 metres

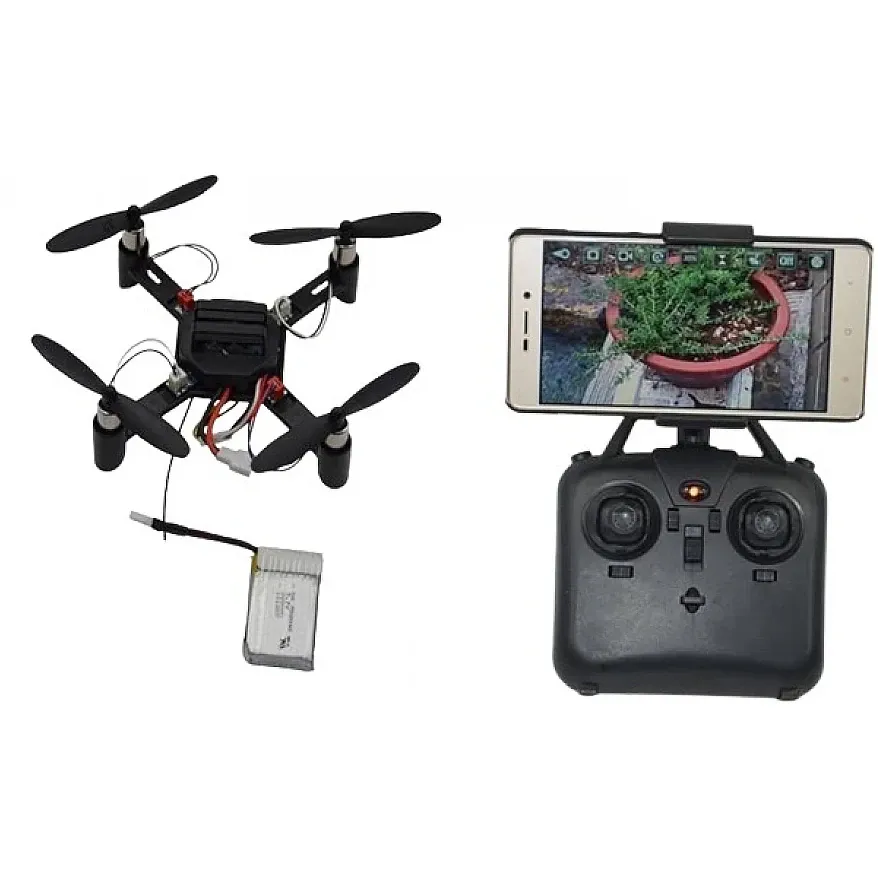

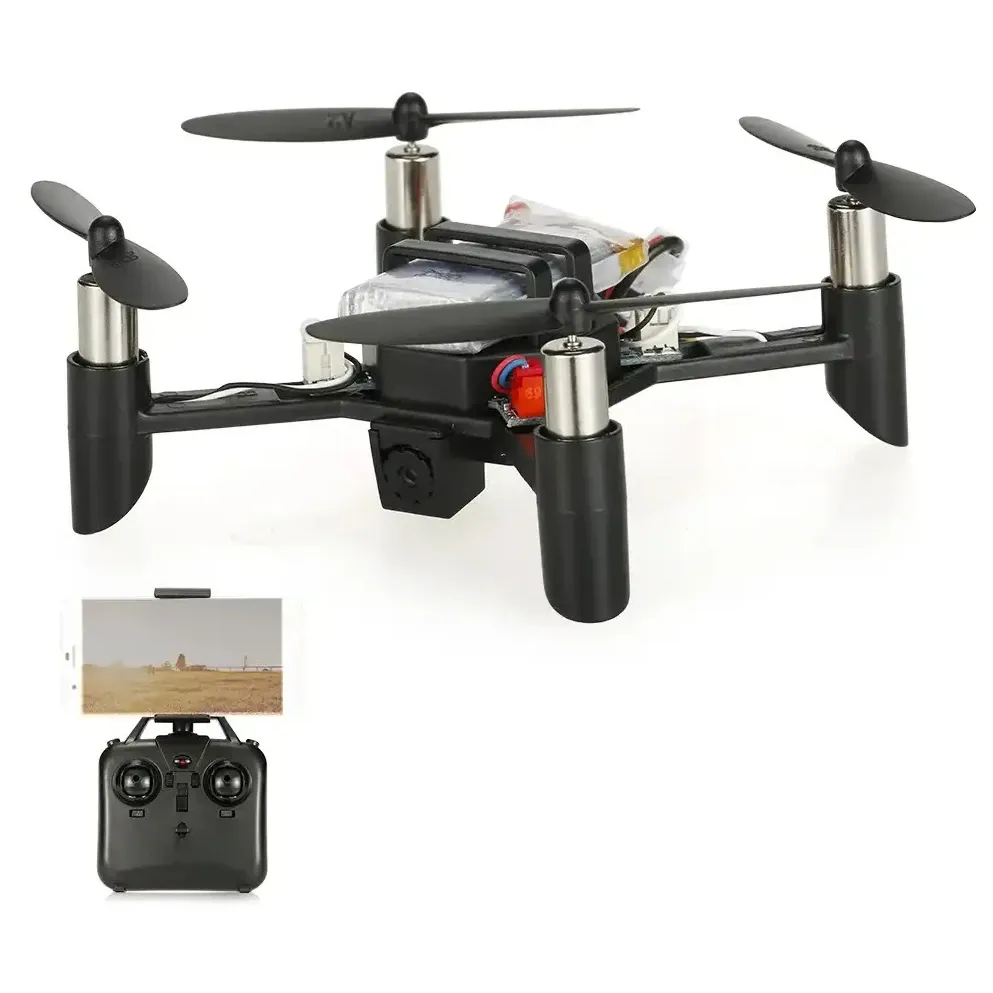

This kit requires basic assembly and is ideal for indoor flying or calm outdoor conditions. The WiFi camera variant allows builders to clip a smartphone to the radio and view a live video feed, serving as an accessible introduction to First Person View (FPV) flight mechanics before transitioning to larger brushless systems.
