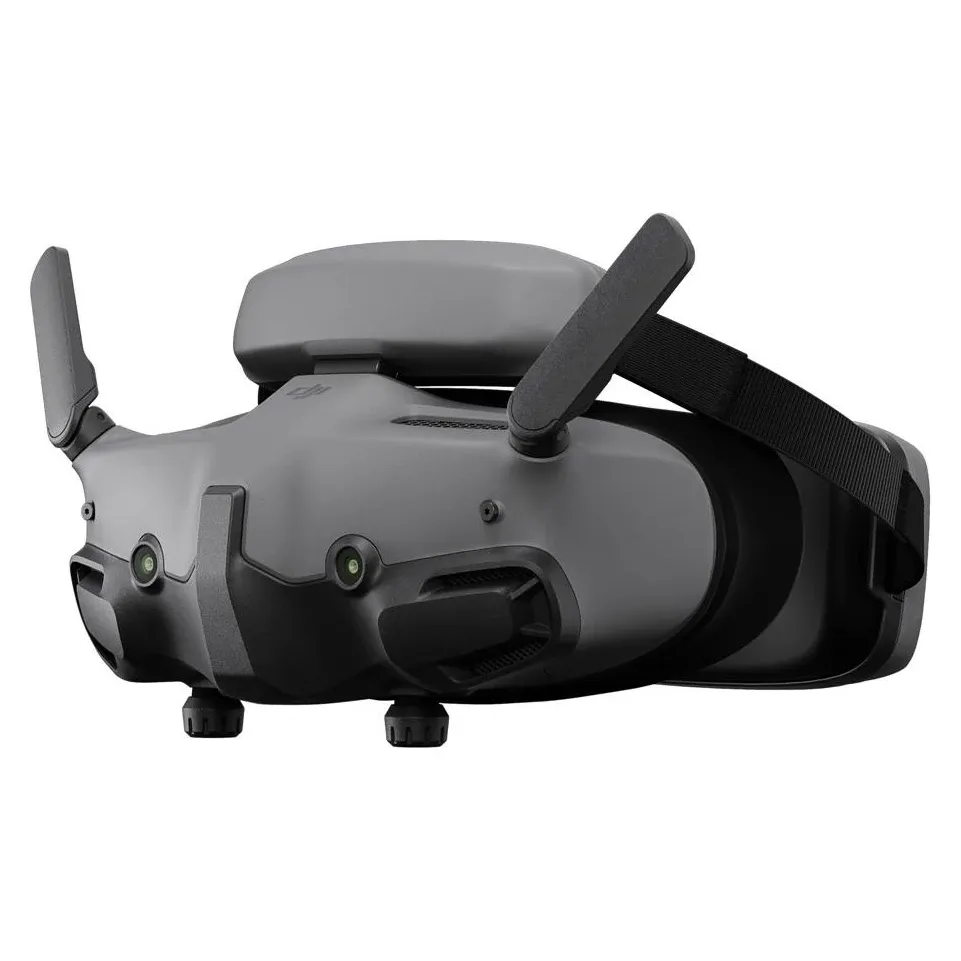

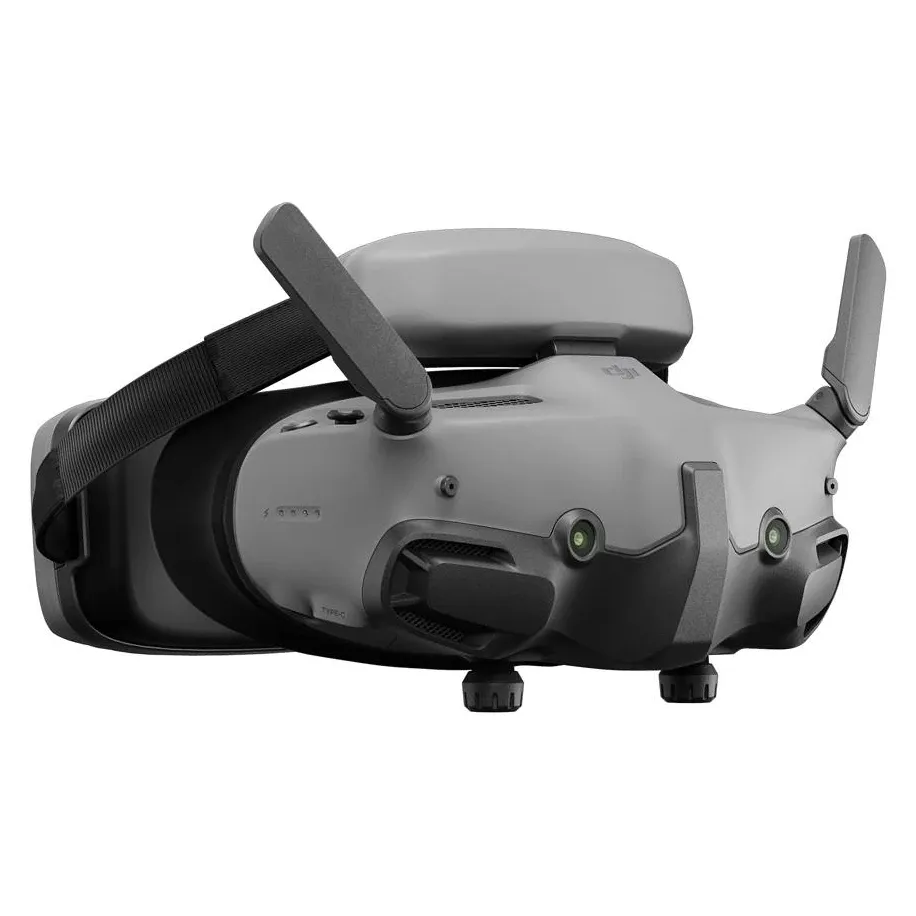

DJI Goggles 3

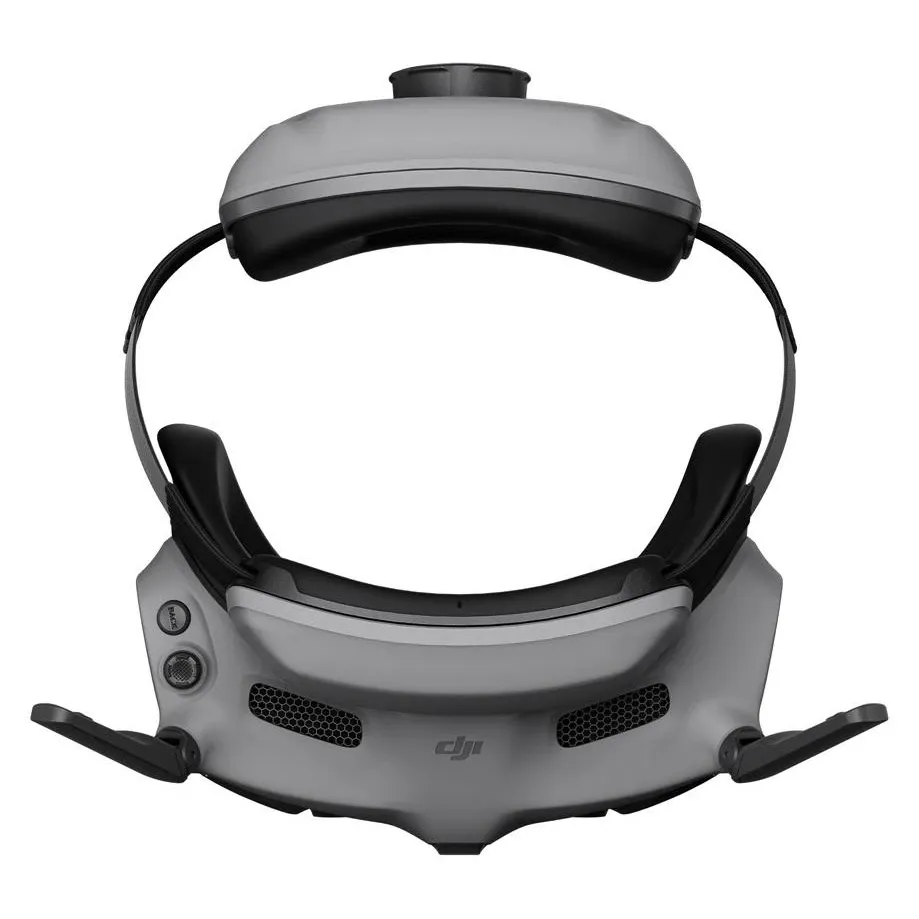

The DJI Goggles 3 deliver ultra-low latency digital video for pilots flying the DJI O4 transmission system or the DJI O3 Air Unit. Featuring a balanced design with a 3000mAh battery integrated directly into the headband, these goggles eliminate dangling power cables while maintaining a comfortable centre of gravity during long flight sessions.

Key features

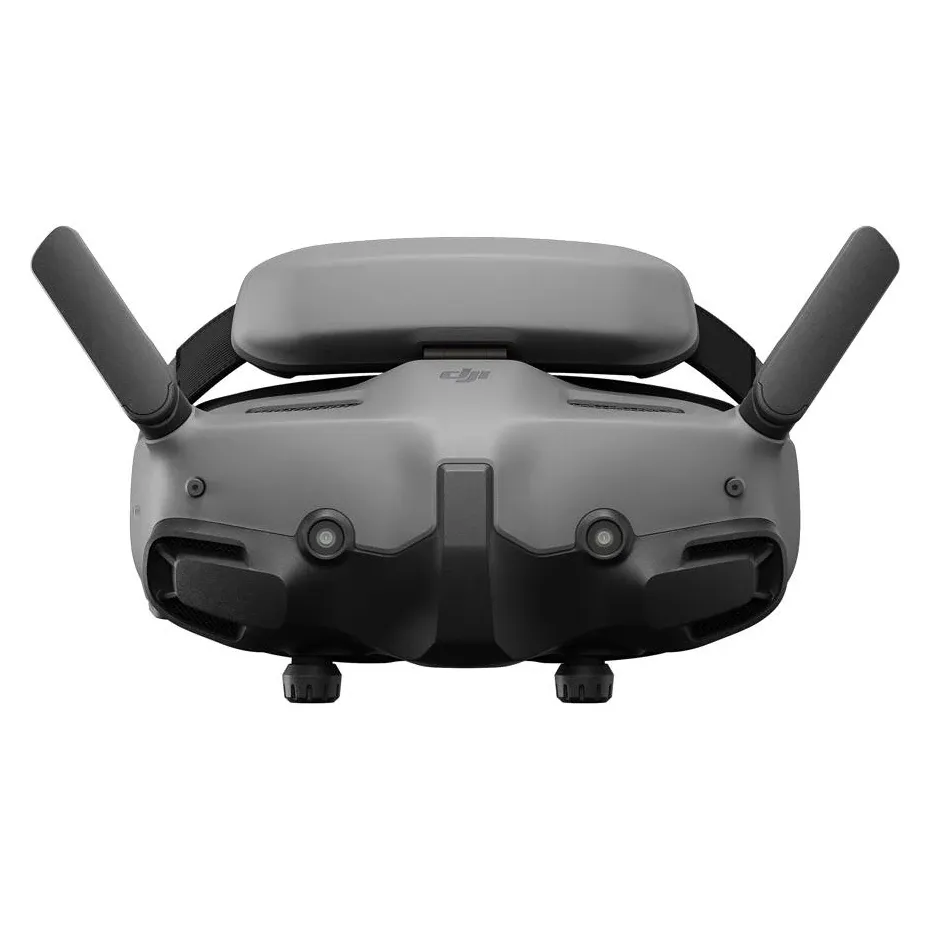

• Real View Picture-in-Picture (PiP) uses forward-facing cameras to let you check your surroundings and spot your drone without removing the headset.

• Dual Micro-OLED screens provide high-contrast 1080p video with a maximum refresh rate of 100Hz for sharp, fluid flight footage.

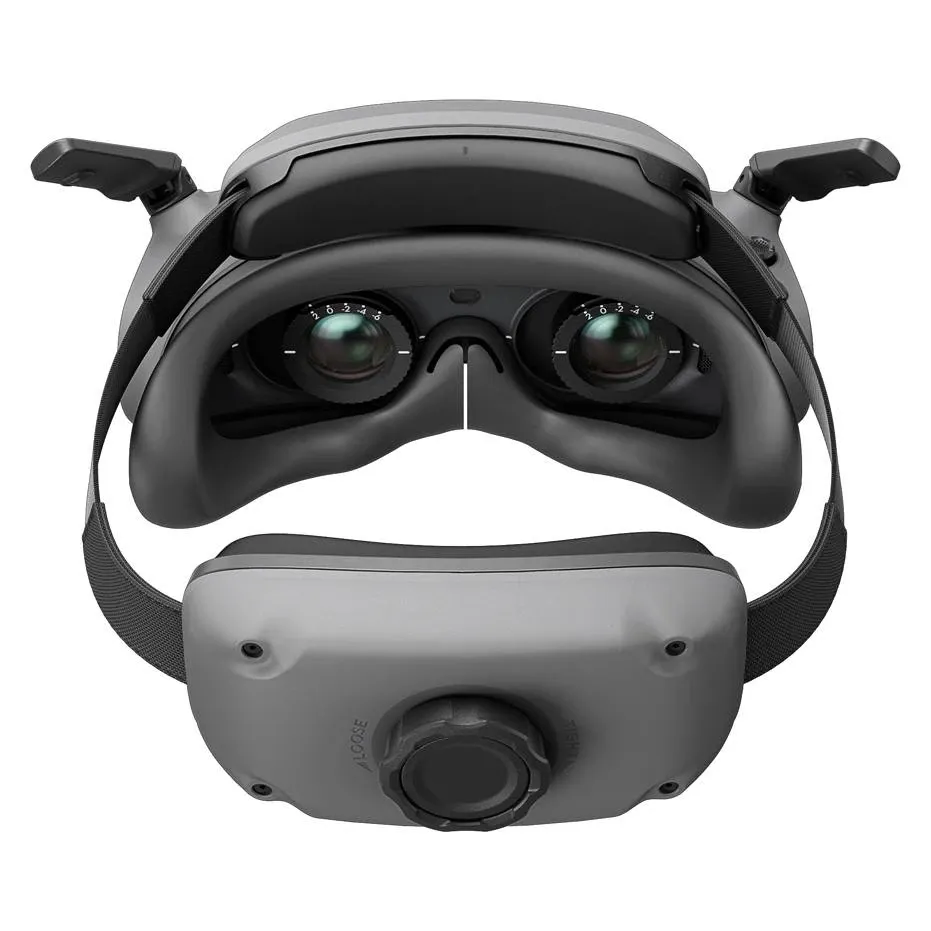

• Built-in diopter adjustment from -6.0 D to +2.0 D accommodates most pilots without the need for separate corrective lenses.

• One-tap defogging activates an internal micro-fan to rapidly clear moisture from the lenses in humid environments.

Specifications

• Transmission: DJI O4, DJI O3

• Screens: 2x Micro-OLED (1920x1080)

• Screen size: 0.49 inch (per screen)

• Field of View (FOV): 44°

• Interpupillary Distance (IPD): 56-72 mm

• Refresh rate: Up to 100Hz

• Operating frequencies: 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

• Max transmission range: 13 km (FCC), 10 km (CE)

• Max video bitrate: 60 Mbps

• Diopter range: -6.0 D to +2.0 D

• Storage: microSD, up to 512 GB

• Battery: Integrated 3000mAh (approx. 3 hours runtime)

• Dimensions: 170 x 109 x 112 mm (antennas folded)

• Weight: 470g (including battery)

To use these goggles with a custom FPV build running the DJI O3 Air Unit, ensure both the headset and the air unit are updated to the latest firmware via DJI Assistant 2.
