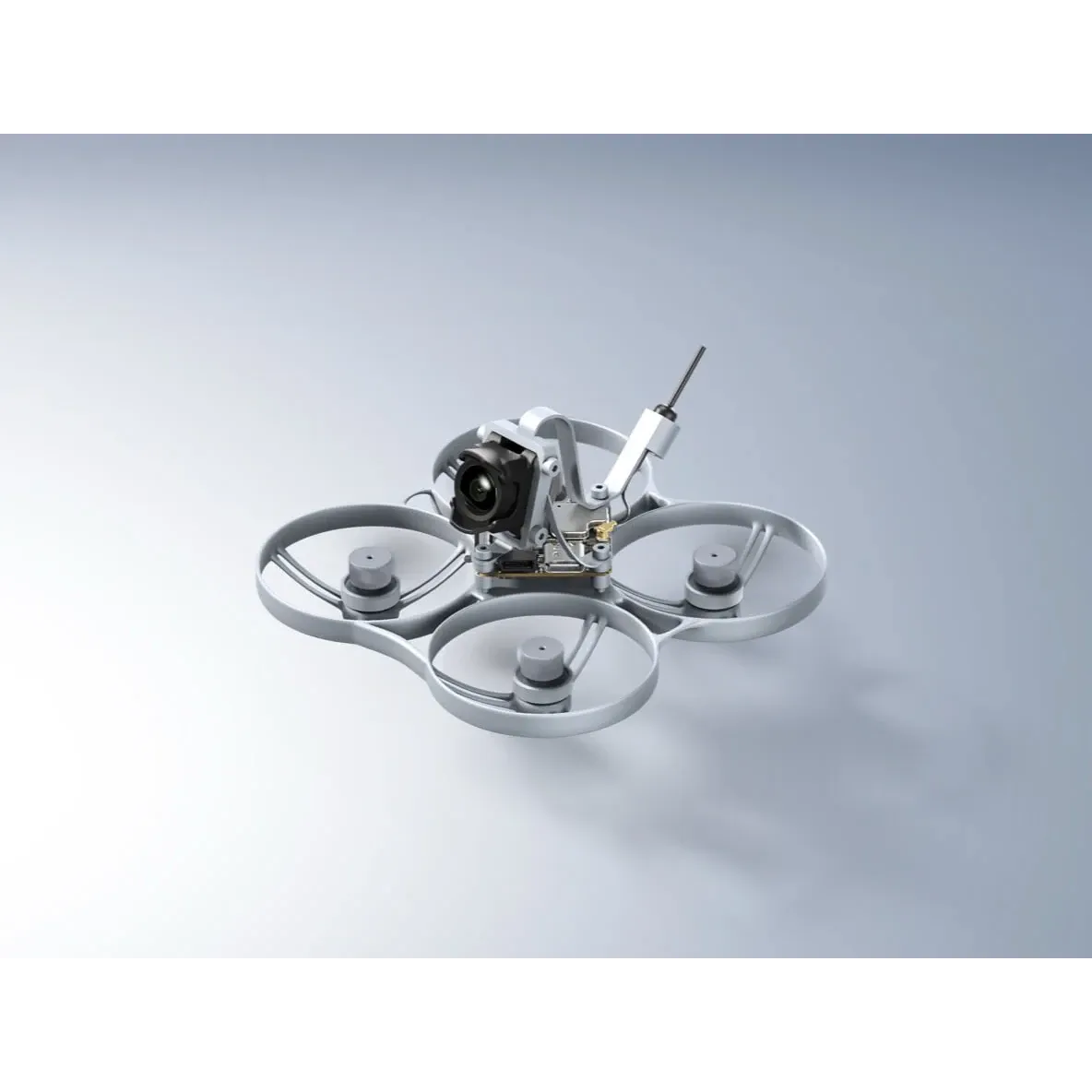

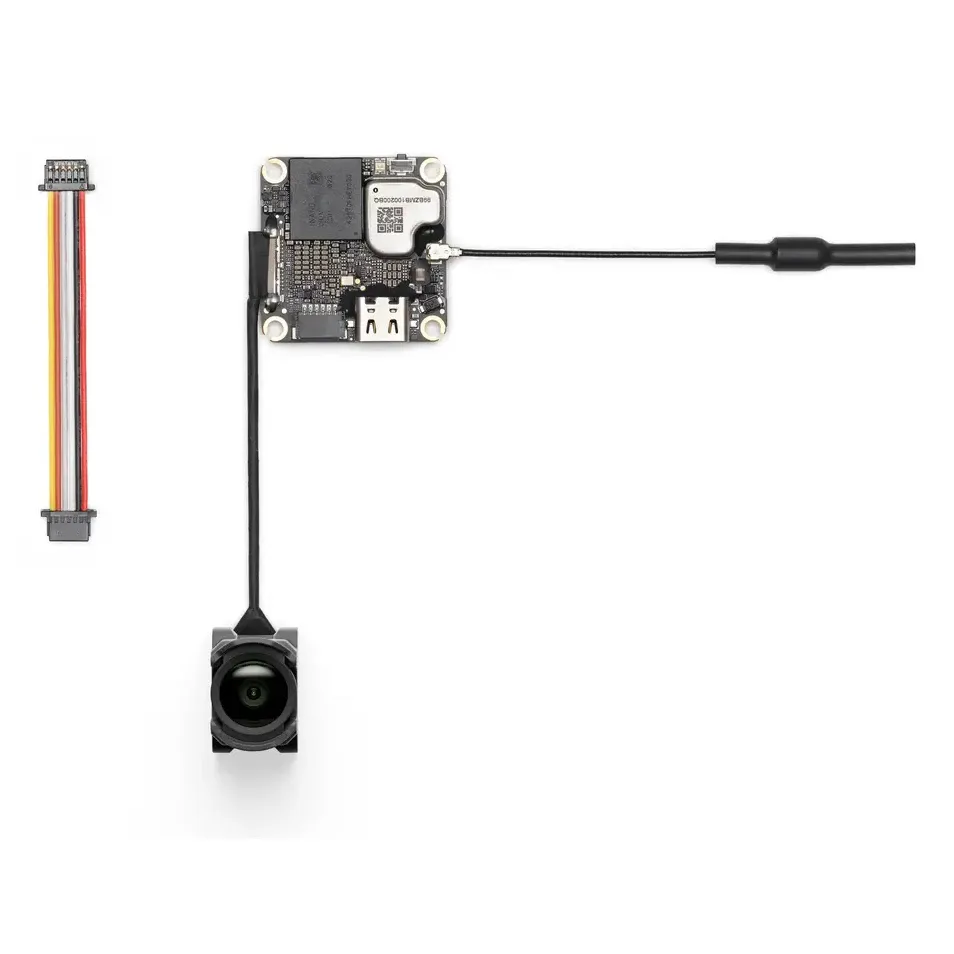

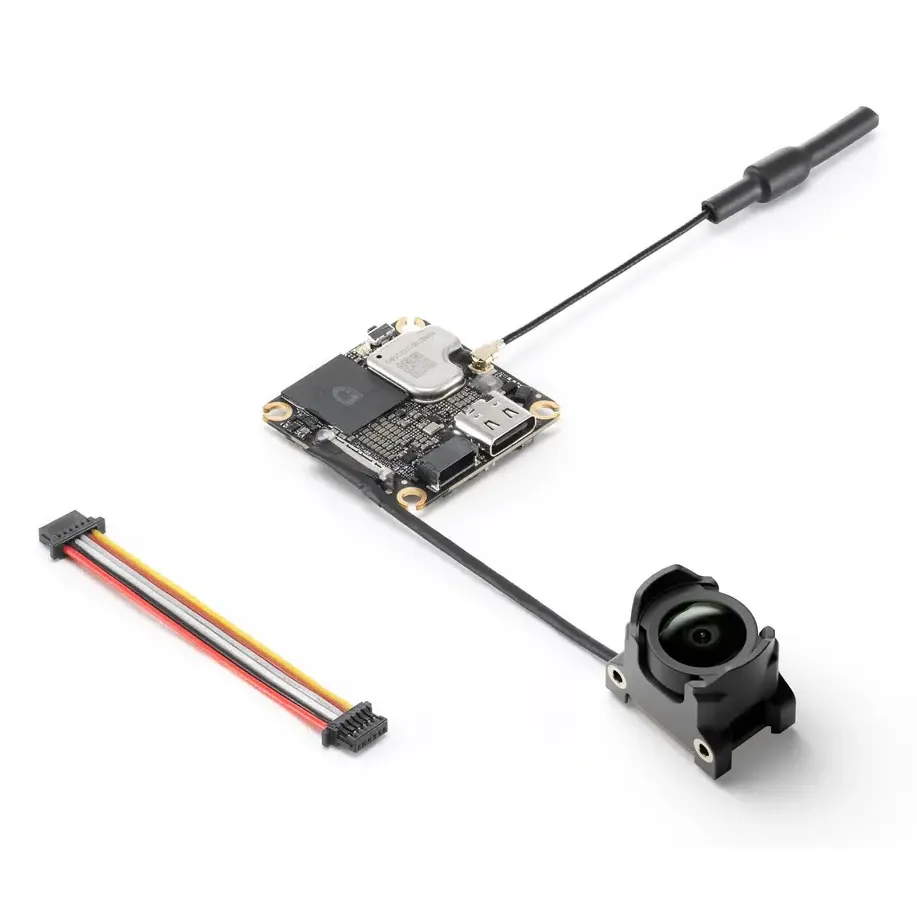

DJI O4 Wide Air Unit

The DJI O4 Wide Air Unit is DJI's digital FPV video transmitter for freestyle, racing and cinematic builds, pairing a wide-angle lens with DJI's low-latency HD feed in a unit light enough for frames of 2 inches and smaller.

Key features

• Wide-angle lens gives an expanded field of view for aggressive manoeuvres and obstacle awareness.
• 1/2-inch CMOS sensor records 4K/60fps and streams a 1080p/100fps live feed to goggles.
• 20ms low latency and up to 10km range for responsive, long-distance flying.
• Works with DJI Goggles 2, Integra, 3 and N3, plus the DJI FPV Remote Controller 2 or 3.
• At 13.3g, it is light enough for drone frames of 2 inches and smaller.

Specifications

• FPV system: DJI O4
• Sensor: 1/2-inch CMOS
• Field of view: 159 degrees
• Video recording: 4K/60fps
• Live view: 1080p/100fps
• Latency: 20ms
• Range: up to 10km
• Max video bitrate: 60 Mbps
• Frequency: 5.170-5.250 GHz and 5.725-5.850 GHz (permitted bands vary by region)
• Antenna: single antenna, approx. 0.75 g
• Weight: 13.3g (approx. 5.1 g without the camera module)
• Transmission module: 30 x 30 x 6 mm
• Camera module: 20.5 x 14 x 20.5 mm

Check the mounting and power input against your frame and flight controller before installing (the transmission module measures 30 x 30 x 6 mm), and configure video settings through DJI Assistant 2.
