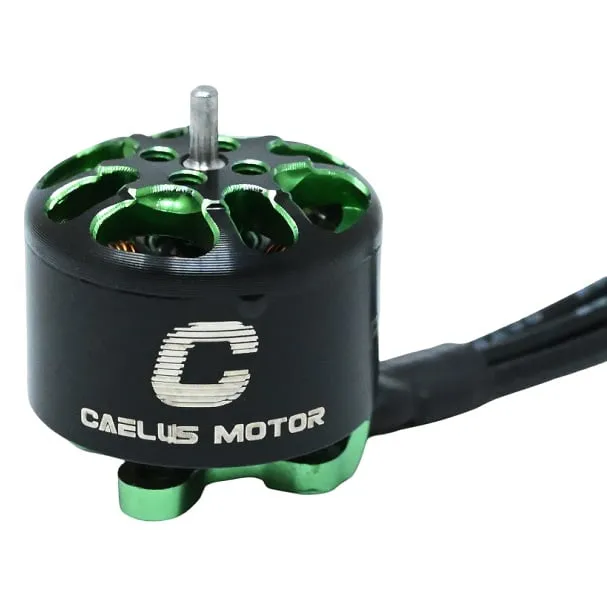

CAELUS FA1408 Brushless Motor

The CAELUS FA1408, offered in 2800KV and 3650KV windings, is a brushless motor for 3-4 inch FPV freestyle and racing builds, built around a 14 x 8mm (1408) stator.

Key features

• 7075-T6 aluminium motor bell and Kawasaki silicon-steel stator laminations add stiffness and efficient magnetic flux at high RPM.

• NMB precision bearings keep the motor quiet and smooth through the throttle range.

• 9N12P winding delivers a claimed 660g max thrust and 339W peak power (2800KV), matched to 10-20A ESCs.

• 1.5mm shaft with a T-mount prop pattern for lightweight T-mount propellers.

• Multicolour bell finish makes it easy to identify on the build.

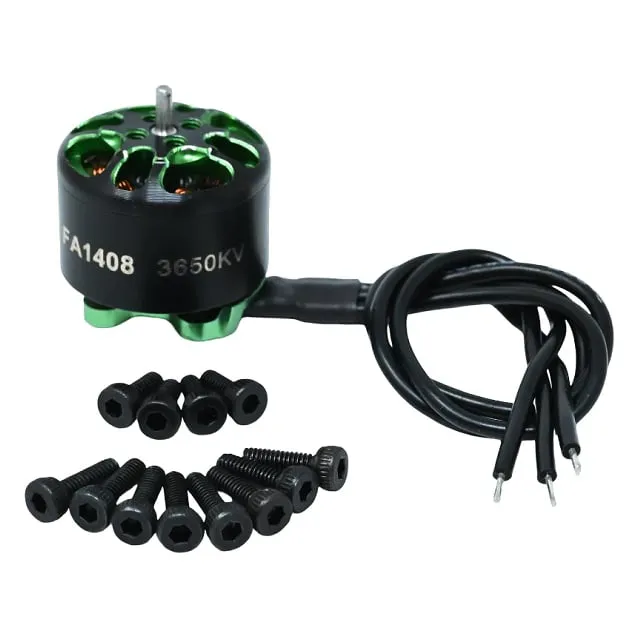

• Ships with its own screw set for mounting directly to a frame's motor arm.

Pair it with propellers and an ESC rated for its current draw, and match the mounting bolt pattern and shaft to your frame's arm before fitting.

Specifications

• Stator size: 1408

• KV rating: 2800KV or 3650KV

• Configuration: 9N12P

• Max thrust: 660 g (2800KV); up to 650 g on 4S (3650KV)

• Peak power: 339 W (2800KV)

• Recommended ESC: 10-20 A

• Shaft: 1.5mm (T-mount)

• Propellers: 3-4 inch

• Weight: 15.9 g including cables (3650KV)

• Leads: 115mm silicone (3650KV)
