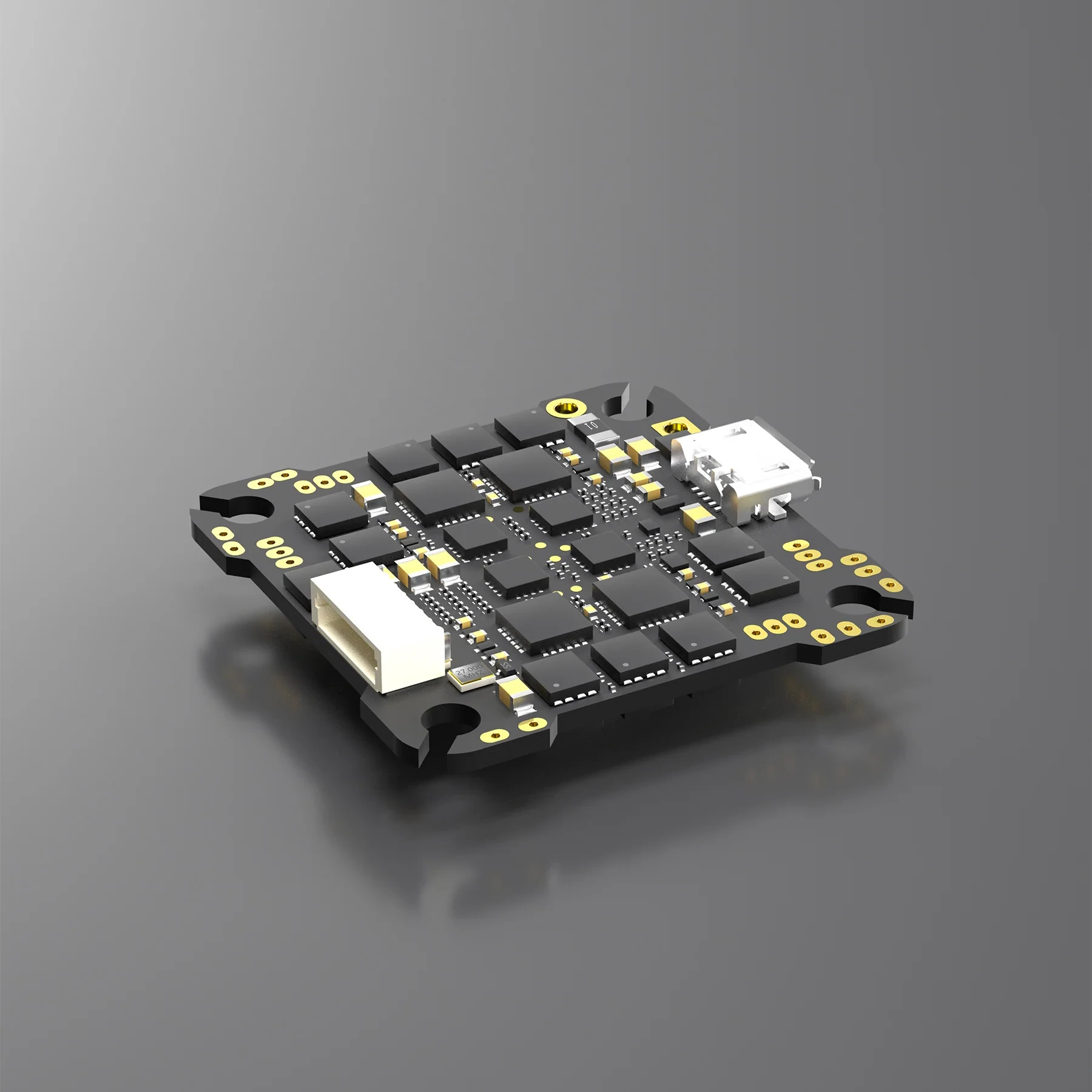

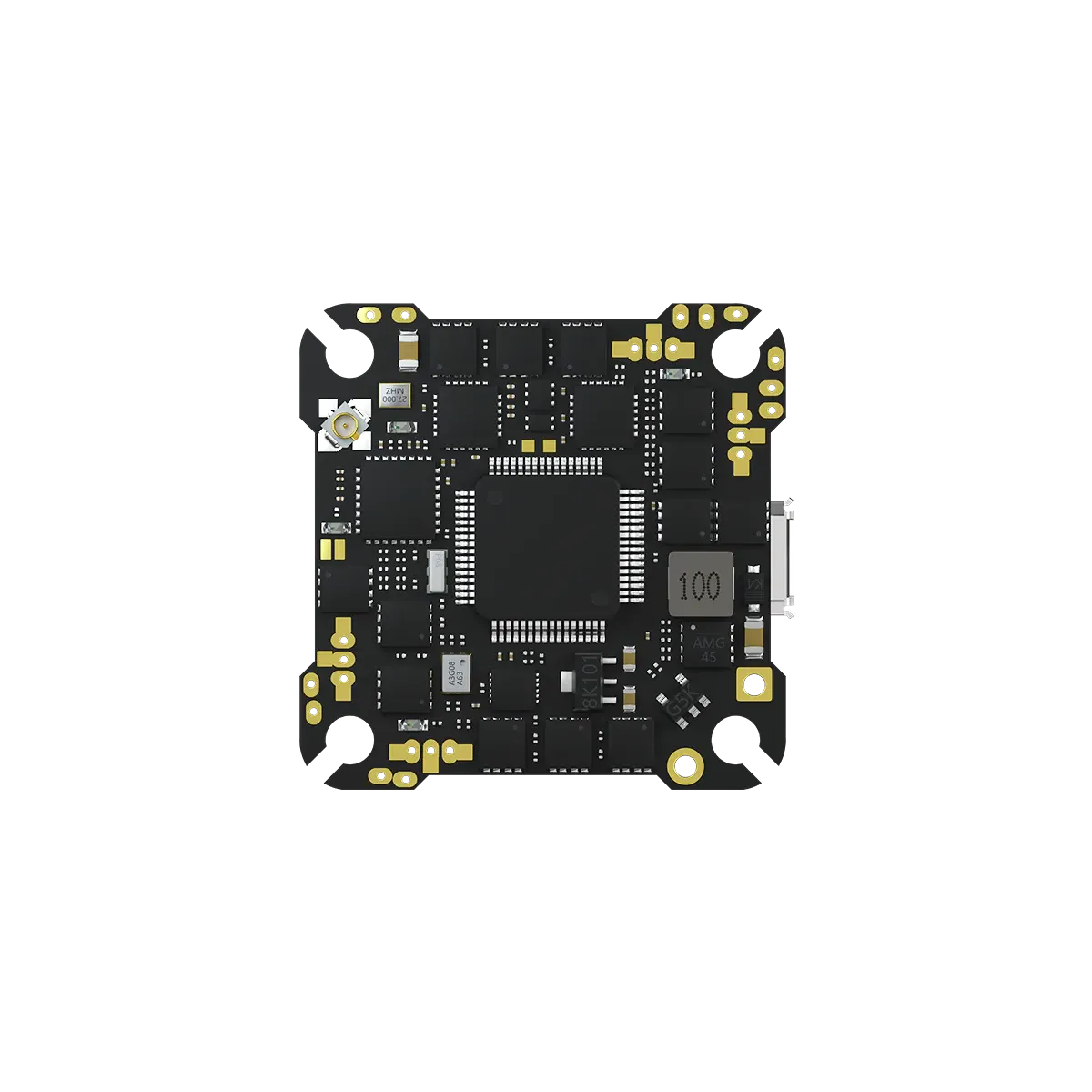

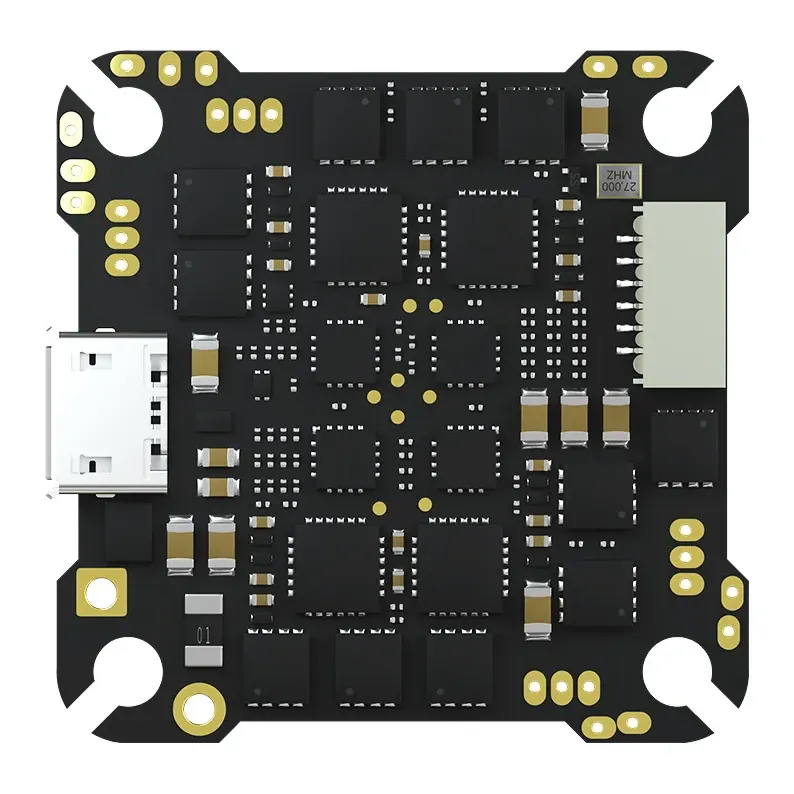

Caddx SuperF405HD AIO ELRS V1.0

The Caddx SuperF405HD AIO ELRS V1.0 is a highly integrated flight controller designed for 3-4S digital FPV whoops, toothpicks, and micro cinewhoops. Featuring a powerful STM32F405 processor and a built-in UART-based ELRS 2.4GHz receiver, this board streamlines your build by eliminating the need for external receiver wiring and soldering. It comes equipped with a dedicated plug-and-play connector for HD video transmitters, making digital builds cleaner and much faster to assemble.

Key features

• Integrated UART ELRS 2.4GHz receiver allows easy updating and binding without SPI firmware dependencies.

• Plug-and-play digital VTX connector for direct, solder-free integration with Walksnail Avatar systems.

• Built-in 20A ESC delivers consistent power for micro brushless motors on 3S to 4S setups.

• Standard whoop-style mounting pattern fits seamlessly into most modern micro frames.

Specifications

• MCU: STM32F405

• Gyro: ICM42688

• Barometer: BMP280

• Blackbox: 8MB

• Input voltage: 3-4S LiPo / LiHV

• ESC continuous current: 20A

• Receiver: Integrated ELRS 2.4GHz (UART, ELRS V3.0)

• Mounting pattern: 25.5x25.5

• Supported firmware: Betaflight (target CADDXF4_AIO_ELRS)

• Weight: 5.3 g

• Designed for: Caddx GoFilm 20

Ideal for sub-250g builds, this AIO reduces soldering work and keeps your electronics stack as light and compact as possible while delivering the processing overhead needed for smooth HD flights.
