Foxeer Reaper AIO V4 F745 45A Bluejay BLS 2–6S

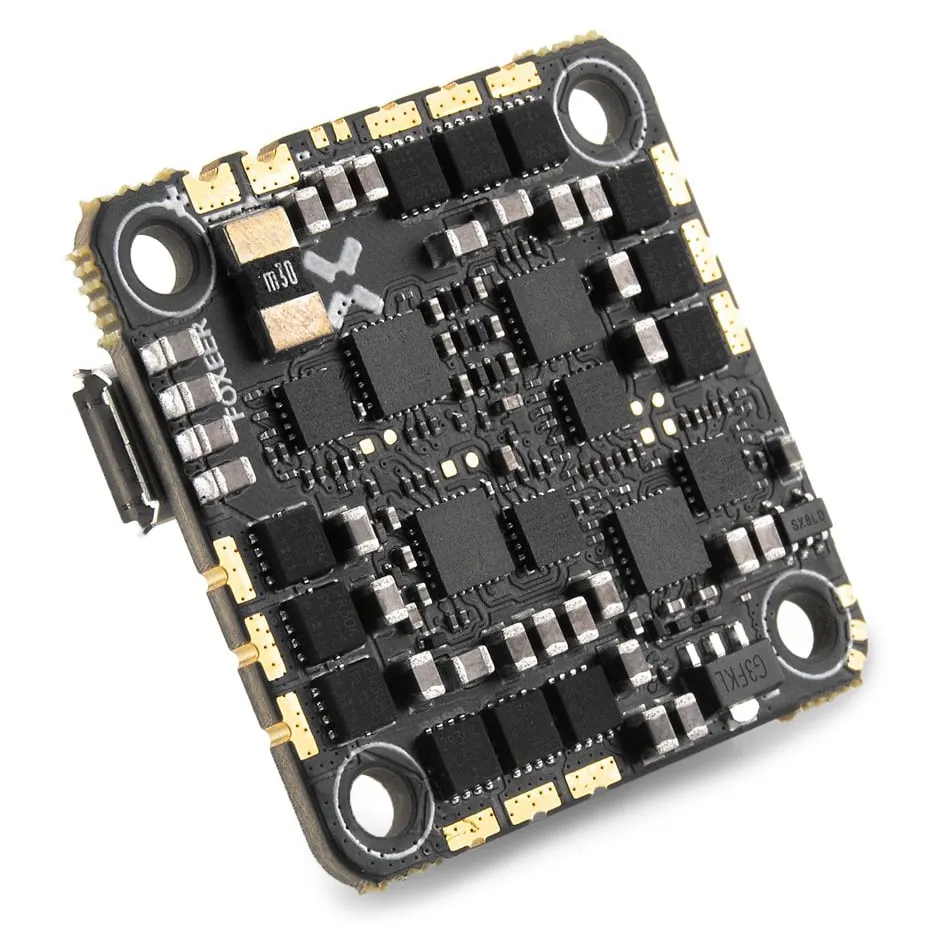

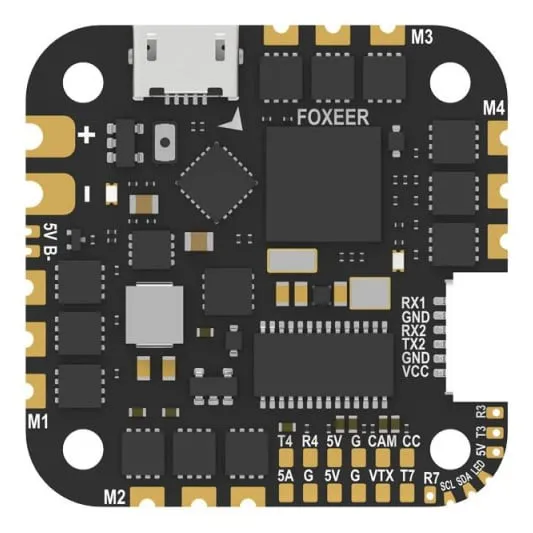

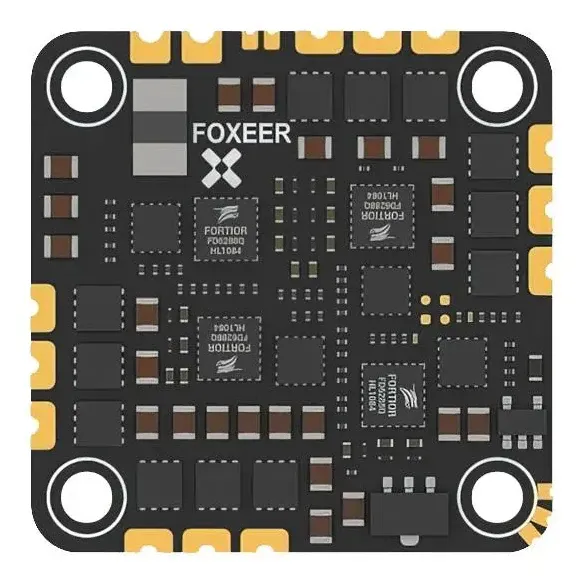

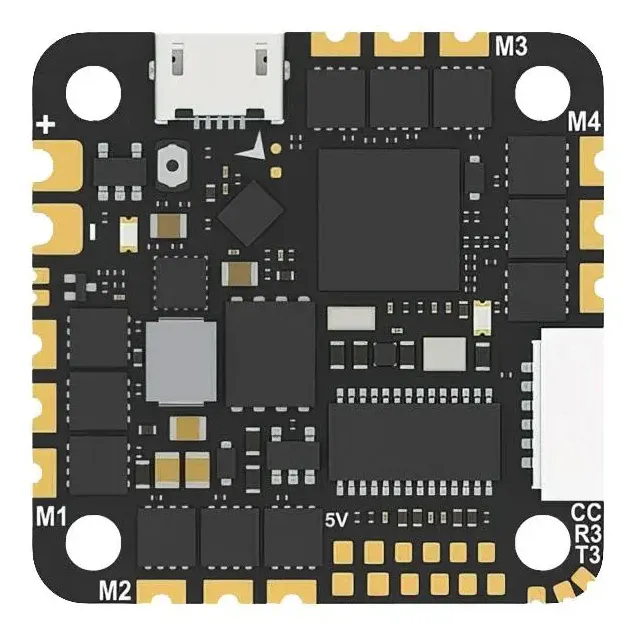

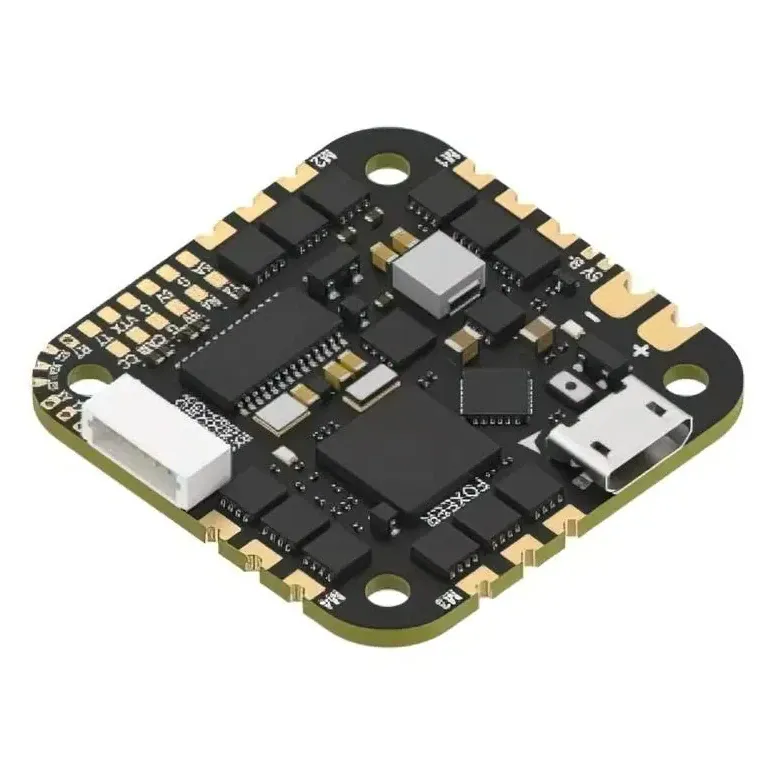

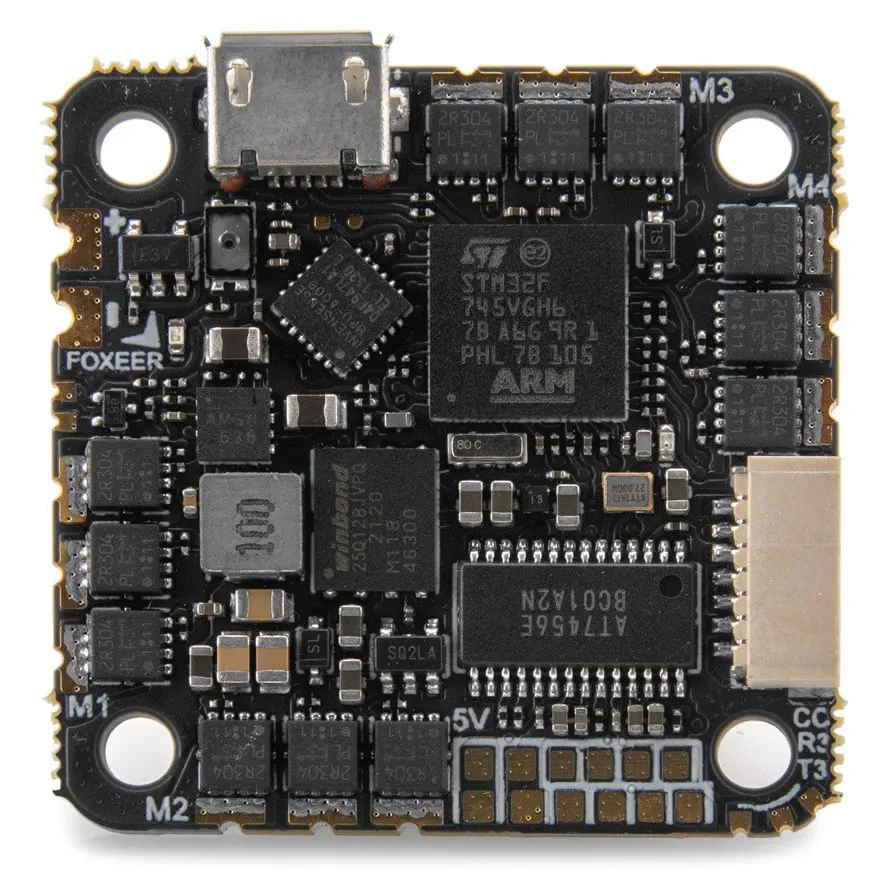

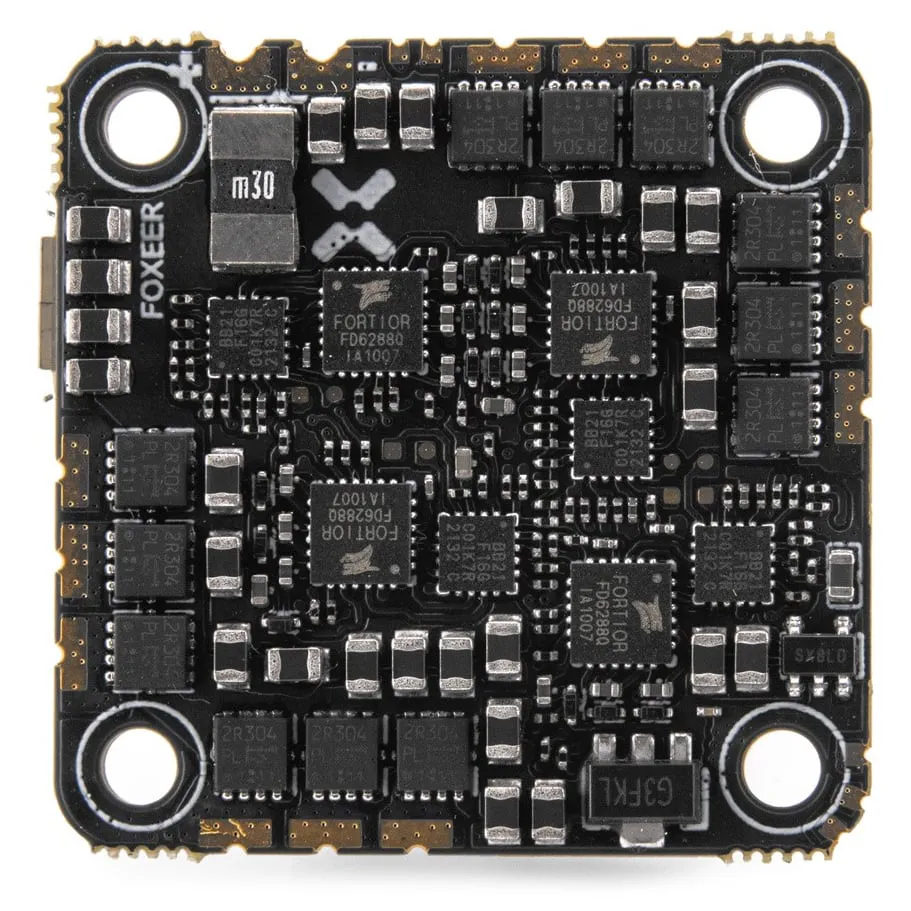

The Foxeer Reaper AIO V4 integrates a high-speed STM32F745 flight controller and a 45A ESC into a single lightweight board. Engineered for 2–6S power systems, this all-in-one unit is tailored for 3-inch to 5-inch ultralight freestyle builds, aggressive racers, and high-performance cinewhoops where saving space and reducing weight are critical.

Key features

• Pairs the processing overhead of an F745 MCU with the ultra-low-noise MPU6000 gyro for locked-in tracking and fast loop times.

• The onboard 45A 4-in-1 ESC comes pre-flashed with Bluejay firmware, enabling bidirectional DShot and RPM filtering out of the box.

• Broad 2–6S voltage compatibility easily accommodates versatile motor and battery combinations.

• Utilises the industry-standard whoop/toothpick footprint for direct drop-in integration with modern ultralight frames.

Specifications

• MCU: STM32F745

• Gyro: MPU6000

• Continuous current: 45A

• Burst current: 50A

• Input voltage: 2–6S LiPo

• ESC firmware: Bluejay BLHeli_S

• BEC: 5V 2A

• OSD: Betaflight OSD

• Blackbox: 16MB flash

• UARTs: 5

• USB: Micro-USB

• HD VTX connector: 6-pin DJI plug

• Current sensor: yes (scale 100); no ESC telemetry

• Betaflight target: FOXEERF745V4_AIO

• Mounting pattern: 25.5x25.5mm

• Board size: 32.5 x 32.5 mm

• Weight: 8.6 g

• In the box: AIO board, rubber grommets, XT30 power lead, DJI cable, capacitor

Thanks to the F745 processor's multiple UARTs and native inversion, this AIO readily supports modern digital HD video transmitters alongside your serial receiver and GPS modules without port limitations.
