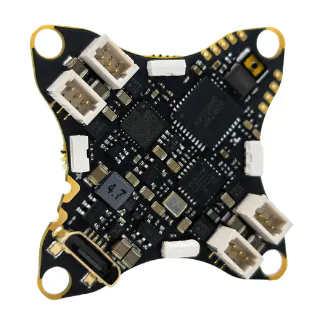

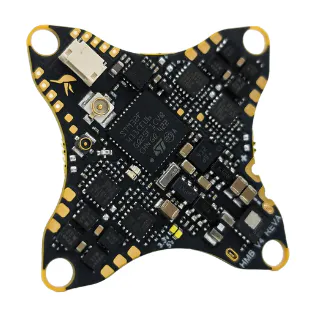

NewBeeDrone Hummingbird V4 AIO Flight Controller ELRS 2.4G with 25-400mW VTX

The Hummingbird V4 AIO is a highly integrated flight controller tailored for ultralight micro whoops and toothpick builds. Consolidating the flight controller, brushless ESCs, a 2.4GHz ExpressLRS receiver, and an adjustable analog VTX onto a single board, this AIO eliminates complex wiring and drastically reduces total build weight.

Key features

• Integrated 2.4GHz ELRS receiver ensures high-refresh-rate, low-latency control without requiring a separate external RX board.

• Built-in 5.8GHz analog VTX switches from 25mW up to 400mW, significantly improving video penetration through walls and dense indoor environments.

• Consolidated components minimise solder joints, saving critical grams on micro builds where every fraction of a gram affects flight times.

Specifications

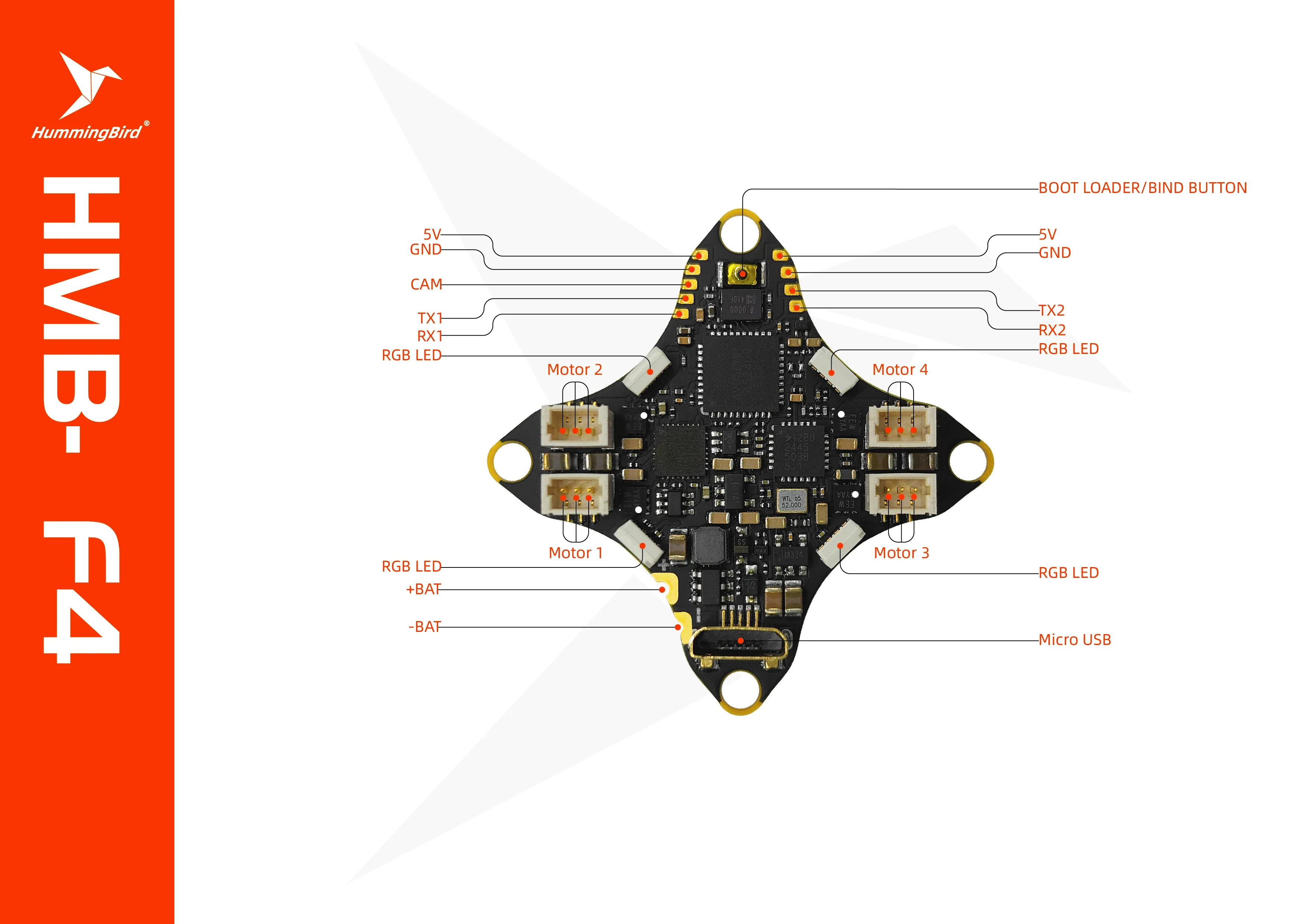

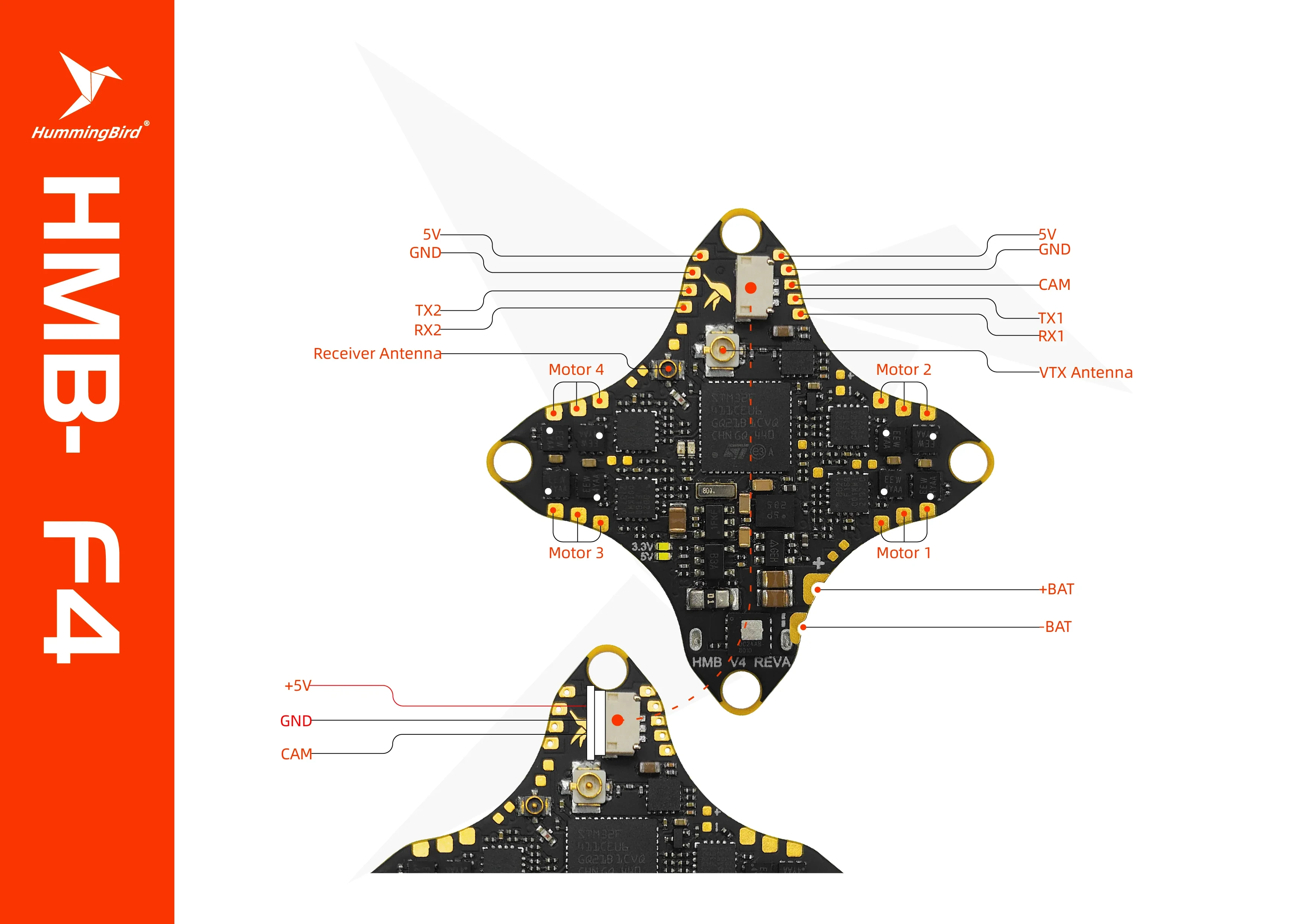

• Form Factor: AIO (FC + ESC + RX + VTX)

• MCU: STM32F411

• Gyro: BMI270

• ESC: 12A 1S 4-in-1, BLHeli_S hardware pre-flashed with Bluejay 0.19.2

• Receiver: 2.4GHz SPI ExpressLRS (ELRS 3.x), MHF3 antenna connector

• VTX Output Power: 25mW / 100mW / 400mW

• Video System: Analog 5.8GHz

• OSD: NBD7456, Betaflight OSD compatible

• Input Voltage: 1S only

• Free UARTs: 2

• Connectors: NX69 power plug, JST 1.0 mm 3-pin motor plugs

• Mounting Pattern: 25.5x25.5mm

• Board Size: 29 x 29 x 7.6 mm

• Weight: 4.57 g (with antennas and battery connector)

It is a replacement part for the Hummingbird V4 BNF whoop and is not intended for DIY builds on other frames or motors, which the manufacturer does not support.
