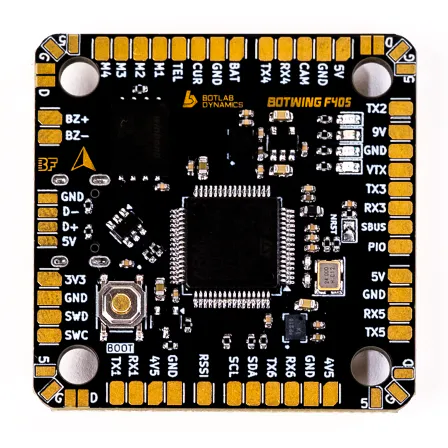

Botlab Dynamics BotWing F405 Flight Controller (Solderless Design)

The Botlab Dynamics BotWing F405 is an Indian-made flight controller with a fully solderless, plug-and-play layout, aimed at racing and freestyle FPV pilots who want a fast build and quick track-side repairs.

Key features

• Solderless 30.5 x 30.5mm layout connects ESC, receiver and VTX through standard pin connectors, with no soldering needed for a standard build.

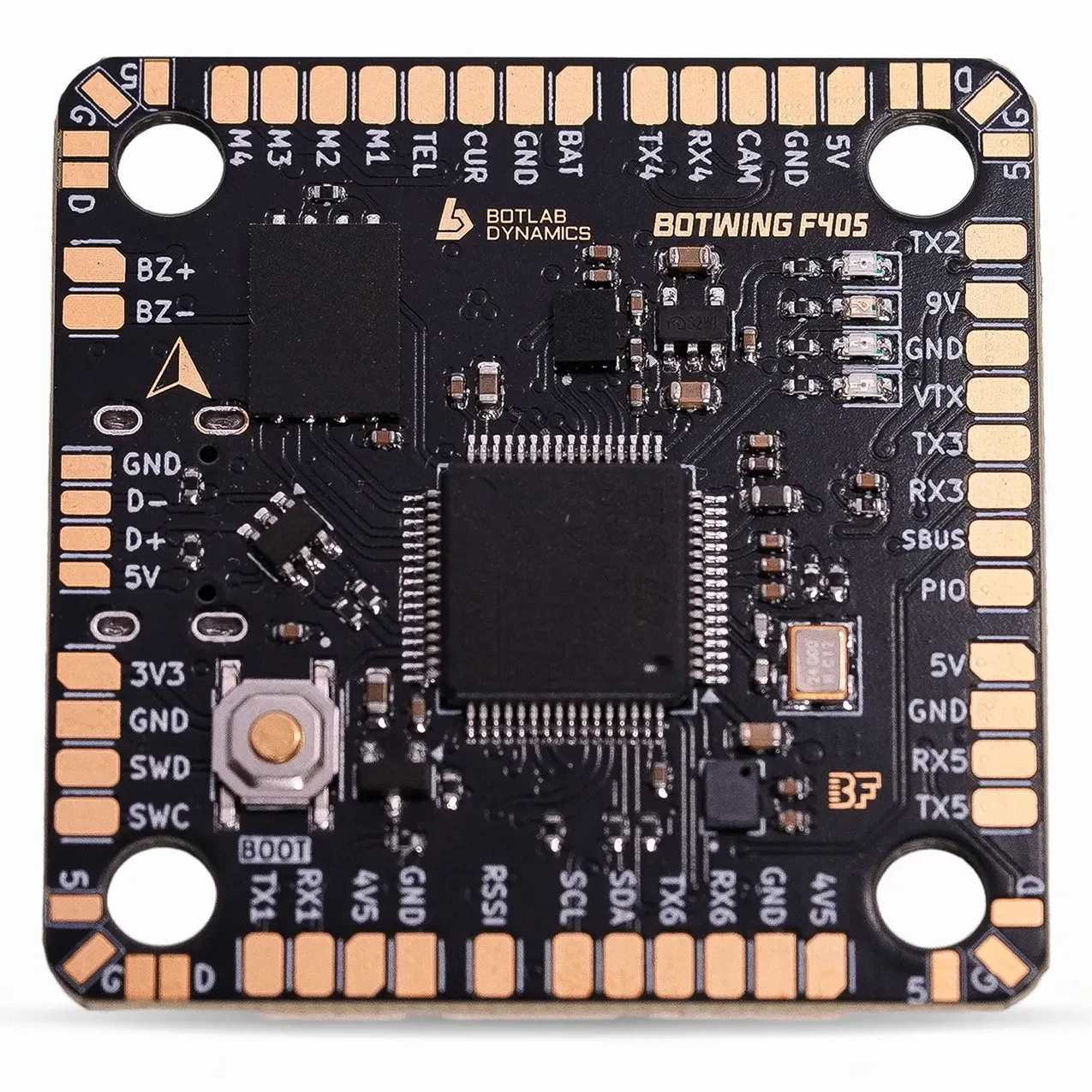

• STM32F405 processor with an ICM42688P gyro, 32MB onboard blackbox logging and built-in OSD.

• Runs Betaflight, iNav or ArduPilot (via Mission Planner), so the same board covers racing, long-range navigation and full autopilot builds.

• Four dedicated motor outputs, 6 UARTs, an integrated barometer and an i2C port for external GPS or sonar modules.

• Built-in status LEDs plus LED-strip output (parallel or series) for orientation lighting.

• USB-C port and DFU mode make firmware flashing straightforward through the Betaflight Configurator.

Specifications

• Processor: STM32F405

• Gyro: ICM42688P

• Mounting: 30.5 x 30.5mm, solderless

• Input voltage: 3S-6S

• UARTs: 6

• Barometer: Built-in

• Firmware: Betaflight, iNav, ArduPilot

• OSD: AT7456E

• Dimensions: 40 x 40 mm (4 mm mounting holes)

• Weight: 9 g

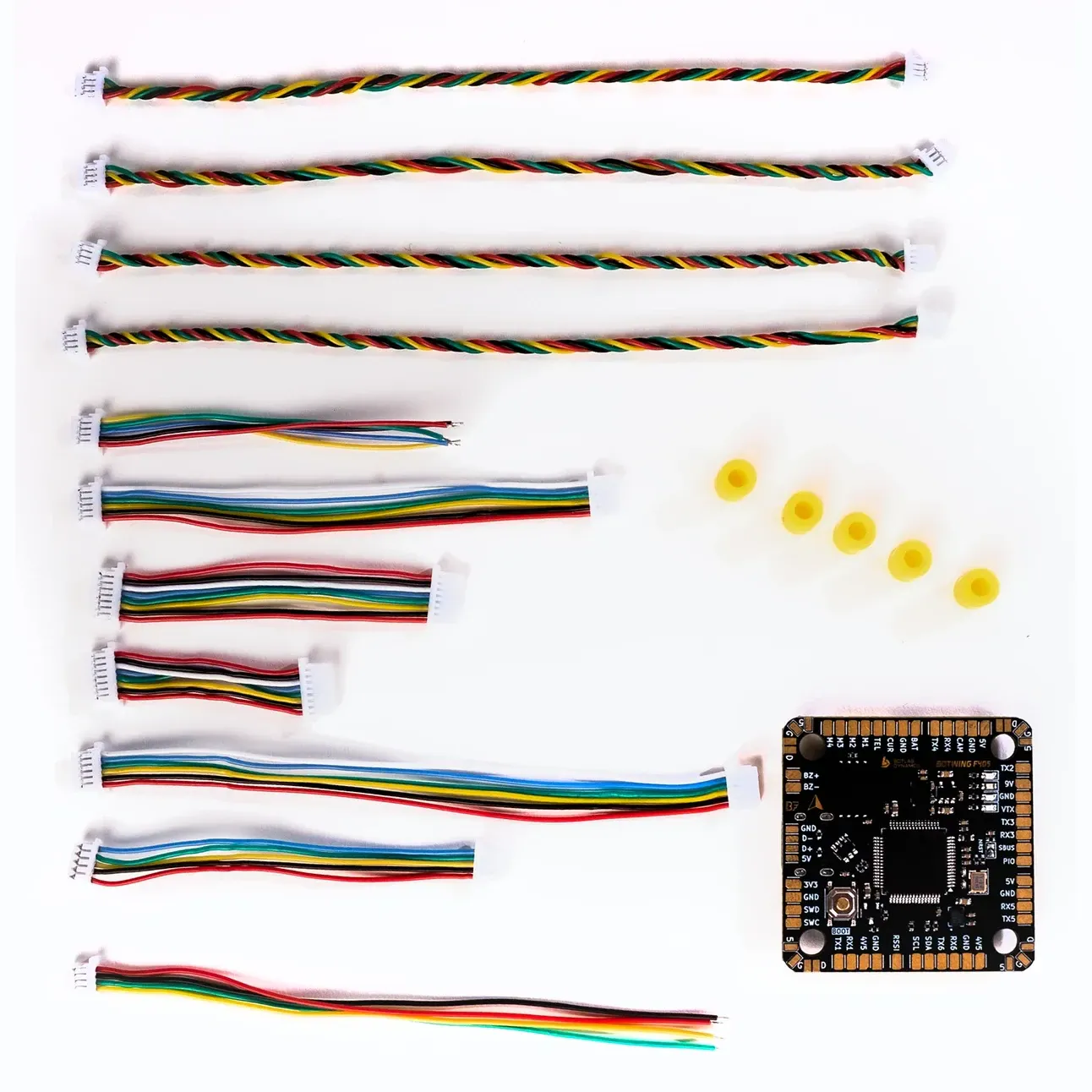

• In the box: flight controller, 10 connector cables, 4 M3 rubber grommets, silicone USB protector

A strong fit for builders who want to avoid soldering without giving up blackbox logging, OSD or GPS-ready navigation options, made and supported in India by Botlab Dynamics.
