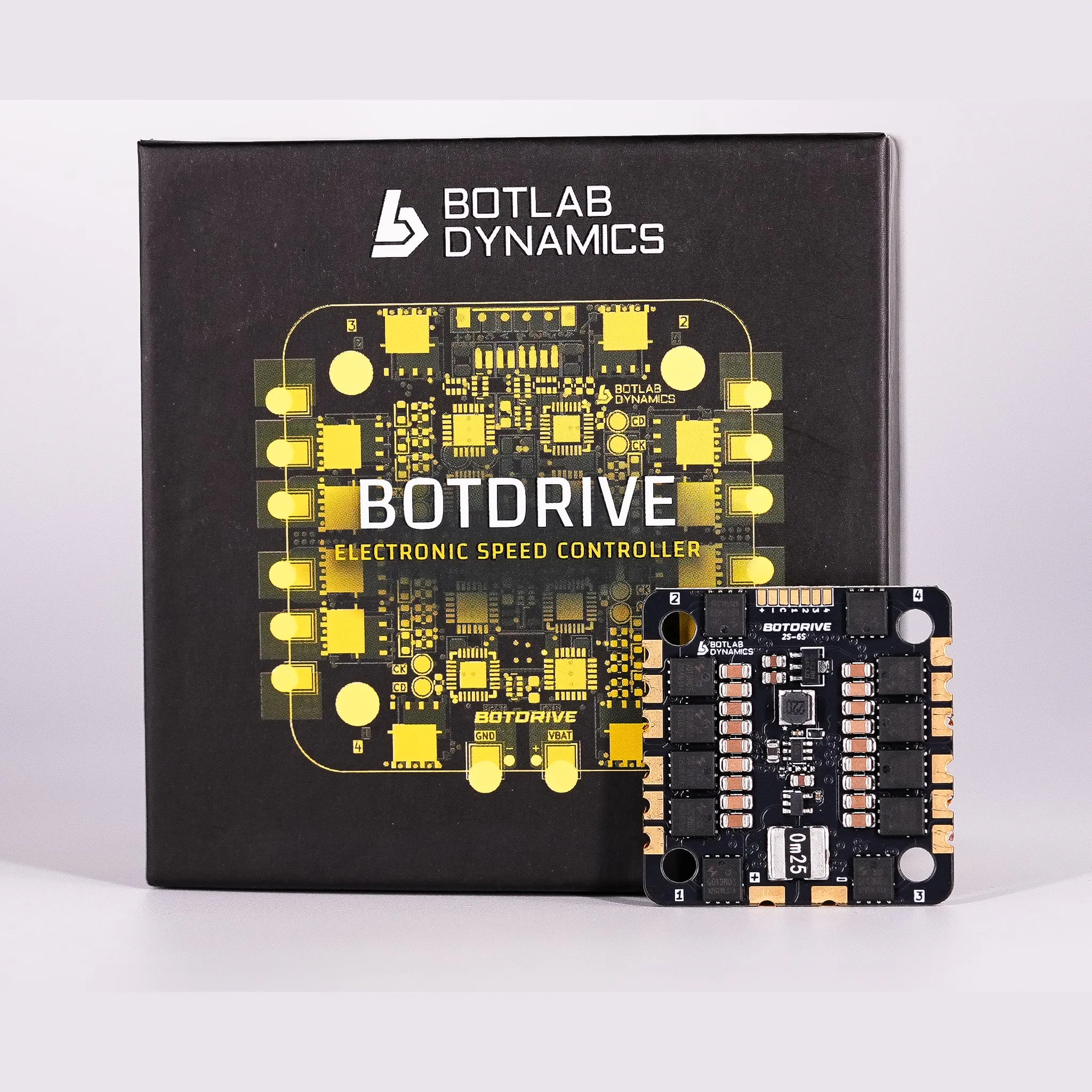

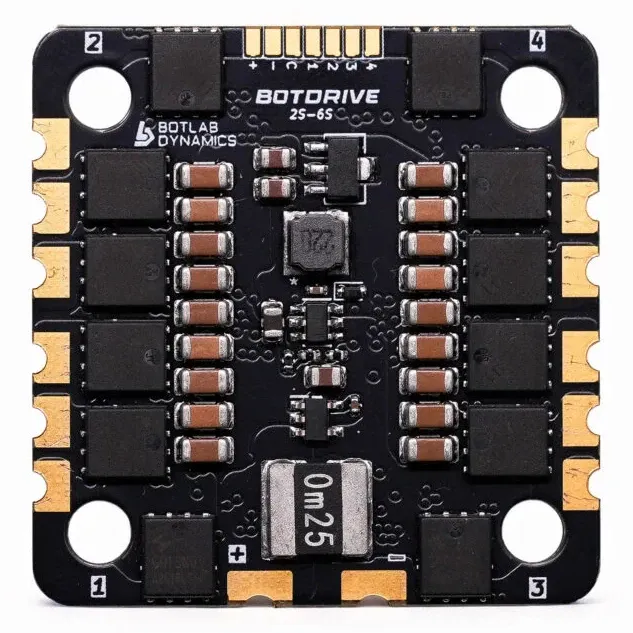

Botlab Dynamics BotDrive 8-Bit 4-in-1 ESC 50A

The Botlab Dynamics BotDrive 8-Bit is a 4-in-1 ESC manufactured in India, built around the EFM8BB21F16G microcontroller and FD6288Q MOSFET driver for smooth, precise motor control on 5-inch freestyle and racing builds.

Key features

• EFM8BB21F16G 8-bit MCU with FD6288Q MOSFET driver for clean throttle response and stable commutation.
• 50A continuous per motor (60A burst), running on 2–6S LiPo input.
• Pre-flashed with BLHeli_S firmware (JH50 target), supporting DShot300/600 and PWM protocols for compatibility with common flight controllers.
• Compact 30.5x30.5mm mounting on a 40x41mm board keeps the stack light.
• Designed and manufactured in India, giving domestic drone builders a locally made alternative.

Specifications

• MCU: EFM8BB21F16G
• Continuous current: 50A x4
• Burst current: 60A x4
• Input voltage: 2–6S LiPo
• Firmware: BLHeli_S (JH50), DShot300/600, PWM
• Current sensor: Yes
• Mounting: 30.5 x 30.5 mm
• Board size: 40 x 41 mm

Ships with a capacitor, XT60 power cable, grommets and a JST-SH signal cable, ready to wire straight into a standard 5-inch stack. The 2–6S input range covers most 5-inch freestyle and racing setups, from lighter 4S bind-and-fly quads up to heavier 6S builds.
