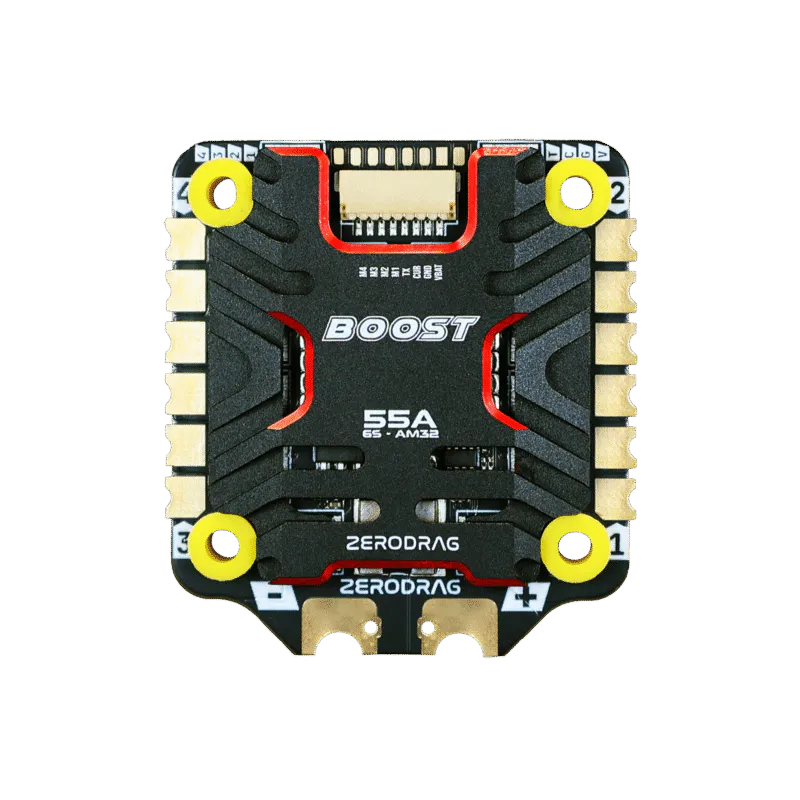

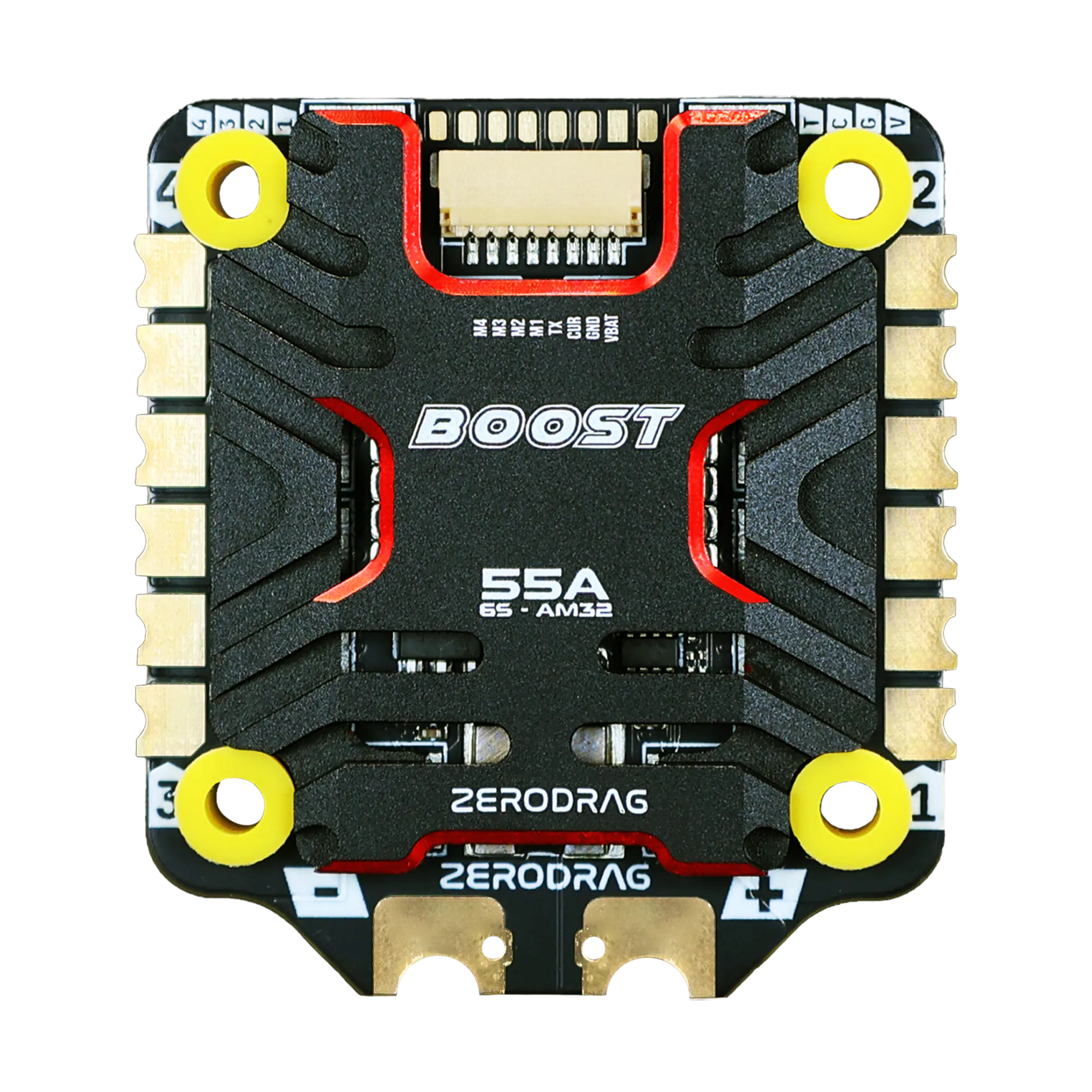

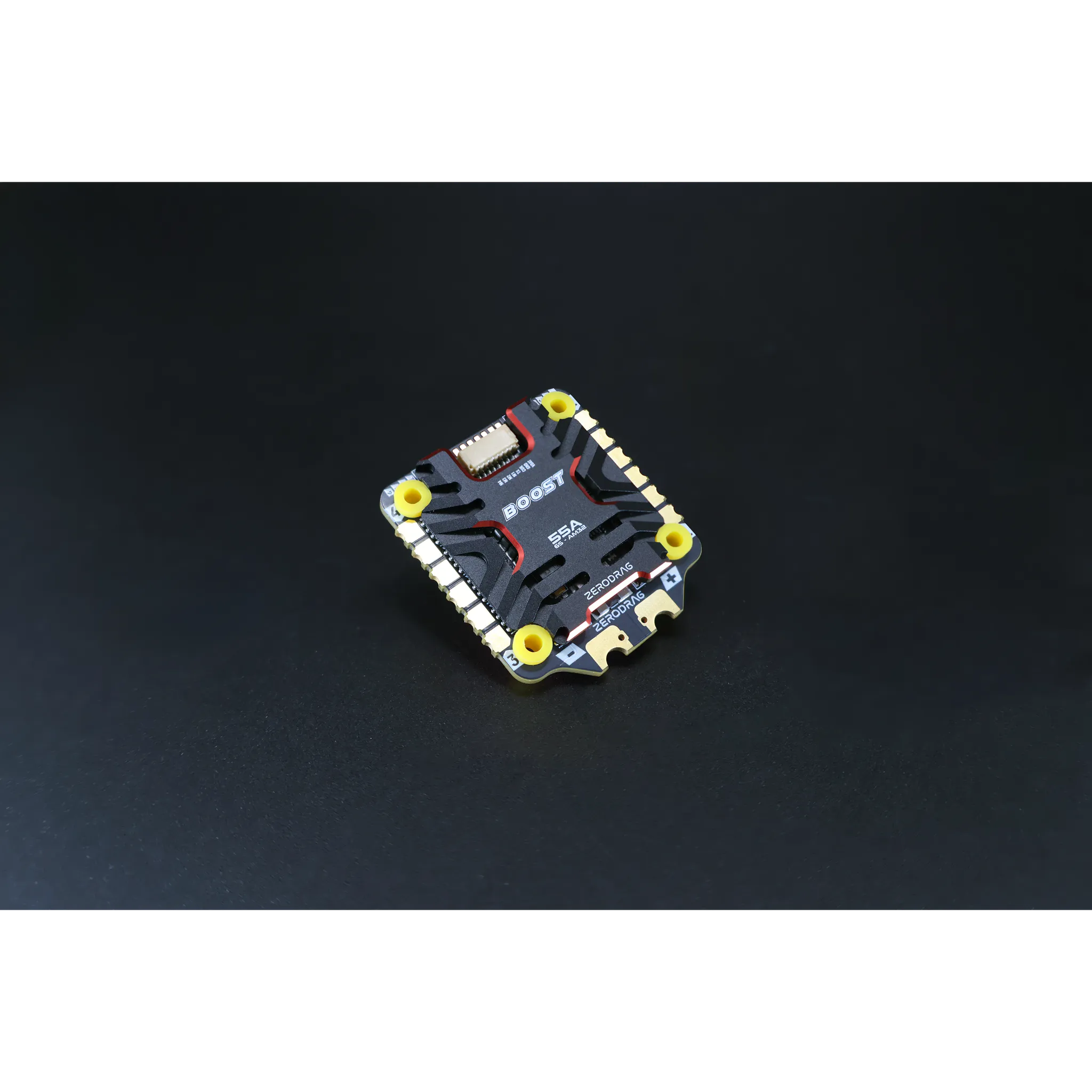

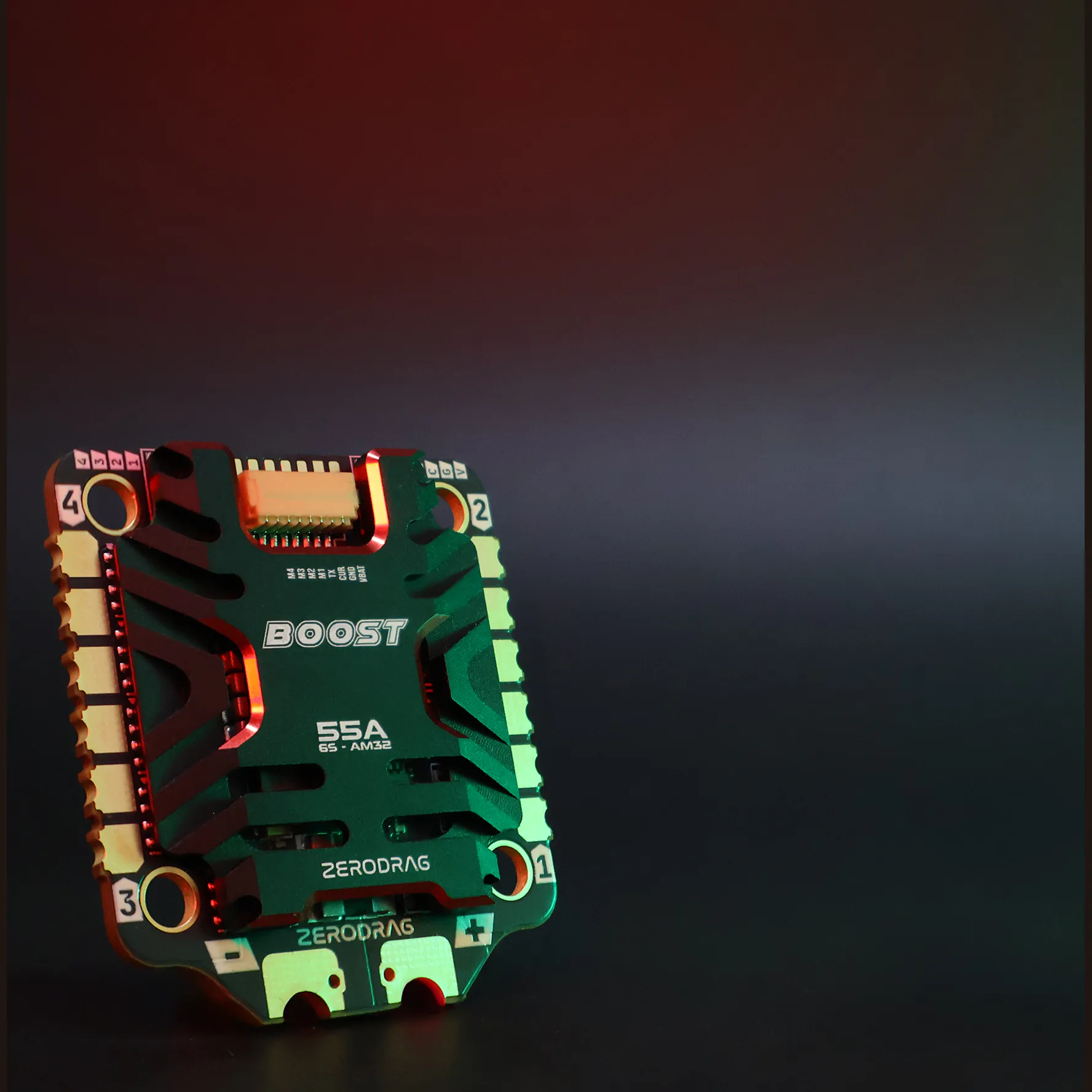

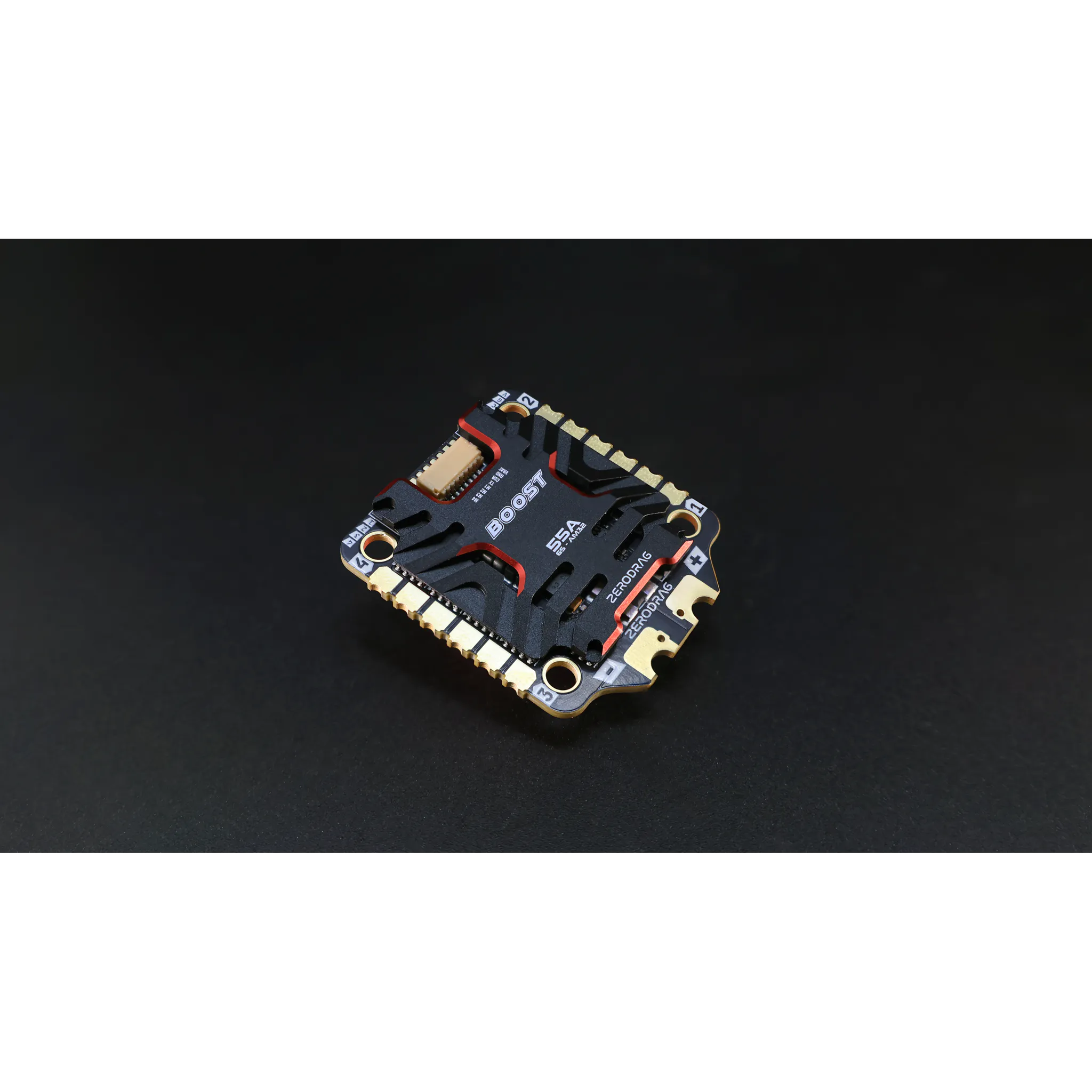

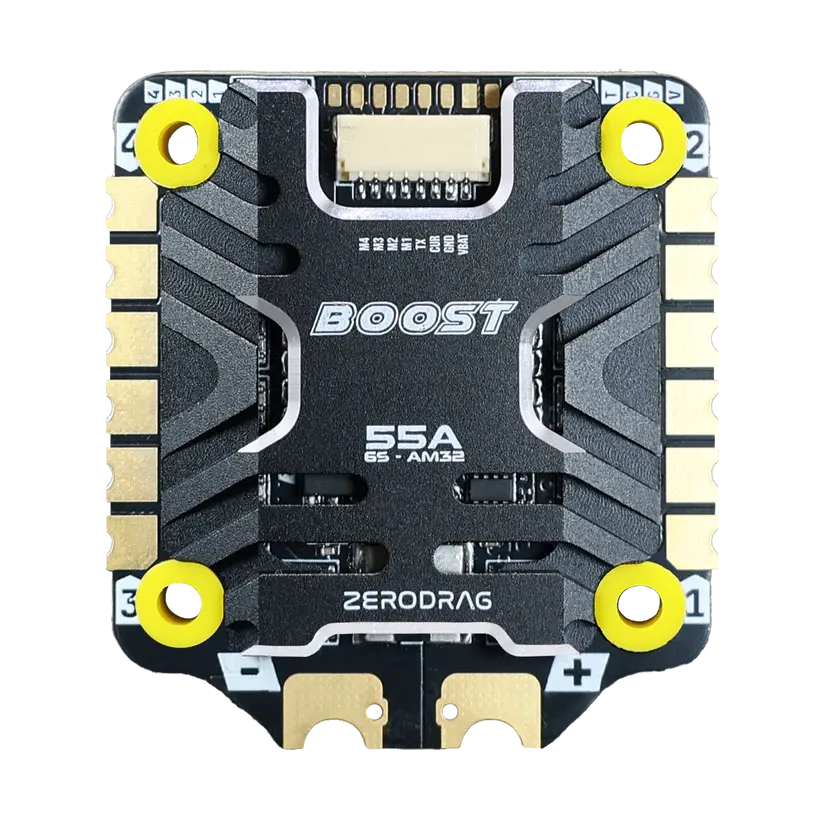

Zerodrag Boost AM32 55A 4-in-1 ESC

The Zerodrag Boost AM32 55A 4-in-1 ESC provides high-amperage power delivery for 5-inch freestyle, racing, and heavy-lift cinelifter builds. Designed and manufactured in India, this ESC runs on the open-source AM32 firmware, which optimises motor synchronisation, active freewheeling, and telemetry feedback. With a 55A continuous current rating, it effortlessly manages aggressive throttle inputs and modern high-KV motors without dropping sync.

Key features

• Runs AM32 firmware for dynamic PWM frequency, smooth motor startup, and advanced telemetry output.
• Handles 55A of continuous current per channel to support demanding 6S freestyle and racing platforms.
• 4-in-1 board layout simplifies stack wiring and reduces overall build clutter.
• Proudly engineered and manufactured in India for immediate, robust local availability.

Specifications

• Firmware: AM32
• Continuous current: 55A
• Burst current: 65A
• Input voltage: 3-6S LiPo
• Telemetry: current and RPM
• Mounting pattern: 30.5x30.5 mm (M3 holes)
• Dimensions: 45 x 41.1 x 7.5 mm
• Weight: 12.5 g

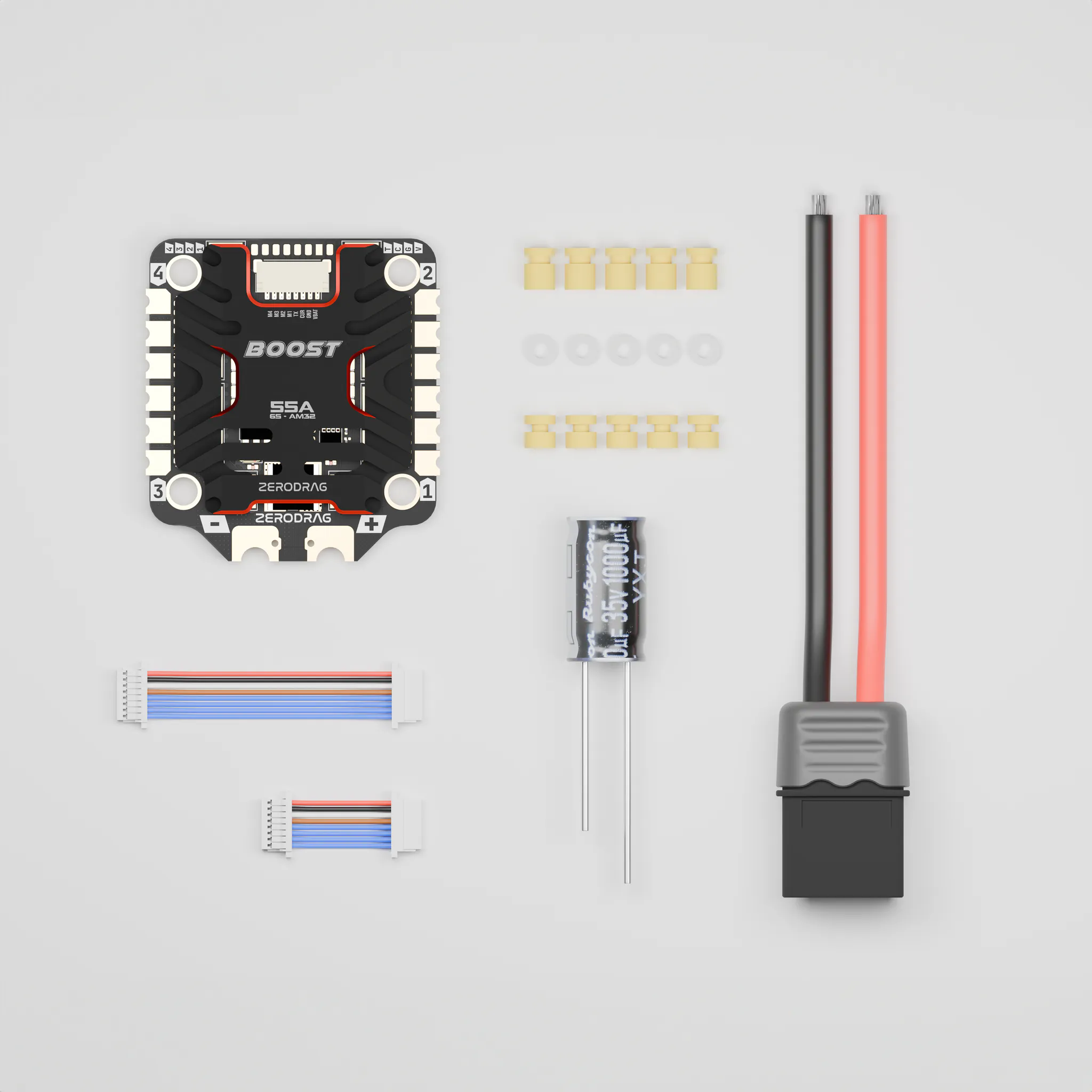

• In the box: ESC, long and short ESC signal cables, XT60H pigtail, 35 V 1000 uF capacitor, 5 short and 5 tall gummies, 5 spacers

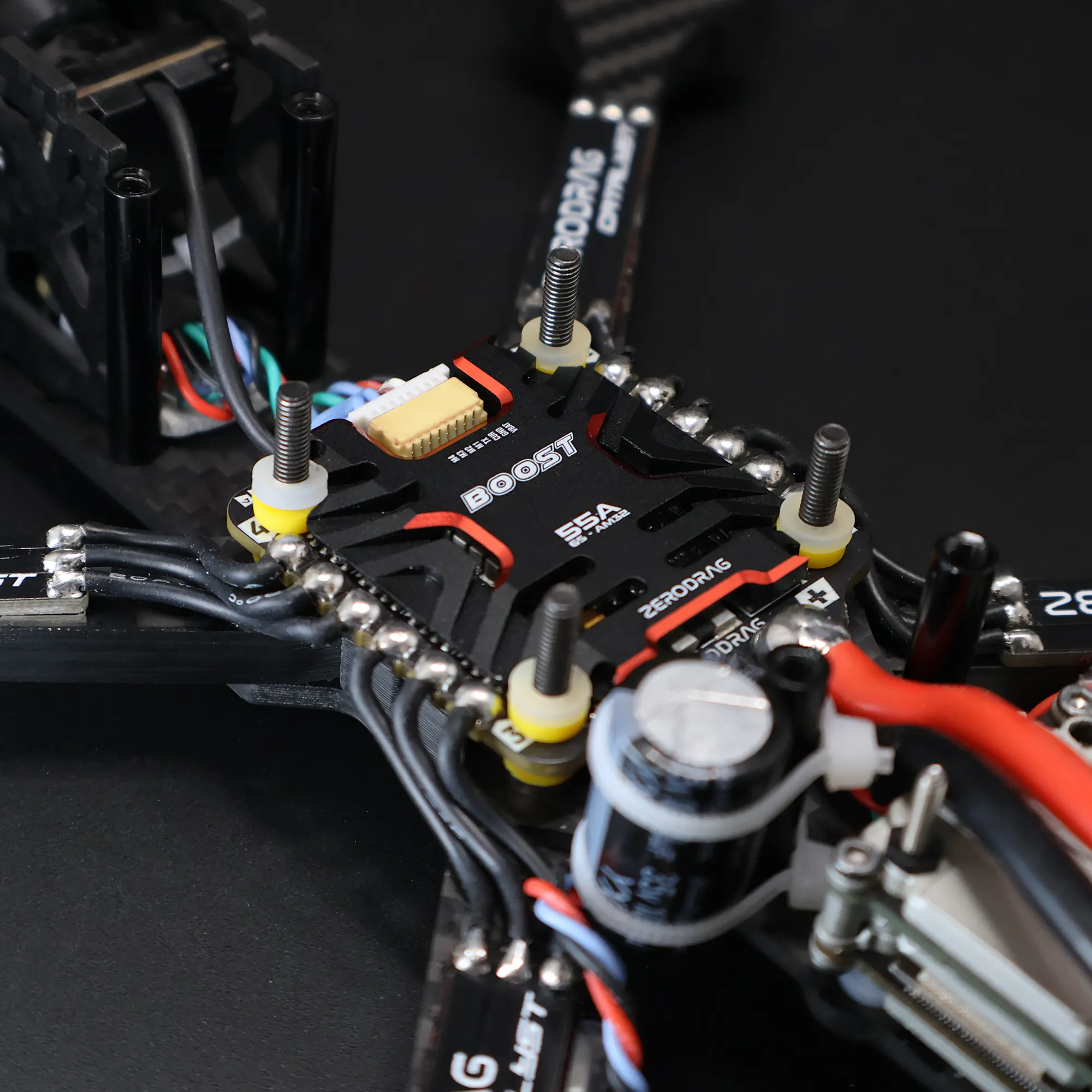

Ideal for FPV builders requiring open-source ESC configurability combined with the heavy-duty current handling necessary for aggressive 5-inch and 7-inch rigs.
