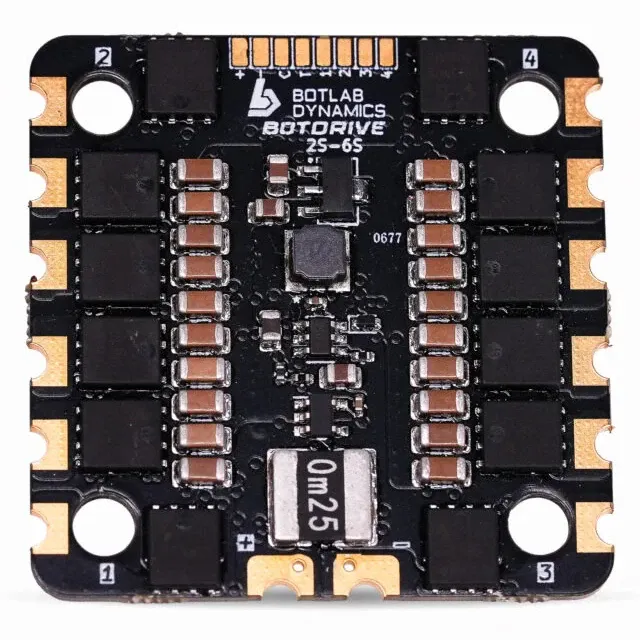

Botlab Dynamics BotDrive AM32 4-in-1 ESC 55A

The Botlab Dynamics BotDrive 55A is a 4-in-1 electronic speed controller designed for 5-inch freestyle, racing, and mid-range builds running on 2-6S LiPo power. Built around the open-source AM32 firmware ecosystem, it delivers smooth throttle resolution, robust desync protection, and extensive tuning options without the licensing constraints of older closed-source protocols.

Key features

• Handles 55A continuous current per channel to support demanding high-kV motor setups.

• Pre-flashed with open-source AM32 firmware for advanced telemetry, variable PWM frequency, and precise motor timing.

• Native 4-in-1 architecture streamlines harness wiring for cleaner, more compact stack builds.

• Broad 2-6S LiPo voltage compatibility suits both lightweight racing rigs and heavier freestyle quads.

Specifications

• Manufacturer: Botlab Dynamics

• Firmware: AM32

• MCU: AT32F421G8U7 (32-bit) with FD6288Q MOSFET driver

• Continuous current: 55A

• Burst current: 60A

• Input voltage: 2-6S LiPo

• Protocols: DShot300/600, PWM

• Current sensor: Yes, with telemetry and VBAT output

• Mounting: 30.5 x 30.5 mm

• Weight: 12.5 g

• In the box: ESC, 35 V 1000 uF low-ESR capacitor, 4 x M3 silicone grommets, XT60 power cable (70 mm), 8-pin JST-SH FC-ESC cable

Pair this ESC with an AM32-compatible flight controller to fully leverage bidirectional DShot for Betaflight RPM filtering and real-time ESC telemetry.
