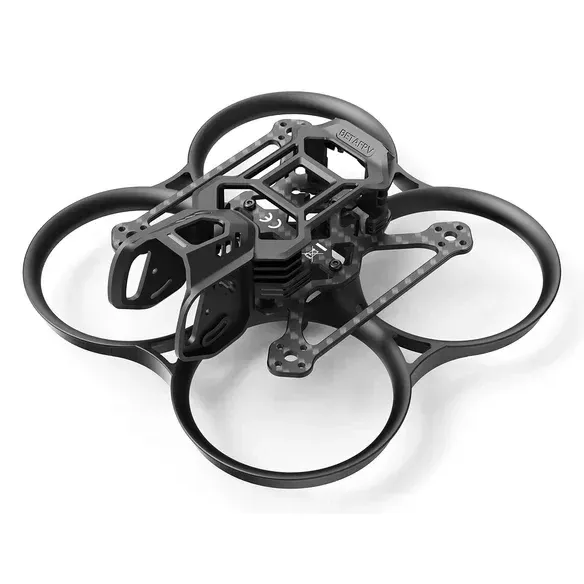

BetaFPV Pavo20 Pro II Brushless Whoop Frame
₹1,599Incl. GST
SKU BETAFPV-PAVO20-PRO2-FRAME-BLK
Color: BlackProp Size: 2.2"Wheelbase: 93.9 mmMade in India: NoBrand: BetaFPV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Pavo20 Pro II frame is the airframe of BetaFPV's 2.2-inch Pavo20 Pro II cinewhoop, for repairs or a fresh build. Its new carbon top plate supports the DJI O4 Air Unit, O4 Wide Air Unit and O4 Air Unit Pro, and the frame is sized for 3S and 4S power systems.
Key features
- Four-screw assembly with embedded nuts and a supported structure for quicker, more rigid builds
- Crash-resistant PA12 thickened ducts, rated by BetaFPV at 8-11% more thrust than open props
- 26 x 26 mm flight controller mounting and 4 x M2 motor mounting on a 9 mm circle
- 20 mm camera mounting spacing with camera filter support
- Takes BetaFPV's Pavo20 Pro II buzzer and GPS bracket set for 12x and 18x GPS modules
Specifications
- Wheelbase: 93.9 mm
- Material: PA12/PP ducts, 2 mm carbon top plate
- FC mounting: 26 x 26 mm
- Motor mounting: 4 x M2, 9 mm circle
- Battery slot width: 20 mm
- Recommended props: Gemfan D2.2 or 2218 3-blade, 1.5 mm shaft
- Supported air units: DJI O4 Air Unit, O4 Wide Air Unit, O4 Air Unit Pro
- Colour: Black
BetaFPV pairs this frame with LAVA 1104 motors and 3S or 4S LAVA packs for the stock Pavo20 Pro II setup.
| Prop Size | 2.2" |
|---|---|
| Wheelbase | 93.9 mm |
| Made in India | No |
| Brand | BetaFPV |
| Mounting Size | 26x26 |
