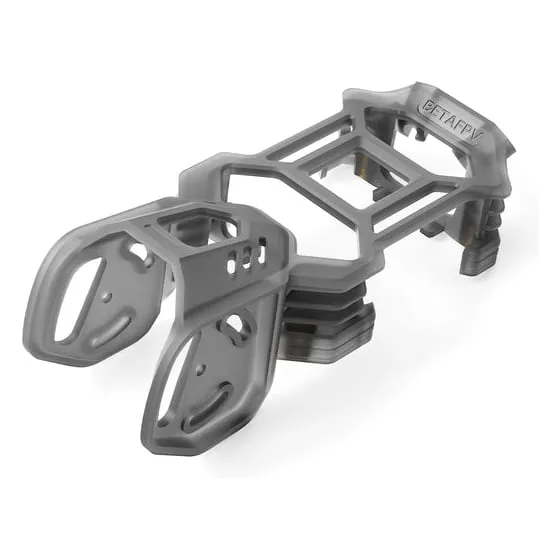

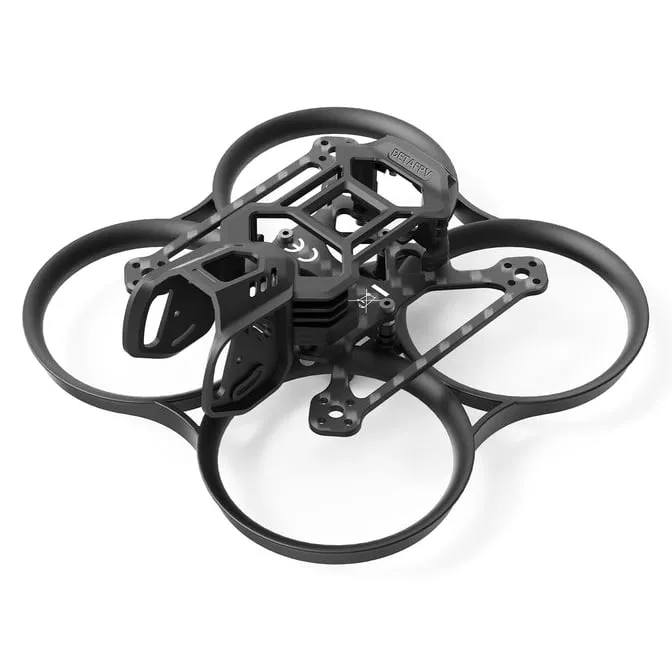

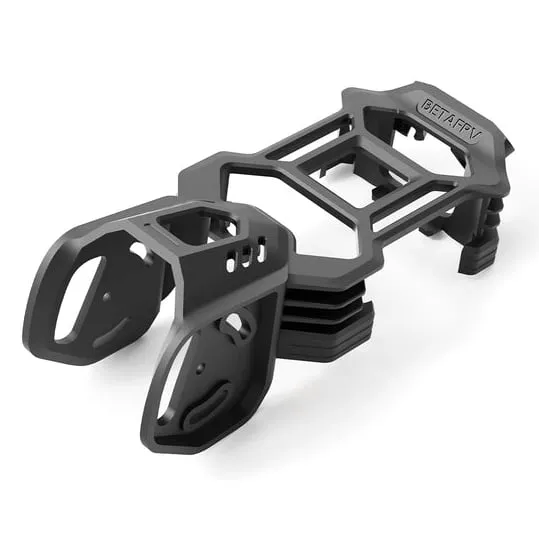

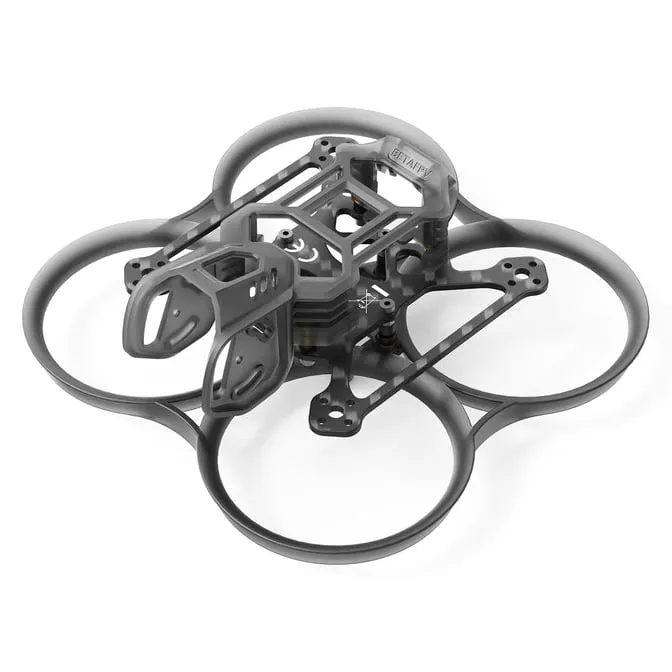

BetaFPV Pavo20 Pro Cinewhoop Frame for DJI O4 Air Unit Pro

The BetaFPV Pavo20 Pro is a dedicated micro cinewhoop frame engineered to house the DJI O4 Air Unit Pro and similar high-end digital video transmitters. Built for smooth, jello-free indoor and close-proximity cinematic flying, this frame employs a pusher configuration and robust injection-moulded ducts to protect both the drone and its surroundings during technical shoots.

Key features

• Fitted with the O4 Air Unit Pro bracket, with dual camera fixing holes for the O4 Pro camera; this bracket does not fit the standard O4 or the O3 Air Unit.
• Tough injection-moulded PA12 prop guards ensure excellent crash resilience and safe indoor flights.
• Pusher-style motor layout provides improved thrust efficiency and cleaner airflow over the control surfaces.
• Integrated vibration isolation dampers eliminate high-frequency camera jello for perfectly smooth HD footage.

Specifications

• Frame type: Cinewhoop (Pusher)
• Wheelbase: 93.7 mm
• Material: PA12/PP
• Top plate thickness: 2 mm
• Main board mounting: 26x26mm
• VTX mounting: 20x20mm
• Motor mounting: 4 x M2 on a 9 mm circle
• Camera mounting spacing: 19/20 mm (O4 Air Unit Pro bracket)
• Battery slot width: 20 mm
• Supported prop size: 2-inch

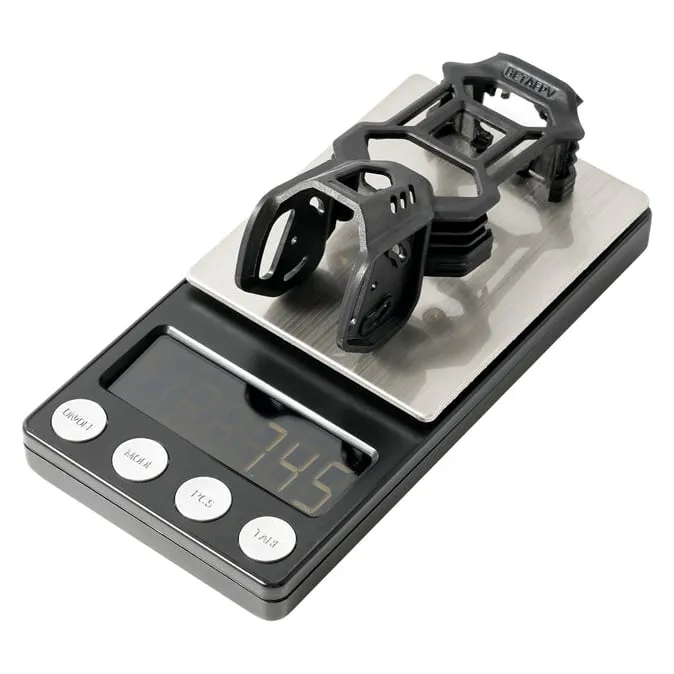

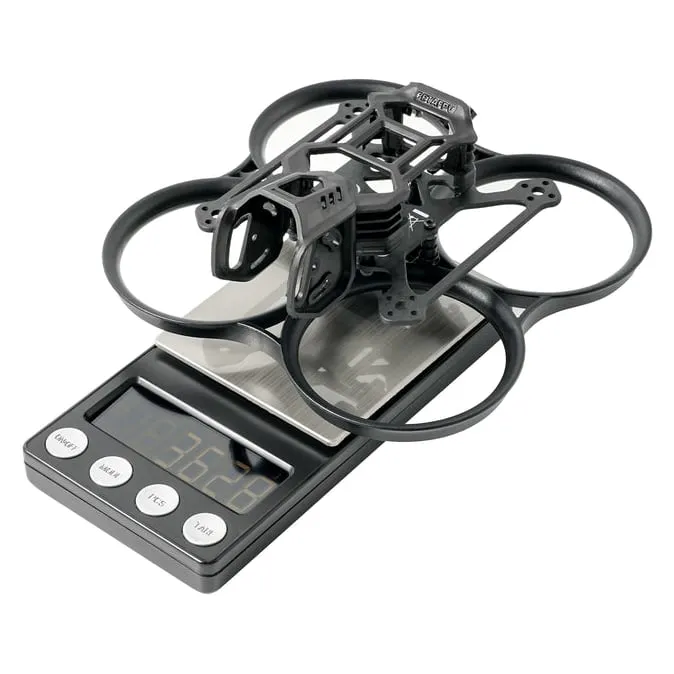

• Weight: 35.7 g (with O4 Air Unit Pro bracket)

Ideal for builders assembling a sub-250g digital cinewhoop, the Pavo20 Pro easily pairs with 1103 or 1104 brushless motors and standard whoop AIO flight controllers to create a highly capable, cinematic micro-drone.
