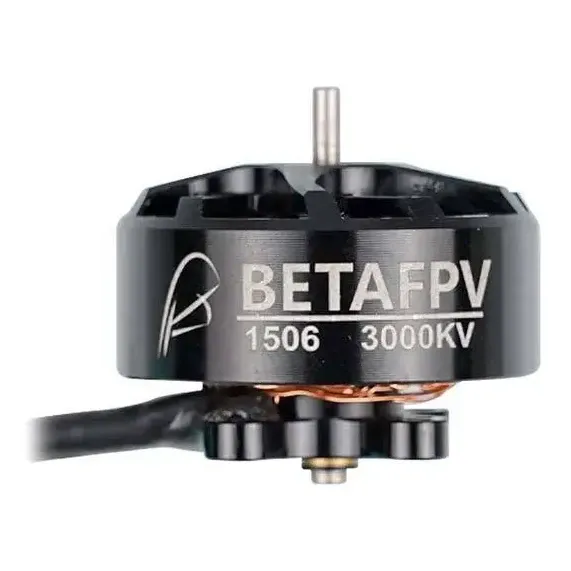

BetaFPV 1506 3000KV Brushless Drone Motor

The BETAFPV 1506 3000KV is a high-torque brushless motor tailored for heavy 3-inch cinewhoops, 4-inch toothpicks, and lightweight freestyle frames. Engineered to carry HD action cameras on platforms like the Pavo30 or Beta95X V3, this motor delivers the sustained thrust required for smooth cinematic flights and precise acro manoeuvres on a 4S LiPo setup.

Key features

• Optimised for 3-inch and 4-inch frames carrying GoPro or Insta360 payloads
• High-efficiency 1506 stator maintains cool operating temperatures during sustained high-throttle pushes
• Fitted with a 1.5mm shaft for secure T-mount propeller installation
• Standard 12x12mm M2 mounting base fits most micro and toothpick frames

Specifications

• Stator Size: 1506
• KV: 3000
• Shaft Diameter: 1.5mm
• Mounting Pattern: 12x12mm (M2)

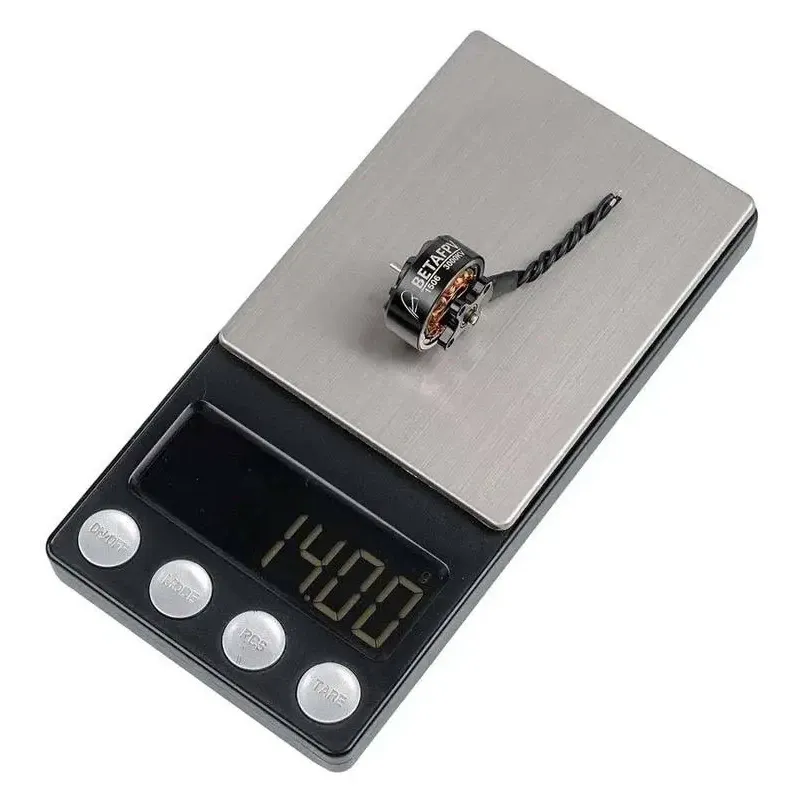

• Weight: 14.3g
• Wire Gauge: 24AWG
• Input Voltage: 3-6S LiPo

Pair these motors with a 20A to 35A AIO flight controller and multi-blade T-mount propellers (such as the Gemfan D76 or D63) for an optimal balance of flight time and throttle authority on a 4S cinematic whoop.
