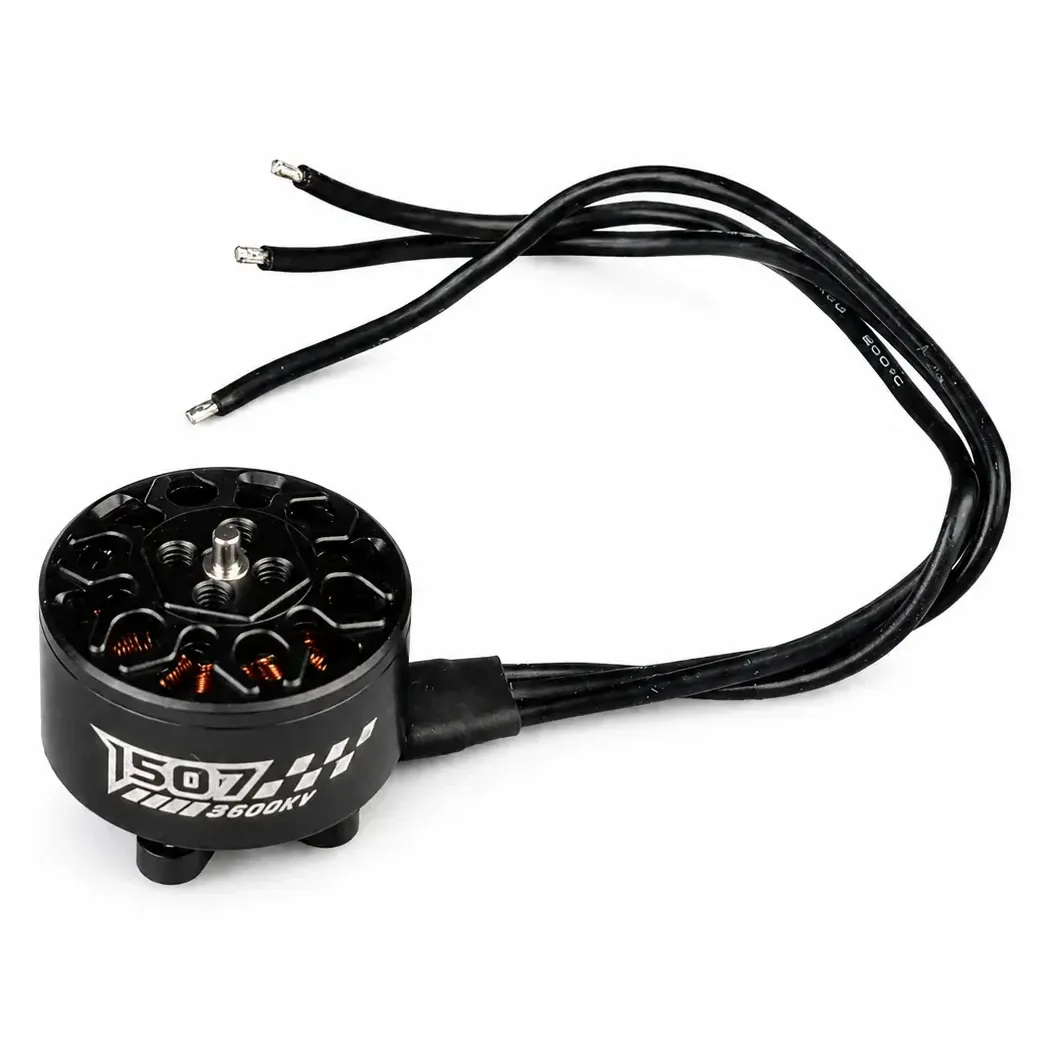

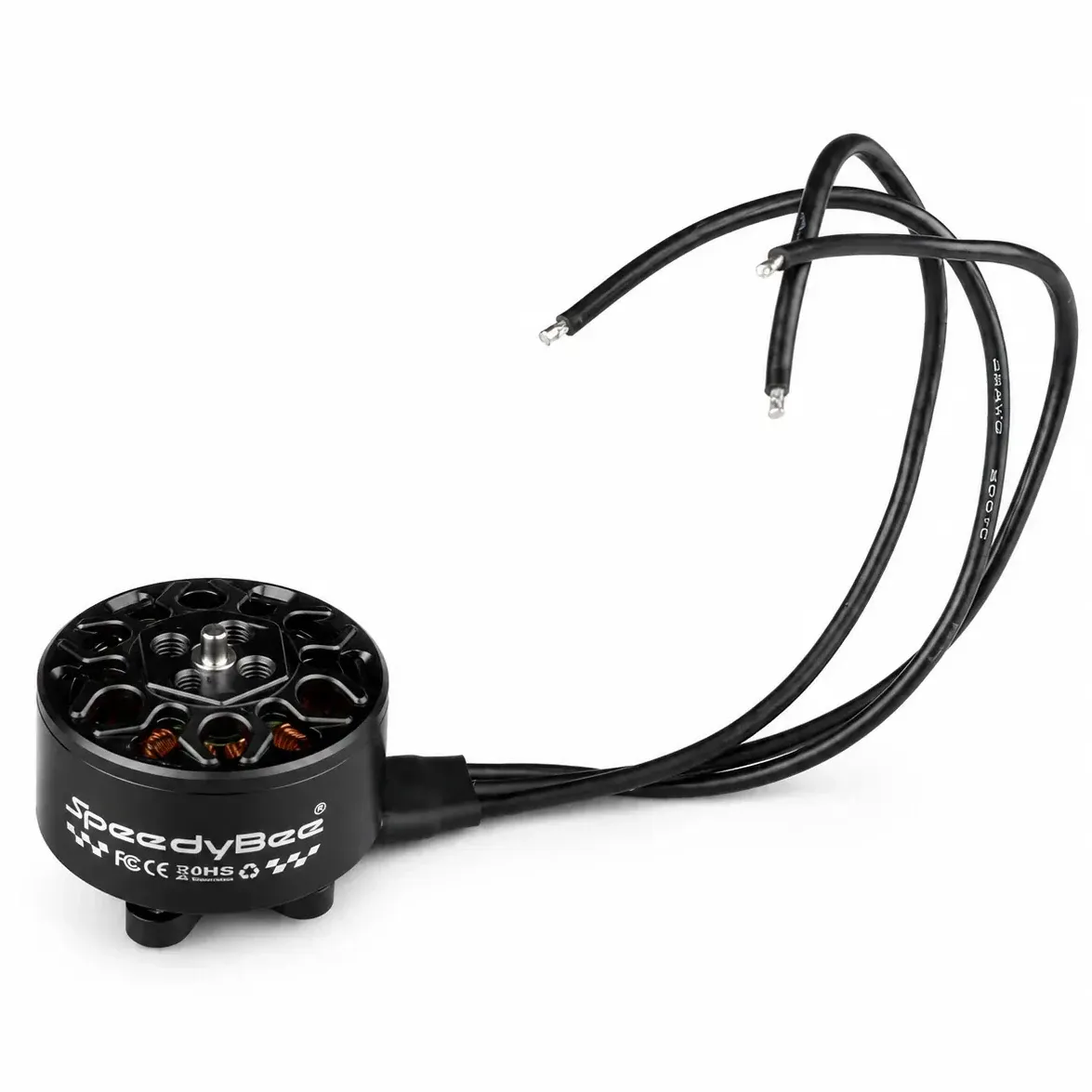

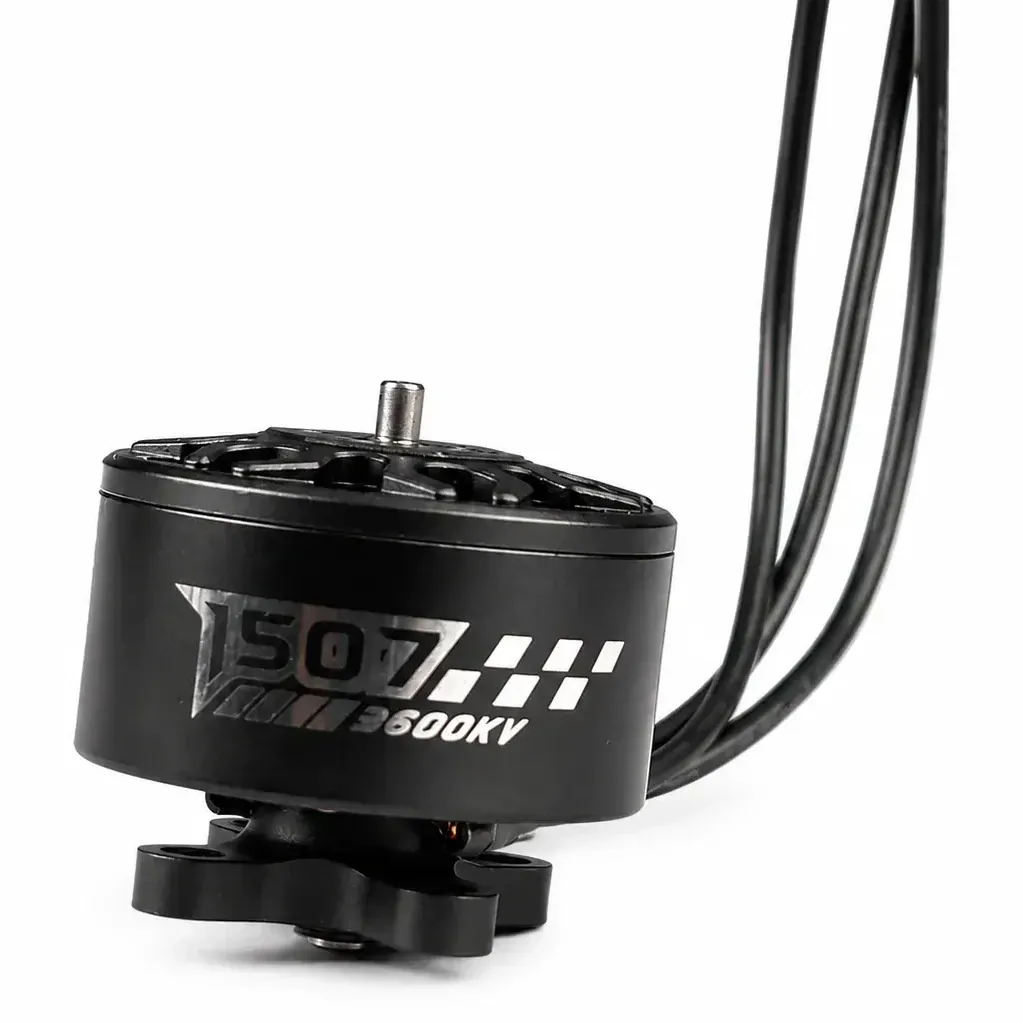

SpeedyBee 1507 3600KV 4S Motor

₹2,099Incl. GST

SKU SPEEDYBEE-1507-3600KV

Quantity: SingleStator Size: 1507KV: 3600 KVPack Size: 1Shaft: 2mm
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The SpeedyBee 1507 3600KV is the motor SpeedyBee specifies for its Master3X frame, sized for 3 to 3.6-inch props on a 4S battery. At 15.2g including leads, it suits light freestyle, cinematic cruising and micro racing builds where every gram counts.

Key features

  • 3600KV on 4S sits at the top of the Master3X's recommended 3000–3600KV window, for the sharpest throttle response
  • 12N14P configuration on a 15 x 7mm stator
  • Up to 373.98W and 23.73A per motor

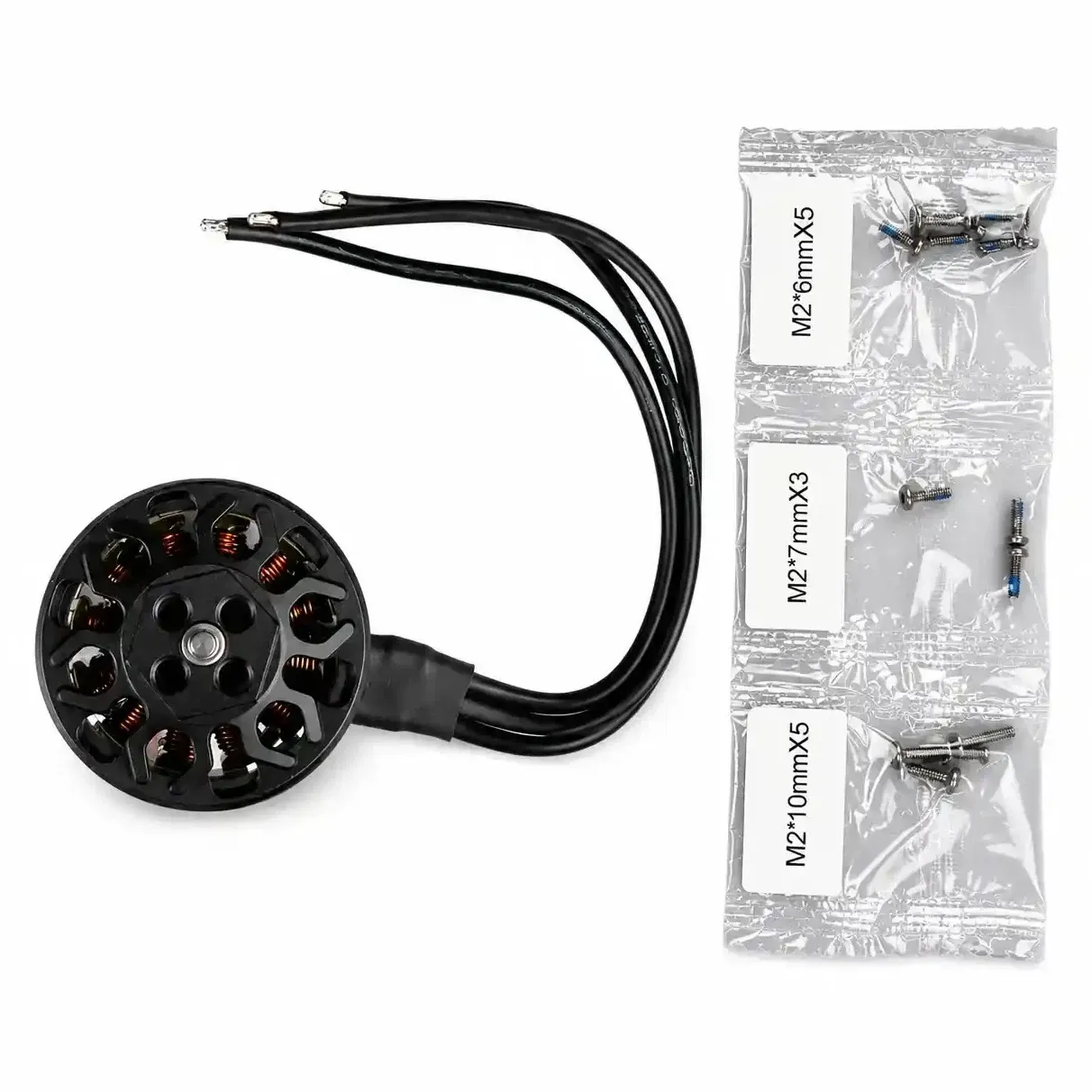

  • 2mm shaft and M2 motor mounting on a 12 x 12mm pattern, matching the Master3X's 9–12mm motor pads
  • 22AWG silicone leads, 150mm long
  • Sold as a single motor, so a quad needs four

Specifications

  • Stator: 1507 (15 x 7mm)
  • KV: 3600KV
  • Configuration: 12N14P
  • Operating voltage: 4S LiPo (14.8V nominal)
  • Shaft: 2mm
  • Motor mounting: 12 x 12mm, M2
  • Lead wires: 22AWG, 150mm
  • Phase resistance: 94.85mΩ
  • No-load current: 0.71A at 10V
  • Maximum current: 23.73A
  • Maximum power: 373.98W
  • Weight: 15.2g including wires

On 4S, pair it with 750–1100mAh LiPo or LiHV packs. For a 6S build on the same frame, SpeedyBee recommends a 2200–2750KV motor instead.
