BETAFPV 0802 Air75 II Freestyle Motors 2026
₹6,599Incl. GST
SKU BETAFPV-0802-AIR75II-2026
Stator Size: 0802KV: 22000 KVPack Size: 4Prop Mount: 1mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The BETAFPV 0802 Brushless Motor (2026) Freestyle version is a micro brushless motor built specifically for the Air75 II whoop, tuned for smooth low-throttle control rather than outright RPM.
Key features
- 22000KV winding, the Freestyle-tuned member of the three Air75 II 0802 (2026) motors (Champion and Racing use higher KV windings).
- 0.10mm stator core cuts magnetic losses for a claimed efficiency gain over the previous 0.15mm-core 0802.
- Brass-bushing bearings with an upgraded rotor housing and shaft add crash resistance.
- Recommended pairing: GF 1614 three-blade propellers, a 1S 5-in-1 flight controller such as the Matrix 1S 5IN1 II, and a 1S 480-580mAh battery.
- Supplied as a set of four motors with 12 M1.4 x 3mm mounting screws.
Specifications
- KV: 22000KV

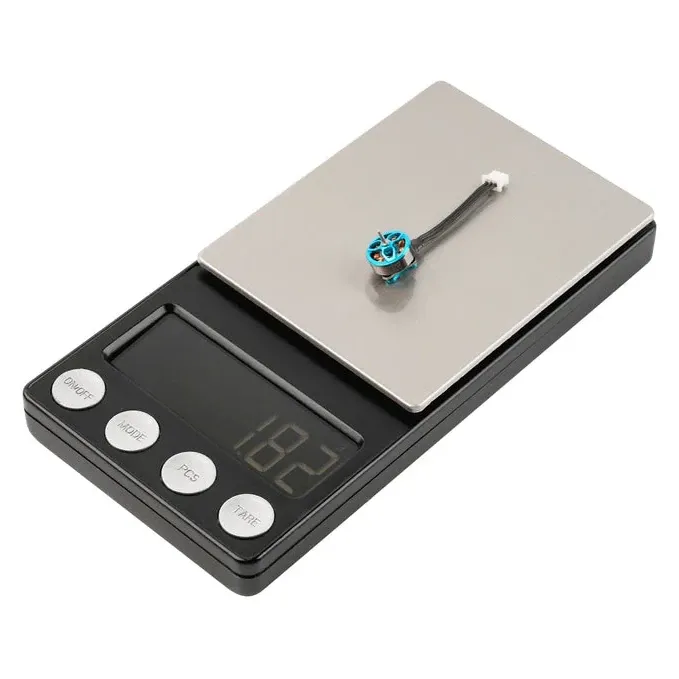

- Weight: 1.88g
- Shaft diameter: 1.0mm
- Shaft length: 4.0 mm
- Rated voltage: 4.2V (1S)
- Max current / power: 5.9 A / 22.73 W
- Connector: JST1.25, 3-pin
- Leads: 30AWG, 35 mm
- Mounting: 3 x M1.4 screws, 6.6mm hole spacing
Built for the Air75 II whoop frame; run it on a 1S battery and match it with the recommended propeller size.
| Stator Size | 0802 |
|---|---|
| Stator Diameter | 8mm |
| Stator Height | 2mm |
| KV | 22000 KV |
| Pack Size | 4 |
| Prop Mount | 1mm |
| Shaft | 1.0mm |
| Motor Mount | 6.6mm 3-hole |
| Input Voltage | 1S |
| Weight | 1.88 g |
| Brand | BetaFPV |
| Made in India | No |
