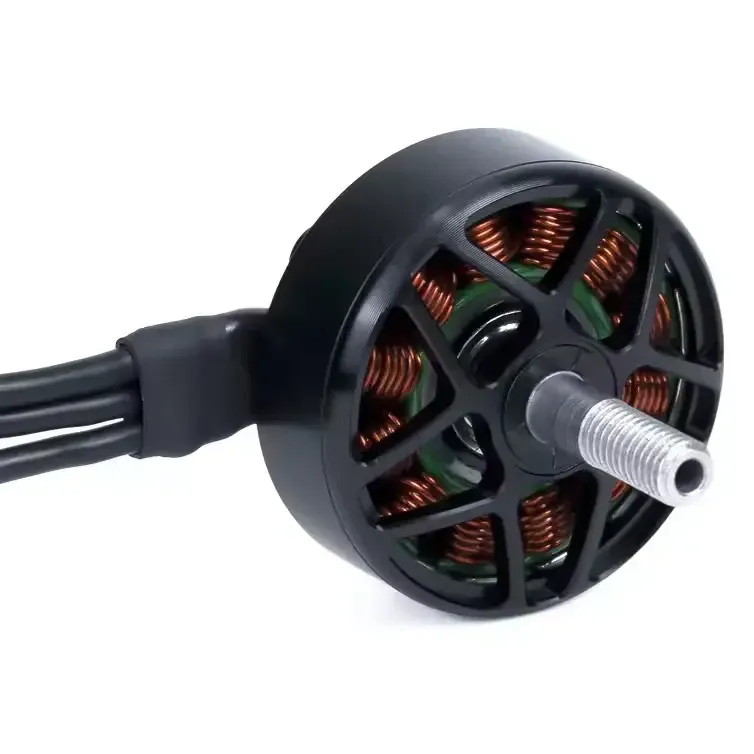

Axisflying AZ3115 900KV Motor for 10-Inch Builds
SKU AZ-3115-900KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The AZ3115 900KV brushless motor is engineered for 10-inch macro-quads, long-range cruisers, and heavy-payload cinematic platforms. With its massive 3115 stator volume, it delivers the sustained torque necessary to spin aggressive 10-inch propellers smoothly, ensuring your quad maintains stability even when carrying bulky camera gear or oversized Li-Ion packs over long distances.
Key features
- Engineered specifically for 10-inch long-range and heavy-lift frames
- Large 3115 stator produces exceptional low-end torque for heavy payloads
- 900KV rating provides an optimal balance of thrust and efficiency for 6S configurations
Specifications
- Stator Size: 3115
- KV: 900
- Configuration: 12N14P
- Peak current: approx. 65A
- Shaft: 5 mm (M5)
- Mounting holes: 19x19mm (M3)
- Recommended Propeller: 10-inch
Pair these motors with a robust 60A or higher ESC and a high-capacity 6S LiPo or Li-Ion battery to maximise flight times and payload lifting capabilities on your next long-range expedition.
| Stator Size | 3115 |
|---|---|
| Stator Diameter | 31mm |
| Stator Height | 15mm |
| KV | 900 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 19x19mm |
| Input Voltage | 3–6S |
| Weight | 110 g |
| Brand | Axisflying |
| Made in India | No |
