AXL PDB 10 100A Power Distribution Board for up to 8 ESCs

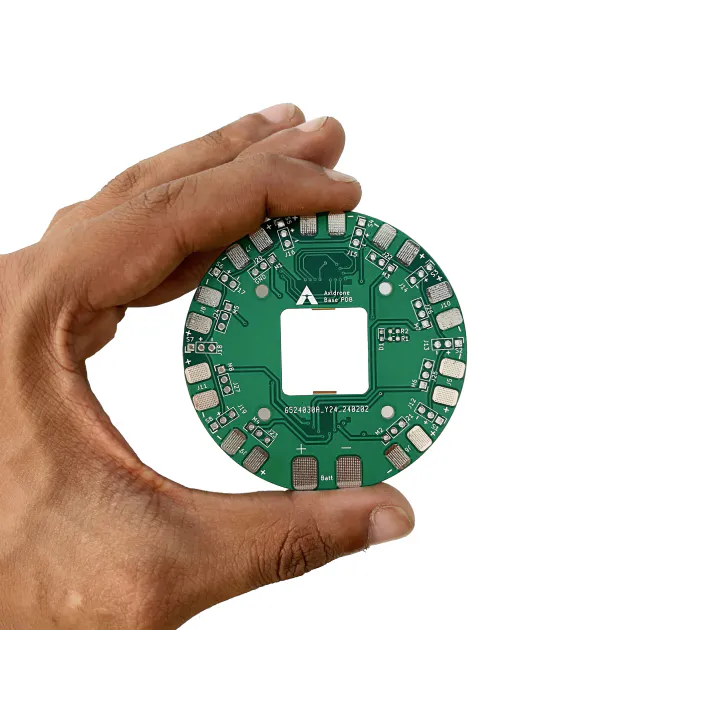

The AXL PDB 10 is a compact, round power distribution board from axldrone that splits flight-battery power to as many as eight ESCs. Made in India with non-Chinese components, it suits quad, hexa and octocopter builds, inspection UAVs and robotics projects that need tidy power wiring in a light package.

Key features

• Handles up to 100 A in total — about 30 A per output on a quadcopter or 15 A each on an octocopter
• Connects 1 to 8 ESCs for quad, hexa and octo layouts
• FMU and I/O PWM output headers to organise motor signal wiring from the flight controller

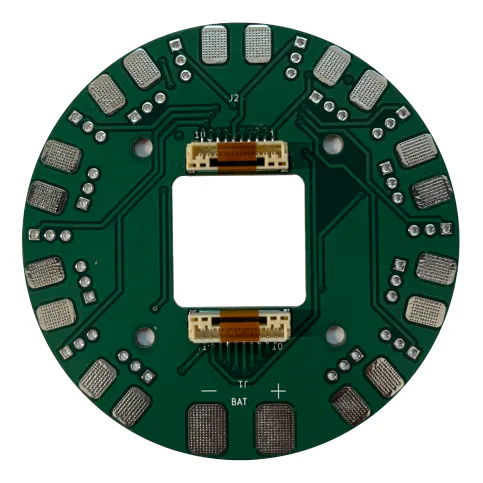

• Large solder pads make ESC and battery leads easy to attach
• Glass-fibre board weighing only 17 g

Specifications

• Maximum current: 100 A
• ESC outputs: 1–8
• Per-output current: approx. 30 A (quad), 15 A (octo)
• Shape: round, 35 mm radius (70 mm across)
• Material: glass fibre
• Weight: 17 g

Size the battery leads for the full 100 A and keep each ESC within its share of the board's total current.
