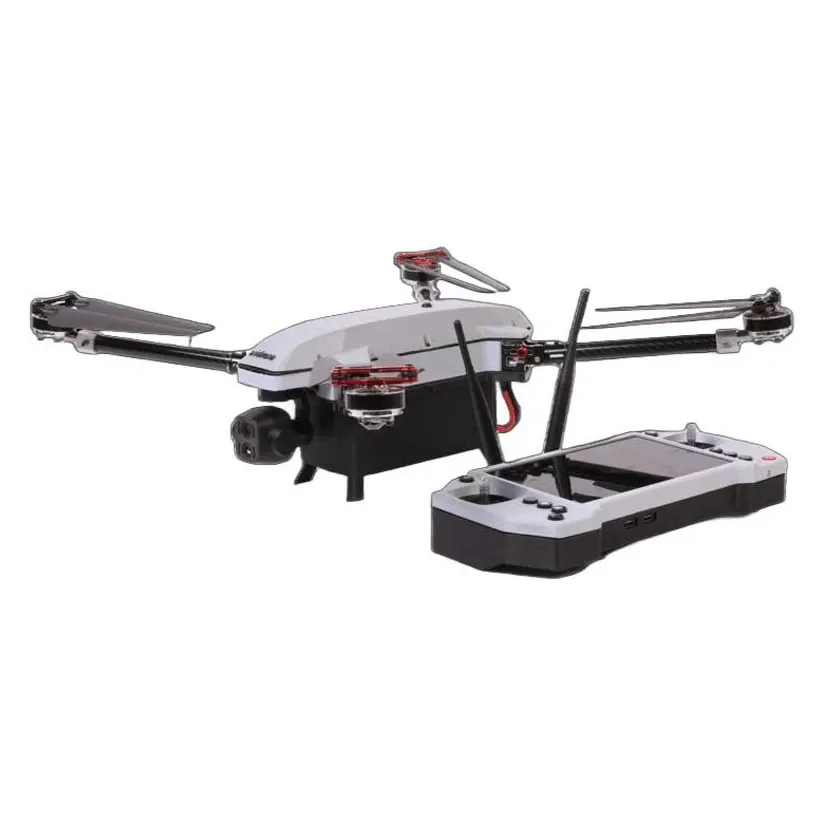

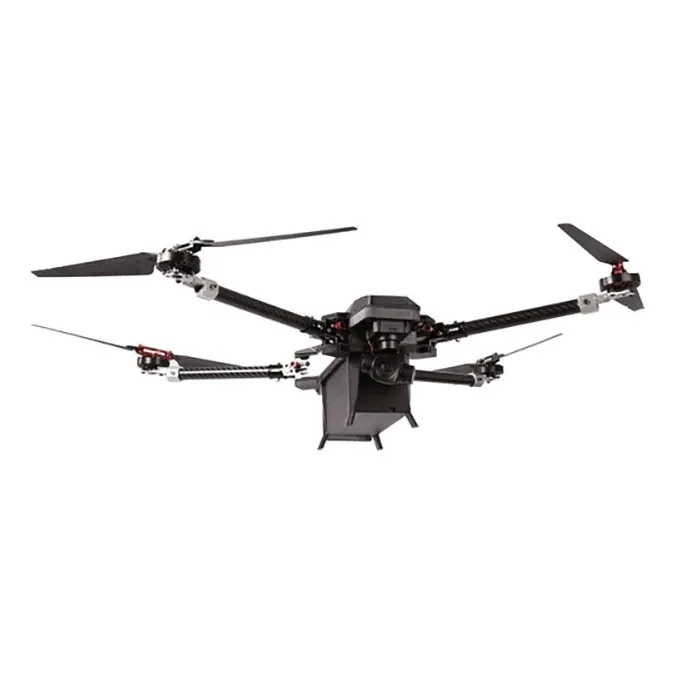

AXL Peregrine Foldable Industrial Quadcopter Drone

The AXL Peregrine is an Indian-made foldable quadcopter for industrial surveillance, mapping, inspection and long-range BVLOS missions. It flies on 15-inch folding props and a 6S 12000mAh LiPo, and comes in three versions that differ in camera and navigation payload.

Key features

• Basic: 4K 30fps camera with 6x digital zoom on a 3-axis gimbal, GPS/GLONASS positioning and a 2.4 GHz controller with a 7-inch screen and around 15 km transmission range.
• RTK: multi-band RTK GNSS for centimetre-level positioning, up to 50 minutes endurance and the axl OneView smart controller with integrated display; the standard package uses the A8 mini gimbal camera and includes two 12000mAh batteries, a charger and a fibreglass protective case.
• Advanced (Thermal + 2K Gimbal): dual-sensor thermal plus 2K HD camera on a 3-axis stabilised gimbal, up to 10 km operational range and more than 48 minutes endurance.
• Foldable carbon fibre, aluminium and ABS airframe with brushless motors, built for quick field deployment.
• Live monitoring and mission control through the axl radio controller and axlviman app.

Specifications

• Propellers: 15-inch foldable
• Battery: 6S LiPo, 22.2 V, 12000mAh (266.4 Wh), 1440 g
• Take-off weight (Basic, with battery and props): 3310 g
• Flight time (Basic): up to 45 min at 25 km/h; hover up to 50 min
• Max speed: 25 m/s
• Max ascent/descent speed: 5 m/s
• Distance per battery: 38 km
• Max operating altitude: 4000 m
• Wind resistance: 10 m/s
• Operating temperature: 0 to 40 °C
• Camera (Basic): 4K 30fps, JPEG/DNG photos, MP4/MOV video, microSD up to 128 GB
• Video downlink: 720p 30fps, 1080p 30/60fps
• Ingress protection: IP4x

Choose by mission: Basic for general surveillance and inspection, RTK for survey and mapping that needs centimetre-level accuracy, and Advanced when you need thermal imaging for night search, rescue or security patrols.
