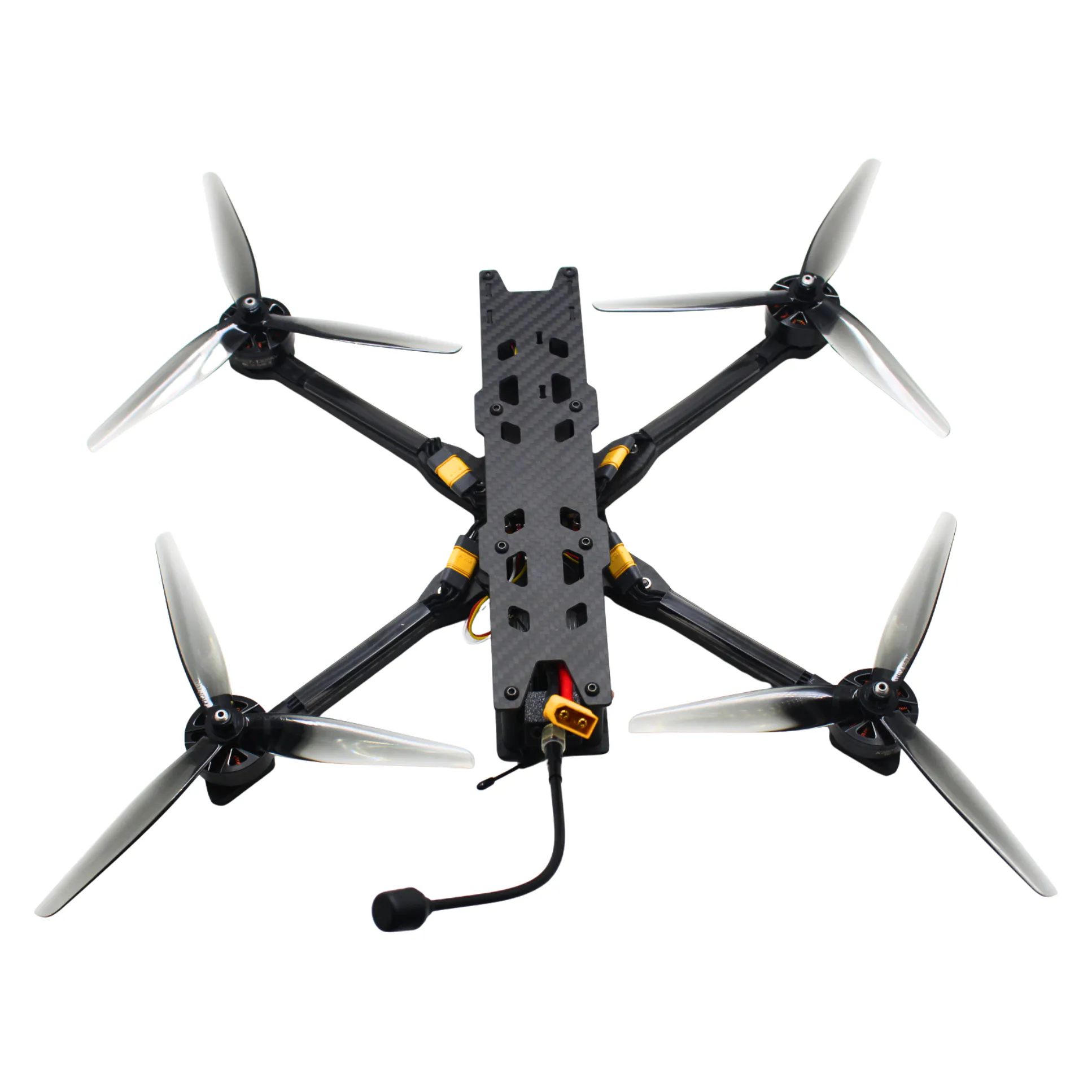

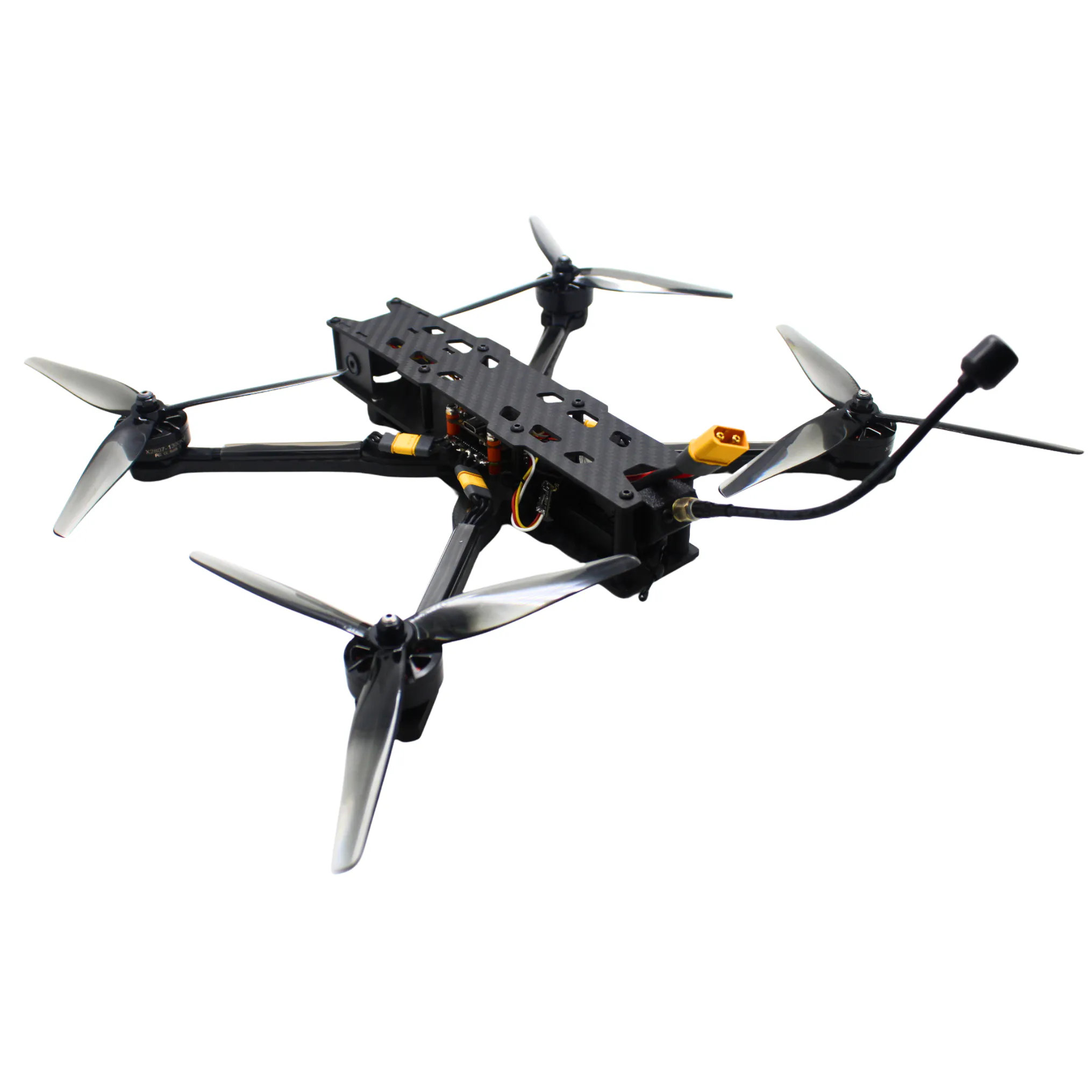

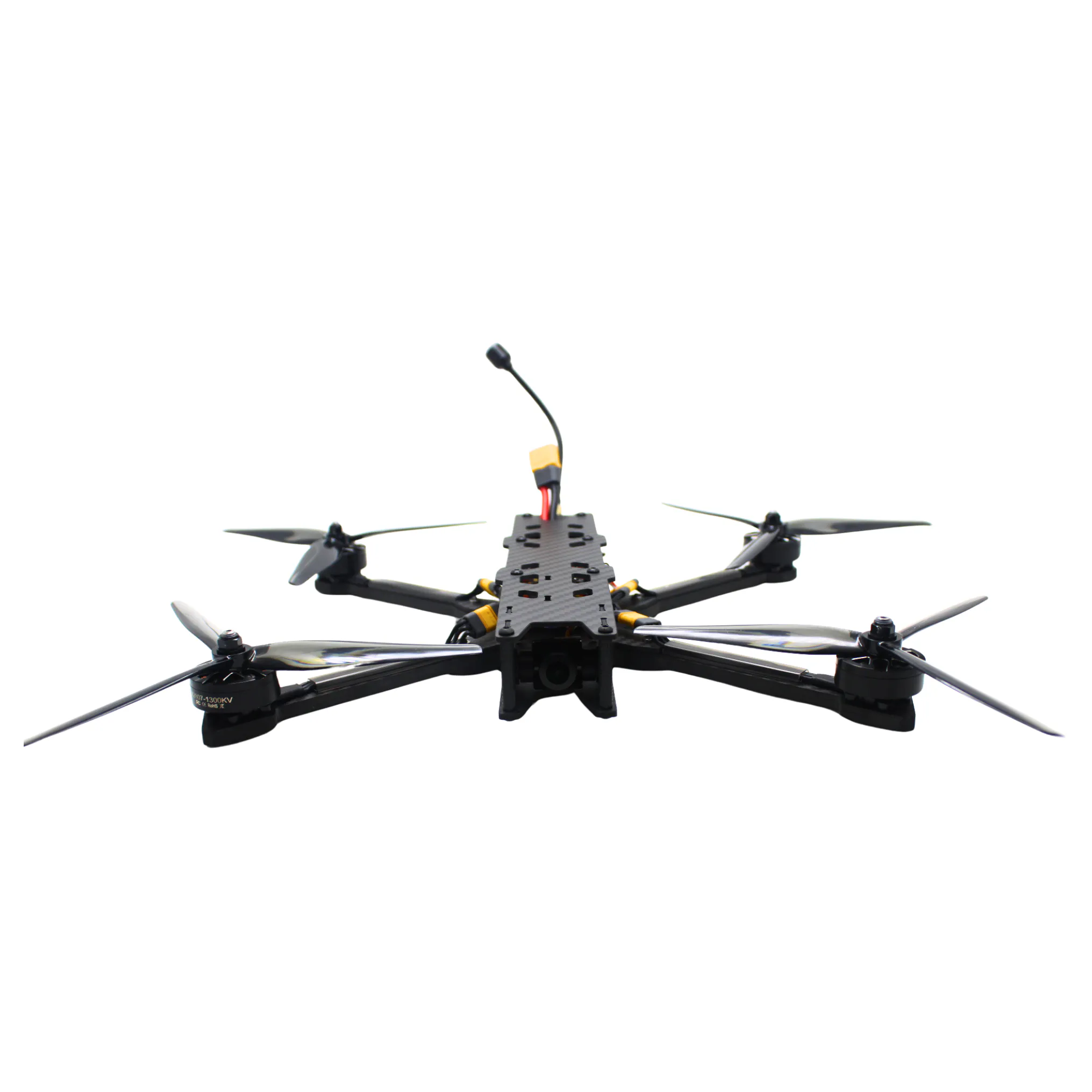

Skyrath FPV 7-Inch GPS Drone with ELRS 915MHz

The Skyrath FPV 7-inch is a ready-built GPS quad with a 915 MHz ELRS control link and analog video, for pilots who want long-range reach and payload capacity without building up a bare frame. It suits long-range cruising, payload trials and field survey work.

Key features

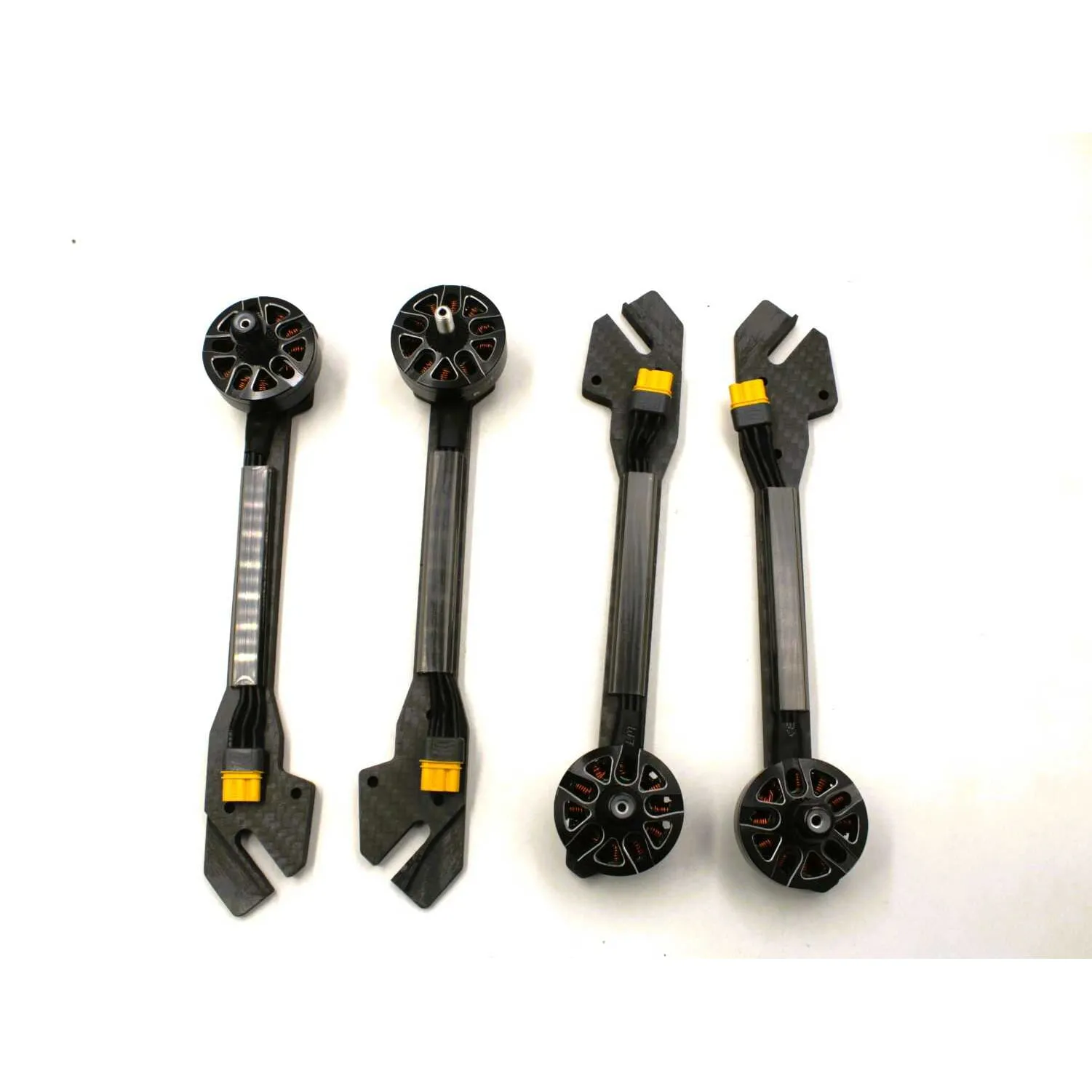

• Four EM2810 1350KV motors on 7.5 x 3.7-inch propellers for strong, stable thrust
• F405 flight controller driving 50A ESCs
• Caddx Ratel 2 analog camera with a 2.5 W video transmitter for a long-range video link
• ELRS 915 MHz receiver and GEPRC M10 GPS module for long-range control and accurate positioning
• Lifts up to 2 kg: about 20 minutes of flight with no payload, around 7 minutes fully loaded
• Rated for -10 to 40 °C and altitudes up to 5000 m

Specifications

• Motors: EM2810 1350KV (x4)

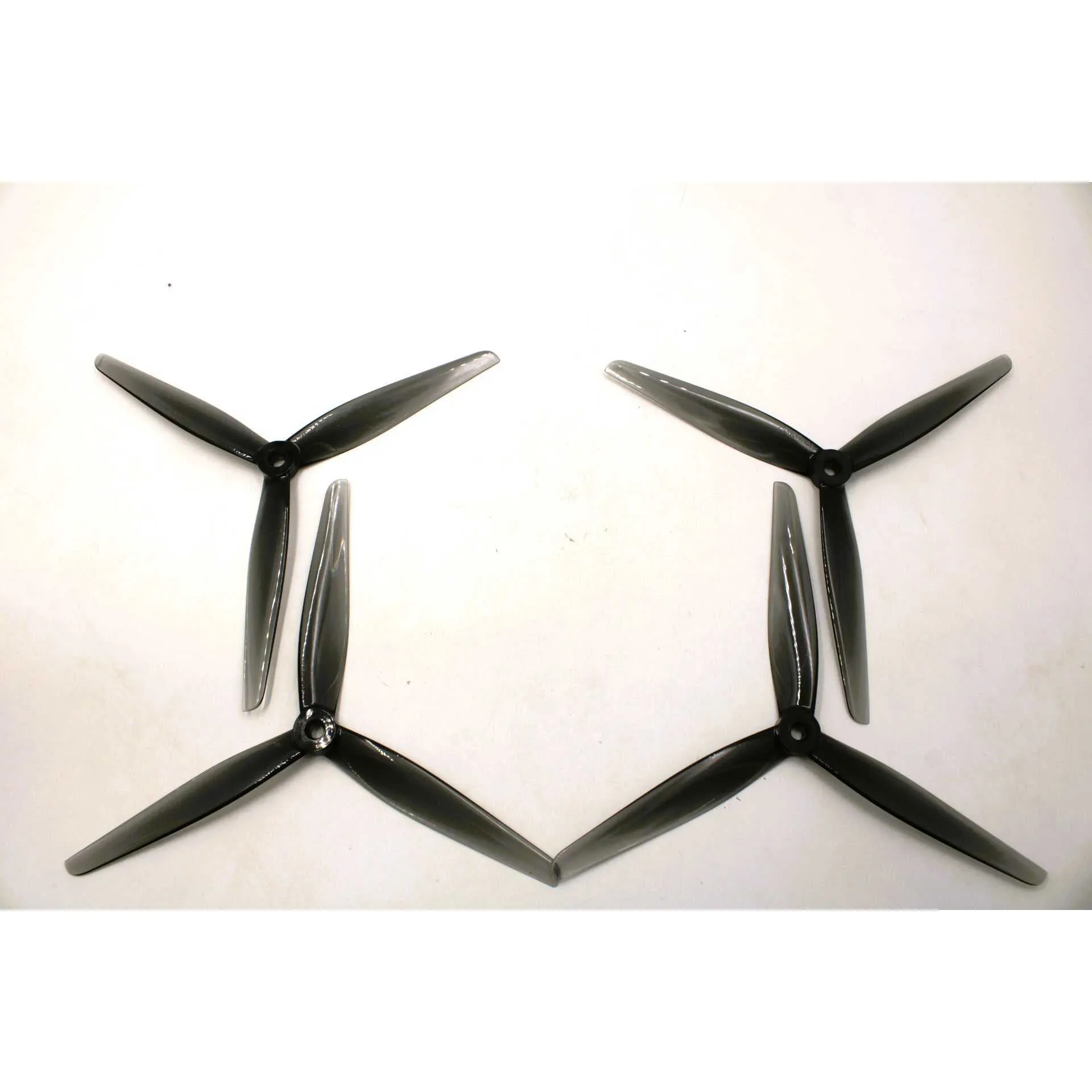

• Propellers: 7.5 x 3.7 in
• Flight controller: F405
• ESC: 50A
• Camera: Caddx Ratel 2 (analog)
• Video transmitter: 2.5 W
• Receiver: ELRS 915 MHz
• GPS: GEPRC M10
• Max payload: 2 kg
• Flight time: up to 20 min without payload, about 7 min at full load
• Operating temperature: -10 to 40 °C
• Max operating altitude: 5000 m

To fly it you need a radio or TX module running ELRS on 915 MHz to bind with the onboard receiver, plus analog FPV goggles or a monitor for the video feed. Plan payload against endurance: flight time drops from about 20 to about 7 minutes as you approach the 2 kg limit.
