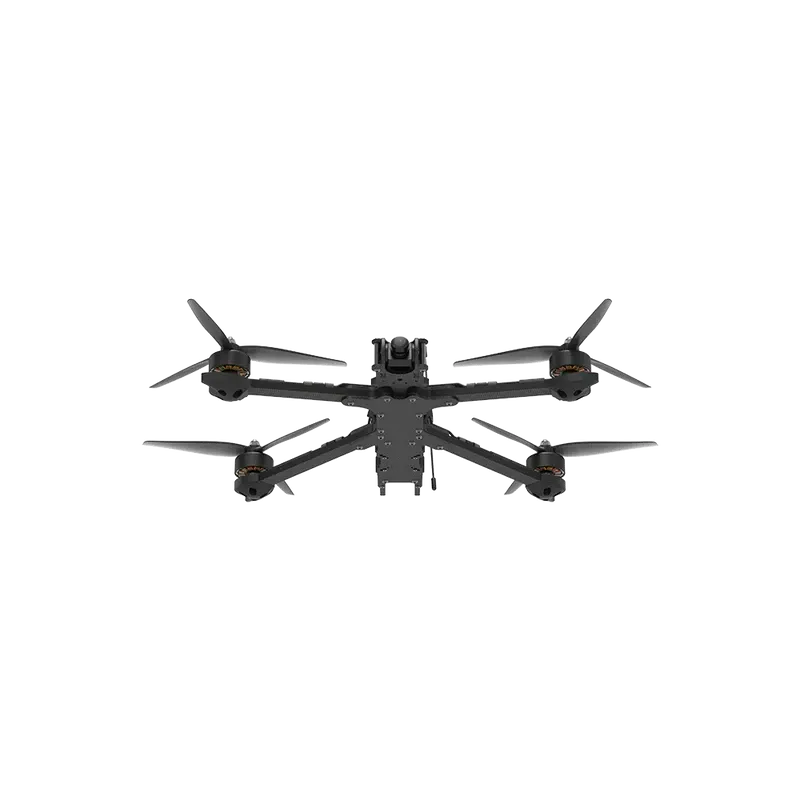

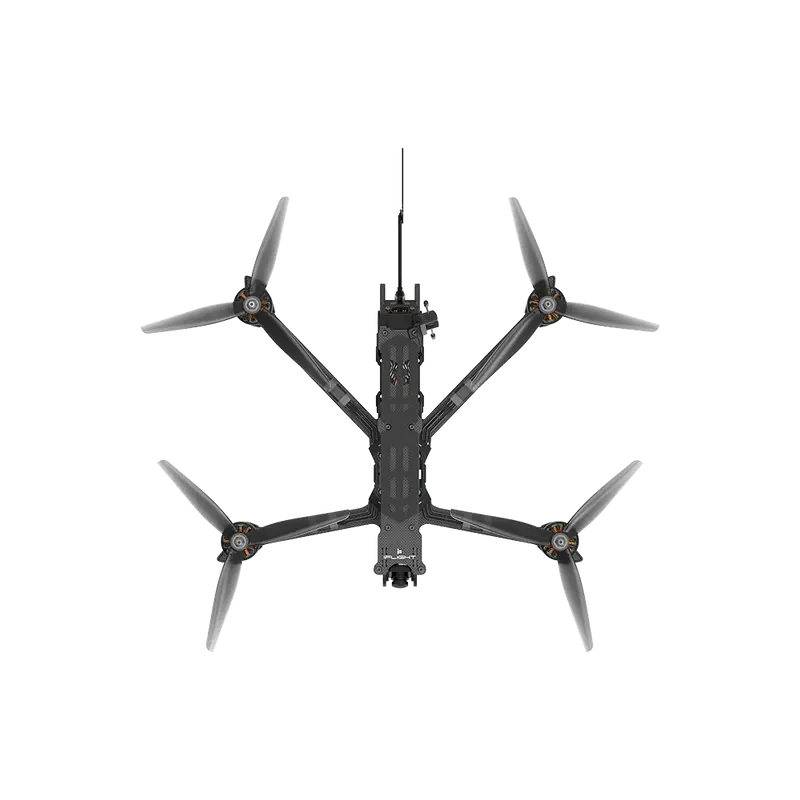

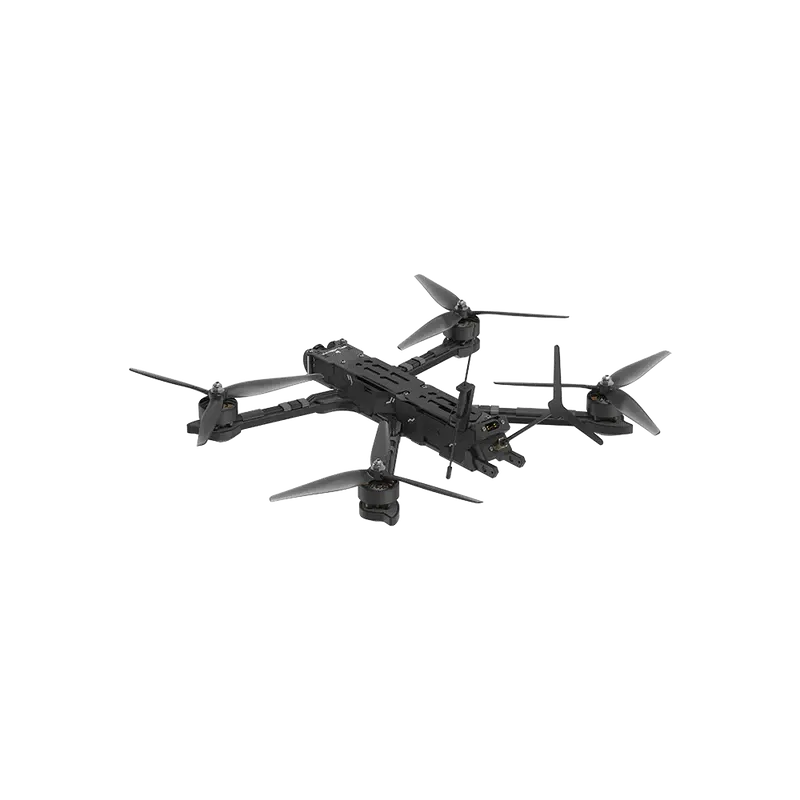

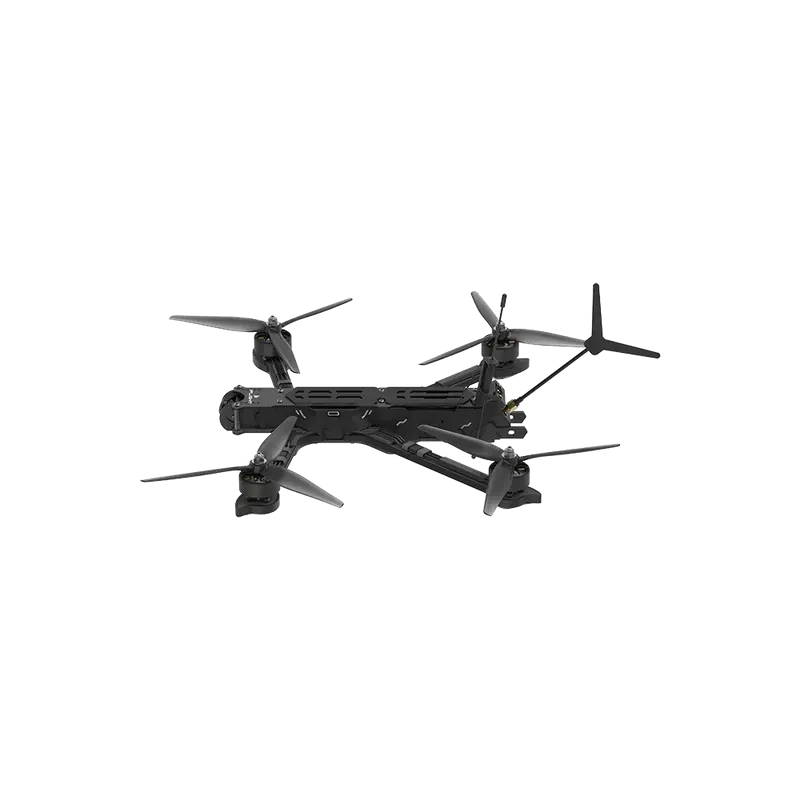

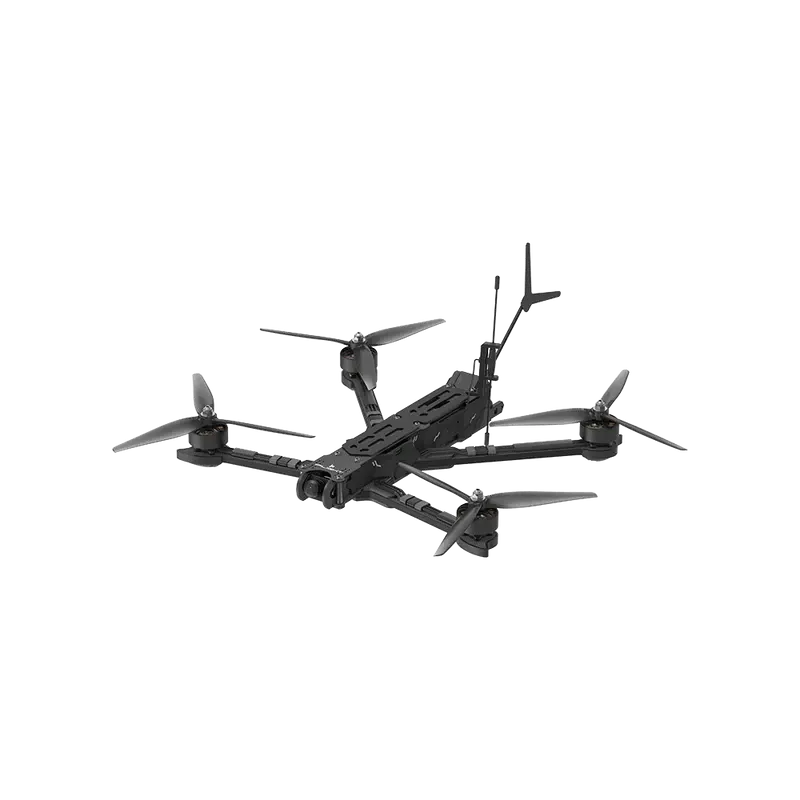

iFlight Chimera7 ECO — Custom Build

The iFlight Chimera7 ECO Custom Build is a fully assembled, made-to-order 7-inch long-range FPV drone. Built around the proven Chimera7 ECO Deadcat frame, this platform is engineered for mountain surfing, long-distance cruising, and carrying heavy payloads like a full-size GoPro alongside massive Li-Ion packs, all without propellers obstructing your HD footage.

Key features

• Based on the 327 mm wheelbase Chimera7 ECO Deadcat geometry, keeping 7-inch propellers entirely out of your HD video feed.
• Rigid frame construction with 6 mm thick arms and a 3 mm bottom plate to eliminate vibrations during high-throttle mountain dives.
• Accommodates large 6S batteries via a secure dual-strap top mount and extended top plate.
• Pre-fitted with durable TPU hardware for antenna, GPS, and action camera mounting.

Specifications

• Platform: iFlight Chimera7 ECO
• Wheelbase: 327 mm
• Frame geometry: Deadcat (DC)
• Arm thickness: 6 mm
• Plate thickness: 2 mm (top) / 3 mm (bottom)
• Propeller compatibility: 7-inch
• Flight stack: iFlight BLITZ ATF435 with E55S 4-in-1 ESC
• Motors: XING-E 2809 1250KV
• Propellers: Gemfan Hurricane 7043
• Camera: Caddx Ratel 2 Micro
• VTX: iFlight BLITZ Whoop 5.8GHz, 2.5W, with Albatross V2 antenna
• Receiver: iFlight ELRS true-diversity receiver
• GPS: iFlight BLITZ M10 GPS V2

The standard build uses the components listed above; equivalent parts may occasionally be fitted in their place.
