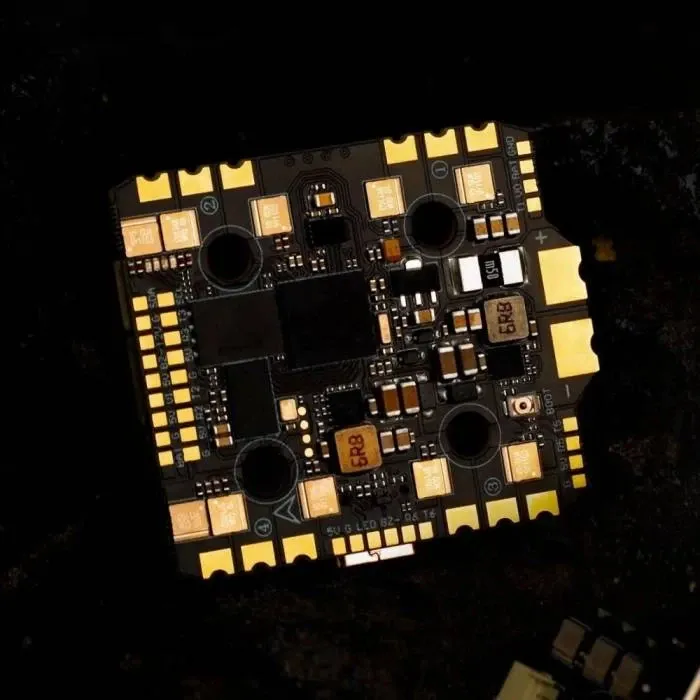

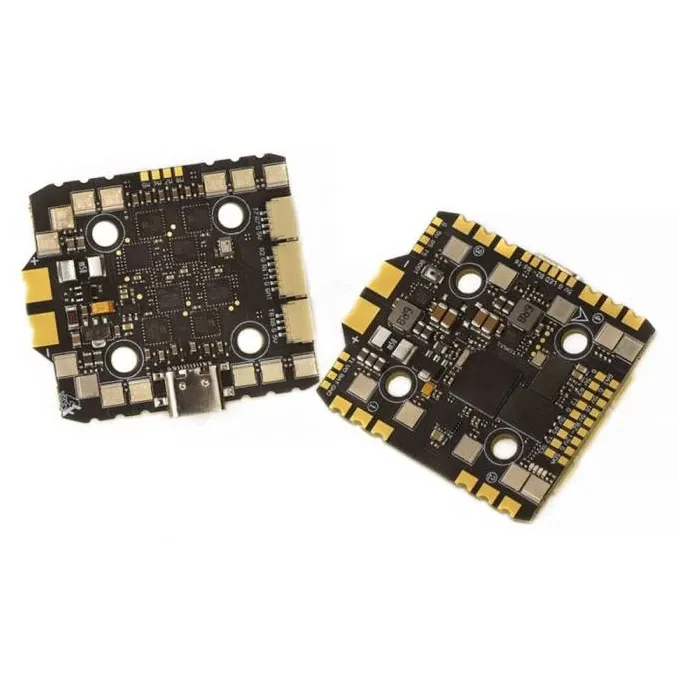

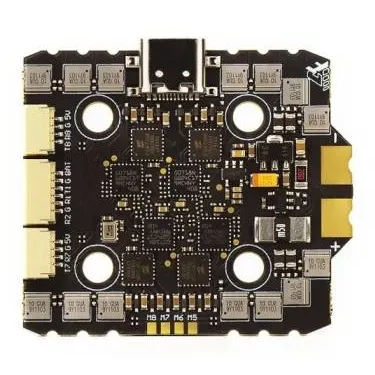

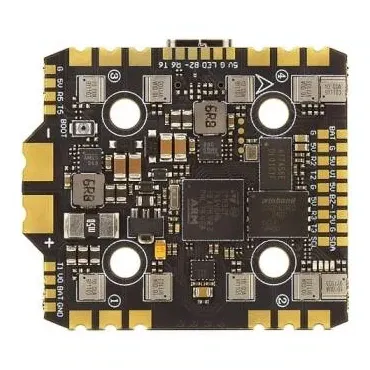

Axisflying Argus F745 40A AM32 AIO Flight Controller
Axisflying Argus F745 40A AM32 AIO Flight Controller
Axisflying Argus F745 40A AM32 AIO Flight Controller
Axisflying Argus F745 40A AM32 AIO Flight Controller
Axisflying
AIO Flight Controllers

Axisflying Argus F745 40A AM32 AIO Flight Controller

₹7,109Incl. GST

SKU AXIS-ARGUS-F745-40A-AM32

Integrated VTX: NoMounting Size: 20x20Integrated Receiver: NoESC Current: 40 A

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The Axisflying Argus is an all-in-one flight stack combining an F745 flight controller and a 40A 4-in-1 ESC on one 20x20mm board, aimed at compact 4-6S freestyle and long-range builds.

Key features

  • STM32F745 processor with an ICM42688P gyro and a built-in barometer for altitude hold.

  • 32MB blackbox logging and 8 UART ports for GPS, VTX, receiver and other peripherals.

  • AM32 firmware pre-installed on the 40A continuous ESC.

  • Dedicated DJI O4 Air Unit plug-and-play port alongside dual BEC outputs (5V/2A and 12V/2A).

  • Compact 38 x 45 x 7mm board weighing 14.4g, on the standard 20x20mm mounting pattern.

  • Combining the flight controller and ESC on one board saves a connector layer versus a separate stack, useful when space in the frame is tight.

  • The two BEC rails let the board power a digital VTX and other 5V/12V accessories without extra regulators.

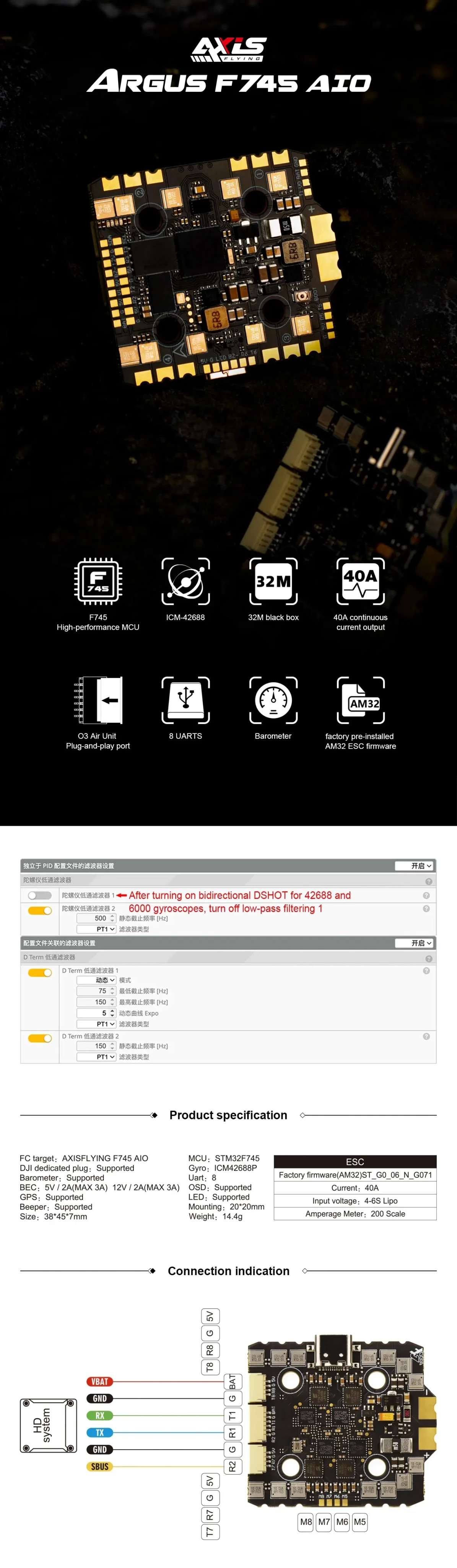

Specifications

  • FC processor: F745

  • Gyro: ICM42688P

  • ESC current rating: 40A

  • ESC firmware: AM32

  • Input voltage: 4-6S LiPo

  • Mounting size: 20 x 20mm

  • Weight: 14.4g

Ships with a connector cable set and mounting screws with vibration dampers; verify battery and motor current draw stay within the 4-6S/40A envelope before flying.
