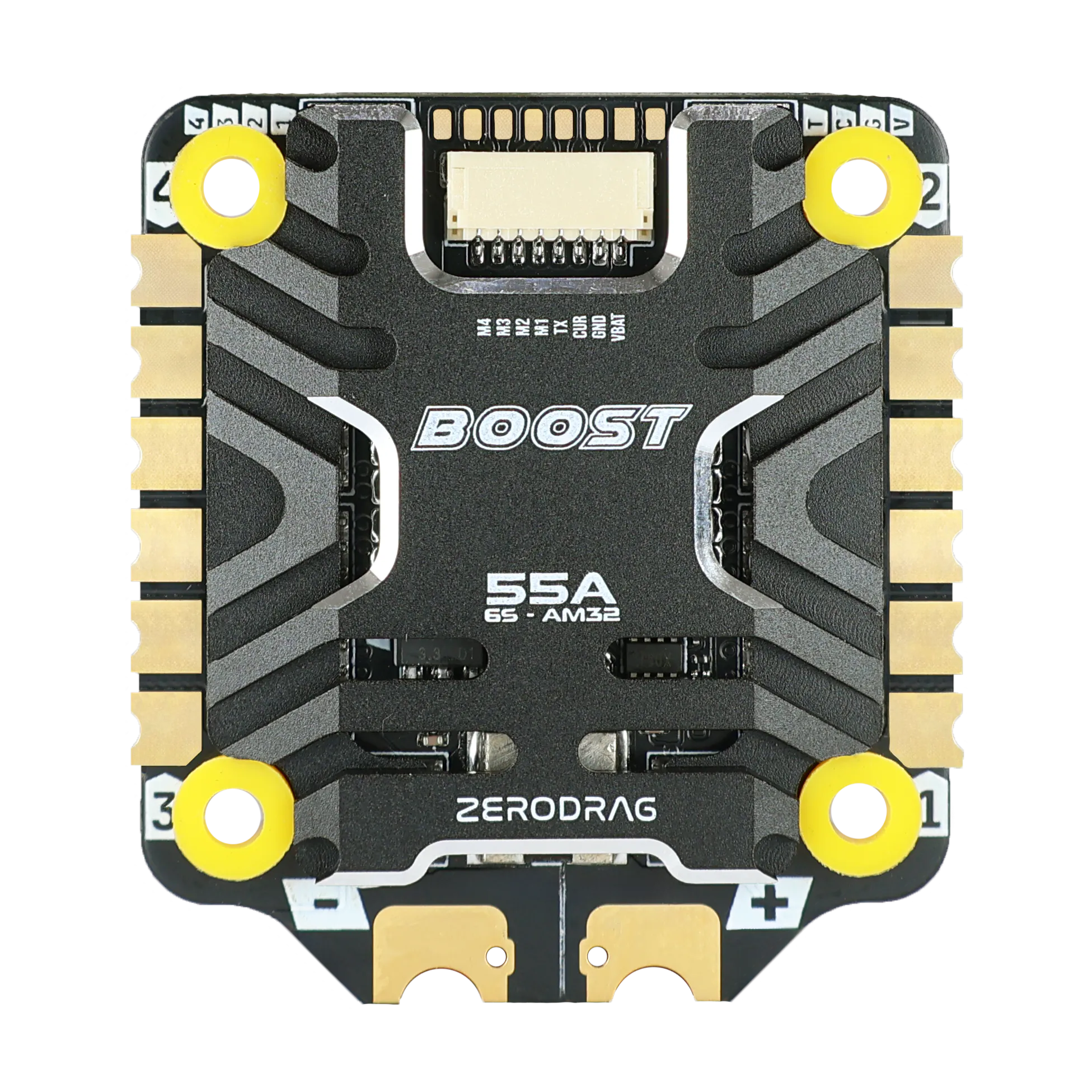

Zerodrag Warp Boost F7 Stack 55A 4-in-1 AM32 ESC

The Zerodrag Warp Boost stack combines an F7 flight controller with a 55A 4-in-1 AM32 ESC for compatible 5-inch freestyle builds. Its 30x30 mounting format suits standard stack layouts used in larger FPV frames.

Key features

• F7 processor flight controller for the stack's control board.
• 4-in-1 ESC with a 55A rating per ESC channel.
• AM32 ESC firmware for the integrated speed controller.
• 30x30 mounting pattern for compatible freestyle frames.
• Combines the flight controller and ESC in one stack arrangement.
• ICM42688P gyro on its own LDO regulator for low power noise, with a BMP280 barometer and 32MB blackbox.
• The ESC bursts to 65A and reports current and RPM telemetry.

Specifications

• Brand: Zerodrag
• FC processor: F7 (STM32F722)
• Gyro: ICM42688P
• Barometer: BMP280
• OSD: AT7456E
• Blackbox: 32MB
• UARTs: 6, with up to 8 motor outputs
• BEC: 5V 3A, 10V 2.5A, 3.3V 500mA
• Input voltage: 3-6S LiPo
• Mounting size: 30.5 x 30.5 mm (FC 4 mm holes, ESC M3)
• ESC current: 55 A continuous, 65 A burst
• ESC firmware: AM32
• ESC type: 4-in-1
• FC size and weight: 37 x 38.5 x 7.1 mm, 9.35 g
• ESC size and weight: 44.2 x 39.4 x 5.8 mm, 12.5 g
• Supported firmware: Betaflight, INAV
• In the box: Warp F7 flight controller, Boost AM32 55A ESC, XT60H pigtail, 35V 1000uF capacitor, LED, camera, analog VTX, digital VTX, GPS, receiver and ESC cables, grommets, spacers, M3 screws and nuts

Check the frame clearance, wiring and battery range of the chosen build before fitting this stack.
