Zerodrag Nova-Boost F4 FPV Stack
₹8,099Incl. GST
SKU ZERODRAG-NOVABOOST-F4
Mounting Size: 30.5x30.5FC Processor: F405Gyro: ICM42688PESC Current: 55 A
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

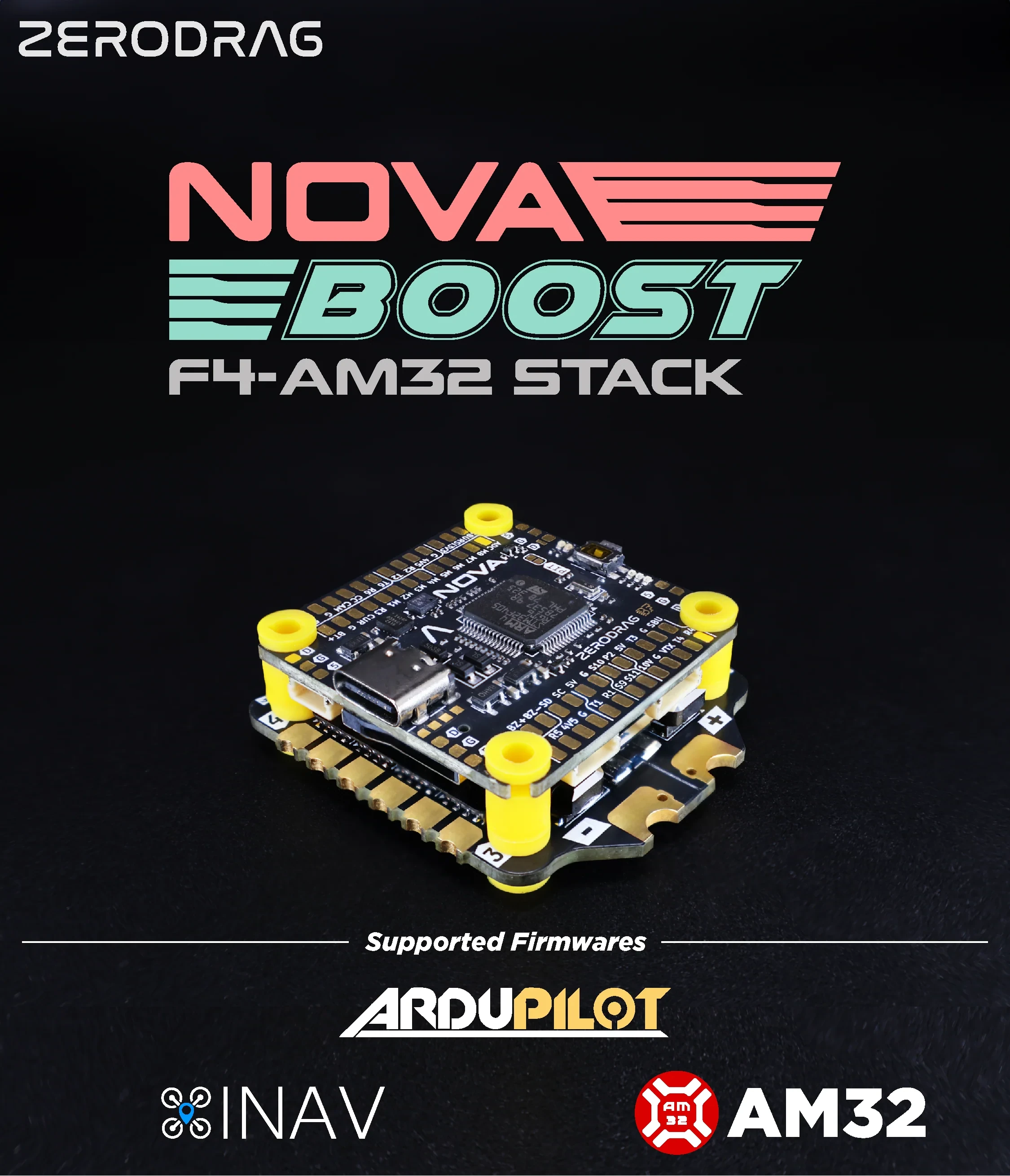

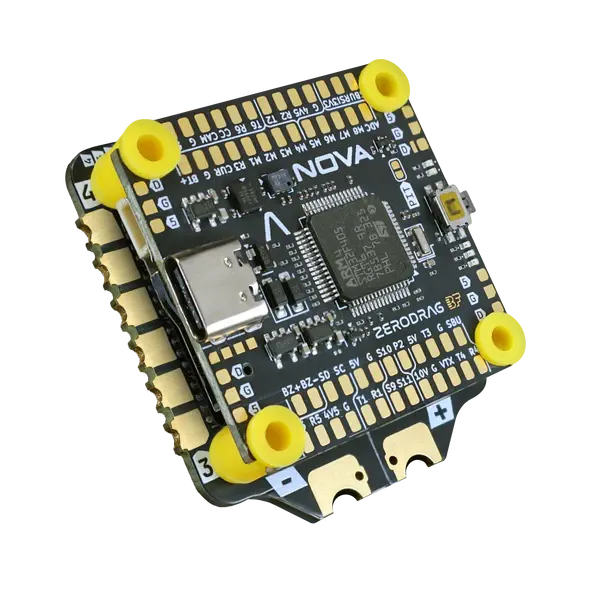

The Zerodrag Nova-Boost F4 is an Indian-made FPV stack pairing an STM32F405 flight controller with a 55A 4-in-1 ESC running AM32 firmware, built for freestyle, racing and cinematic quads on standard 30.5x30.5mm frames.
Key features

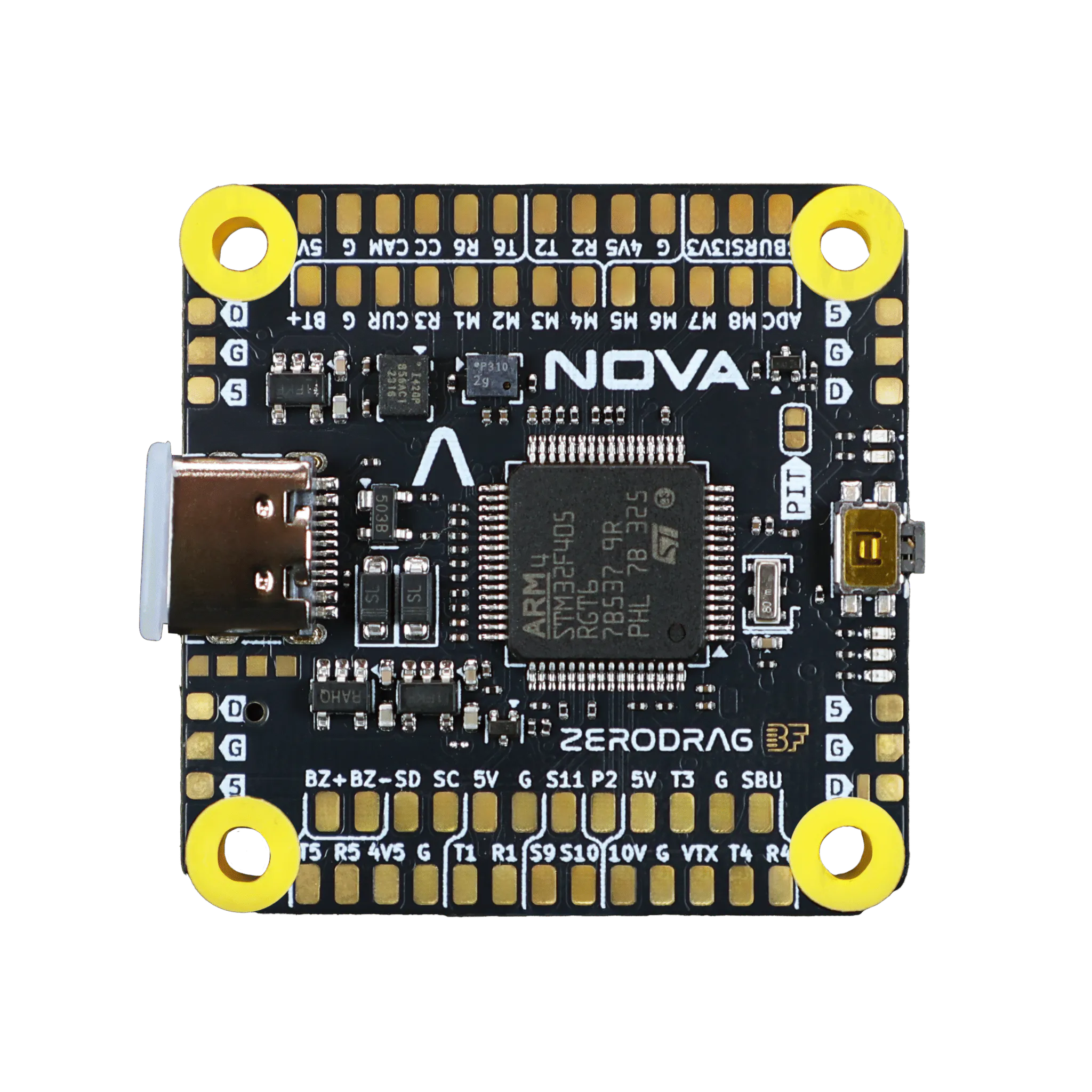

- STM32F405 processor with an ICM42688P gyro and BMP280 barometer for stable, low-noise flight data

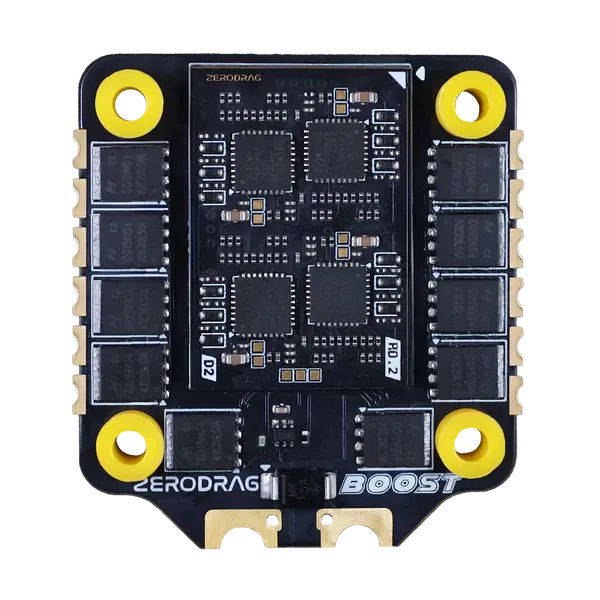

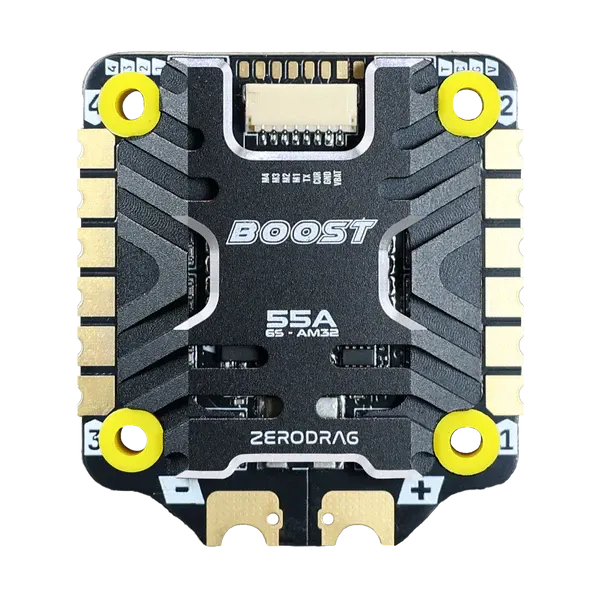

- 55A continuous 4-in-1 ESC on AM32 firmware for smooth throttle response, with ESC telemetry and current sensing
- Built-in heat sink and TVS diode protection guard the ESC against thermal stress and voltage spikes
- Runs on 3S-6S LiPo, covering lightweight freestyle builds through to heavier 6S setups

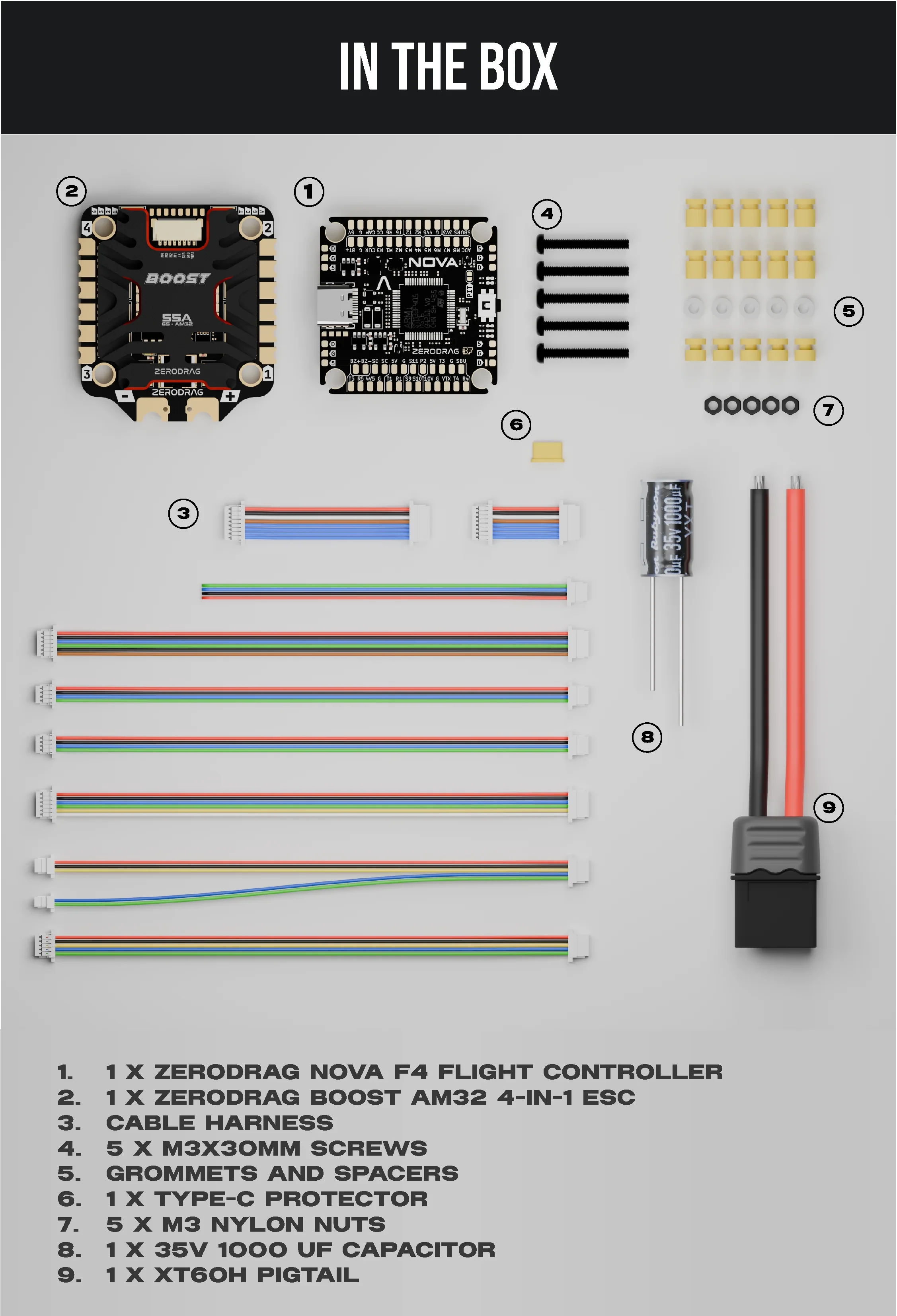

- Ships with an XT60 pigtail, a 35V 1000µF capacitor and mounting gummies for a complete install
Specifications
- FC processor: STM32F405
- Gyro: ICM42688P
- Barometer: BMP280
- ESC: 55A continuous, AM32 firmware
- Input voltage: 3S–6S LiPo
- Mounting size: 30.5x30.5mm
- UARTs: 6
- Supported firmware: Betaflight
Check your frame's stack bay and connector layout before ordering, since the 30.5x30.5mm mounting pattern needs matching standoff spacing.
| Mounting Size | 30.5x30.5 |
|---|---|
| FC Processor | F405 |
| Gyro | ICM42688P |
| ESC Current | 55 A |
| Input Voltage | 3–6S |
| Integrated Receiver | No |
| Integrated VTX | No |
| Made in India | Yes |
| Brand | Zerodrag |
| Supported Firmware | Betaflight |
| Barometer | Yes |
| UARTs | 6 |
| ESC Firmware | AM32 |
