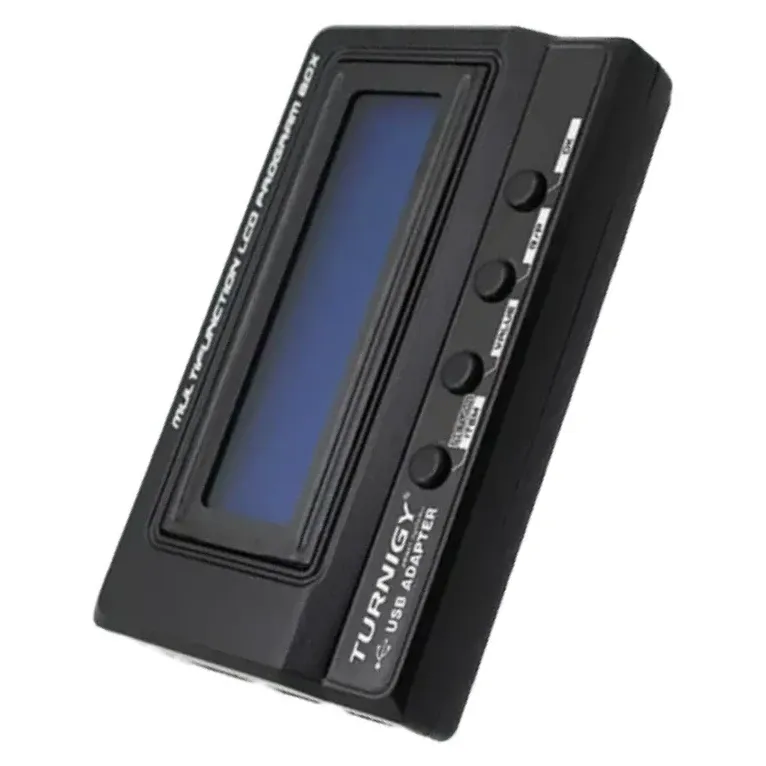

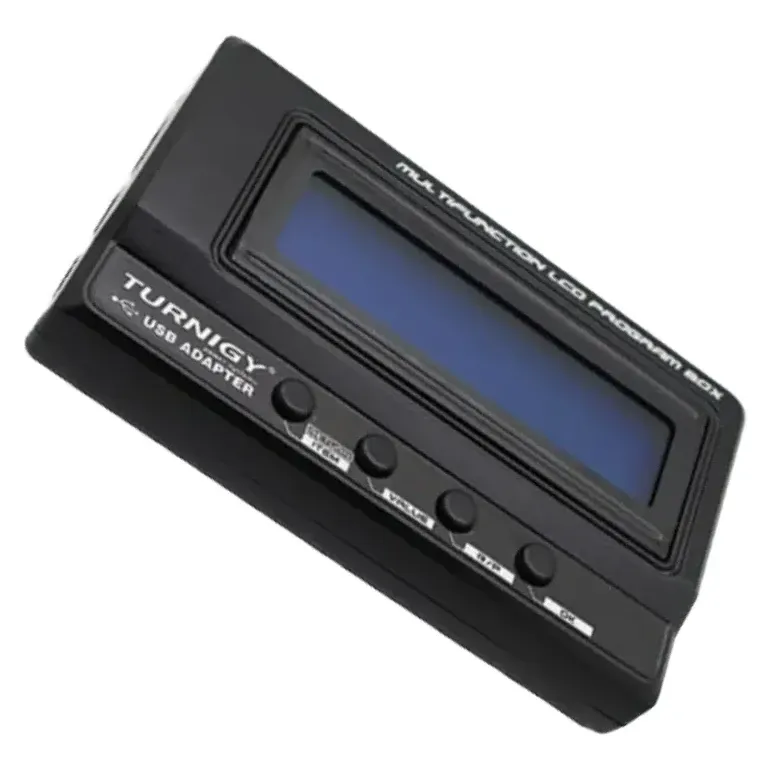

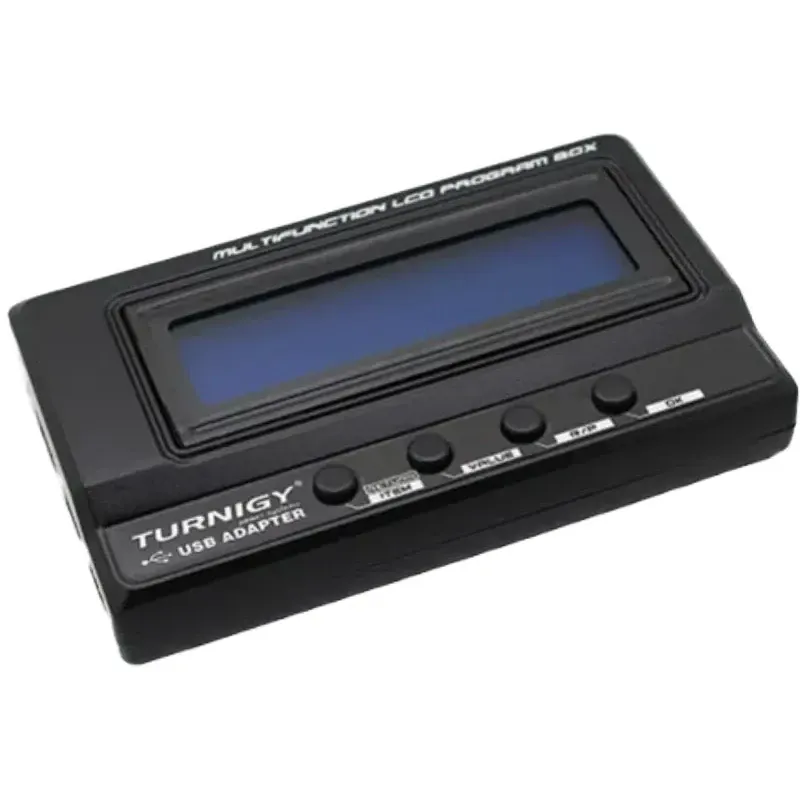

Turnigy Multifunction LCD ESC Program Box with USB Adapter

The Turnigy Multifunction LCD Program Box sets the programmable parameters of a compatible brushless ESC from a pocket-sized unit with a 16x2 character LCD, so settings can be changed at the flying field without a laptop. It also works as a USB link between the ESC and a PC, and as a LiPo voltage checker.

Key features

• Standalone programming: every ESC parameter and its current option are shown on the box's own screen, so you can step through and save settings with no computer.
• USB adapter mode: connects the ESC to a PC to update its firmware or change settings in the ESC maker's software.
• LiPo voltmeter: reads the voltage of the whole pack or of each individual cell.
• Speed calculator: included in the PC software; it works with Turnigy K-Force series ESCs only.

Specifications

• Display: 16 x 2 character LCD

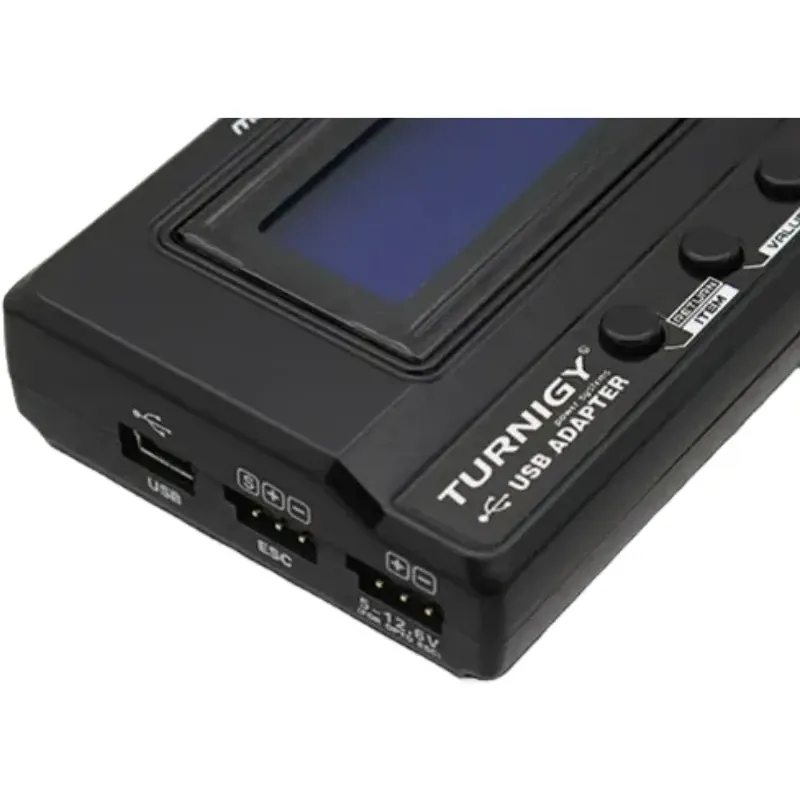

• Interfaces: Mini USB; ESC port and power input, both Futaba/JR-type plugs
• Input voltage: 4.5-12.6 V
• Dimensions: 90 x 51 x 17 mm
• Weight: 65 g

The box normally takes power from the ESC's BEC; if your ESC has no built-in BEC, feed the power input from a separate 4.5-12.6 V source such as a 2S or 3S LiPo. It only programs ESCs that support this type of LCD program box, so check your ESC's manual for program-box support before buying.
