Skystars FPV LED Board Set with Control Panel (8pcs)

The Skystars FPV LED board set adds eight LED boards and a control panel to compatible drone builds. It suits FPV pilots who want integrated lighting with a dedicated control interface.

Key features

• Eight LED boards included in the set.

• Dedicated control panel included.

• Designed for FPV drone lighting installations.

• Useful for adding visible lighting to compatible frames and builds.

• Check available mounting space and wiring requirements before installation.

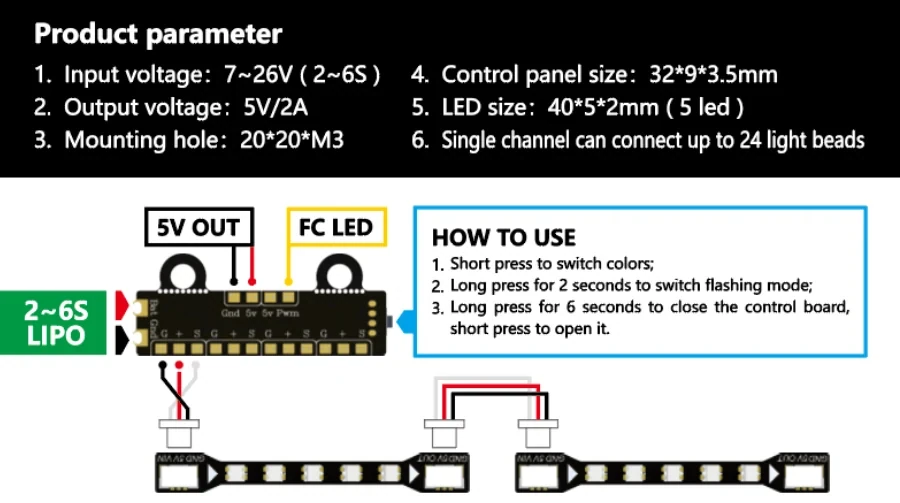

• The control panel switches the LEDs on and off and sets flash mode and colour.

• Runs from the flight battery (2-6S) and supplies the boards with a regulated 5 V.

Specifications

• Board quantity: 8

• Control interface: Included control panel

• Input voltage: 7-26 V (2-6S)

• Output voltage: 5 V / 2 A

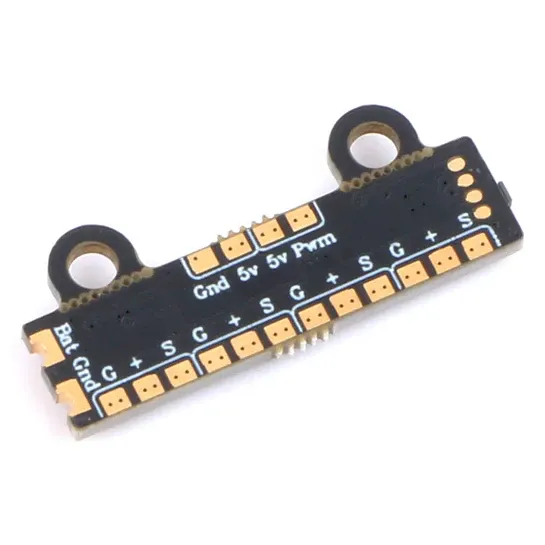

• Control panel mounting: 20 x 20 mm, M3

• Control panel size: 32 x 9 x 3.5 mm

• LED board: 40 x 5 mm, 5 LEDs each

• Capacity: up to 24 LEDs per channel

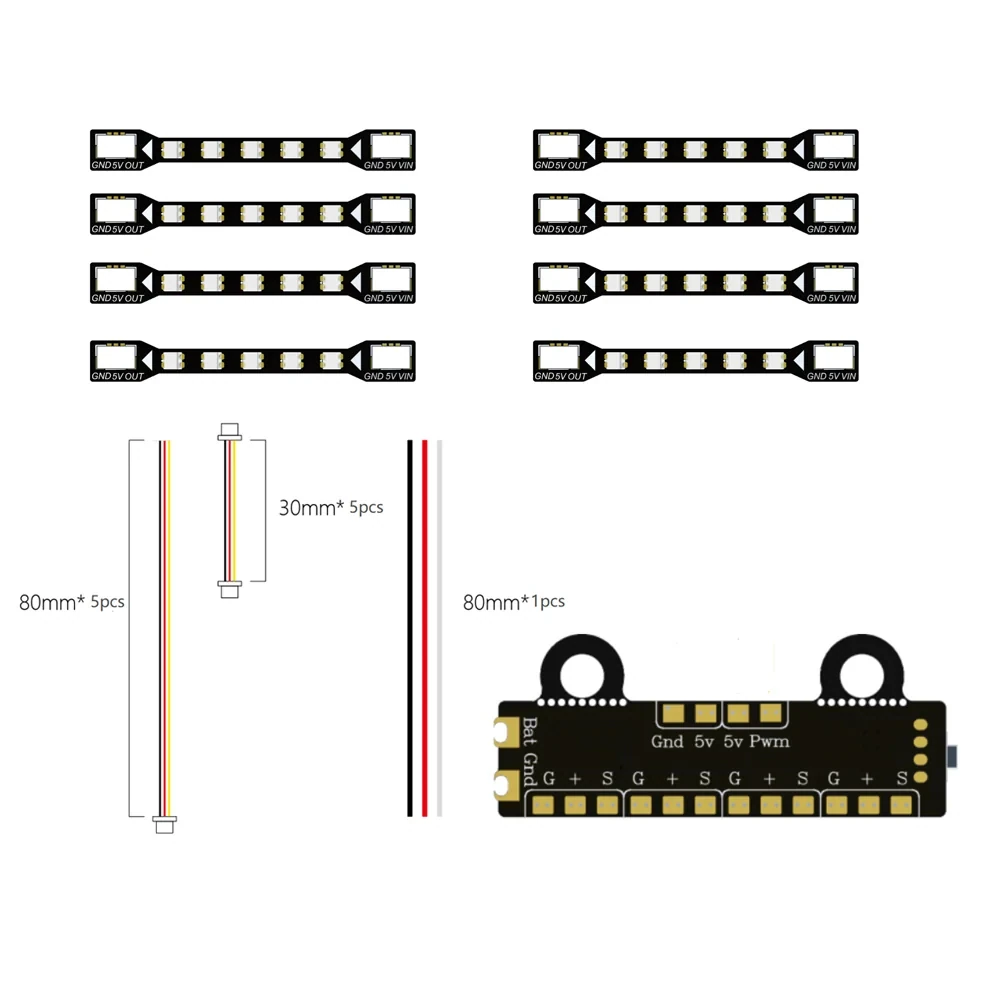

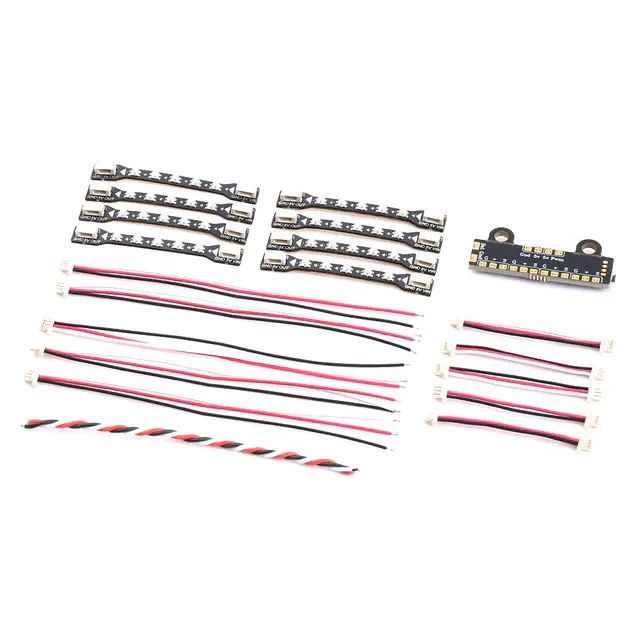

• In the box: 8x LED boards, 1x control panel, 5x 80 mm and 5x 30 mm wire extensions, 1x 80 mm silicone wire

Plan the board positions and wiring path around the frame before fitting the set.
