TrueRC X2-AIR 5.8 MK II Combo Core for HDZero Goggles V1/V2 (RHCP)

A complete goggle antenna upgrade for HDZero Goggles V1/V2: two TrueRC X2-AIR 5.8 MK II directional patches paired with two CORE omnidirectional antennas, all RHCP, plus slide-on mounts for the goggle rails. The patches push range out in front while the CORE omnis hold the link when the quad flies close or behind you.

Key features

• 13 dBic gain from each dual-element X2-AIR patch
• 165° combined horizontal coverage with both patches mounted on the goggles
• 5.1–7.0 GHz bandwidth covers the whole 5.8GHz FPV band
• Low-profile 15 mm patch housings with custom knurled SMA connectors that tighten by hand
• Slide-on mounts locate the patches on the HDZero goggle rails

Specifications

• Polarisation: RHCP
• X2-AIR gain: 13 dBic
• X2-AIR bandwidth: 5.1–7.0 GHz
• X2-AIR coverage: 150° horizontal / 62° vertical per antenna
• X2-AIR beam width at −3 dB: 75° horizontal / 34° vertical
• Connector: custom knurled SMA
• X2-AIR dimensions: 72 × 34 × 15 mm each
• X2-AIR weight: 20 g each
• Country of origin: Canada

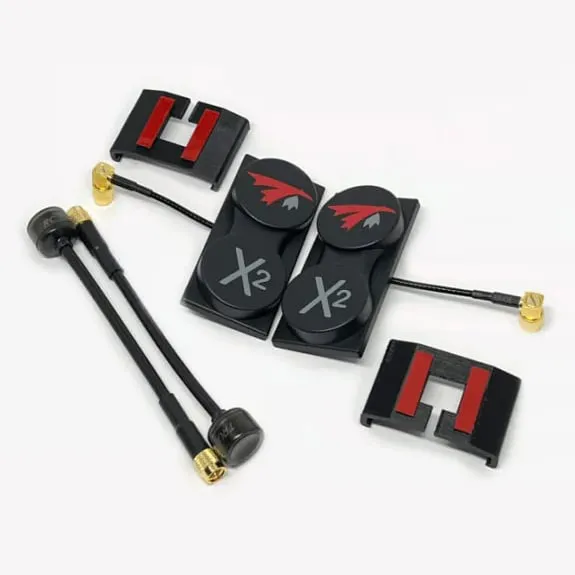

• In the box: 2 × X2-AIR patches, 2 × CORE omni antennas, 2 × slide-on mounts (goggles not included)

Match polarisation on the quad by running an RHCP antenna on the VTX. The gain, coverage and size figures above describe the X2-AIR patches, not the CORE omnis.
