X-AIR 5.8 MK II Antenna Pair for Walksnail X

The TrueRC X-AIR 5.8 MK II is a premium directional patch antenna array custom-engineered to integrate directly with the Walksnail Avatar HD Goggles X. Utilising custom knurled RP-SMA connectors, these low-profile antennas thread directly onto the front faceplate ports without adapters, preserving the goggles' clean aesthetics. Delivering up to 10.5 dBic of gain per element, this array punches through foliage and drastically extends the range of your Walksnail digital video link while maintaining an exceptionally wide 120-degree flight window.

Key features

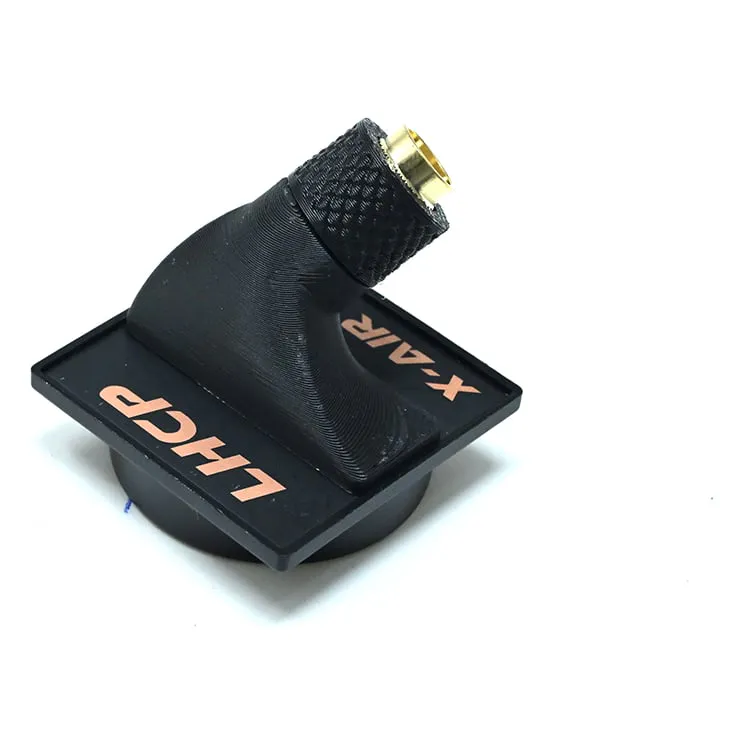

• Direct Walksnail X integration: Custom knurled RP-SMA connectors sit flush against the Goggles X faceplate, eliminating fragile coax pigtails.
• High-penetration gain: Up to 10.5 dBic provides substantial range improvements over stock antennas for freestyle and long-range flying.
• Wide coverage window: A massive 120-degree overall beamwidth (68 degrees at -3dB) minimises the narrow "tunnel vision" typical of high-gain patches.

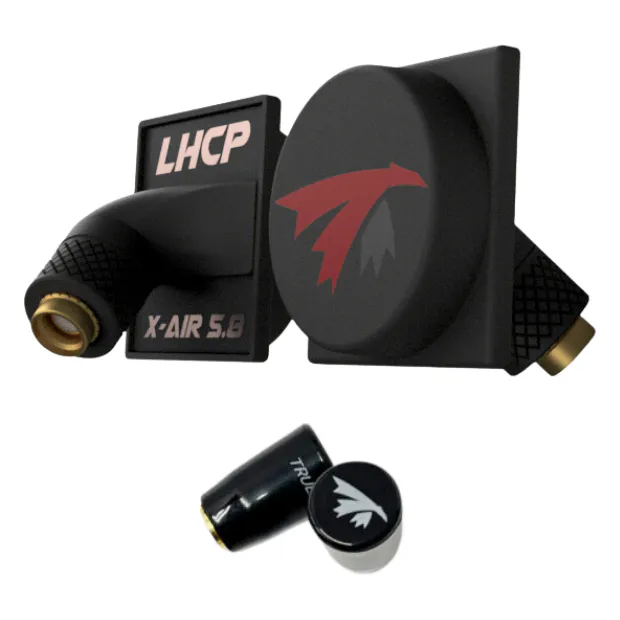

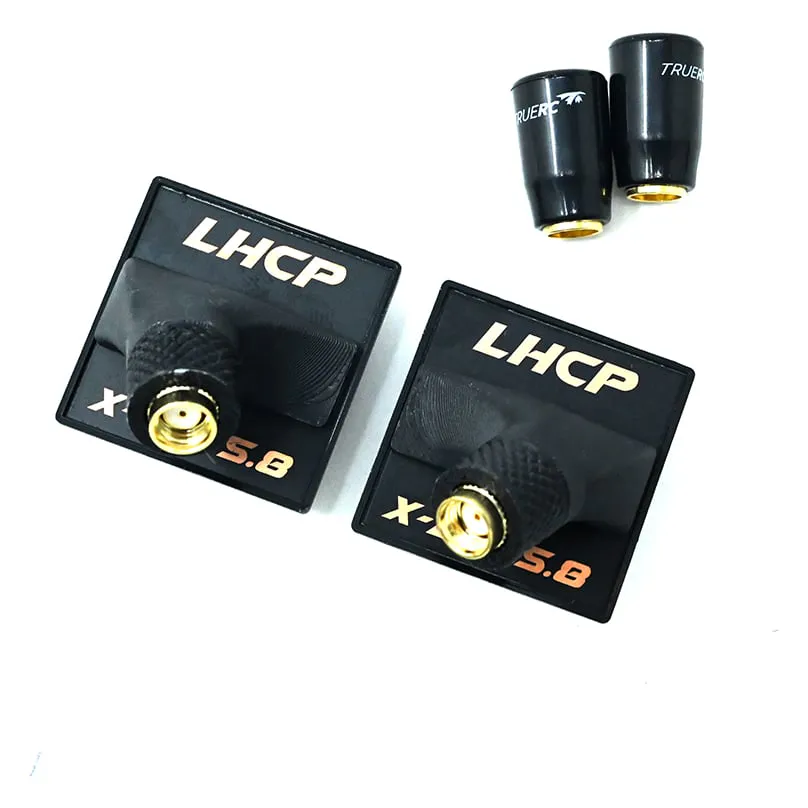

• Two configurations: Available as a standalone directional pair or as a complete Combo including two matching LHCP stubby omnidirectional antennas for the top ports.

Specifications

• Bandwidth: 5.1GHz – 6.7GHz
• Gain: 9.5 – 10.5 dBic
• Polarisation: LHCP
• Beamwidth: 120° (68° at -3dB)
• Connector: RP-SMA (Custom knurled)

For optimal link stability, thread the X-AIR pair onto the forward-facing ports of your Goggles X to track your drone, and install omnidirectional antennas (such as the included stubbies in the Combo option) on the top ports to handle overhead and behind-the-pilot reception.
