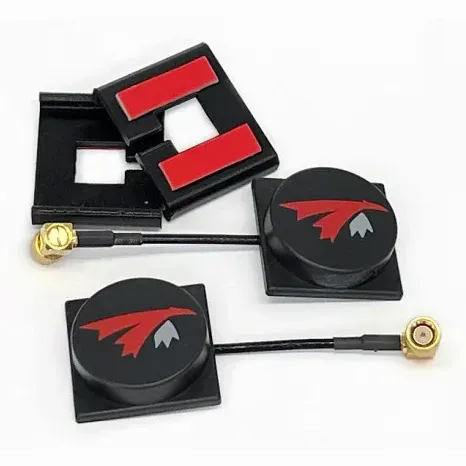

TrueRC X-AIR 5.8 MK II Antenna Pair for HDZero Goggles

A pair of TrueRC X-AIR 5.8 MK II directional antennas made for the HDZero goggles. The included slide-on mounts ride the goggles' own rails and the custom knurled SMA connectors screw on by hand, adding around 10 dBic of gain in a package only 15 mm thick. They suit long-range and wide-area HDZero flying, giving more video range without constantly aiming your head at the quad.

Key features

• 9.5-10.5 dBic gain across a 5.1-6.7 GHz bandwidth
• 120-degree beam over which reception at least matches an omni; 68 degrees at the -3 dB point, where at least 70% of maximum range holds
• Low profile: TrueRC's most compact antenna at this gain level
• Slide-on mounts that attach natively to the HDZero goggles' rails, included
• Knurled SMA male connectors for easy hand-tightening

Specifications

• Bandwidth: 5.1-6.7 GHz
• Gain: 9.5-10.5 dBic
• Beam width: 120 degrees (68 degrees at -3 dB)
• Polarisation: circular
• Connector: SMA male, knurled
• Dimensions: 32 x 32 x 15 mm each
• In the box: 2 antennas with slide-on rail mounts

TrueRC suggests adding a Singularity stubby or CORE omni alongside the X-AIRs for a complete antenna system that covers close-in flying as well as distance. The X-AIR MK II is built in RHCP and LHCP, so ask us which hand is in stock if your VTX antenna is LHCP.
