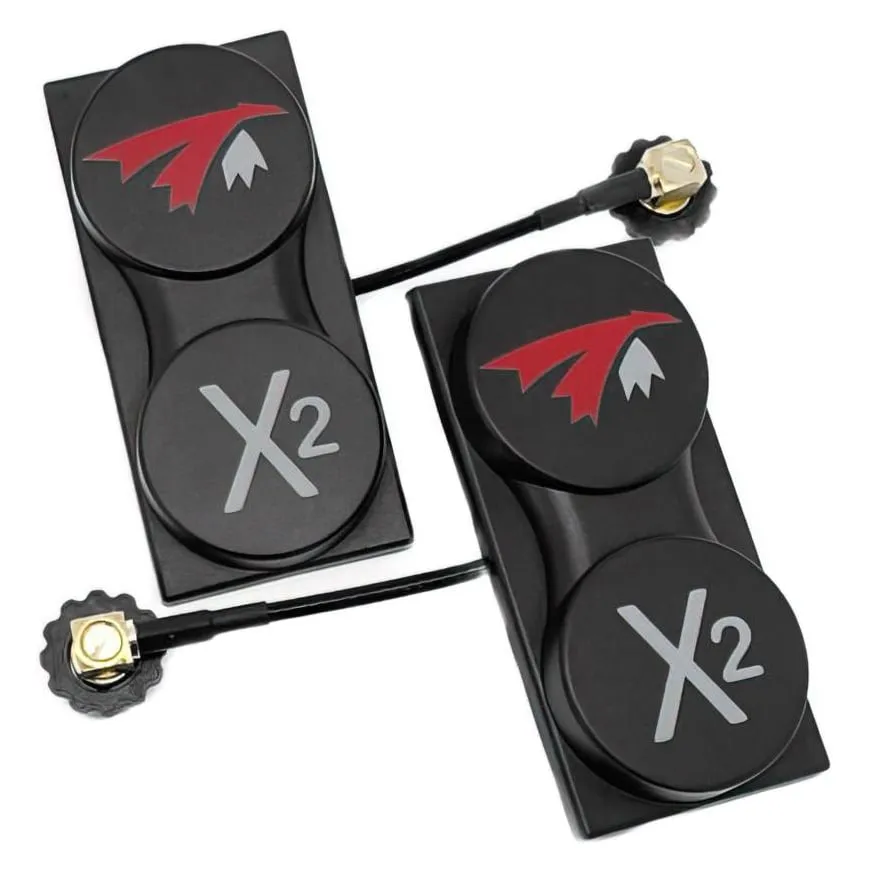

TrueRC X²-AIR 5.8GHz MK II Antenna for DJI Goggles (Set of 2, LHCP)

The TrueRC X²-AIR 5.8GHz MK II is a high-gain directional patch antenna set engineered specifically for DJI FPV Goggles (V1 and V2). Pushing a massive 13 dBic of gain, these LHCP arrays drastically extend the boundaries of your digital video link, punching through RF interference and providing deep penetration for long-range flights and heavy concrete environments.

Key features

• Massive 13 dBic gain for extended range and heavy obstacle penetration

• Custom-machined knurled RP-SMA connectors mount directly and flush to DJI FPV Goggles

• Ultra-wide 5.1–6.7GHz bandwidth ensures consistent performance across the full 5.8GHz band

• High cross-polar rejection (15–30dB) aggressively mitigates multipath signal bouncing

Specifications

• Gain: 13 dBic

• Polarisation: LHCP

• Bandwidth: 5.1GHz – 6.7GHz

• Beamwidth: 150° (45° @ -3dB)

• Cross-polar rejection: 15–30dB

• Connector: Custom knurled RP-SMA

Pair this dual patch set with compact omnidirectional stubbies on your remaining goggle ports to maintain close-range coverage while the X²-AIR arrays handle the long-range frontal cone.
