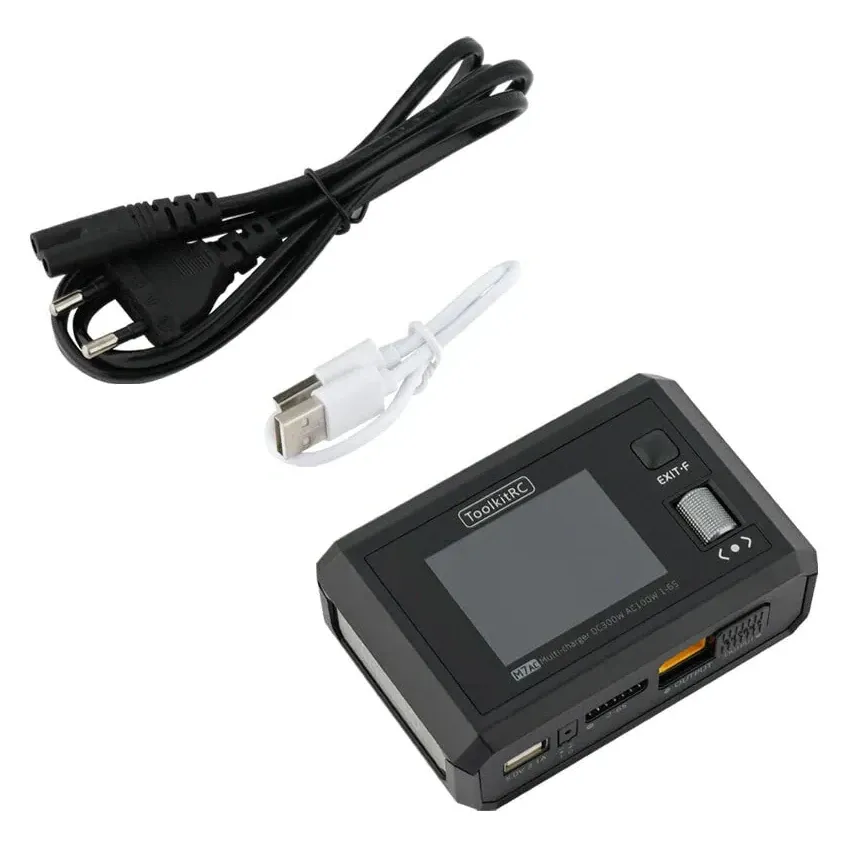

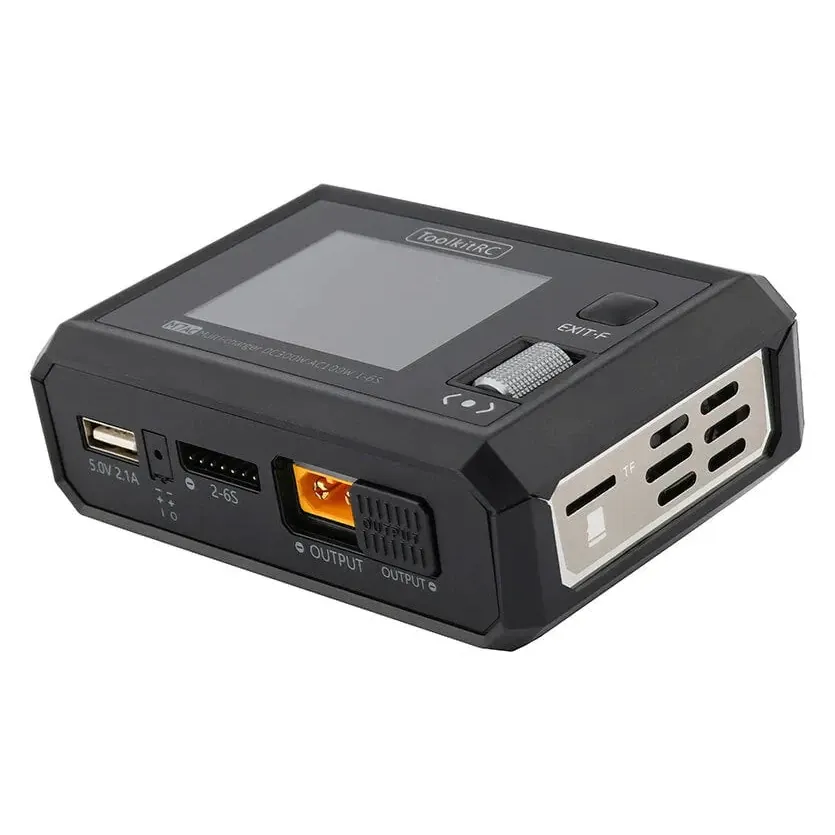

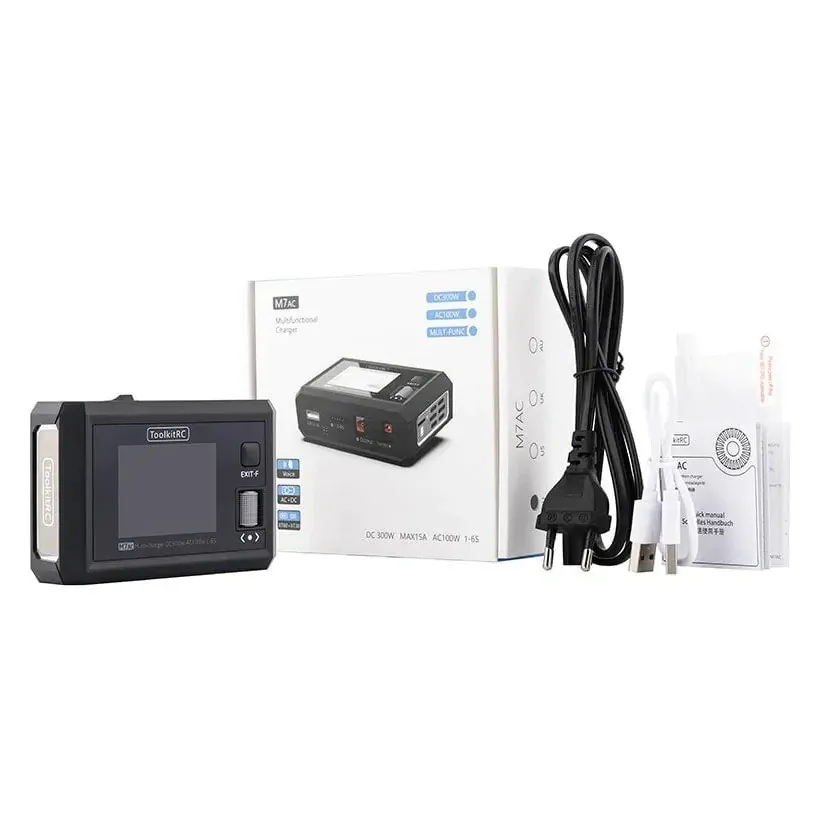

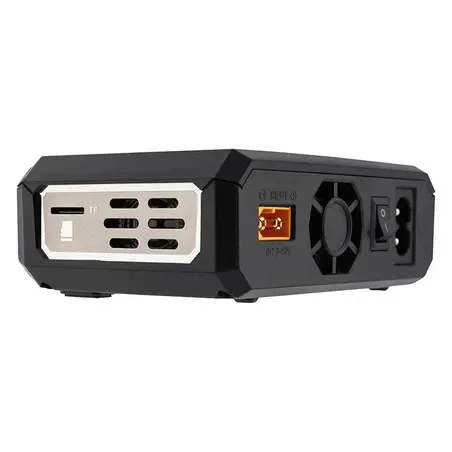

ToolkitRC M7AC 200W 15A 2-6S AC/DC Smart Charger

The ToolkitRC M7AC is a compact single-channel charger with both a mains supply and a DC input. On DC it delivers 200W at 15A, enough to fast-charge 4S and 6S FPV packs, and it plugs straight into the wall when no power supply is at hand.

Key features

• AC/DC input: 100-240V mains (up to 100W charging) or 7-28V DC for the full 200W
• Charges LiPo, LiHV, LiFe and Li-ion 1-6S, plus NiMH and lead-acid

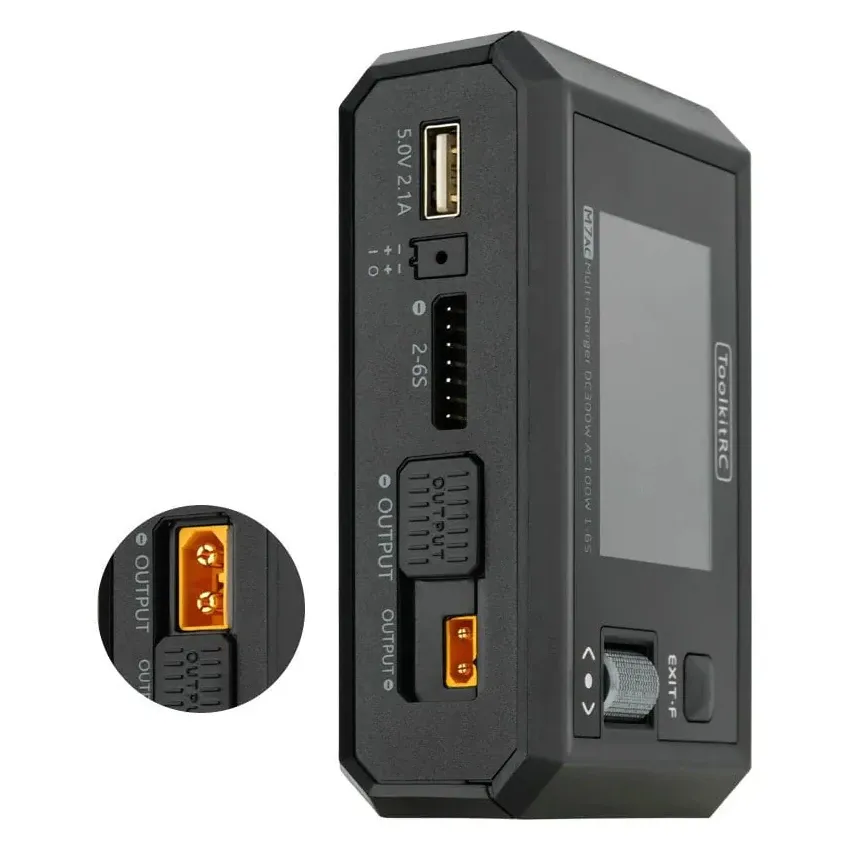

• Sliding connector doors switch the output between XT30 and XT60
• Cell checker, internal resistance meter and servo tester built in
• Reads and outputs PWM, PPM and SBUS for receiver testing
• Adjustable 1-28V, 1-10A DC bench supply and 5V 2.1A USB output

Specifications

• DC input: 7.0-28.0V, 12A max
• AC input: 100-240V, 100W max
• Charge power: 200W, 15A max
• Discharge: 200W / 10A recycle mode, 10W / 3A normal mode
• Balance current: 400mA, 2-6S
• Battery types: LiPo, LiHV, LiFe, Li-ion 1-6S; NiMH 1-16S; Pb 1-10S
• Display: 2.0-inch IPS, 320 x 240
• Size: 112 x 72 x 38 mm
• Weight: 245 g

On mains the charger is limited to 100W; feed it from a DC supply or field battery to charge at the full 200W.
