ToolkitRC M6DAC Pro 1-6S AC 300W / DC 800W 16A×2 Charger

The ToolkitRC M6DAC Pro is a dual-channel AC/DC smart charger for pilots who need to turn around packs quickly at the field or the bench. It draws up to 300W from AC mains or up to 800W (16A per channel) from a DC power supply, with a synchronous mode that combines both channels for a single high-current charge.

Key features

• Dual-channel charging and discharging across a wide range of chemistries: LiPo, LiHV, LiFe, Li-ion, LTO, NiMH and NiCd
• Synchronous mode merges both channels for up to 28A / 800W on a single large pack
• 65W USB-C output with PD, QC and other fast-charge protocols for topping up field devices
• 10W built-in wireless charging pad and a dynamic RGB light strip
• 2.8-inch IPS colour display with automated fan speed and full protection circuitry

Specifications

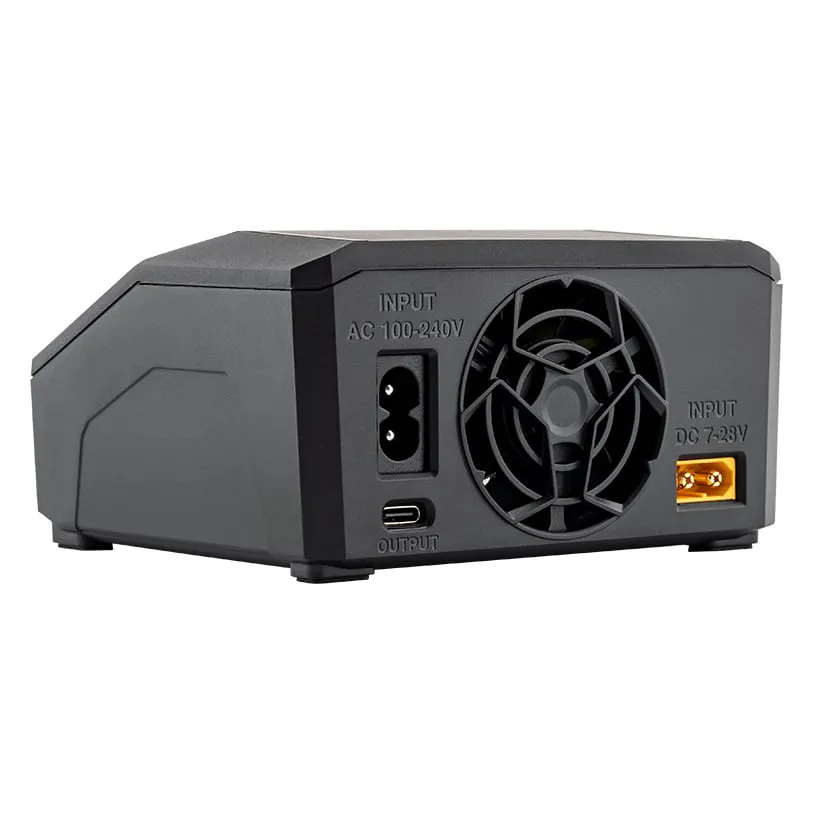

• Input voltage: AC 100-240V / DC 7-28V
• Charge power (DC): up to 400W per channel (16A), 800W in sync mode
• Balance current: 1000mA (2-6S)
• Supported chemistries: LiPo/LiHV/LiFe/Li-ion/LTO (1-6S), NiMH (1-16S), Pb (1-10S)
• USB-C output: 65W (PD3.0/PD2.0/PPS/QC/AFC/FCP)

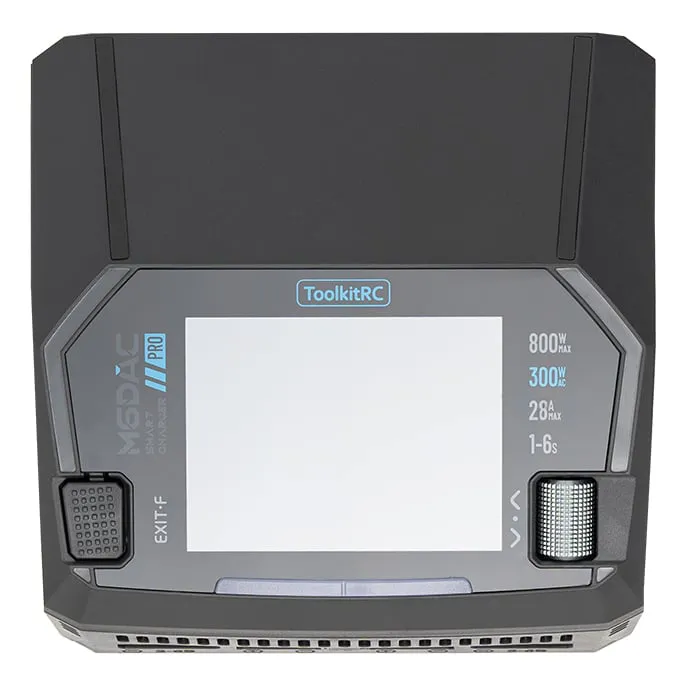

• Display: 2.8-inch IPS LCD, 320x240

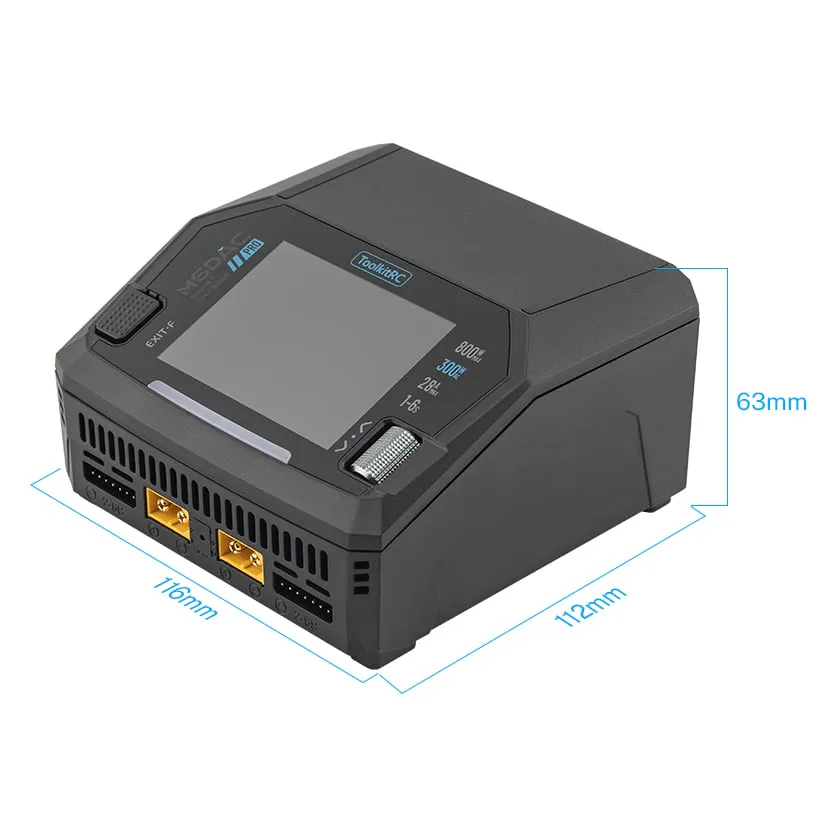

• Dimensions: 116 x 112 x 63mm
• Weight: approx. 600g

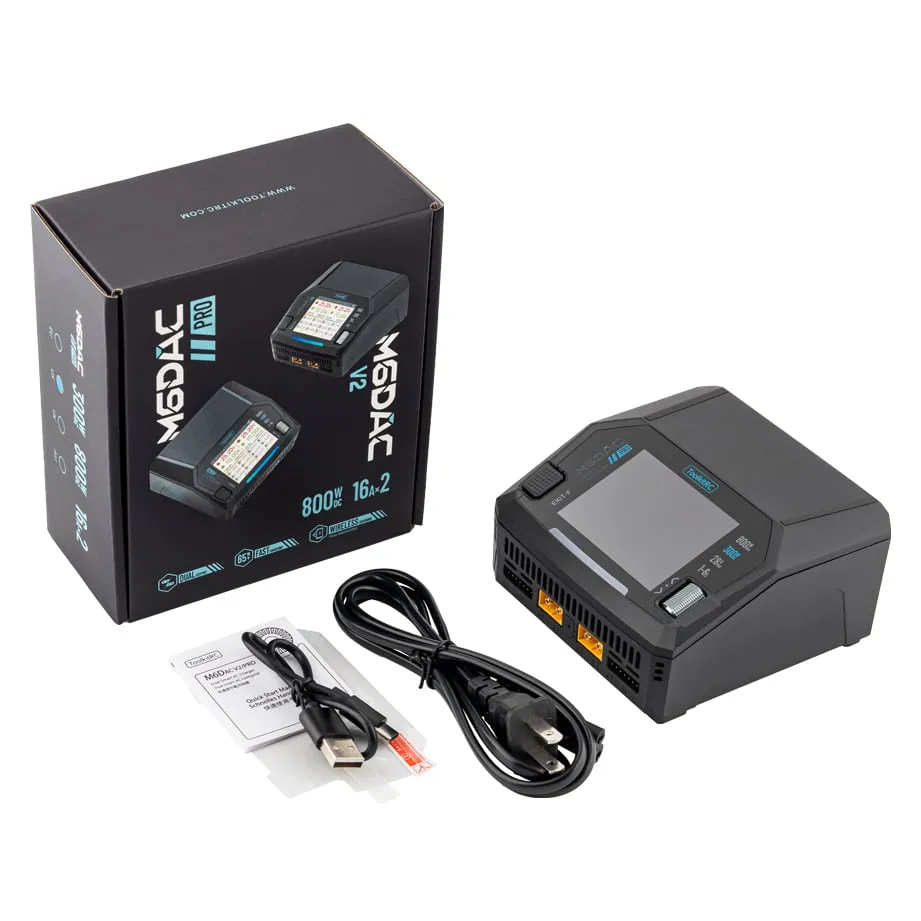

• In the box: charger, AC input cable, USB cable, quick manual, screen protector
