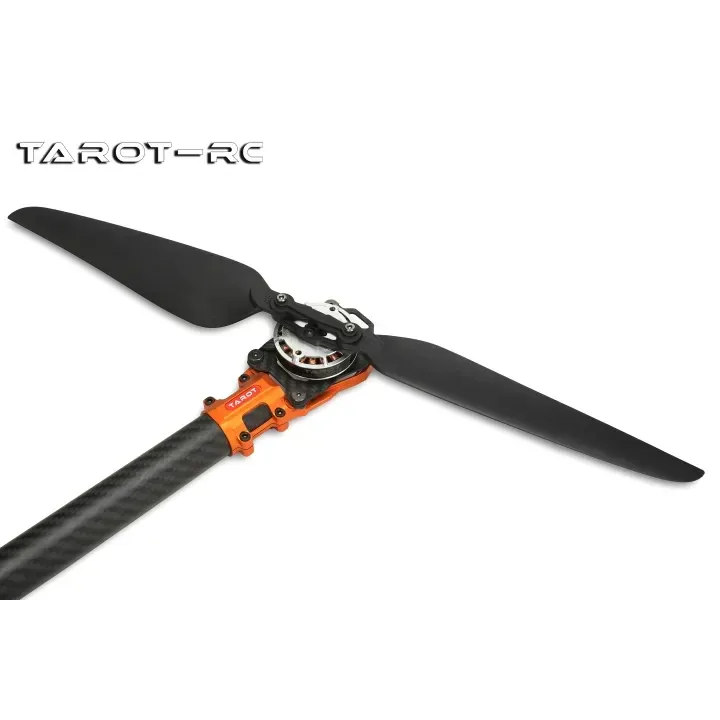

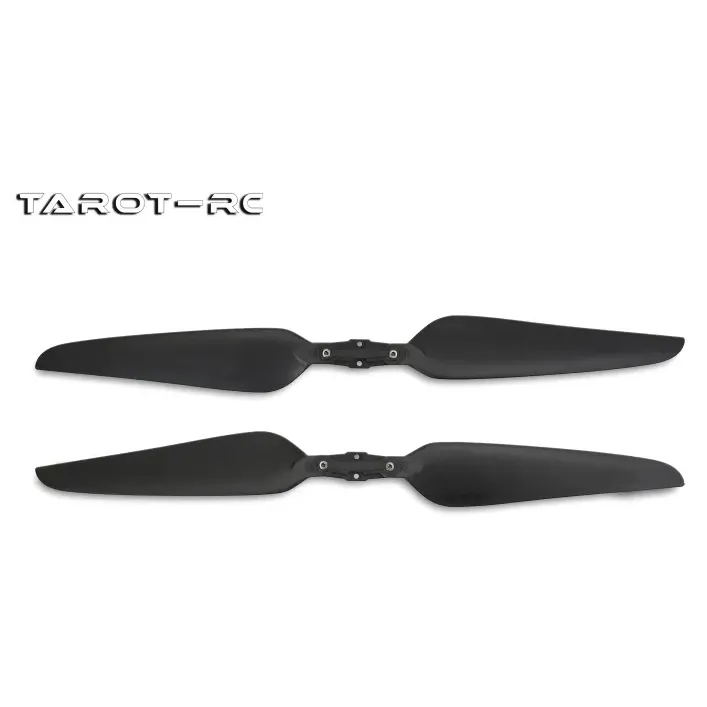

Tarot TL100D29 1565 15" Folding Propellers with Clamp Holders (CW+CCW)

A complete 15-inch folding propeller set from Tarot: one CW and one CCW propeller, each with its clamp holder, for multirotor UAVs such as quadcopters and hexacopters. The holders mount on any motor with 12 mm symmetrical screw-hole centres and a Φ4 mm shaft.

Key features

• 15 x 6.5 inch blades, per the 1565 model code, on an optimised airfoil Tarot rates at over 10% efficiency gain
• High-strength engineered material gives good flexibility and airfoil stability, with extra power reserve
• Clamp holders fit all motors with 12 mm symmetrical screw-hole centres
• Light: about 33.2 g per pair including the clamps
• Moulds made on MIKRON five-axis machining centres in Switzerland

Specifications

• Model: TL100D29
• Diameter: 15 in
• Pitch: 6.5 in
• Total span: 382 mm
• Motor shaft: Φ4 mm
• Motor screw-hole spacing: 12 mm, symmetrical
• Propeller mounting hole: Φ3 mm
• Blade thickness: 4.5 mm
• Weight: approx. 33.2 g per pair with clamps
• In the box: 1 × CW and 1 × CCW propeller with clamp holders

Order two sets for a quadcopter or three for a hexacopter. Before each flight, check that the clamp screws are tight and that both blades swing out fully and evenly.
