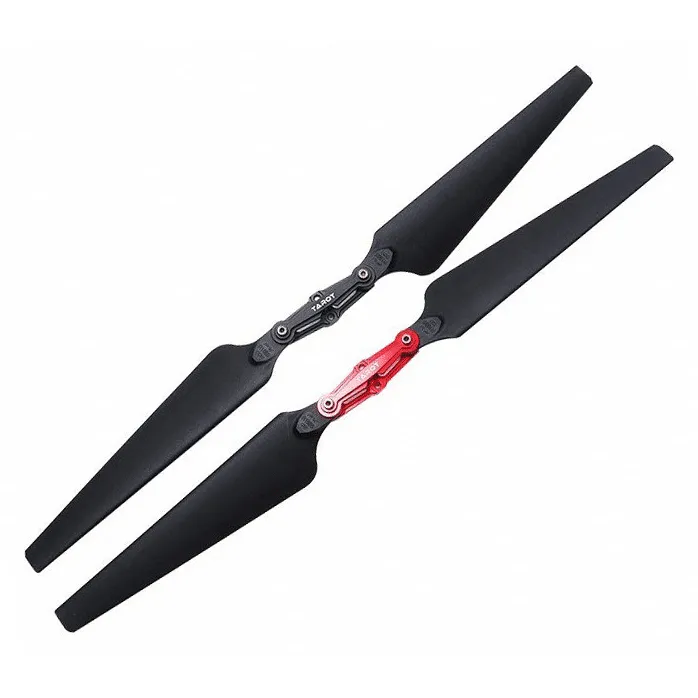

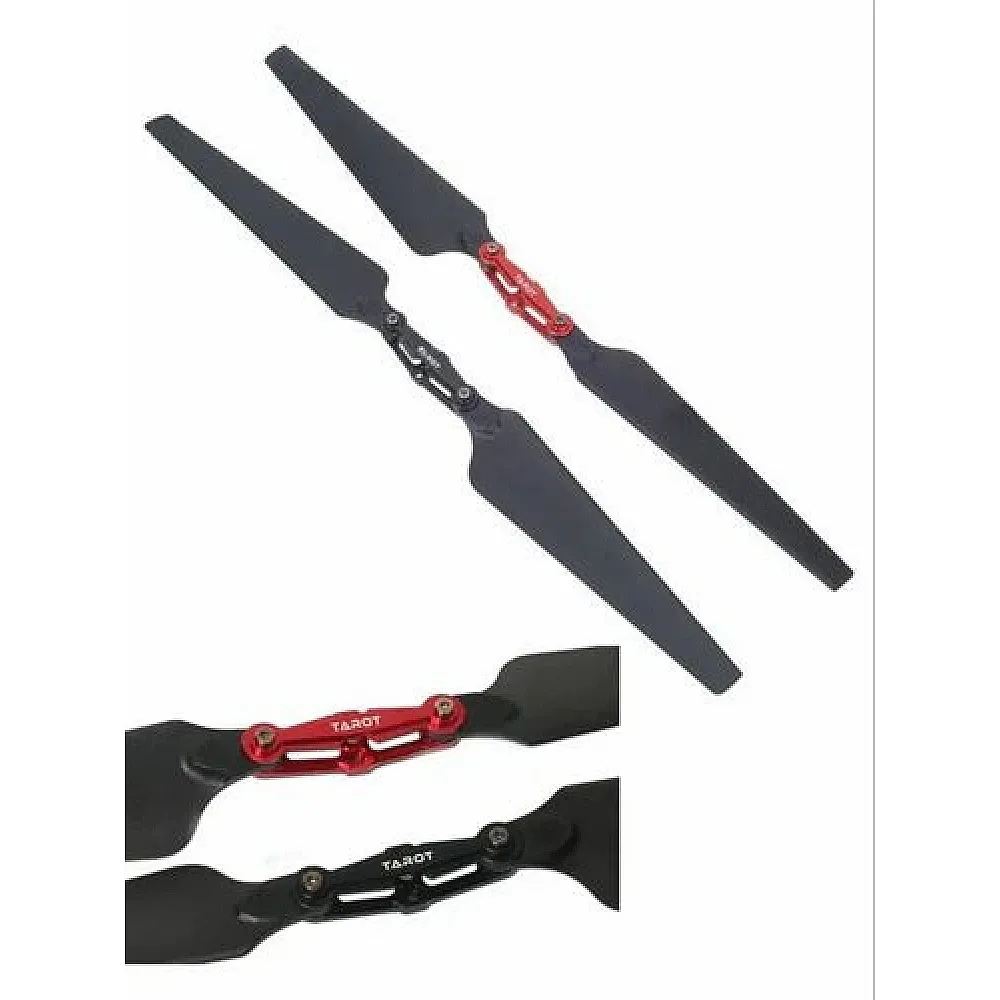

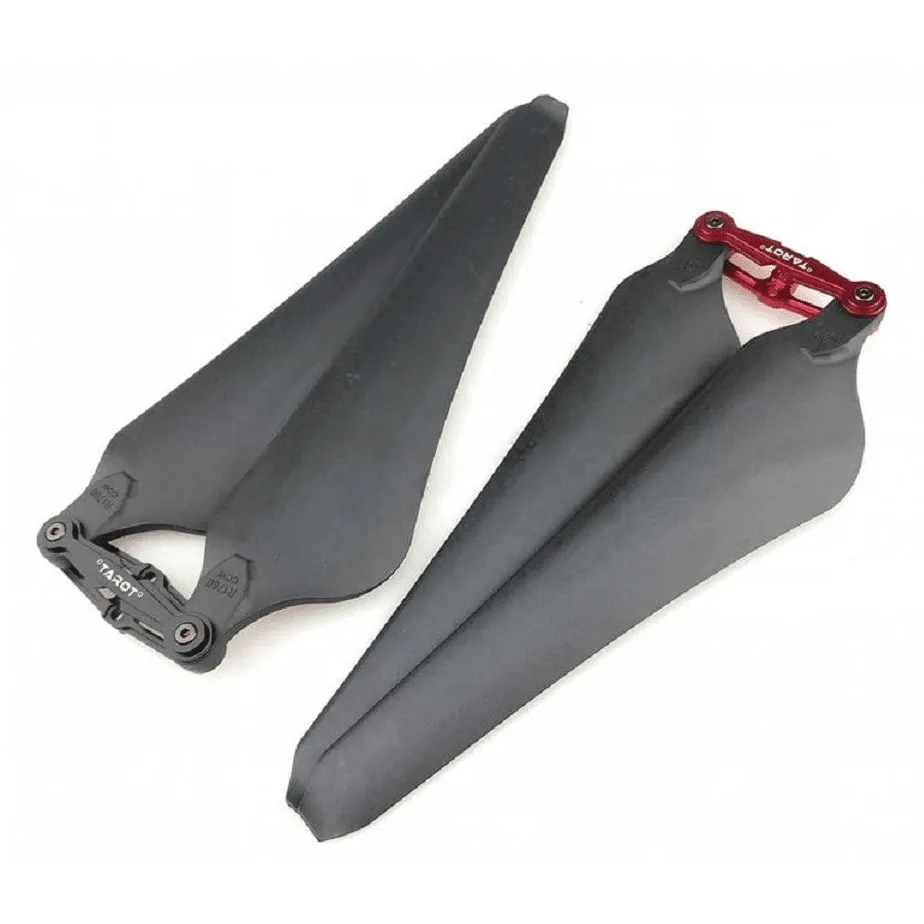

Tarot TL100D10 1760 17" Folding Propellers with Metal Holders (CW+CCW)

Tarot's 1760 high-efficiency folding propellers, sold as a CW/CCW pair with metal folding brackets, for quadcopter and hexacopter UAVs running 17-inch props. They suit heavy-lift camera, mapping and inspection airframes that need folding props to stay compact in transport.

Key features

• 17 x 6 inch geometry, per the 1760 model code, on a newly optimised airfoil
• Tarot rates the design at over 10% efficiency gain with ample power reserve
• High-strength engineering material keeps the blades flexible while holding the airfoil stable

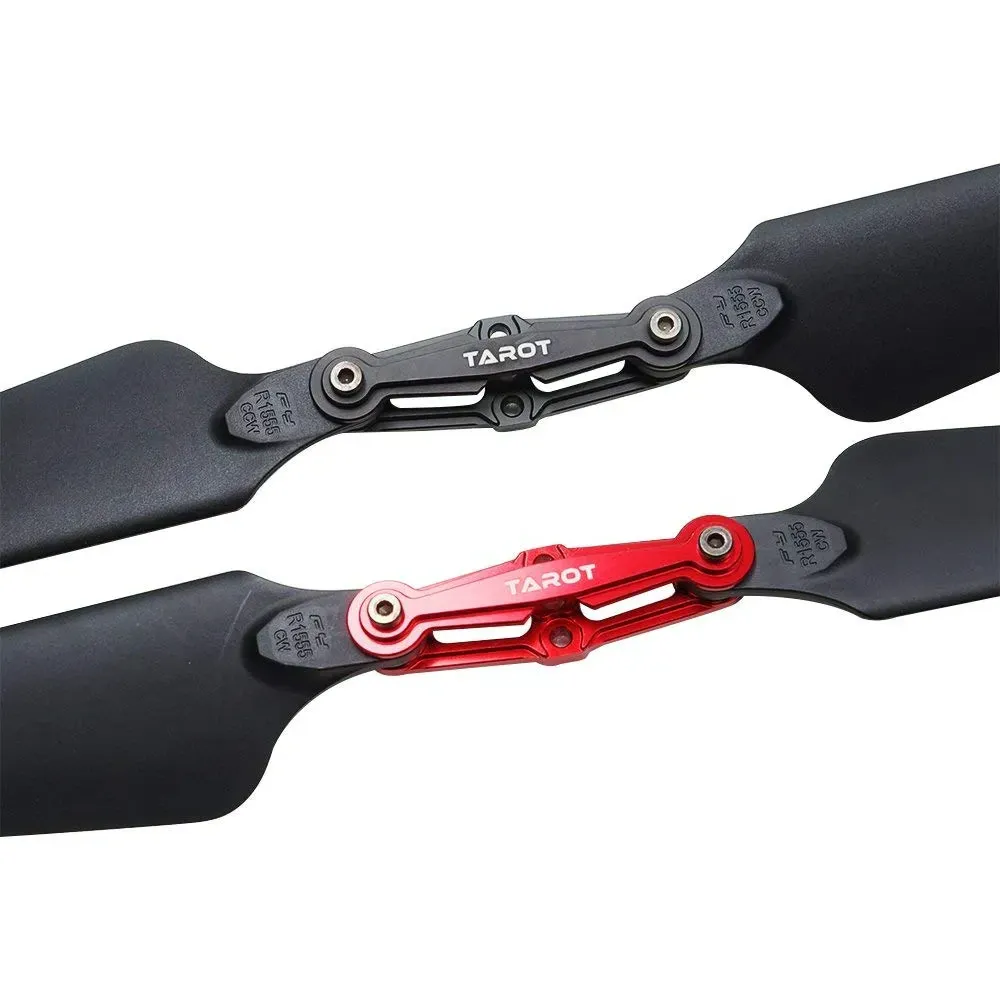

• Two-piece metal folding brackets (upper and lower) for each propeller, plus a screw set
• Moulds made on a Swiss MIKRON five-axis machining centre for consistent blade profiles

Specifications

• Model: TL100D10
• Diameter: 17 in
• Pitch: 6 in
• Blade length: 207 mm
• Weight: 23 g per propeller
• Centre hole: Φ3.0 mm
• Mounting thickness: 5.35 mm

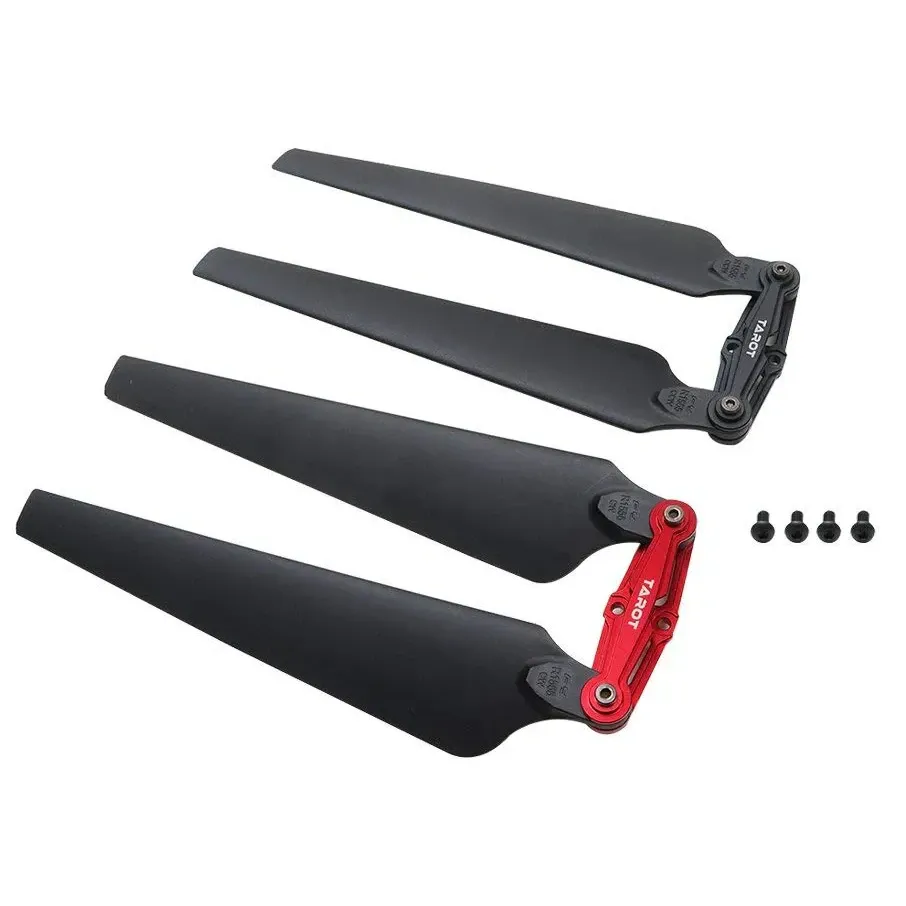

• In the box: 1 × CW propeller, 1 × CCW propeller, 2 × upper metal brackets, 2 × lower metal brackets, 1 × screw set

One pack covers two motors: order two for a quadcopter, three for a hexacopter. Check that the bracket's hole pattern matches your motor's prop mount, and set the pivot screws so each blade folds freely without play.
